LTSD-4 Russian Laser Rangefinder/Designator
LTSD-4
Lightweight Laser Designator Rangefinder (LLDR)
Other
Basic Information
Name
LTSD-4 Russian Laser Rangefinder/Designator
Designation
LTSD-4
Alternate Designation
LTSD-4
Equipment Type
Lightweight Laser Designator Rangefinder (LLDR)
Manufacturer
—
Date of Introduction
2014
Description

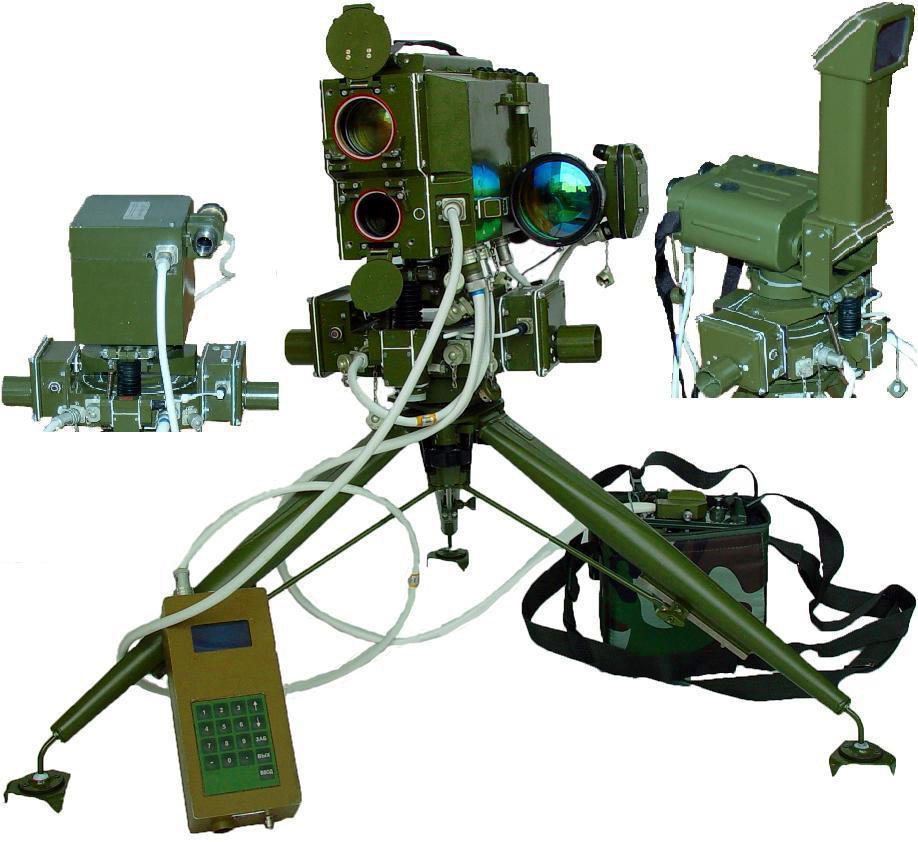

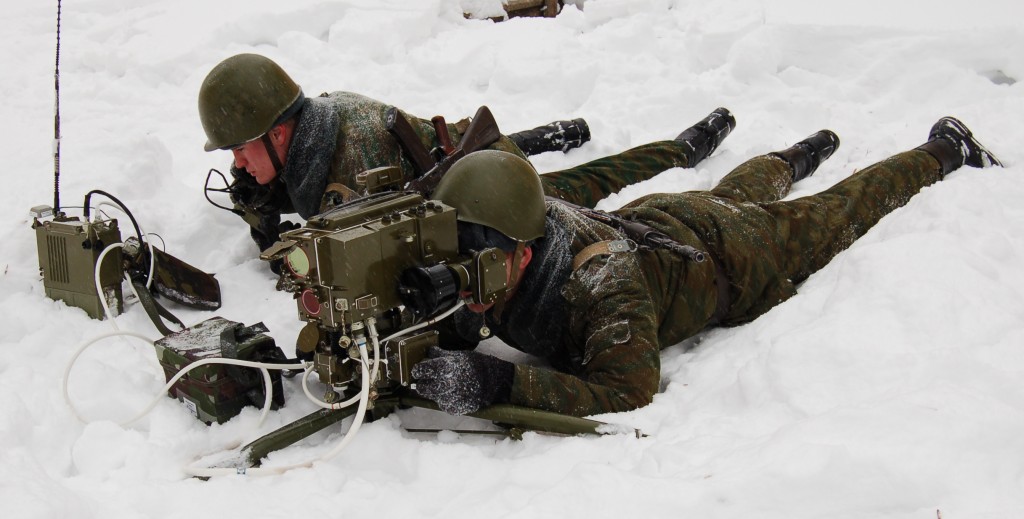

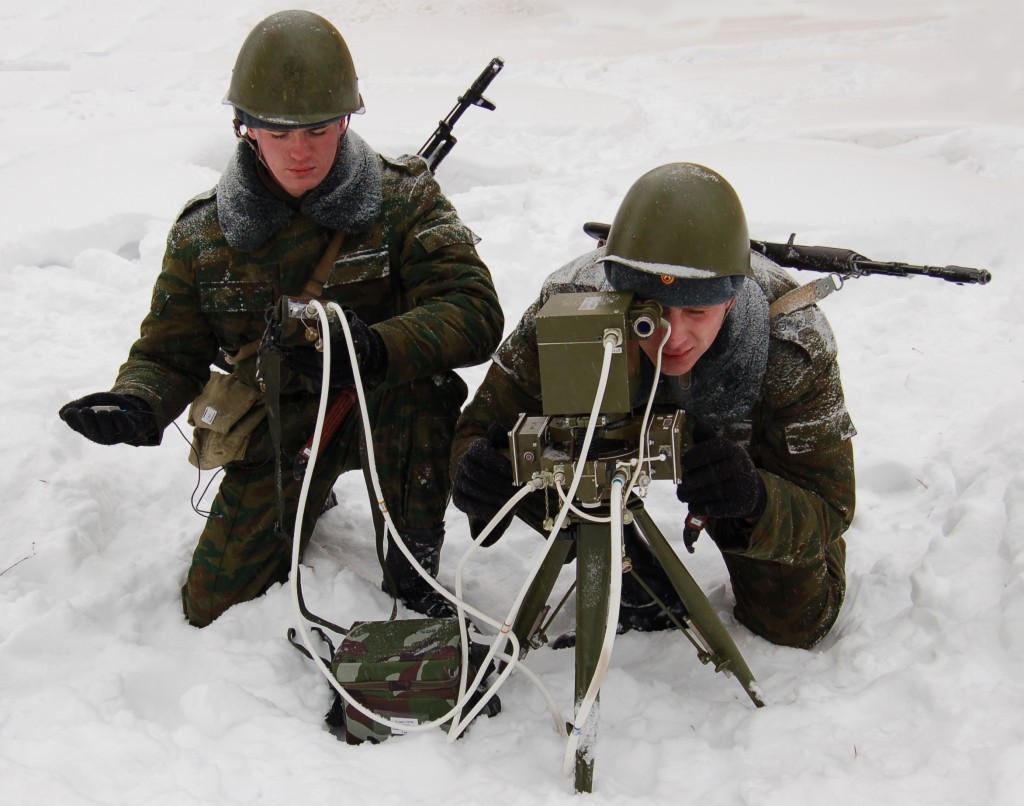

The LTSD-4 Laser Rangefinder/Designator is designed for ground target reconnaissance, correction of artillery and air firing in daylight and at night including the use of high-accuracy ammunition fitted with laser homing heads when illuminating the stationary and moving targets, military equipment and offensive fortifications by a laser light from ground observation points. It may be also used in automated fire control systems.
Ground Specifications
Crew
2
System
Alternative Designation
LTSD-4
Type
Laser Rangefinder/Designator
Crew
2 ea
Tank-sized target in the daytime
5,000...7,000 m
Surface Target in the daytime
5,000...15,000 m
Tank-Sized Target at Night using Night Vision
1,000...3,000 m
Tank-Sized Target at Night using Thermal Imager
3,000...4,000 m
Measurement Range at 5m Accuracy
100...20,000 m
Boresight magnification
x10
Field of view
5°
Dioptric adjustment
±5 diopters
Maximum duration of laser designation, Artillery Mode
15 sec
Maximum duration of laser designation, Air Mode
100 sec
Azimuth Range
+30-00...-30-00 deg
Elevation Range
+3-00...-3-00 deg
Angular accuracy, True Azimuth
0-04 deg
Angular accuracy, Magnetic Azimuth
0-12 deg
Angular accuracy, Elevation
0-04 deg
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
20 kg
Height of Persciope
250 mm
Details
Country of Origin
Russia
Category
Land Based Sensors
Land > Land Based Sensors
Filter Label
L
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
20 kg
Operators (1)
Russia
