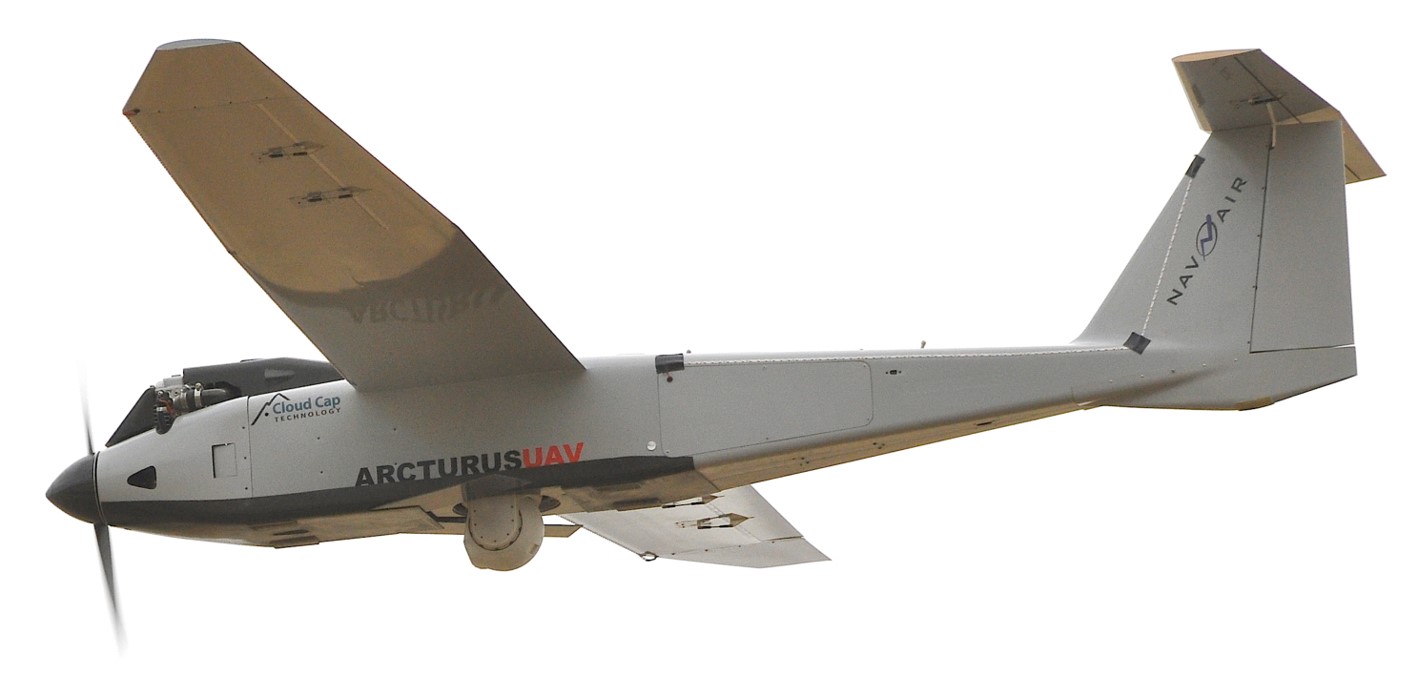

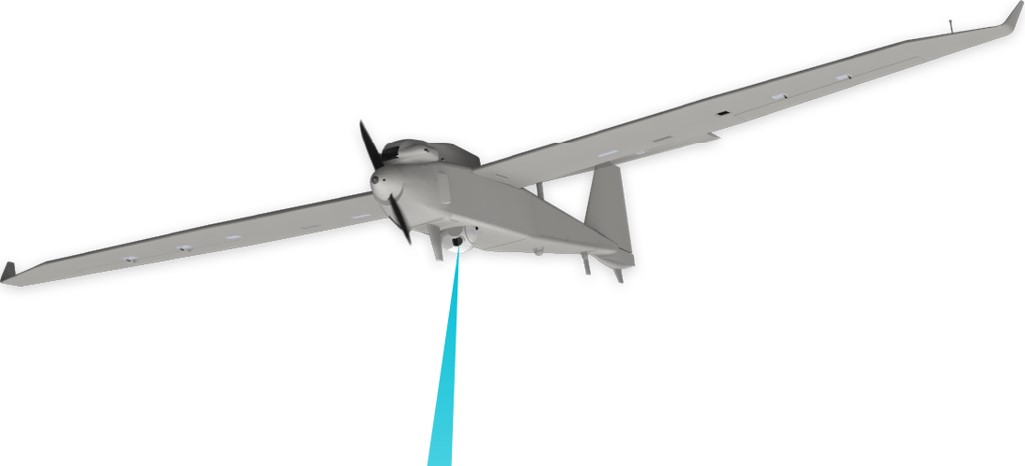

T-20 (Arcturus T-20) American Unmanned Aerial Vehicle (UAV)

T-20

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
T-20 (Arcturus T-20) American Unmanned Aerial Vehicle (UAV)
Designation
T-20
Alternate Designation
T-20; Arcturus T-20
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
AeroVironment
Date of Introduction
2020
Description

The T-20 (Arcturus T-20) American Unmanned Aerial Vehicle (UAV) -wing UAS delivers best-in-class endurance with 24+ hours of mission duration, an operational range of 185 km (115 mi), and BLOS capabilities. Its portable catapult launching system can be set up and operational in less than 60 minutes within a small operational footprint. With a useable payload capacity up to 50 lb, the high-performance T-20 is Multi-INT/Multi-Domain capable with fully integrated payload pallets that can accommodate multi-mission payloads. The T-20 is equipped with superior optics including premium imaging sensors such as Cloud Cap Technology (TASE 200 and 400 Series), gyro-stabilized EO/IR gimbal sensors with continuous zoom, onboard GPS/INS, and video processing. In addition, the T-20 features a common autopilot and ground control system architecture providing a highly customizable, modular platform to meet operational or customer requirements

Air & Air Defense Specifications
Engine 190 cc engine
Max Speed 92.6 km/h
Range 185.0 km
Endurance 24.00 hrs
Service Ceiling 6096 m
Wingspan 5.70 m
Payload Capacity 22 kg
System
Alternate Designation T-20; Arcturus T-20
Type Unmanned Aerial Vehicle (UAV)
Manufacturer AeroVironment
Autonomy Semi-Autonomous
Crew Unmanned
Payload Capacity 22.7 kg
Camera Superior long-range day and night imaging systems that offer onboard tracking, MWIR, image stabilization, analog and digital output with H.264/5 compression.

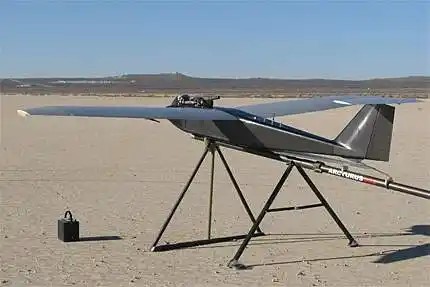

Launching System Catapult-launch
Recovery System Autonomous or manual skid landing
GCS Common GCS with JUMP 20
Dimensions
Length 2.9 m
Wingspan 5.7 m
Height INA
Maximum Takeoff Weight 102 kg
Automotive
Engine Name Mogas
Engine Type 190 cc engine
Engine Power INA
Maximum Speed 92.6 km/h
Cruising Speed INA
Service Ceiling 6,096 m
Maximum Distance 185 m
Endurance 24 hours
Details
Country of Origin United States
Category UAVs
Air > UAVs
Filter Label
T
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.9 m
Width
5.7 m
Height
Weight
102 kg
Operators (1)
United States
