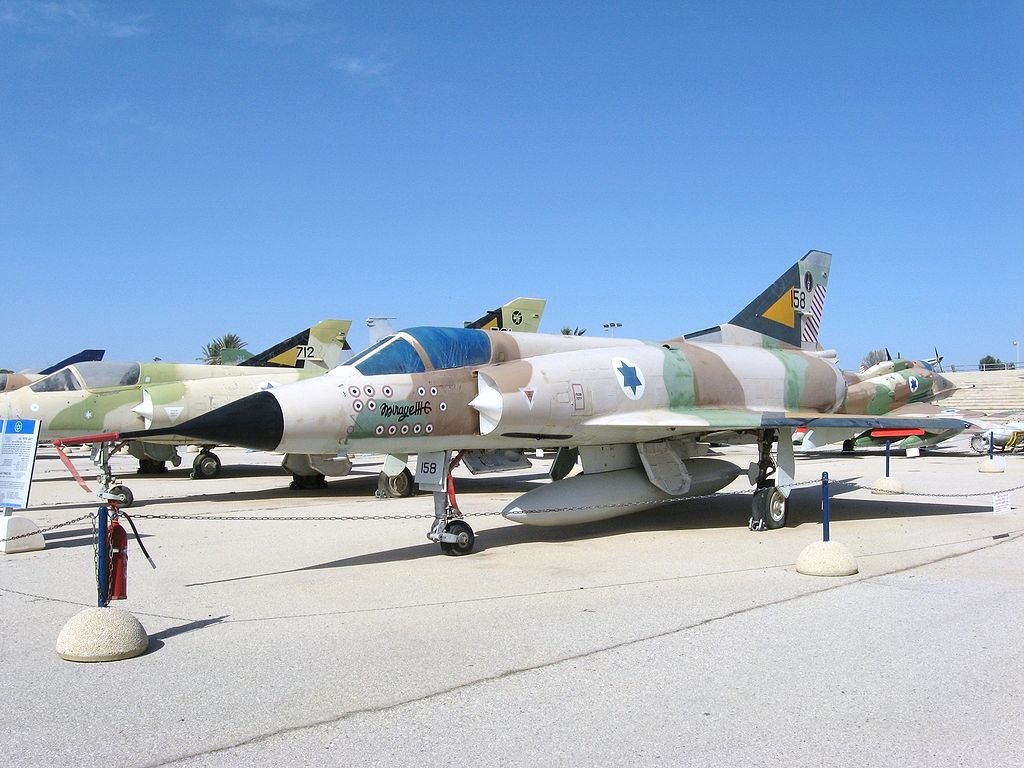

Mirage III French Fighter Aircraft

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Mirage III French Fighter Aircraft
Designation
Alternate Designation
Equipment Type
Manufacturer
Date of Introduction
1961
Description

The Dassault Mirage III (French pronunciation: ​[miʁaʒ]) is a family of single-seat, single-engine, fighter aircraft developed and manufactured by French aircraft company Dassault Aviation. It was the first Western European combat aircraft to exceed Mach 2 in horizontal flight. During 1952, the French government issued its specification, calling for a lightweight, all-weather interceptor. Amongst the respondents were Dassault with their design, initially known as the Mirage I. Following favourable flight testing held during 1954, in which speeds of up to Mach 1.6 were attained, it was decided that a larger follow-on aircraft would be required to bear the necessary equipment and payloads. An enlarged Mirage II proposal was considered, as well as MD 610 Cavalier (3 versions), but was discarded in favour of a further-developed design, powered by the newly developed Snecma Atar afterburning turbojet engine, designated as the Mirage III. During October 1960, the first major production model, designated as the Mirage IIIC, performed its maiden flight. Initial operational deliveries of this model commenced during July 1961; a total of 95 Mirage IIICs were obtained by the French Air Force (Armée de l'Air, AdA). The Mirage IIIC was rapidly followed by numerous other variants. The Mirage III was produced in large numbers for both the French Air Force and a wide number of export customers. Prominent overseas operators of the fighter included Argentina, Australia, South Africa, Pakistan and Israel, as well as a number of non-aligned nations. Often considered to be a second-generation fighter aircraft, the Mirage III experienced a lengthy service life with several of these operators; for some time, the type remained a fairly maneuverable aircraft and an effective opponent when engaged in close-range dogfighting. During its service with the French Air Force, the Mirage III was normally armed with assorted air-to-ground ordnance or R.550 Magic air-to-air missiles. Its design proved to be relatively versatile, allowing the fighter model to have been readily adapted to serve in a variety of roles, including trainer, reconnaissance and ground-attack versions, along with several more extensive derivatives of the aircraft, including the Dassault Mirage 5, Dassault Mirage IIIV and Atlas Cheetah. Some operators have undertaken extensive modification and upgrade programmes of their flights, such as Project ROSE of the Pakistan Air Force. The Mirage III has been used in active combat roles in multiple conflicts by a number of operators. The Israeli Air Force was perhaps the most prolific operator of the fighter outside of France itself; Israel deployed their Mirage IIIs during both the Six-Day War, where it was used as both an air superiority and strike aircraft, and the Yom Kippur War, during which it was used exclusively in air-to-air combat in conjunction with the IAI Nesher, an Israeli-built derivative of the Mirage 5. Ace of ace Giora Epstein achieved all of his kills flying either the Mirage III or the Nesher. During the South African Border War, the Mirage III formed the bulk of the South African Air Force's fleet, comprising a cluster of Mirage IIICZ interceptors, Mirage IIIEZ fighter-bombers and Mirage IIIRZ reconnaissance fighters; following the introduction of the newer Mirage F1, the type was dedicated to secondary roles in the conflict, such as daytime interception, base security, reconnaissance and training. The Argentine Air Force utilised the Mirage IIIEA during the Falklands War, but their lack of an aerial refueling capability limited their usefulness in the conflict. Even using drop tanks, the Mirages only had an endurance of five minutes within the combat area around the British fleet.

Air & Air Defense Specifications
Crew 1
System
Alternative Designations Mirage III
Crew 1
Vertical Climb Rate (m/s) 84
Takeoff Run/Landing Roll (m) 700-1,600/700
Standard Payload (kg) 4,000
Engines
6,200 lbs. thrust SNECMA Atar 9C turbojet with afterburner (Mirage III/5) 1
7,200 lbs. thrust SNECMA Atar 9K50 turbojet, afterburner (Mirage 50) 1
Weight (kg)
Max Takeoff 13,500
Empty 7,050
Speed (km/h)
Max (at altitude) 2,350, Mach 2.2
Max (sea level) 1,390, Mach 1.1
Ceiling (m)
Mirage III 17,000
Mirage 5 17,000
Mirage 50 18,000
Fuel (liters)
Internal 3,330
External (III/5/50) 1,700/ 1,200/ 1,700
Range (km)
Ferry 4,000
Dimensions (m)
Wingspan 8.3
Height (gear extended) 4.3
Survivability/Countermeasures
Martin-Baker zero/267 km/h ejection seat Yes
Separate cockpit and avionics air conditioning systems Yes
Radar warning receiver Yes
ARMAMENT
30-mm DEFA 552 (Mirage III) 2
30-mm DEFA 553 (Mirage 5) 2
30-mm DEFA 553 (Mirage 50) 2
Weapon & Ammunition Types
30-mm cannon 125
Bombs 12
125 kg /250 kg 6
440 kg 10
Rocket Pods 1,967
68-mm or 100-mm 2
2 x 30-mm Cannon Pods (rnds ea.) 250
AVIONICS/SENSOR/OPTICS
Intercept or ground mapping radar Yes
Fire-control radar in the nose Yes
Navigation computer Yes
Automatic gun sight Yes
Night/Weather Capabilities
All-weather, day and night capable (III/5)
Clear-weather day fighter (50)
NOTES
Description ONE OF THE MOST SUCCESSFUL AIRCRAFT PRODUCED FOR EXPORT TO BE PRODUCED OUTSIDE OF THE UNITED STATES AND THE FORMER SOVIET UNION. THE MIRAGE III/5/50 HAS PROVEN TO BE A COMPETENT GROUND ATTACK AIRCRAFT DESPITE ITS ORIGINAL DEVELOPMENT AS A HIGH ALTITUDE INTERCEPTOR. THE MIRAGE 5 AND 50 ARE SIMILAR TO THE III, BUT FITTED WITH SIMPLIFIED AVIONICS AND HAVE EXCLUSIVELY BEEN EXPORT VARIANTS.
VARIANTS
MIRAGE IIIA
Description HIGH ALTITUDE INTERCEPTOR AND STRIKE AIRCRAFT FITTED WITH ROCKET MOTOR FOR TAKE-OFF.
MIRAGE IIIB
Description TWO-SEAT TRAINER VERSION OF IIIA WITH STRIKE CAPABILITY RETAINED NO INTERNAL CANNON.
MIRAGE IIIC
Description MAJOR PRODUCTION VARIANT OF IIIA. FITTED WITH ATAR 9B3 ENGINE, CYRANO II INTERCEPT AND GROUND-MAPPING RADAR.
MIRAGE IIID
Description TWO-SEAT TRAINER/STRIKE AIRCRAFT. NO INTERNAL CANNON.
MIRAGE IIIE
Description MAJOR PRODUCTION VARIANT. FITTED WITH ATAR 9C ENGINE, CYRANIO IIBIS RADAR, AND EXTRA AVIONICS BAY.
MIRAGE IIIEA/EO
Description AUSTRALIAN LICENSE-BUILT AIRCRAFT. (52 ATTACK AND 48 INTERCEPTOR AIRCRAFT)
MIRAGE 5
Description GROUND ATTACK VARIANT ORIGINALLY DEVELOPED FOR THE ISRAELI AIR FORCE. FITTED WITH TWO EXTRA FUSELAGE STORES STATIONS, FIRE CONTROL RADAR DELETED OR REPLACED BY RANGING RADAR. PERFORMANCE IDENTICAL TO MIRAGE III EXCEPT FOR LONGER RANGE ON INTERNAL FUEL
Details
Country of Origin France
Category Fixed Wing Aircraft
Air > Fixed Wing Aircraft
Filter Label
M
Classification
Domain
Air & Air Defense
Equipment Status
Active
Operators (1)
Pakistan
