Kamaz-43261

Kamaz-43261

Military Trucks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Kamaz-43261
Designation
Kamaz-43261
Alternate Designation
Equipment Type
Military Trucks
Manufacturer
Kamaz
Date of Introduction
Description

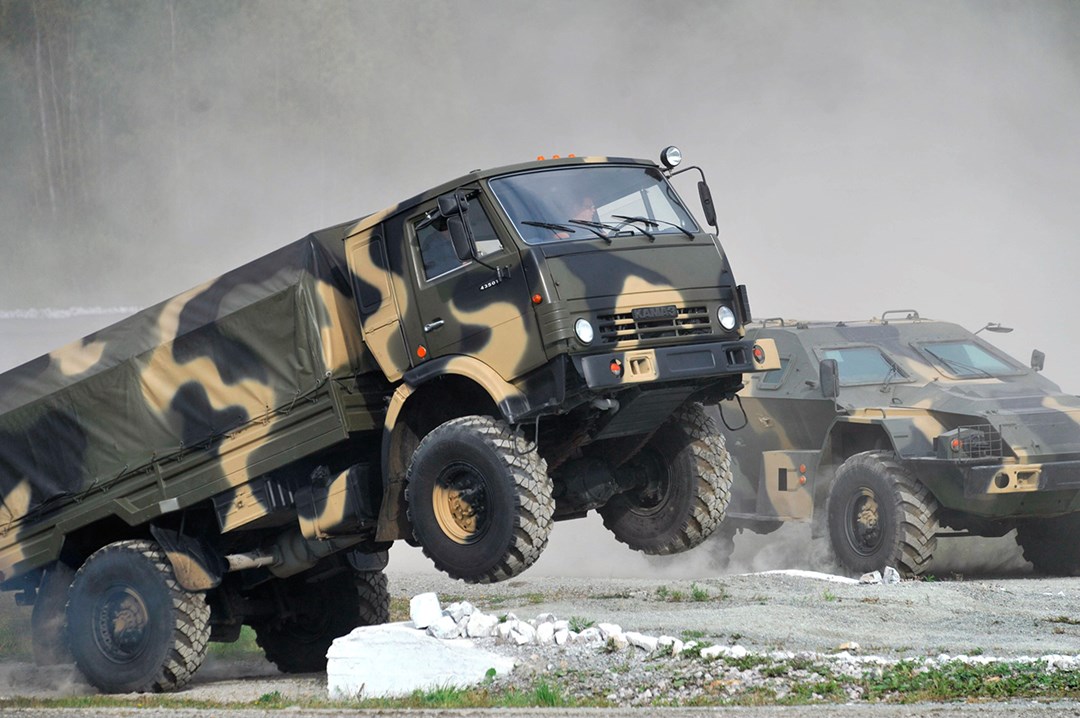

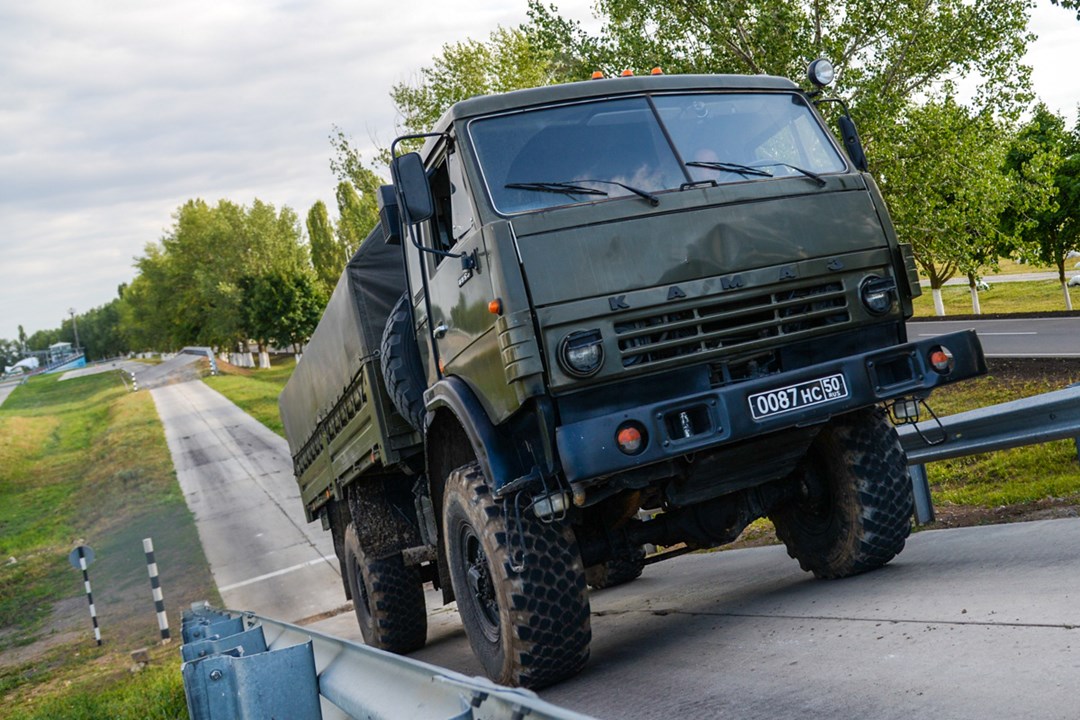

The Kamaz-43261 is a 10-ton class, 4x4 flexible and mobile multipurpose truck system intended to carry personnel and cargo as part of the logistics support for military and peacekeeping missions. It is also suitable for other applications such as water/fuel tank bodies carrier, loading cranes, special purpose vans, and various weapon systems platform. This truck can tow trailers and keep on moving through desert sands and along stony tracks, over scree and mud, snow and ice thanks to its all-wheel drive climbing the most extreme gradients, ford rivers and chase across any terrain. It is powered by a Kamaz 740.31 Euro 2 turbocharged diesel V8 engine developing 225-hp of power or alternatively a Kamaz 740.11 Euro 1 turbocharged diesel V8 engine developing 230-hp of power. Kamaz created three classes of multipurpose vehicles with 6-ton, 8-ton and 10-ton axial load developing a full range of 4x4, 6x6, 8x8 military trucks sharing 85 percent of components and designed to meet military requirements. The trucks have the option of an armored cab including hidden armoring of the cab. The Kamaz-43261 truck is able to carry up to 3-ton payload and towing a trailer of 7-ton. Kamaz has produced this truck system for the Russian Ministry of Defense and export customers across the world.

Ground Specifications
Mobility Type Wheeled (4x4)
Overview (Deagel)
Group Military Trucks
Status Active
Origin Russia
Contractor Kamaz
Total Production ?
Specifications (Deagel)
Wheel Drive 4
Wheels 4
Dimensions — Length 4.0 meter
Dimensions — Wheelbase 3.7 meter
Dimensions — Width 2.5 meter
Energy — Max Torque 912 Nm
Mass — Cargo 3,000 kilogram
Mass — Max Gross Train Weight 17,850 kilogram
Mass — Max Weight 10,850 kilogram
Mass — Towed Load 7,000 kilogram
Percentage — Gradient 60 %
Performance — Ditch Crossing Ability 0.60 meter
Performance — Fording Depth 1.8 meter
Performance — Step Climbing Ability 0.55 meter
Power — Power 225 hp
Details
Country of Origin Russia
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4 m
Width
2.5 m
Height
Weight
17850 kg
Operators (1)
Russia
