OH-6J Japanese Light Scout and Observation Helicopter

OH-6J

Light Scout Observation Helicopter
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
OH-6J Japanese Light Scout and Observation Helicopter
Designation
OH-6J
Alternate Designation
OH-6J
Equipment Type
Light Scout Observation Helicopter
Manufacturer
Kawasaki
Date of Introduction
1972
Description

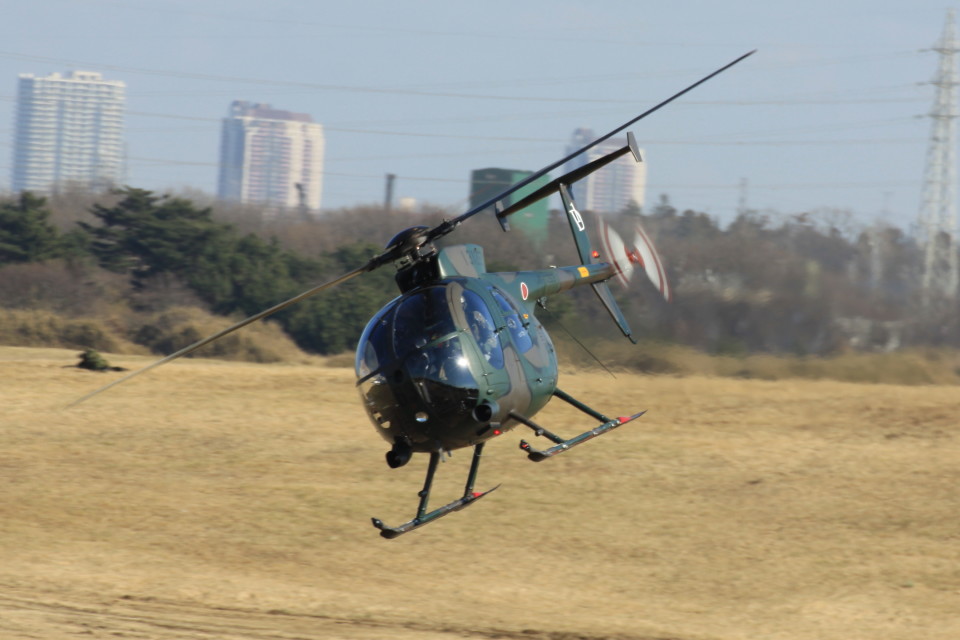

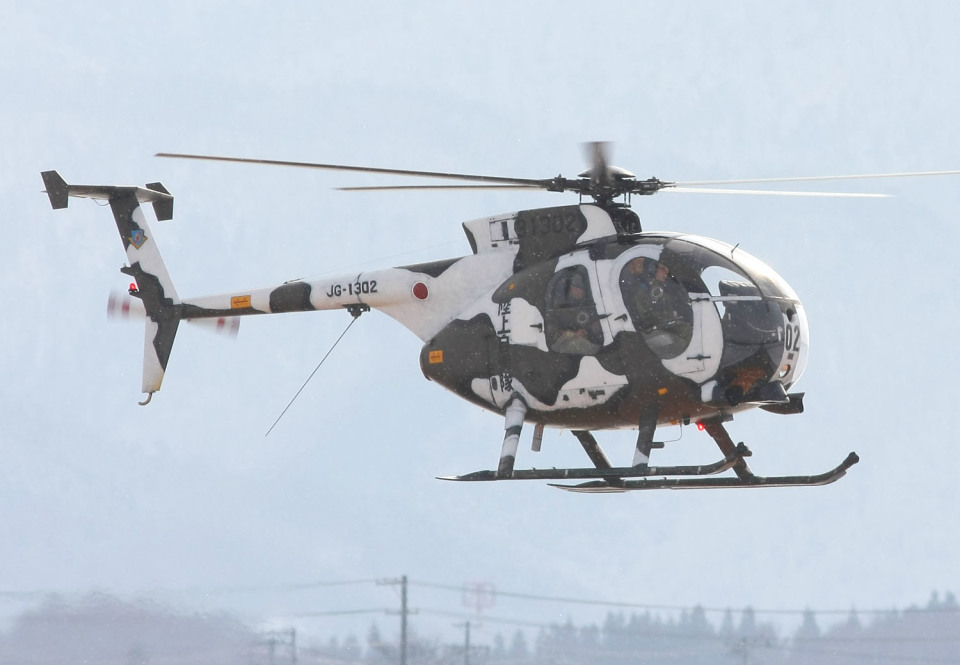

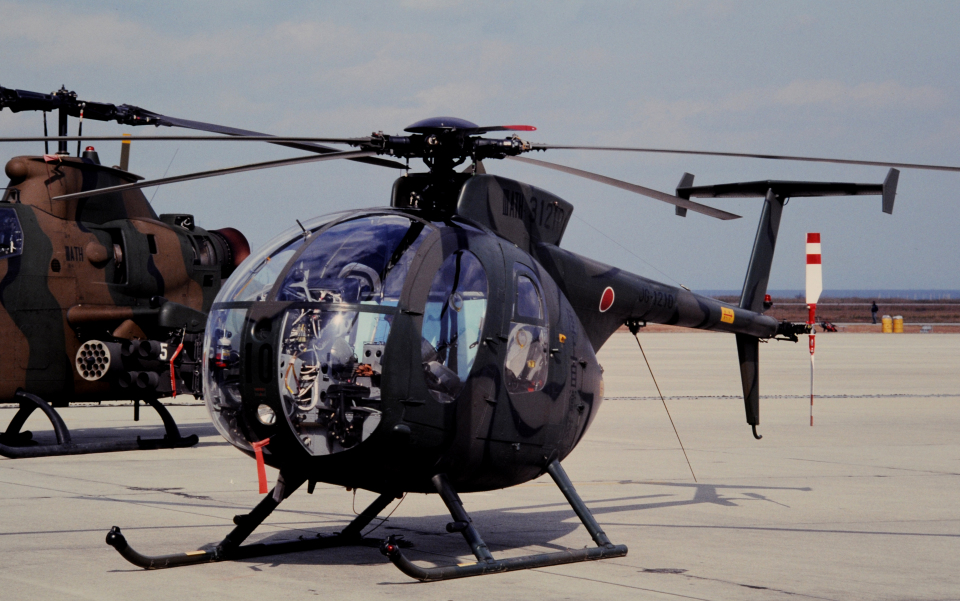

The Kawasaki OH-6J is a licensed variant of the Hughes Helicopter OH-6 Cayuse American light observation helicopter for use by the Japanese Ground Self Defense Force (JGSDF). The JGSDF employed the helicopter in a reconnaissance and observation role as well as part of a hunter killer team with the AH-1S Cobra. At one time the JGSDF experimented with the concept of a 7.62mm Type 62 machine gun located on the starboard or left side of the fuselage. However, this type of weapon configuration was not adopted. The OH-6J is being replaced with the OH-1 Ninja scout/observation helicopter developed and manufactured by the Kawasaki Aerospace Company.

Air & Air Defense Specifications
Crew 2
Engine Turboshaft (318 hp)
System
Alternative Designation OH-6J
Type Light Scout Observation Helicopter
Primary Function Reconnaissance missions
Manufacturer Kawasaki
Crew 2 ea
Blades, Main Rotor 4 ea
Number of Engines 1 ea
Disc area 50.6
Tail Rotor, Name INA
Blades, Tail Rotor 2 ea
Dimensions
Length 9.4 m
Main Rotor Diameter 11.6 m
Disc Area 50.6 sq m
Height 2.7 m
Weight, Empty 896 kg
Weight, Combat INA kg
Weight, Gross 1,610 kg
Automotive
Engine Name 1 x Mitsubishi-Allison 250-C18A
Engine Type Turboshaft
Engine Power 318 shp
Cruising Range 354 km
Speed, Maximum 244 km/h
Speed, Average INA
Maximum Altitude 4,635 m
Main Gun System
Note There is no weapon system associated with the OH-6J Japanese Light Scout and Observation Helicopter.
Fire Control and Avionics
Forward Looking Infrared Radar (FLIR) Yes
Night Vision 1 x JAVN-V6 Helmet Mounted Night Vision
Navigation Radar INA
Direct Fire Control INA
Laser Designator INA
Protection
Add on Armor INA
Stealth Properties INA
Heat Signature Reduction INA
NBC Protection INA
EW Counter Measures/CCM INA
Counter Measures (Chaff/Flares) INA
Details
Country of Origin Japan
Category Rotary Wing Aircraft
Air > Rotary Wing Aircraft
Filter Label
O
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
9.4 m
Width
Height
2.7 m
Weight
1610 kg
Operators (1)
Japan
