Marauder

Marauder

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Marauder
Designation
Marauder
Alternate Designation
Equipment Type
Tactical Vehicles
Manufacturer
KADDB, Paramount Group
Date of Introduction
2012
Description

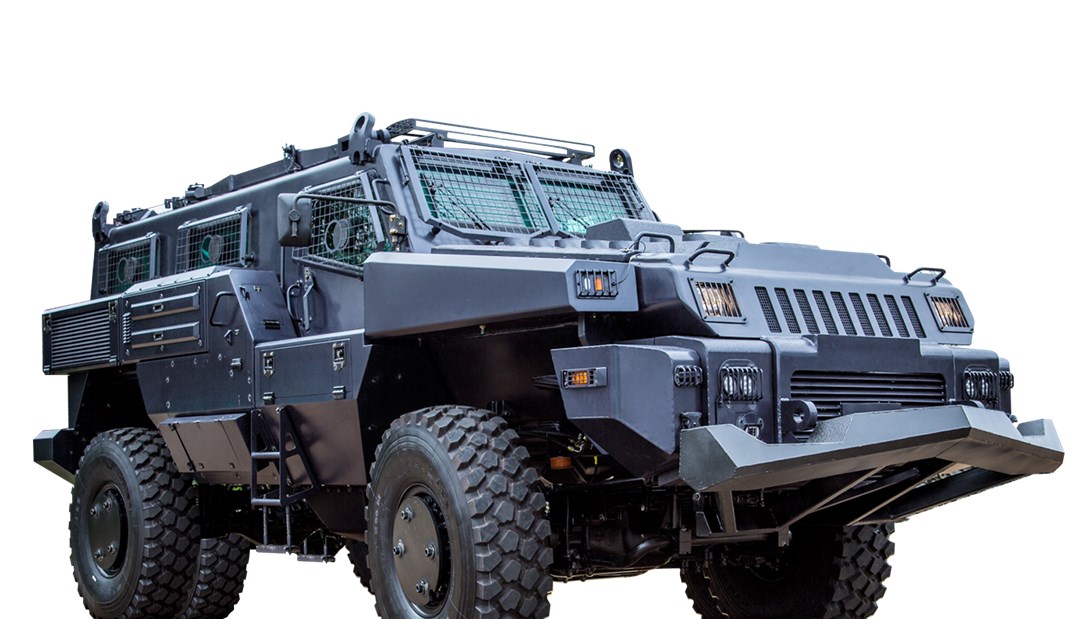

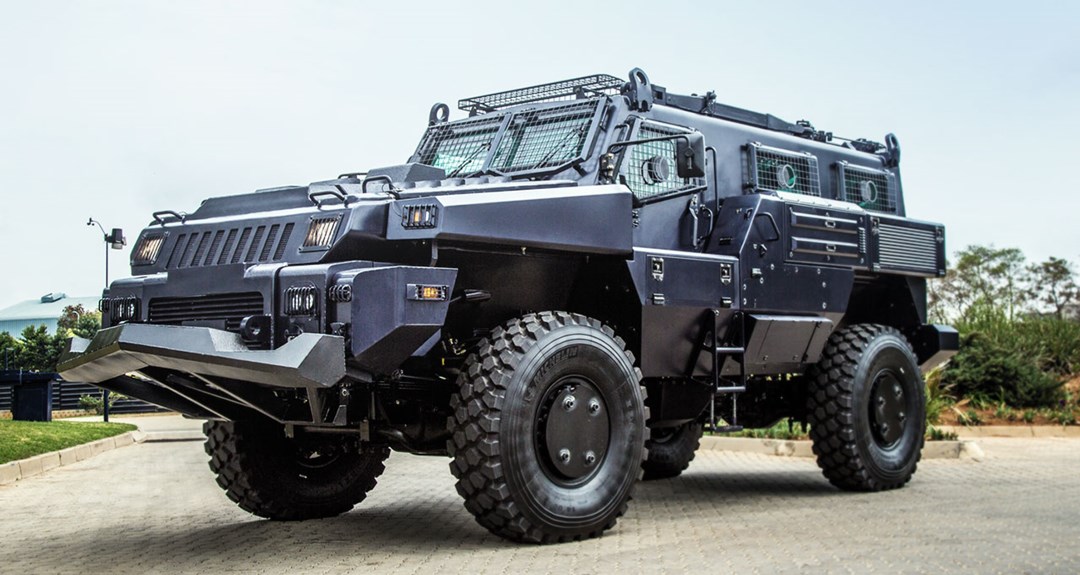

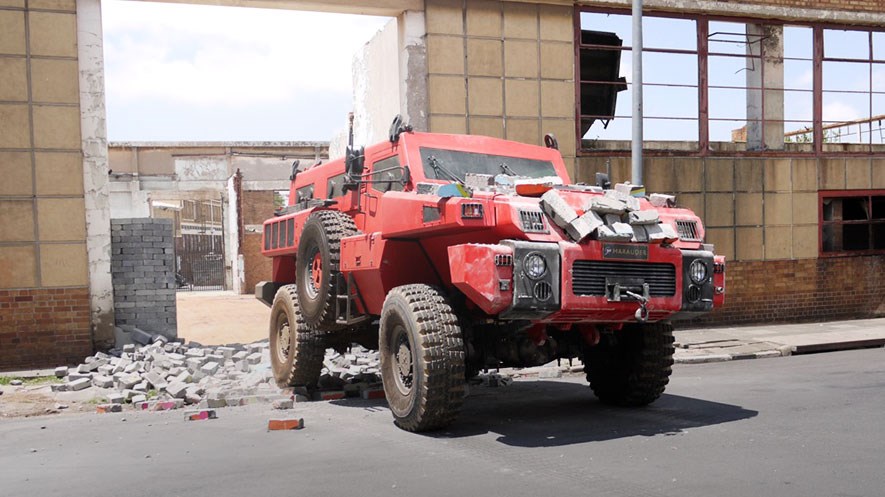

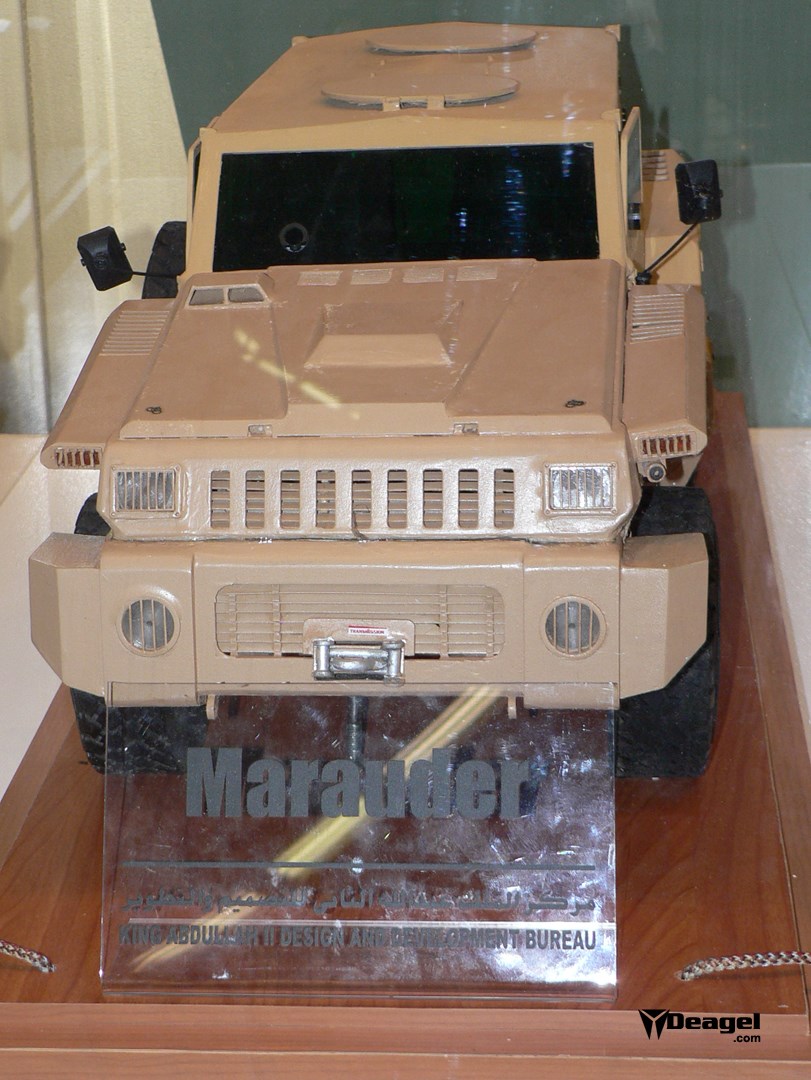

The KADDB and Paramount Group Marauder is a 4x4 mine-protected armored vehicle in the 15t weight class featuring excellent on- and off-road mobility. This armored vehicle can be used for troop, weapon and material transport of up to 4,500 kg with a crew of two men and eight troops in the rear compartment. The power plant consists of a militarized MAN engine. The Marauder has the ability to carry extra fuel tanks, water and combat supplies for long-range patrol or quick reaction force operations. It can be supplied with a stretched hull. The basic variants are: APC, ambulance and anti-armor fire support fitted with anti-tank missiles. The Marauder provides STANAG Level 3 protection against mines and improvised explosive devices (IED). The Marauder can withstand the blast of 8kg of TNT under the hull and 14kg of TNT under any wheel as well as the impact of 12.7mm piercing ammunition. It is fitted with anti-blast seats and ballistic armor. The vehicle has enough room to incorporate additional protection measures against specific threats. With excellent strategic mobility, the Marauder can cross all types of terrain at impressive speed. It can be airlifted by C-130 aircraft and Chinook helicopters with little preparation.

Ground Specifications
Crew 2
Troop Capacity 8
Mobility Type Wheeled (4x4)
Max Speed 100.0 km/h
Range 700.0 km
Overview (Deagel)
Group Tactical Vehicles
Status Active
Origin Jordan, South Africa
Contractors KADDB, Paramount Group
Initial Operational Capability (IOC) 2012
Total Production ?
Specifications (Deagel)
Crew 2
Troops 8
Wheel Drive 4
Wheels 4
Degree — Approach Angle 38 °
Degree — Departure Angle 46 °
Dimensions — Height 2.7 meter
Dimensions — Length 6.4 meter
Dimensions — Wheelbase 3.6 meter
Dimensions — Width 2.7 meter
Mass — Empty Weight 11,000 kilogram
Mass — Max Weight 17,000 kilogram
Mass — Payload 4,500 kilogram
Percentage — Gradient 60 %
Percentage — Side Slope 35 %
Performance — Ballistic Protection 12.7 millimeter
Performance — Ditch Crossing Ability 0.85 meter
Performance — Fording Depth 0.90 meter
Performance — Max Range 700 kilometer
Performance — Step Climbing Ability 0.50 meter
Performance — Turning Radius 18 meter
Power — Power 285 hp
Speed — Top Speed 100 kph
Temperature — Max Operating Temperature 50 ° Celsius
Temperature — Min Operating Temperature -20.00 ° Celsius
Details
Country of Origin Jordan
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.4 m
Width
2.7 m
Height
2.7 m
Weight
17000 kg
Operators (6)
South Africa
Ghana
Jordan
Mozambique
Oman
Singapore
