ATMOS 2000 Israeli 155mm Self-Propelled Howitzer
ATMOS 2000
Self-Propelled Howitzer (SPH)
Other
Basic Information
Name
ATMOS 2000 Israeli 155mm Self-Propelled Howitzer
Designation
ATMOS 2000
Alternate Designation
ATMOS 2000
Equipment Type
Self-Propelled Howitzer (SPH)
Manufacturer
Soltam Systems (now Elbit Systems)
Date of Introduction
2003
Description

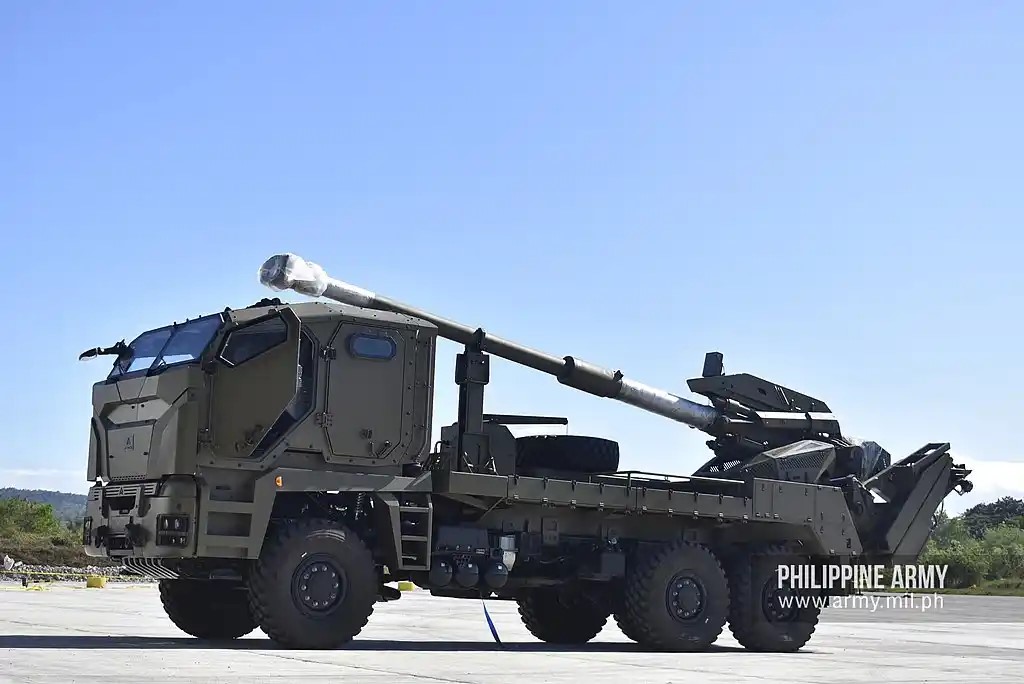

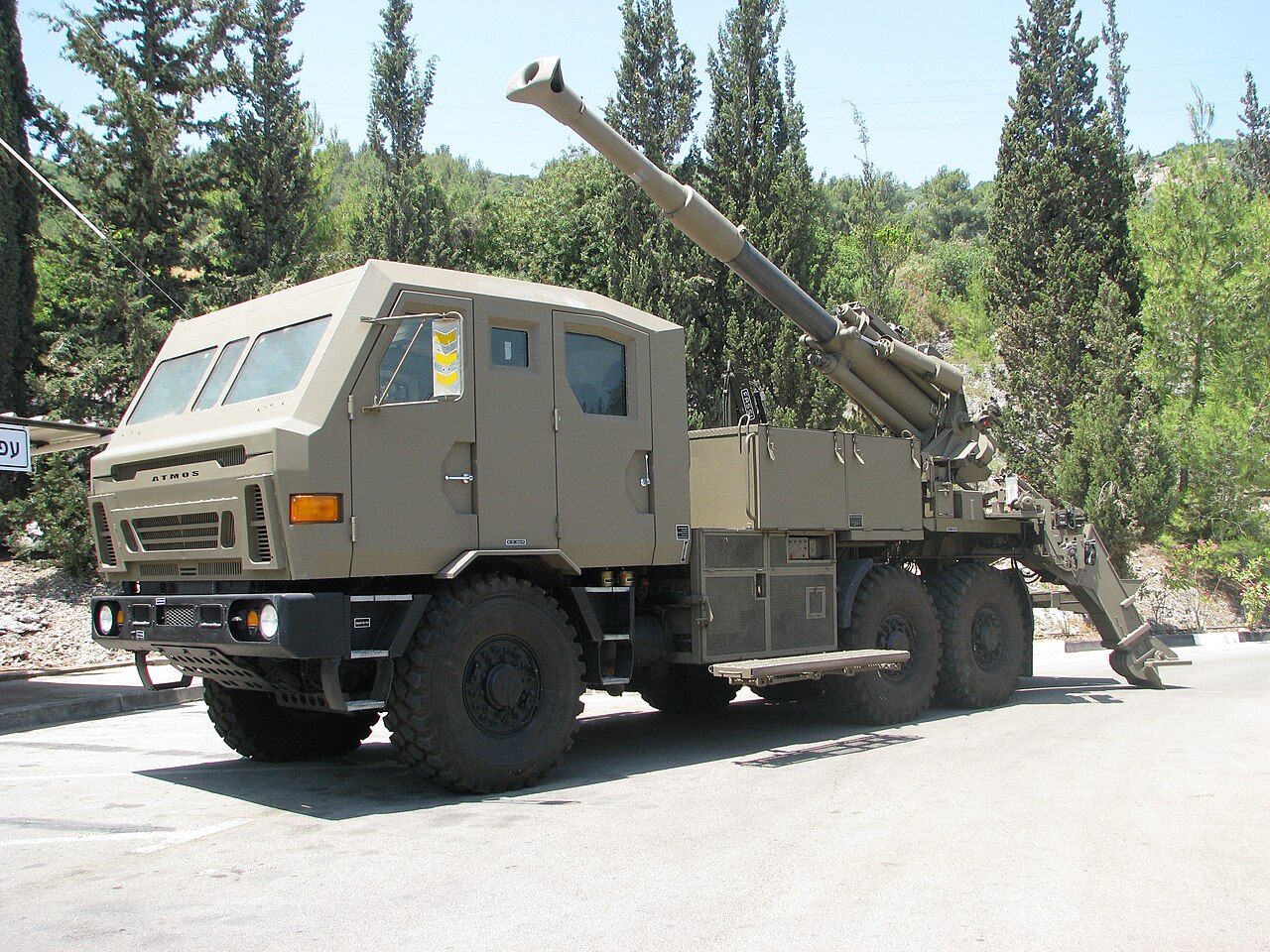

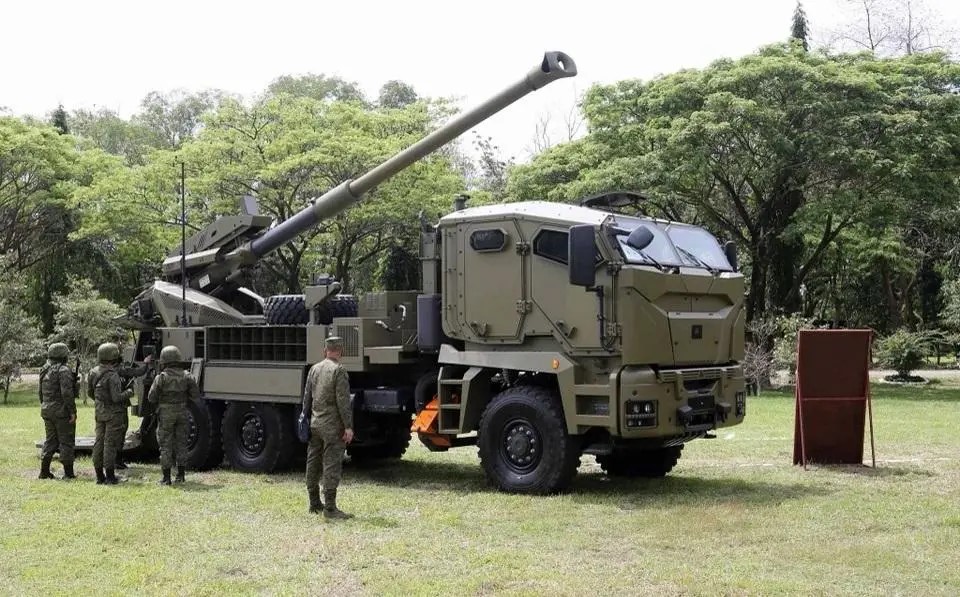

The ATMOS 2000 Israeli 155mm Self-Propelled Howitzer is fitted with a 155 mm/52 caliber ordnance which conforms to NATO Joint Ballistic Memorandum of Understanding (JBMoU), and is mounted on a 6 × 6 cross-country truck chassis.
Ground Specifications
Crew
6
Engine
Diesel
Max Speed
80.0 km/h
Range
1000.0 km
Variants
ATROM
Romanian variant of the ATMOS 2000, mounted on a locally developed 6x6 truck chassis. This artillery system received no production orders.
Kryl
A Polish truck-mounted howitzer, which is fitted with an ordnance of the ATMOS 2000, mounted on a Jelcz 6x6 truck chassis. It was first unveiled to the public in 2014.
System
Alternative Designation
ATMOS 2000
Type
Self-Propelled Howitzer
Caliber
155 mm
Manufacturer
Soltam Systems (now Elbit Systems)
Chassis
Tatra T815 VVN 6x6 truck chassis.
Configuration
6×6
Crew
6 ea
Dimensions
Length
9.50 m
Width
2.50 m
Height
3.24 m
Weight, Standard
21,000 kg
Ground Clearance
0.40 m
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
INA
Power-to-Weight Ratio
15 hp/t
Fuel Capacity
INA
Maximum Speed
80 km/h
Amphibious
No
Maximum Range
1,000 km
Gradient
60%
Side Slope
30%
Vertical Step
0.6 m
Trench
0.9 m
Fording
1.4 m
Main Weapon System
System
Name
L52 gun-howitzer
Type
Howitzer
Caliber
155 mm
Elevation
+70° (1,244 mils)
Traverse
50° (889 mils) (25° left/right)
Rate of Fire
4 - 9 rpm
Maximum Firing Range
41,000 m
Ammunition
Type
Projectile
Caliber
155 mm
Note
The ATMOS 2000 is compatible with all standard 155 mm NATO ammunition.
Fire Control
Note
The system has an onboard advanced fire-control system (AFCS). This includes a main computer, a navigation and aiming device, and enables ATMOS 2000 to rapidly engage the target after receiving the position of the target from the forward observation officer (FOO). The AFCS processes the target information, presents this on a display to the gunner, and then lays the weapon on to the target in traverse and elevation. Manual backup is also provided in case of power failure.
Protection
Hull Armor
The cabin is armour-protected and can provide protection from small-arms fire and artillery shell splinters.
Applique Armor
No
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
Israel
Category
Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.5 m
Width
2.5 m
Height
3.24 m
Weight
21000 kg
Operators (11)
Israel
Poland
Azerbaijan
Botswana
Cameroon
Philippines
Romania
Rwanda
Thailand
Uganda
Zambia
