MTU-20 Russian Armored Vehicle-Launched Bridge (AVLB) System
MTU-20
Armored Vehicle-Launched Bridge (AVLB)
Other
Basic Information
Name
MTU-20 Russian Armored Vehicle-Launched Bridge (AVLB) System
Designation
MTU-20
Alternate Designation
MTU-20
Equipment Type
Armored Vehicle-Launched Bridge (AVLB)
Manufacturer
Russian state factories
Date of Introduction
1989
Description

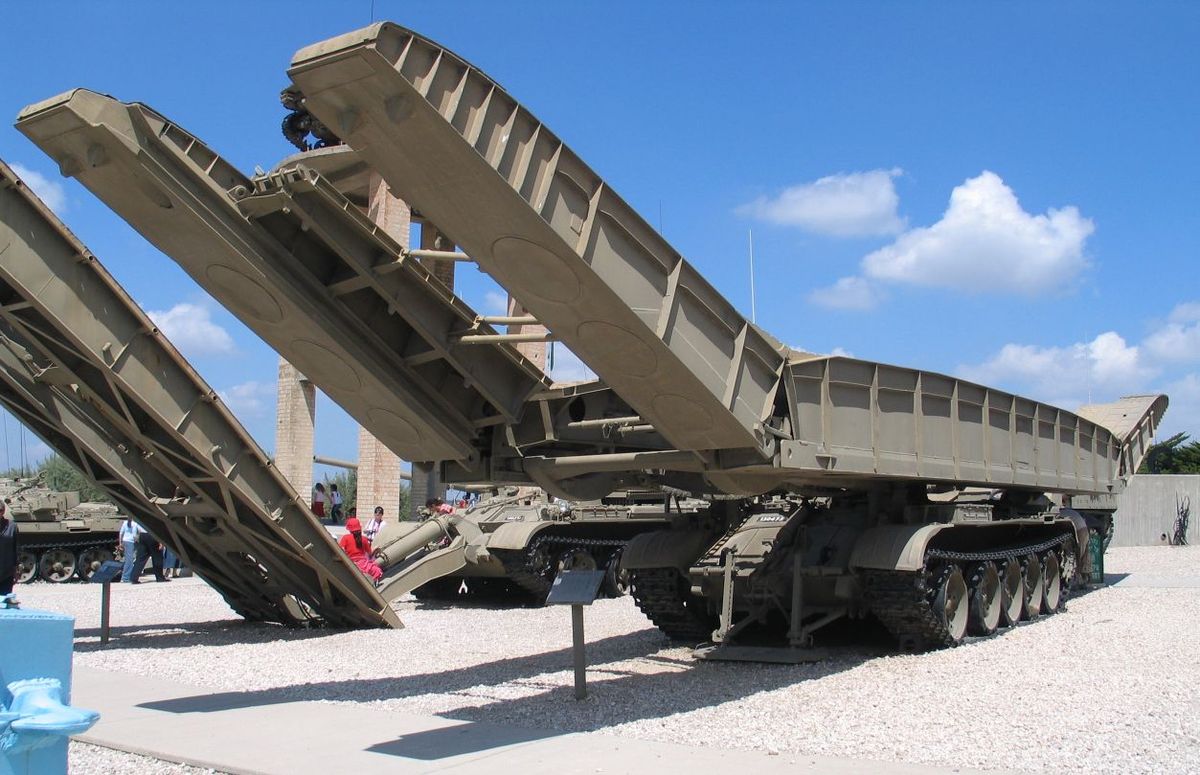

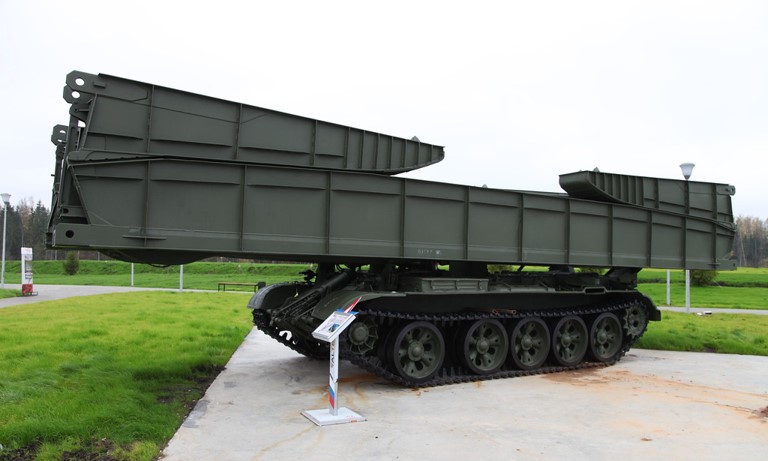

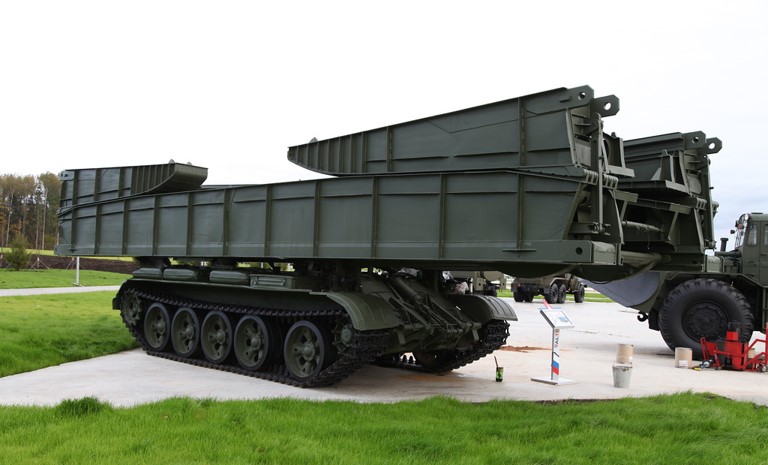

The MTU-20 AVLB is a replacement system that is 60% more capable, in terms of bridge length, than the MTU-1. The primary mission system of the MTU-20 is the three-part bridge. Unlike the MTU-1, stabilizers are fitted to the front of the MTU-20 to provide a more stable platform when the bridge is being maneuvered into position. The bridge can be used to cross anti-tank obstacles or as reinforcement for other bridges or soft terrain that is incapable of supporting the weight of heavy vehicles.
Ground Specifications
Crew
2
Mobility Type
Tracked
Engine
V-12, water cooled, diesel (580 hp)
NBC Protection
Yes
Max Speed
54.0 km/h
Range
500.0 km
System
Alternative Designation
MTU-20
Type
Armored Vehicle-Launched Bridge (AVLB)
Manufacturer
Russian state factories
Crew
2 ea
Dimensions
Length
11.64 m
Width
3.306 m
Height
3.4 m
Track Length
3.84 m
Track Width
580 mm
Weight
37,000 kg
Ground Clearance
0.425 m
Ground Pressure
0.84 kg/cm² (82,376 Pa) (11.95psi)
Bridging System
Bridge Length, Span
18 m
Bridge Length, Deployed
20 m
Bridge Width
3.3 m
Bridge Height
1.1 m
Bridge Weight
7,000 kg
Bridge Load Capacity
60,000 kg
Automotive
Engine Name
V-55
Engine Type
V-12, water cooled, diesel
Engine Power
580 hp at 2,000 rpm
Power-to-Weight Ratio
15.68 hp/t
Fuel Capacity
960 litres
Electrical System
24 V
Batteries
4 × 12V, 280 Ah
Maximum Speed
54 km/h
Range
500 km
Gradient
40%
Vertical Obstacle
0.8 m
Trench
2.7 m
Fording
1.4 m
Main Weapon System
Note
There are no weapons mounted on the MTU-20.
Protection
Hull Armor
Glacis and Lower Bow: 100mm; Hull Side: 80mm; Hull Rear: 50mm
Applique Armor
Turret Front: 205mm; Turret Sides: 120mm; Turret Rear: 60mm
Mine Clearing
No
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
Russia
Category
Mobility
Land > Combat Support Vehicles > Mobility
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
11.64 m
Width
3.31 m
Height
3.4 m
Weight
37000 kg
Operators (6)
Russia
India
Finland
Nigeria
Syria
