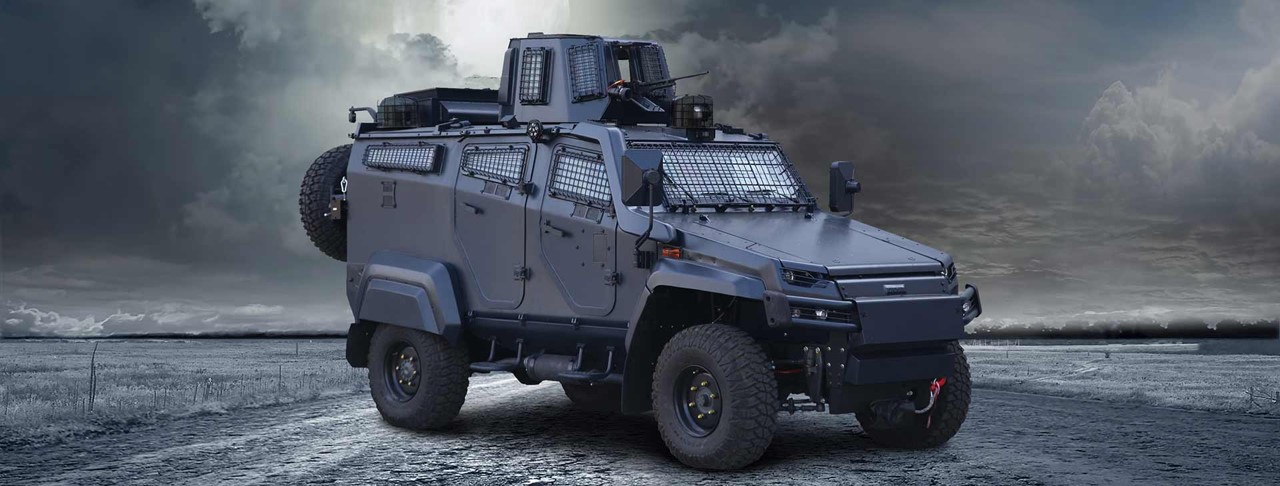

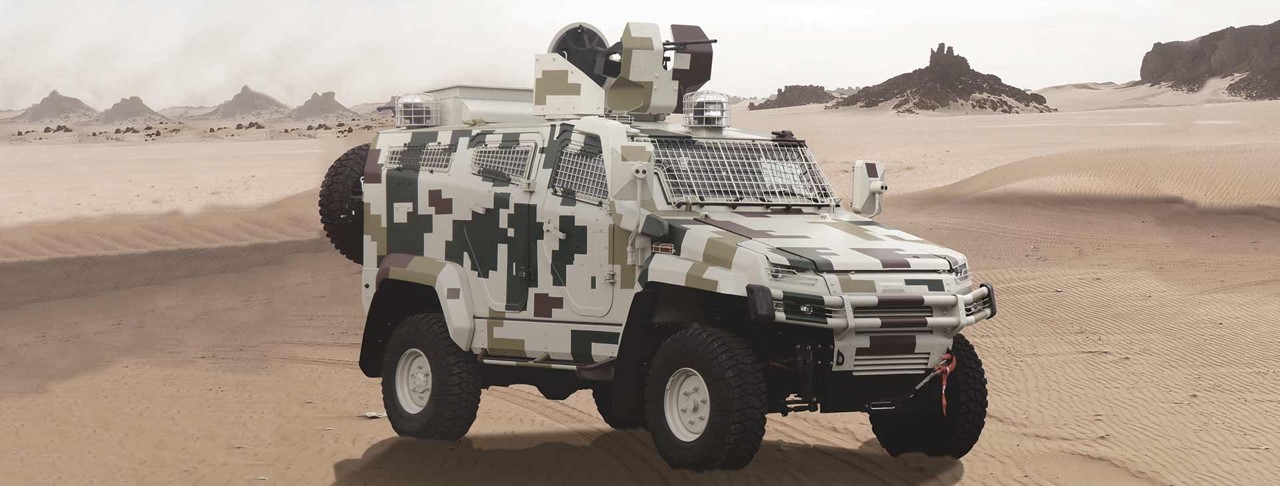

Ural Turkish 4x4 Armored Personnel Carrier (APC)

Ural

Amphibious Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Ural Turkish 4x4 Armored Personnel Carrier (APC)
Designation
Ural
Alternate Designation
Ural
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Otokar
Date of Introduction
2013
Description

The Ural Turkish 4x4 Armored Personnel Carrier (APC) designed primarily for police, law-enforcement, gendarmerie, and paramilitary forces, with growing adoption by regular armed forces for internal security, convoy escort, and low- to medium-intensity operations. The vehicle family is offered in multiple mission configurations (APC, ambulance, internal security vehicle, police vehicle, special operations vehicle, etc.), using a common base platform to simplify training and logistics. Compared to heavier MRAPs and larger 4×4 IFVs, URAL occupies the lighter end of the spectrum: It prioritizes mobility, compact size, and affordability while offering protection against small arms fire, grenade fragments, and anti‑personnel mines, with optional enhancements. The Otokar URAL 4×4 is a purpose‑built internal security and light armoured patrol platform that fills a distinct niche between lightly armoured police vehicles and heavy MRAPs. Its strengths lie in mobility, modularity, crew comfort, and sufficient protection for typical law‑enforcement and internal security threat profiles. It is less suited to roles demanding high mine/IED survivability or heavy direct-fire capability; in those scenarios, pairing URAL with heavier Turkish or foreign MRAP/IFV platforms yields a more balanced fleet.

Ground Specifications
Crew 2
Mobility Type Wheeled (4x4)
Engine Turbo Charge Diesel (250 hp)
Max Speed 110.0 km/h
Range 600.0 km
Variants

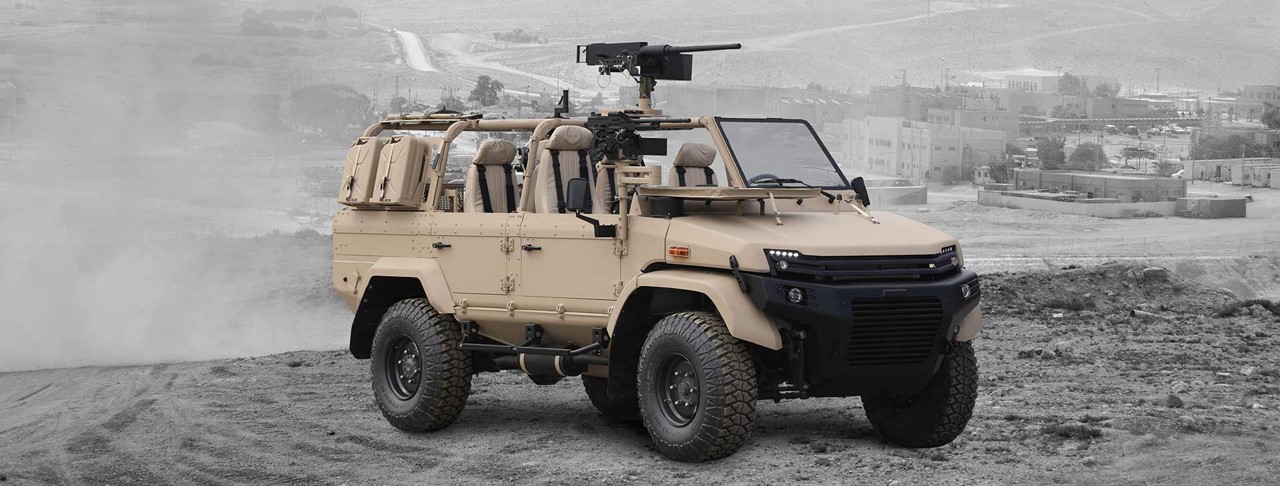

Note Documented or marketed variants include: Armoured Personnel Carrier (APC): Open cupola (7.62 or 12.7 mm), Closed cupola (7.62 mm), APC with RCWS (typically 7.62 mm). Ambulance (armoured). Internal Security Vehicle (ISV) / Police vehicle. Command and Control vehicle. Special Operations Vehicle (SOV). Tactical Ladder Vehicle (for special operations / urban assault). Armoured refuelling / fuel tanker vehicle. Single‑cab armoured pickup.
System
Alternative Designation Ural
Type Armored Personnel Carrier (APC)
Manufacturer Otokar
Configuration 4x4
Crew 2 ea
Passengers 6 ea
Dimensions
Length 4.9 m
Width 2.2 m
Height 2.44 m
Weight, Combat 6,400 kg
Automotive
Engine Name INA
Engine Type Turbo Charge Diesel
Engine Power 250 hp
Maximum Range 600 km
Maximum Speed 110 km/h
Amphibious No
Gradient 60%
Side Slope 40%
Vertical Step INA
Trench INA
Fording 700 mm
Ground Clearance 350 mm
Main Weapon System
Note Typical fits include: Manned open or closed cupolas (turrets) mounting: 5.56 mm MG, 7.62 mm MG, 12.7 mm MG. Remote‑Controlled Weapon Station (RCWS): Usually 7.62 mm MG, with stabilization and day/night sight options depending on supplier.
Protection
Armor Otokar characterizes URAL’s protection as “superior personnel protection,” with the armoured hull providing all‑round ballistic protection and limited mine/fragmentation resistance: Sides and roof: Protected to a defined ballistic protection level at 90° incidence (exact STANAG 4569 numerical level is not published in open brochures). The marketing language and class of vehicle suggest protection against standard rifle-calibre threats (e.g., 7.62 mm ball/AP in basic or enhanced kits), but published data does not fix a specific level. Floor: Designed to protect against shrapnel fragments from hand grenades and anti‑personnel mines detonating under the vehicle. ​ Windows: Polycarbonate‑layered armoured glazing with protection equivalent to the hull and design features to prevent glass fragment spall into the cabin. In STANAG 4569 terms, most light 4×4 APCs in this weight class fall around Level 2–3 for ballistic threats and 2a/2b for blast, but Otokar’s open literature for URAL does not specify the exact level, only that sides and roof protect at the “defined protection level” and the floor against AP mines and grenade fragments.
Applique Armor INA
NBC Protection INA
Smoke Equipment INA
Details
Country of Origin Turkey
Category Land
Land
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.9 m
Width
2.2 m
Height
2.44 m
Weight
6400 kg
Operators (5)
Turkey
Bahrain
Côte d'Ivoire
Ecuador
Turkmenistan
