CG 47 Ticonderoga

CG 47 Ticonderoga

Cruisers
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
CG 47 Ticonderoga
Designation
CG 47 Ticonderoga
Alternate Designation
Equipment Type
Cruisers
Manufacturer
Date of Introduction
Description

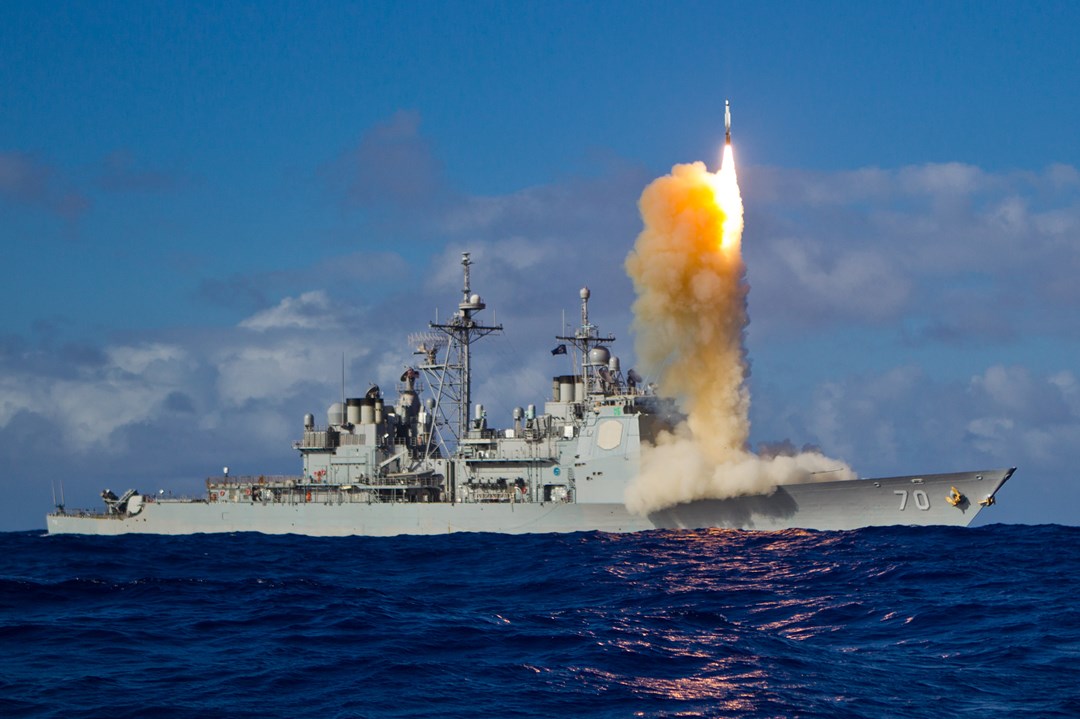

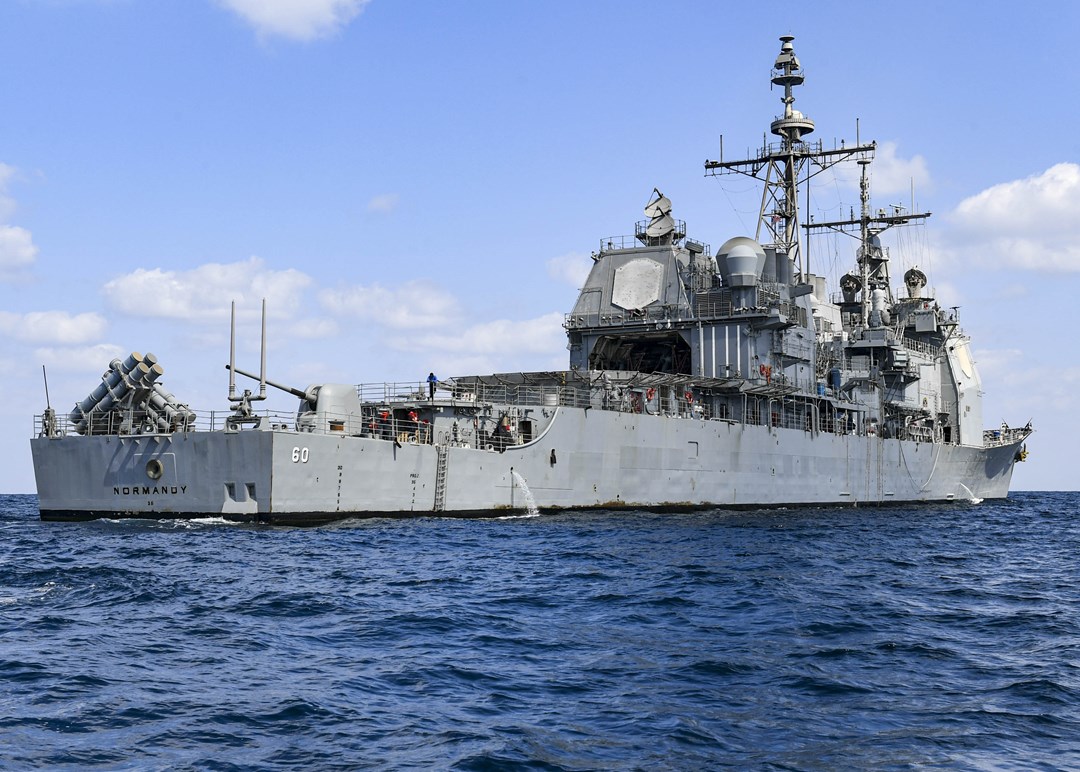

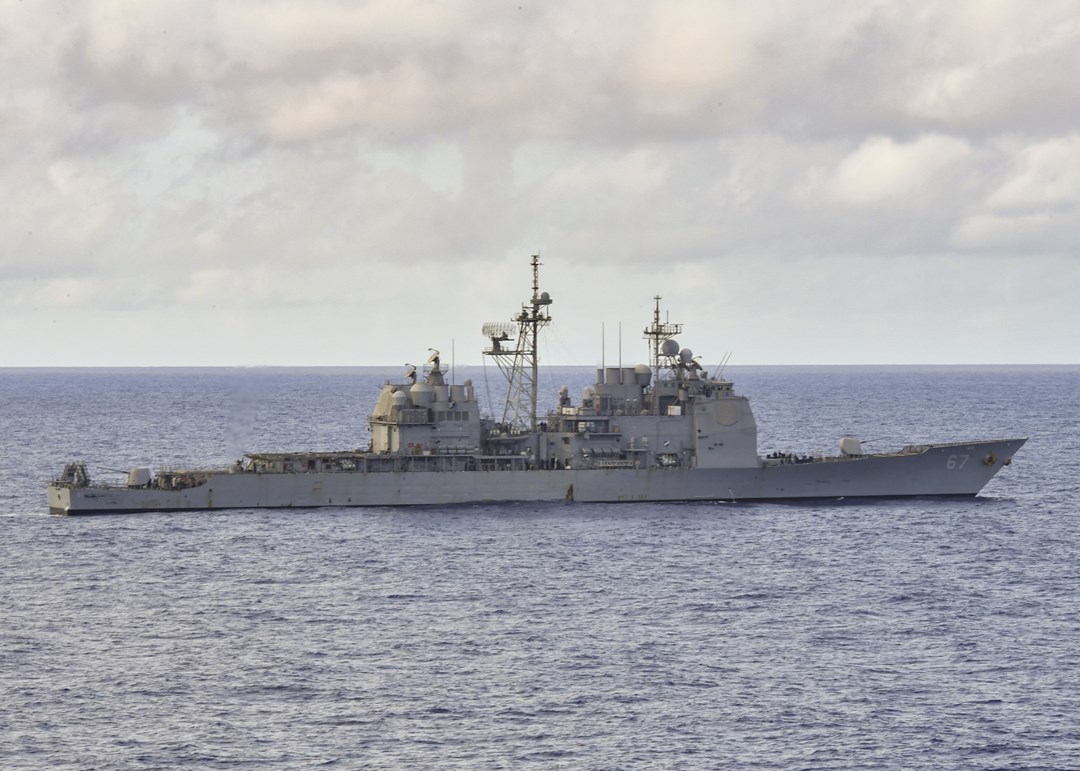

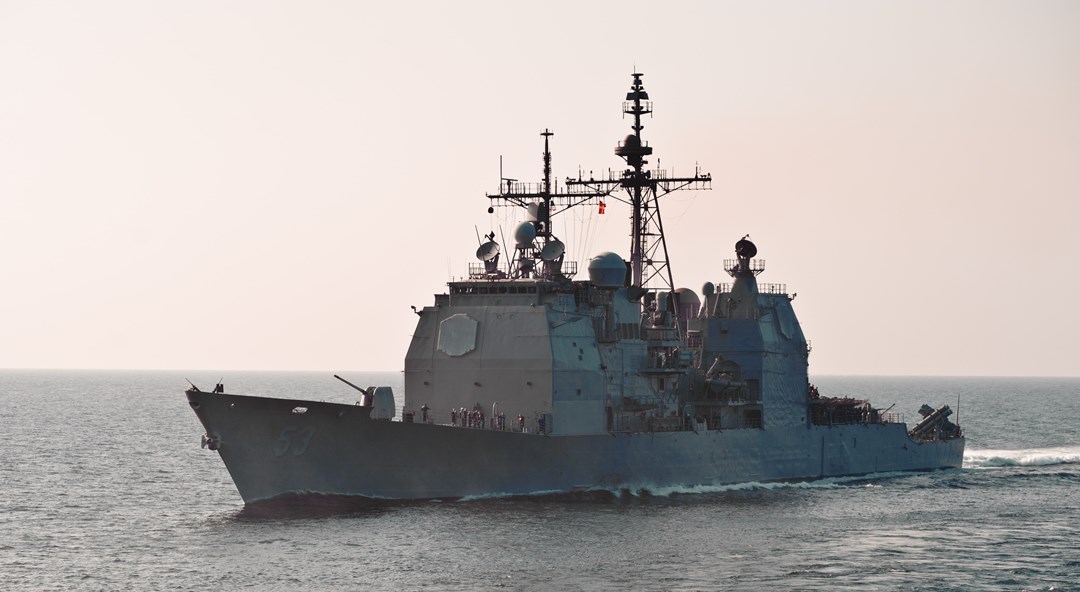

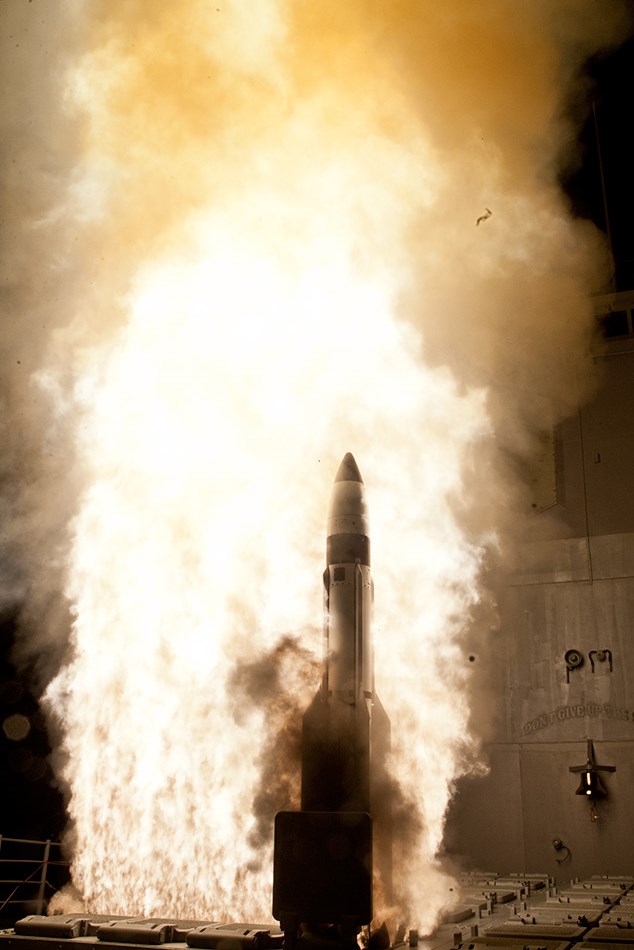

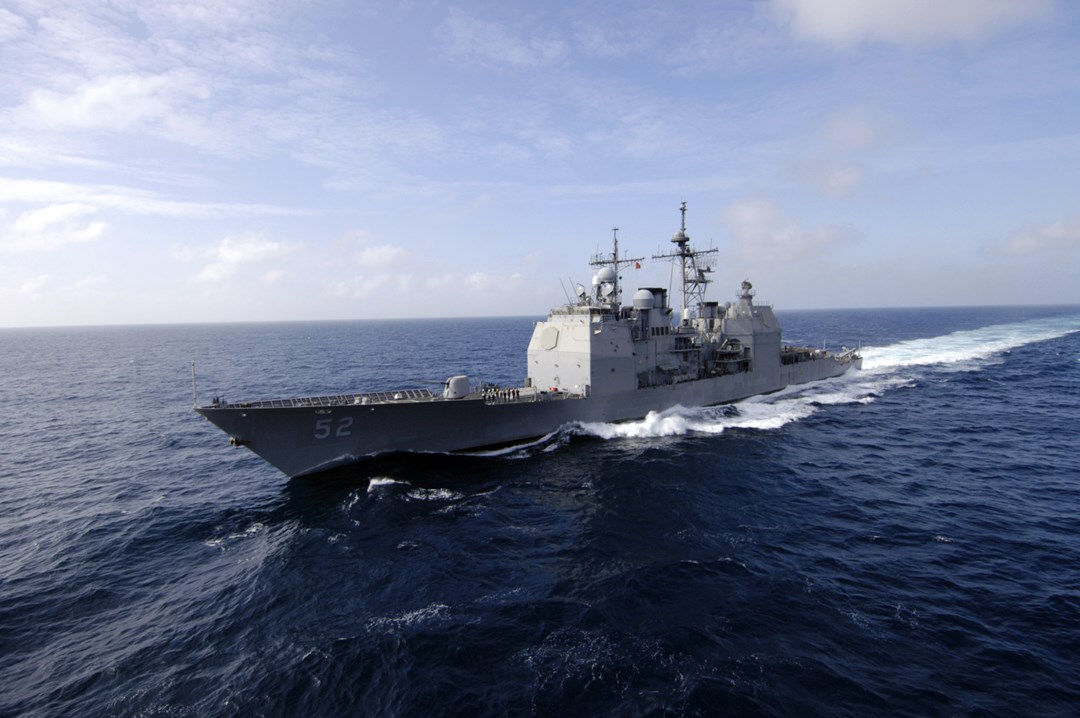

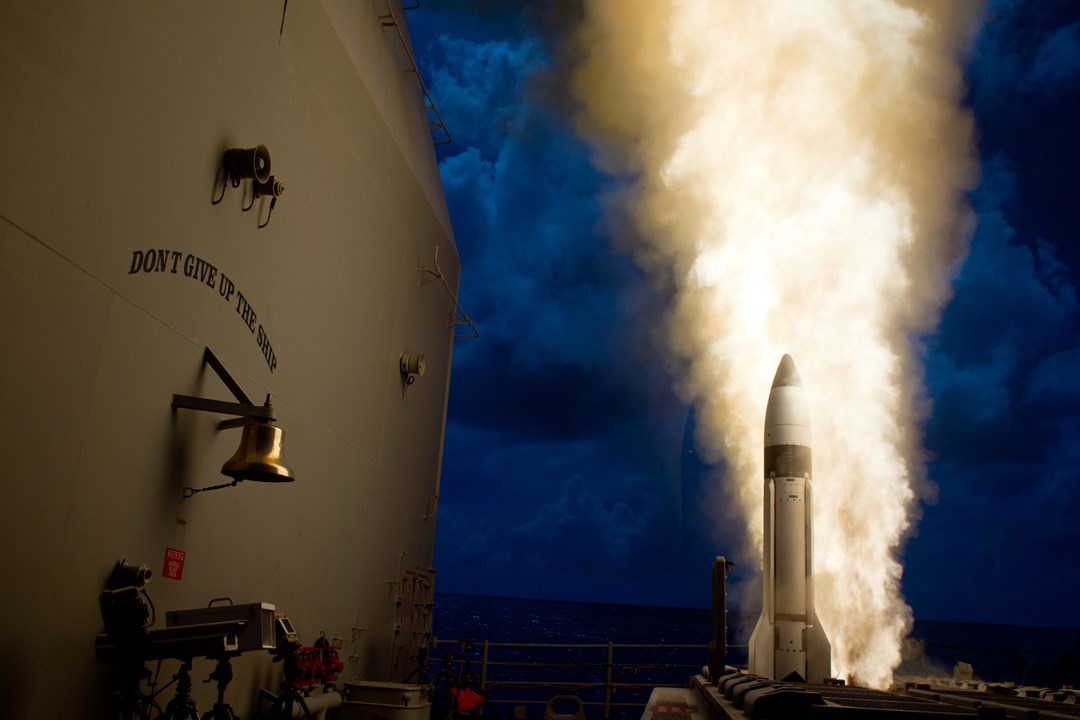

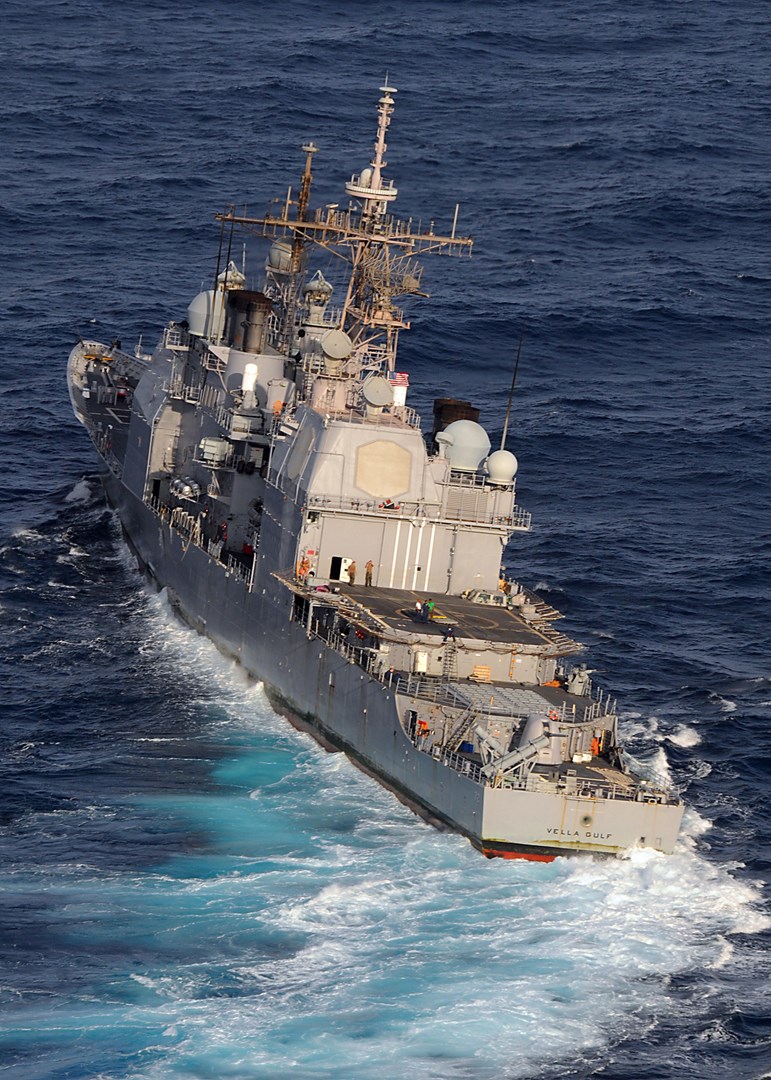

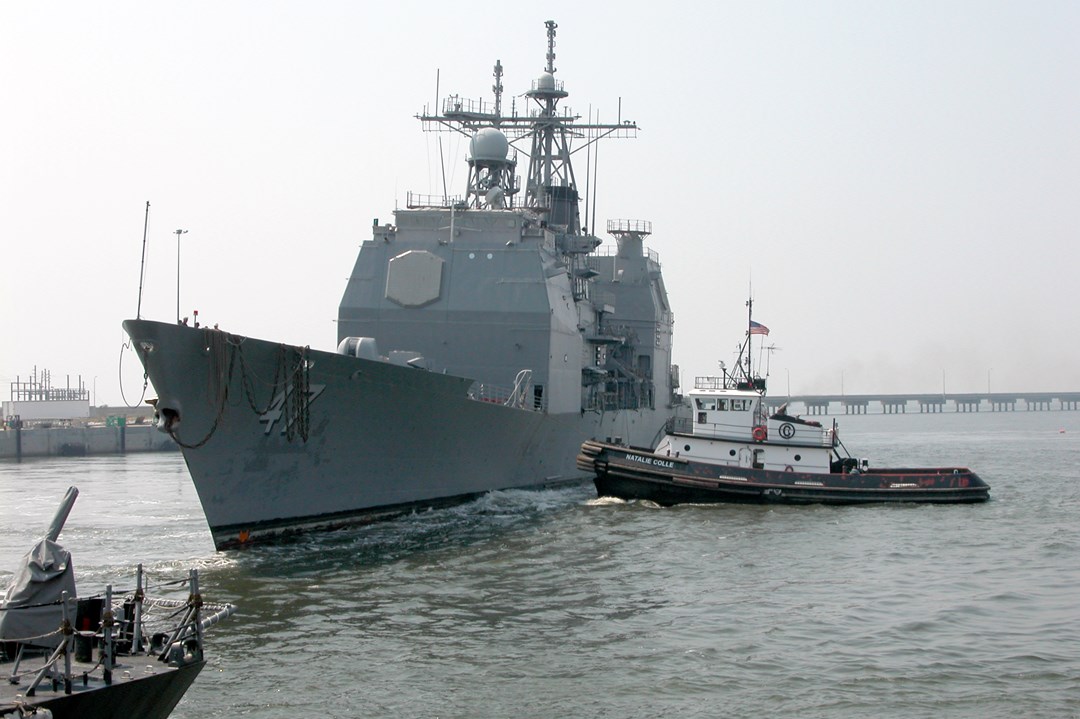

The CG 47 Ticonderoga class cruisers were designed to perform anti-air warfare (AAW), anti-surface warfare (ASuW), and anti-ship warfare (ASW) supporting carrier strike groups, amphibious forces, or operating independently and as flagships of surface action groups. These ships can be armed with Tomahawk cruise missiles achieving a long range strike capability. The Ticonderoga-class cruisers were the first US Navy to be equipped with the AEGIS combat system. The SPY-1 radar and the Standard SM-2 missiles give to the Ticonderoga cruisers and unprecedented anti-air warfare capability, even against multiple airborne threats. Ticonderoga cruisers were employed for the first time during operation Desert Storm against Iraq. Since then, the Ticonderoga cruisers have been deployed in several conflicts demonstrating their capabilities as fleet escort and their land-attack capability using Tomahawk cruise missiles.

Overview (Deagel)
Group Cruisers
Status Retired - No Longer Operational
Origin United States of America
Contractors General Dynamics, Northrop Grumman
Initial Operational Capability (IOC) 1983
Total Production 5
Unitary Cost USD $1.0 billion
Specifications (Deagel)
Crew 364
Number of Engines 4
Number of Weapons 130
Torpedo Tubes 6
Dimensions — Length 173 meter
Dimensions — Main Gun Caliber 127 millimeter
Dimensions — Ship's Height 16.8 meter
Mass — Full Displacement 9,600 ton
Power — Total Combined Power 80,000 shp
Speed — Top Speed 30 knot
Time — Service Life 21 year
Gear (Deagel)
Item 1 Anti-Ship Missiles: RGM-84D Harpoon (8)

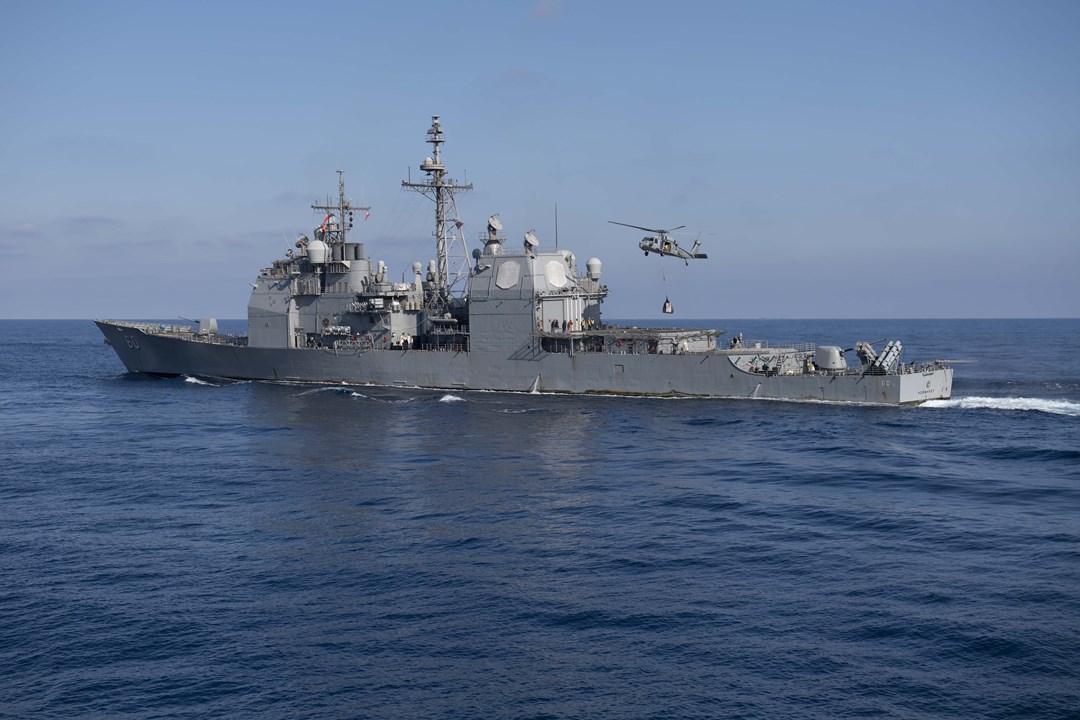

Item 2 ASW Helicopters: SH-60B Seahawk (2)
Item 3 Combat Management Systems: AN/SQQ-89
Item 4 Decoy Systems: AN/SLQ-25A SSTD
Item 5 Naval Gun Systems: Mk 45 (2)
Item 6 Radar Systems: AN/SPG-62 (4)
Item 7 Radar Systems: AN/SPQ-9A
Item 8 Radar Systems: AN/SPY-1A (4)
Item 9 Sea-Based Air Defense Systems: AEGIS
Item 10 Sea-Based Air Defense Systems: Mk 15 Phalanx Block 0 (2)
Item 11 Ship Power Plants: LM2500 (4)
Item 12 Sonar Systems: AN/SQS-53C (1)

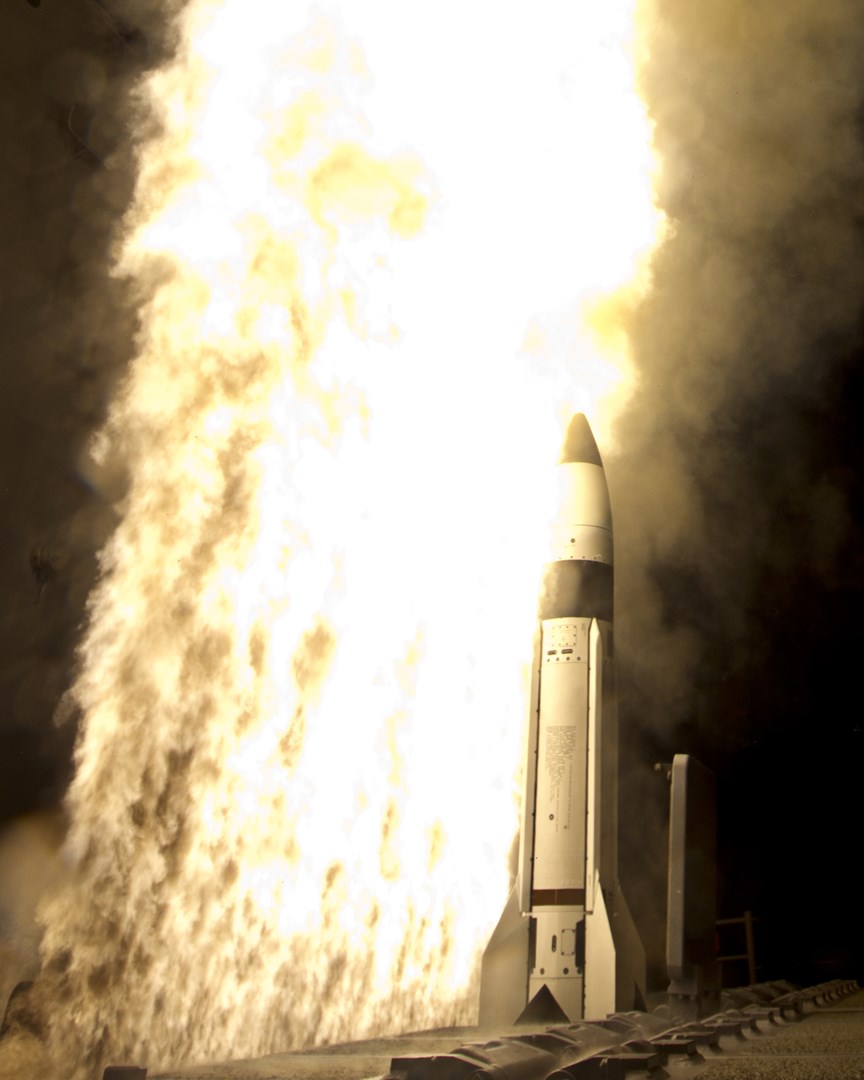

Item 13 Surface-to-Air Missiles: Standard SM-2 Block II
Item 14 Surface-to-Air Missiles: Standard SM-2 Block III
Item 15 Surface-to-Air Missiles: Standard SM-2 Block IIIA
Variants
Variant 1 CG 47 Ticonderoga
Variant 2 CG 47 (VLS)
Details
Country of Origin United States
Category Guided Missile Cruisers
Naval > Guided Missile Cruisers
Classification
Domain
Naval & Littoral
Equipment Status
Active
