Type 075 Class (Yushen Class) Chinese Landing Helicopter Dock (LHD)
Type 075 Class
Landing Helicopter Dock (LHD)
Other
Basic Information
Name
Type 075 Class (Yushen Class) Chinese Landing Helicopter Dock (LHD)
Designation
Type 075 Class
Alternate Designation
Type 075 Class; Yushen Class
Equipment Type
Landing Helicopter Dock (LHD)
Manufacturer
Hudong-Zhonghua Shipyard
Date of Introduction
2021
Description

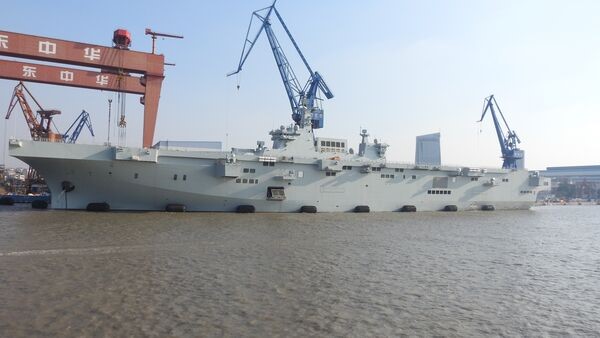

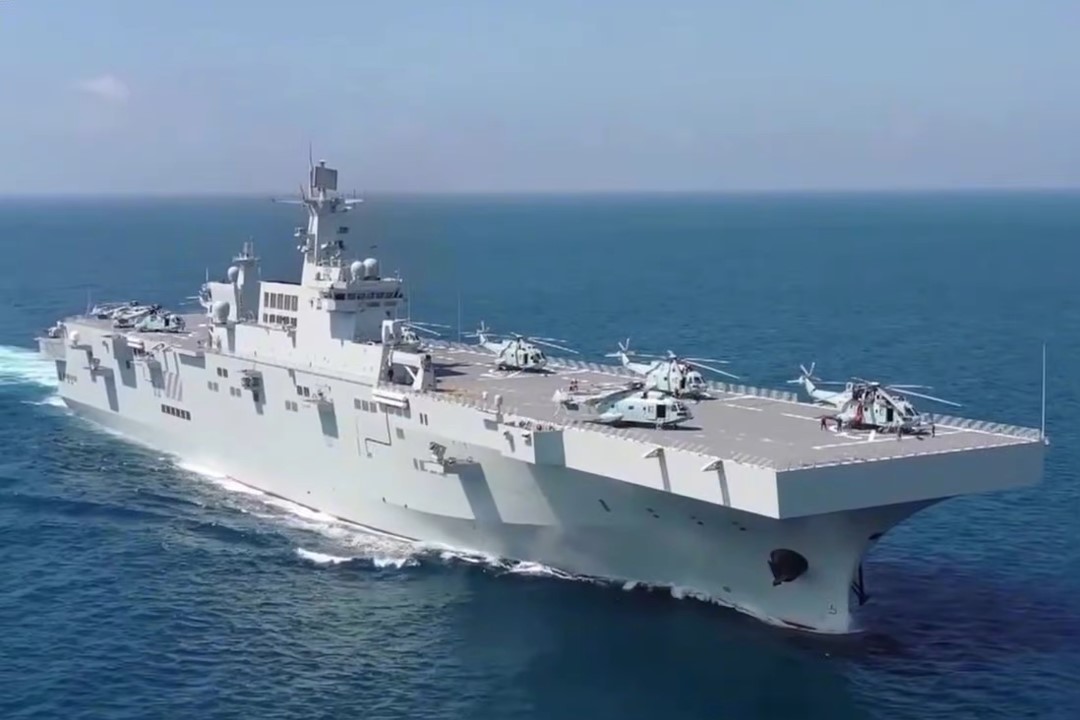

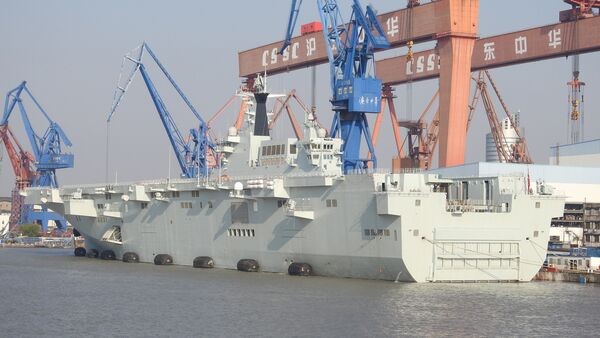

The Type 075 Class (Yushen Class) Chinese Landing Helicopter Dock (LHD) has a full-length flight deck for helicopter operations and features a floodable well deck from which to disembark hovercraft and armored amphibious assault vehicles. Eight vessels in total are expected to be built.
Ground Specifications
Main Weapon
2 x H/PJ-11 (Type 1130) 30 mm
Max Speed
42.6 km/h
Variants
Hainan
Commissioned: 2021;
Status: Active
Guangxi
Commissioned: 2021;
Status: Active
System
Alternative Designation
Type 075 Class; Yushen Class
Type
Landing Helicopter Dock (LHD)
Builder
Hudong-Zhonghua Shipyard, Shanghai
Crew
INA
Dimensions
Length, Overall
237 m
Flight Deck Length
237 m
Flight Deck Width
35 m
Beam
45 m
Height
INA
Draft
8.5 m
Displacement, Standard
INA
Displacement, Full Load
34,172 tons
Propulsion System
Engine Name
CODAD
Engine Type
4 x Diesels
Engine Power
INA
Shafts
2 ea
Maximum Range
INA
Maximum Speed
23 knots (42.6 km/h)
Main Weapon System
System
2 x H/PJ-11 (Type 1130) 30 mm; 11 barrels per mounting.
Maximum Firing Range
4 km
Rate of Fire
10,000 rds/min
Missile System
System
2 x launchers for HHQ-10; passive IR/anti-radiation homing to 9 km
Radar Systems
Air Search Radar
1 x Type 382 (derived from Fregat-MAE5/Top Plate); D/E-bands.
Air/Surface Search Radar
INA
Navigation Radar
I-Band
Aviation
Hangar Deck
Yes
Aviation Capacity
up to 30 medium size helicopters
Protection
Hull
INA
NBC Water Washdown System
Yes
Electronic Countermeasures
ECM/ESM: ESM and jammer.
Physical Countermeasures
4 x ype 726 24-barrelled 122 mm trainable launchers; IR flares and chaff. Can fire anti-torpedo decoys and HE mortars.
Image Sources
Note
https://news.usni.org/2020/07/29/chinese-type-075-big-deck-amphib-preparing-for-sea-trials; https://www.scmp.com/news/china/military/article/3130951/chinas-most-advanced-amphibious-assault-ship-expected-be; https://www.reddit.com/r/WarshipPorn/comments/t44et9/third_lhd_type_075_planned_to_be_commissioned/
Details
Country of Origin
China
Category
Naval
Naval
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
237 m
Width
45 m
Height
—
Weight
34172000 kg
Operators (1)
China
