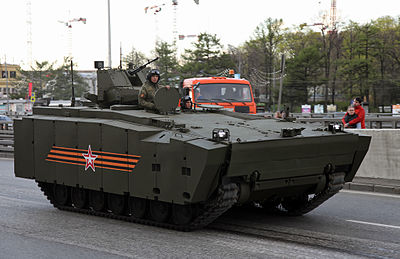

Kurganets-25 Russian Amphibious Armored Personnel Carrier (APC)

Kurganets-25 BTR

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Kurganets-25 Russian Amphibious Armored Personnel Carrier (APC)
Designation
Kurganets-25 BTR
Alternate Designation
Kurganets-25 BTR
Equipment Type
Manufacturer
Date of Introduction
2015
Description

The Kurganets-25 Russian Amphibious Armored Personnel Carrier (APC) is a lightly armed armored personnel carrier that can move 8 infantrymen to the battle with the support of one 12.7mm machine gun. The machine gun is in a remotely controlled turret. As part of the Russian army’s efforts to modularize their combat systems, the Kurganets-25 IFV and APC will evolve into various models, gradually replacing BMP, BMD, MT-LB and other types of tracked Soviet armored platforms. The Kurganets-25 will have modular armor that can be upgraded for specific threats. The Kurganets-25 IFV and APC variants were first seen in public during rehearsals for the 2015 Moscow Victory Day Parade. The Kurganets-25 is designed to bring the Russian tracked troop carrier fleet up to standard with Western designs like the American M2 Bradley and British Warrior, which outclassed their Soviet Cold War BMP-series counterparts. Kurganets-25 is based on Armata Universal Combat Platform while being lighter than the T-15 Armata "heavy IFV" based on the same and similar to wheeled VPK-7829 Bumerang. The APC carries 8 troops. Other variants proposed for the Kurganets include an armored ambulance, an 82 mm Vasilek mortar carrier, anti-tank vehicle, armored recovery vehicle, a reconnaissance vehicle, a command vehicle, and an armored engineering vehicle. The vehicle represents a departure from traditional Russian low profile designs, having a higher floor more suited for mounted combat rather than troop carrying, which also provides better IED and mine protection. While the T-15 is expected to be deployed with T-14 tanks in armored formations, Kurganets-25 platforms will equip mechanized units.

Ground Specifications
Crew 3
Mobility Type Tracked
Main Weapon 12.7mm heavy machine gun
Engine Diesel (750 hp)
Active Protection Has sensors but no countermeasures
NBC Protection Yes
Max Speed 80.0 km/h
Range 500.0 km
Variants
Armored Recovery Vehicle Equipped with a crane, a winch, and armed with a 12.7mm heavy machine gun
Armored Ambulance Proposed addition to the Russian army
82mm Vasilek Mortar Carrier Proposed addition to the Russian army
Anti-tank Vehicle Proposed addition to the Russian army
Reconnaissance Vehicle Proposed addition to the Russian army
Command Vehicle Proposed addition to the Russian army
Armored Engineering Vehicle Proposed addition to the Russian army
Self Propelled Anti-Aircraft Gun (SPAAG) Proposed addition to the Russian army
Self Propelled Gun (125mm) Proposed addition to the Russian army
System
Alternative Designation Kurganets-25 BTR
Crew 3 ea
Passenger Capacity 8
Maximum Effective Range 2,000 m
Dimensions
Length 7.2 m
Width 4 m
Height 3.2 m
Weight, Combat INA kg
Automotive
Engine Name YaMZ-780 inline engine with two turbochargers
Engine Type Diesel
Engine Power 750 hp
Cruising Range 500 km
Speed, Maximum Road 80 km/h
Speed, Average Cross INA
Speed Maximum Swim 10 km/h
Fording Depth Amphibious m
Gradient 60 %
Side Slope 40 %
Vertical Step 0.7 m
Trench 1.8 m
Main Gun
System
Name Kord Russian 12.7mm
Type Heavy Machine Gun
Max Rate of Fire 650 rpm
Sustain Rate of Fire 600
Range Finder Type Laser
Ammunition Option 1
Type AP-I
Caliber 12.7 mm
Muzzle Velocity 860 m/s
Basic Load ~500 rounds
Max Effective Range 2,000 m
Max Range 4 km
Min Range 0 km
Armor Penetration INA
Projectile Weight 389 g
Bursting Charge 49 g
Fire Control
Name INA
Turret Remote Controlled
Thermal Sight Vehicle Commander Yes
Thermal Sight Gunner Yes
Main Gun Stabilization Yes
Range, Day Sight INA
Range, Thermal Sight INA
Protection
Hull Armor Aluminum Alloy
Turret Armor Unmanned
Applique Armor Optional
Explosive Reactive Armor Optional
Active Protection System Has sensors but no counter measures
Self-Entrenching Blade Yes
NBC Protection Yes
Smoke Equipment INA
Details
Country of Origin Russia
Category Land
Land
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.2 m
Width
4 m
Height
3.2 m
Weight
Operators (3)
Russia
China
Venezuela
