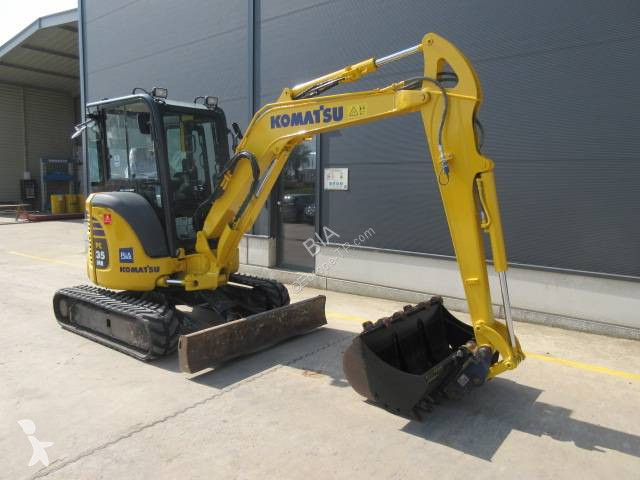

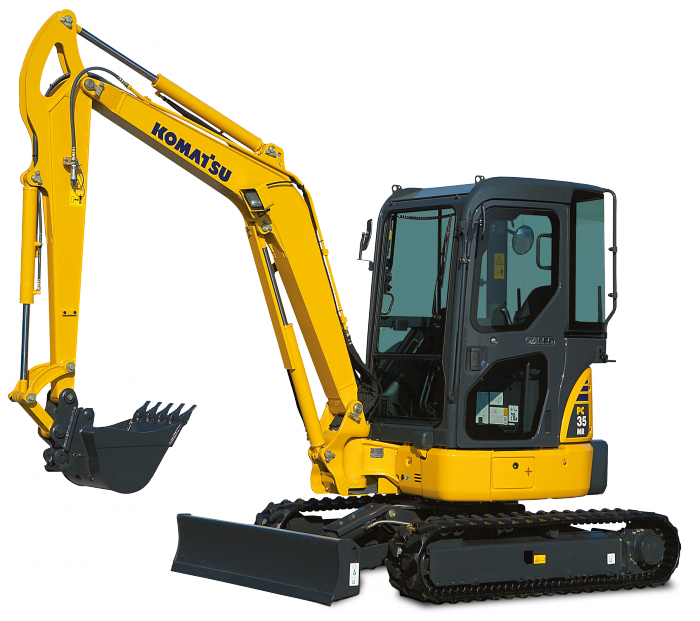

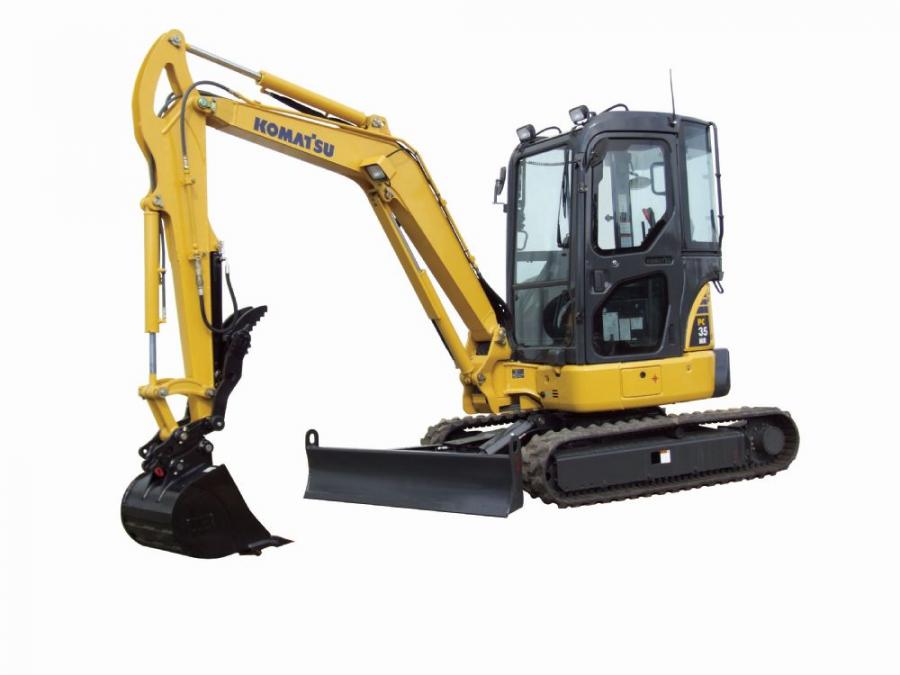

PC35MR-3 Japanese Small Size Hydraulic Excavator

PC35MR-3

Small Size Excavator
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
PC35MR-3 Japanese Small Size Hydraulic Excavator
Designation
PC35MR-3
Alternate Designation
PC35MR-3
Equipment Type
Small Size Excavator
Manufacturer
Komatsu
Date of Introduction
2017
Description

The Komatsu PC 35 MR 3 is a 3.29t machine with Komatsu engine which powers this model with up to 21.6kW or 28 horse power. The PC 35 MR 3 is categorised in the medium sized machine segment in the mini excavators category. The PC 35 MR 3’s size is 2.52m x 4.8m x 1.7m. The bucket of PC 35 MR 3 has a capacity of 0.12m³ which is average for this type of machine. The PC 35 MR 3 is manufactured and distributed with Blade and Rubber track. It does not include Track adaption, Quick hitch hydr. And Quick hitch mech.. There are more detailed specifications and machine descriptions available in the original Komatsu PC 35 MR 3 specs data sheet. Available in Romanian, Portuguese, German, Russian, Dutch, Czech, English, Italian, Finnish, Spanish and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model. The production is still going in 2017, where this PC 35 MR 3 is available at a new list price between €56000 and €72000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system. At present, 15 other mini excavators, which range from 0.9t up to 5.3t are produced by Komatsu. Of these, PC 26 MR 3, PC 30 MR 3 and also PC 16 R 3 HS are the most frequently visited on LECTURA Specs. Ranked in the LECTURA index at #5, this PC 35 MR 3 mini excavator has models that date from 2008 to 2017. Currently, 15 models of the PC 35 MR 3 mini excavator exist, at an average sale value of €16500 at 8 years of age.

Ground Specifications
Crew 1
Mobility Type Tracked
Engine Diesel
Max Speed 4.8 km/h
Variants
Note There is numerous variants of the PCM35M. You can view these different variants at the following website: https://www.komatsuamerica.com/
System
Alternative Designation PC35MR-3
Type Small Size Excavator
Crew 1 ea
Dimensions
Tail Swing Radius 950mm
Track Gauge 1440mm
Track Shoe Width 300mm
Crawler Length 2105mm
Boom Swing Angle Lh 75degrees
Boom Swing Angle Rh 55degrees
Bucket Offset Lh 580mm
Bucket Offset Rh 770mm
Overall Length 4825mm
Overall Height 2520mm
Overall Width 1740mm
Operating Weight 3580kg
Digging Depth – Maximum 3110mm
Digging Reach – Maximum 5300mm
Arm Crowd Force – Iso 2100 kgf
Maximum Reach @ Ground Level 5170mm
Swing Radius 950mm
Bucket Size – Kga Standard Gp 0.1m3
Automotive
Engine Name Komatsu 3D88E–6
Engine Type Direct injection
Power Measured 2400rpm
Flywheel Horsepower 21.4kw
Number Of Cylinders 3
Fan Drive Type Mechanical
Starter 2.3 kW
Operation Voltage 12V
Battery 58 Ah
Alternator 40 A
Fuel Tank 44L
Hydraulic Tank 14L
Engine Oil 6.7L
Coolant 3.3L
Performance
Travel Speed (Maximum) 4.8km/h
Travel Speed (Minimum) 2.8km/h
Swing Speed 9rpm
Ground Pressure 35.2kPa
Max. Traction Force 3400kg
Gradeability 30degrees
Bucket Digging Force (Iso) 3050kg
Arm Crowd Force (Iso) 2100kg
Undercarriage
Number Of Shoes Per Side 44 (steel)
Max Drawbar Pull 3400kg
Number Of Carrier Rollers Per Side 1
Adjustment Of The Track Tension Grease
Number Of Track Rollers Per Side 4
Hydraulic System
Type Of Hydraulic Pump Variable capacity x 2 gear x 1
Max. Oil Flow 36.1x2+19.8 9.5x+5.2
Hydraulic Motor (Travel) Variable capacity x 2
Hydraulic Motor (Swing) fixed capacity x 1
Max. Pressure Setting 25993.3kPa
Auxiliary Hydraulic Flow 70L/min
Blade
Blade Width 1740mm
Blade Height 355mm
Details
Country of Origin Japan
Category Land
Land
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.83 m
Width
1.74 m
Height
2.52 m
Weight
3580 kg
Operators (3)
United States
Japan
Australia
