Refleks
Refleks
Anti-Tank Guided Missiles

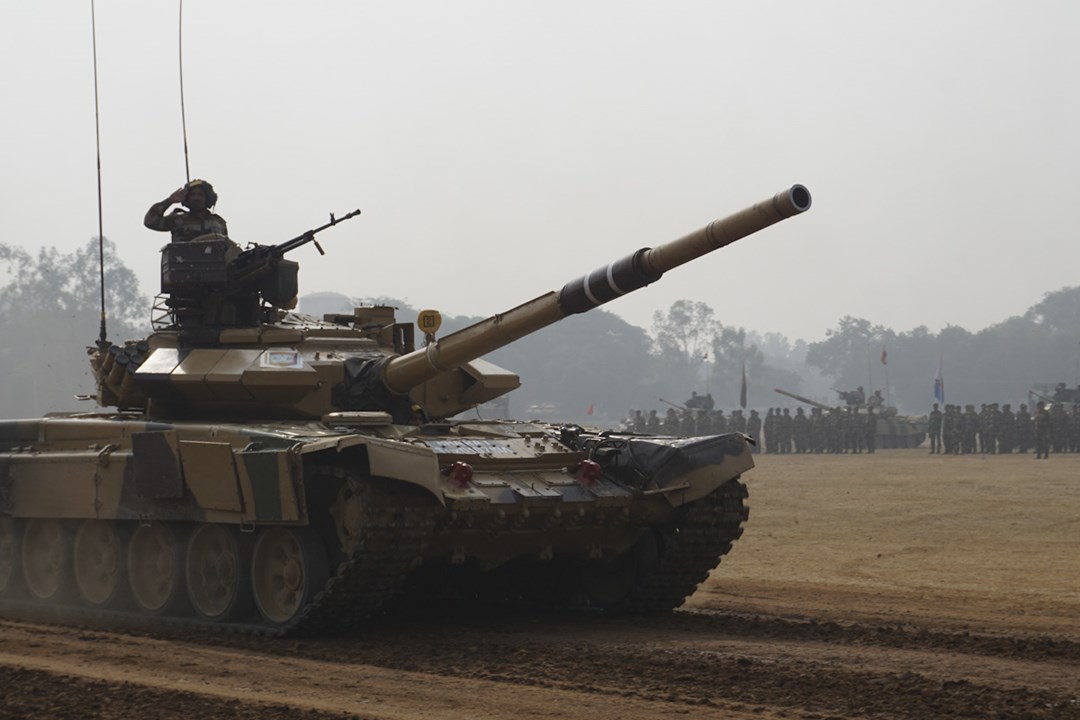

Operational Photo
Basic Information
Name
Refleks
Designation
Refleks
Alternate Designation
3UBK14F 9M119F, 9K119, 9M119, AT-11 Sniper, Svir
Equipment Type
Anti-Tank Guided Missiles
Manufacturer
Degtyarev
Date of Introduction
1986
Description

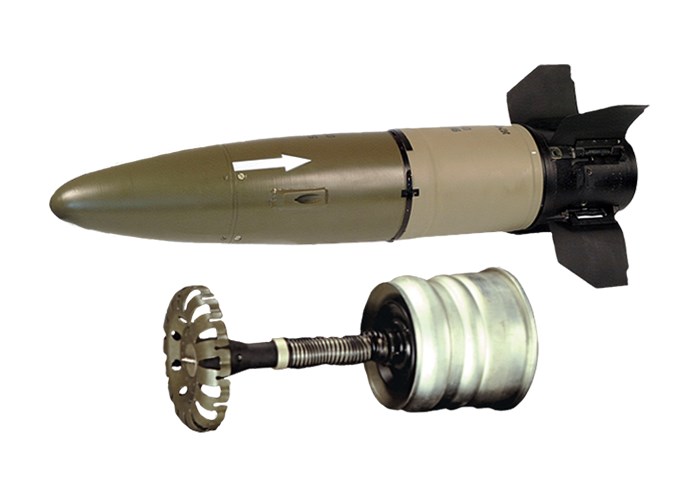

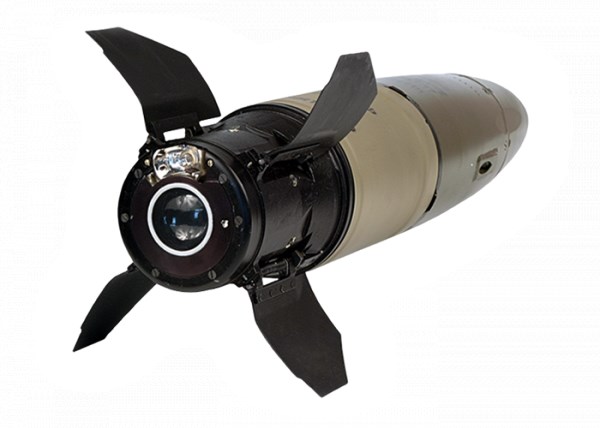

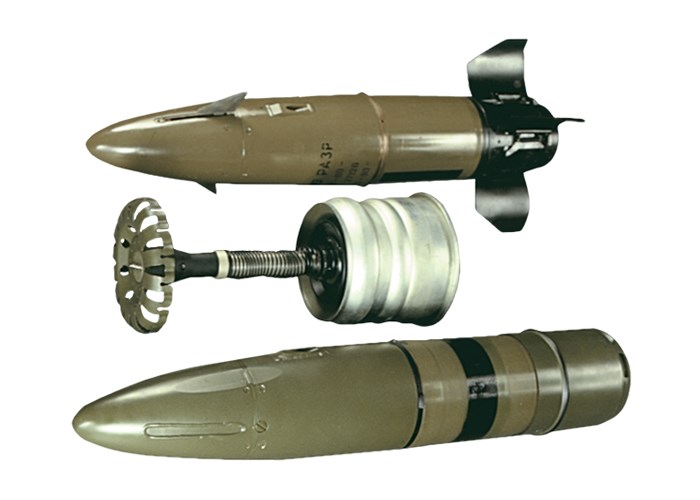

The Refleks, AT-11 Sniper NATO-codename, is a subsonic laser beam riding anti-tank missile designed to be fired through the 2A46M 125mm smoothbore gun family. It provides extended range and enhanced lethality over conventional rounds fired by the 125mm gun. A tandem shaped charge warhead has been provided to the Refleks missile in order to defeat Explosive Reactive Armor (ERA) protected Main Battle Tanks (MBT) as well as heavy armored vehicles protected with advanced armor.
Ground Specifications
Range
5.0 km
Overview (Deagel)
Group
Anti-Tank Guided Missiles
Status
Active
Also Known As
3UBK14F 9M119F, 9K119, 9M119, AT-11 Sniper, Svir
Origin
Russia
Contractor
Degtyarev
Initial Operational Capability (IOC)
1986
Total Production
?
Specifications (Deagel)
Dimensions — Diameter
125 millimeter
Dimensions — Launch Unit Length
1,080 millimeter
Dimensions — Length
695 millimeter
Mass — Cartridge Weight
23.6 kilogram
Mass — Weight
16.5 kilogram
Performance — Max Range
5,000 meter
Performance — Min Range
100 meter
Performance — Piercing in Armor
800 millimeter
Temperature — Max Operating Temperature
50 ° Celsius
Temperature — Min Operating Temperature
-50.00 ° Celsius
Time — Flight Time
16 second
Variants
Variant 1
Refleks
Variant 2
Invar
Variant 3
Invar-M
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a001002
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
695 m
Width
—
Height
—
Weight
16.5 kg
Operators (3)
Russia
China
India
