Mistral

Mistral

Amphibious Assault Ships
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Mistral
Designation
Mistral
Alternate Designation
BPC, NTCD
Equipment Type
Amphibious Assault Ships
Manufacturer
Naval Group, Chantiers de l'Atlantique, STX Europe
Date of Introduction
2006
Description

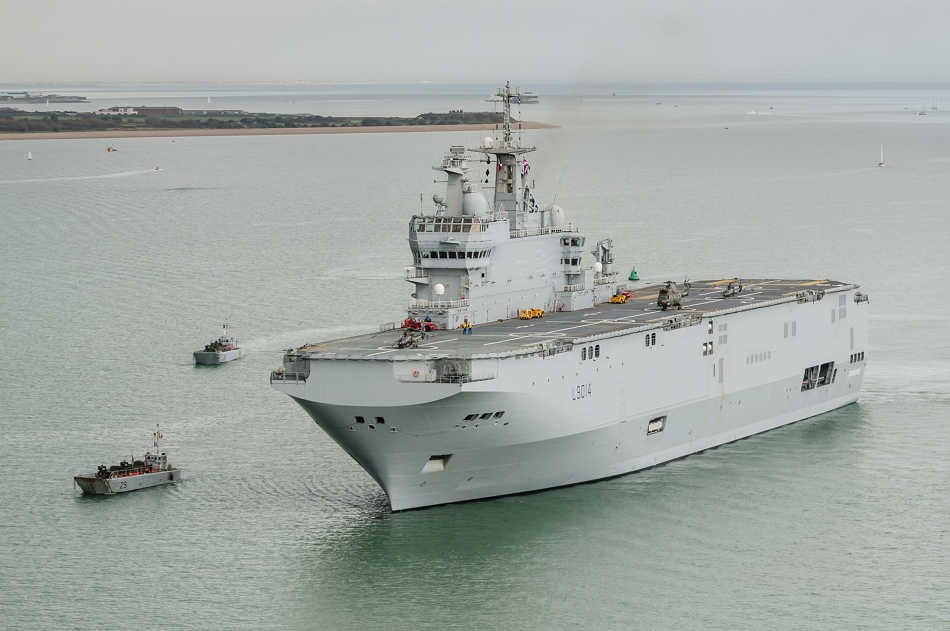

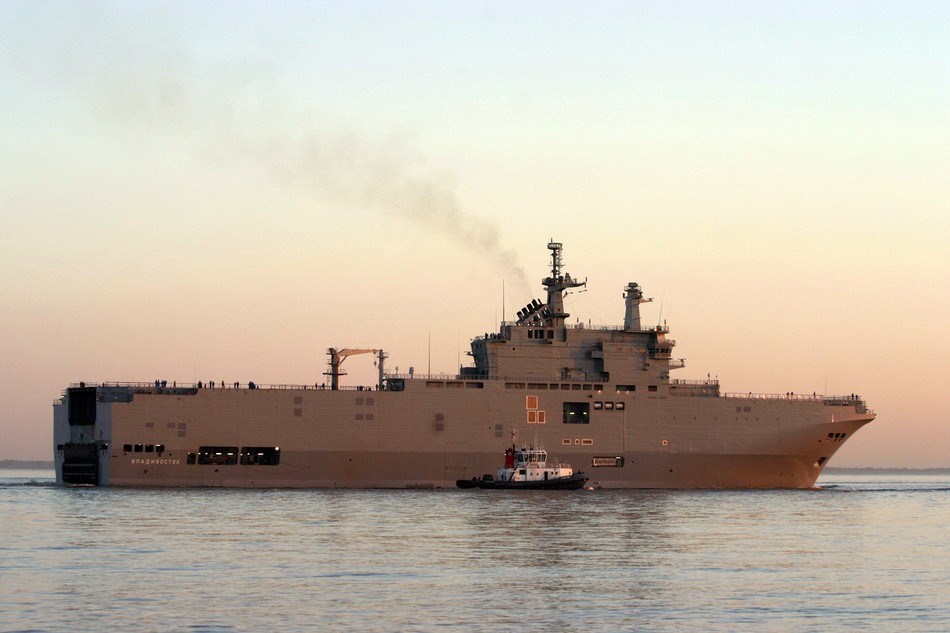

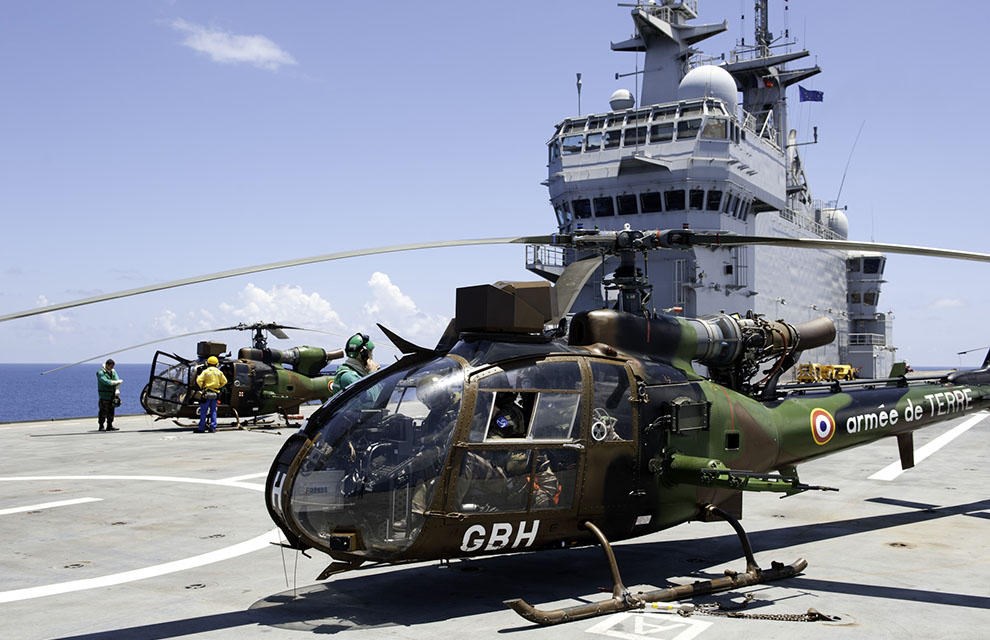

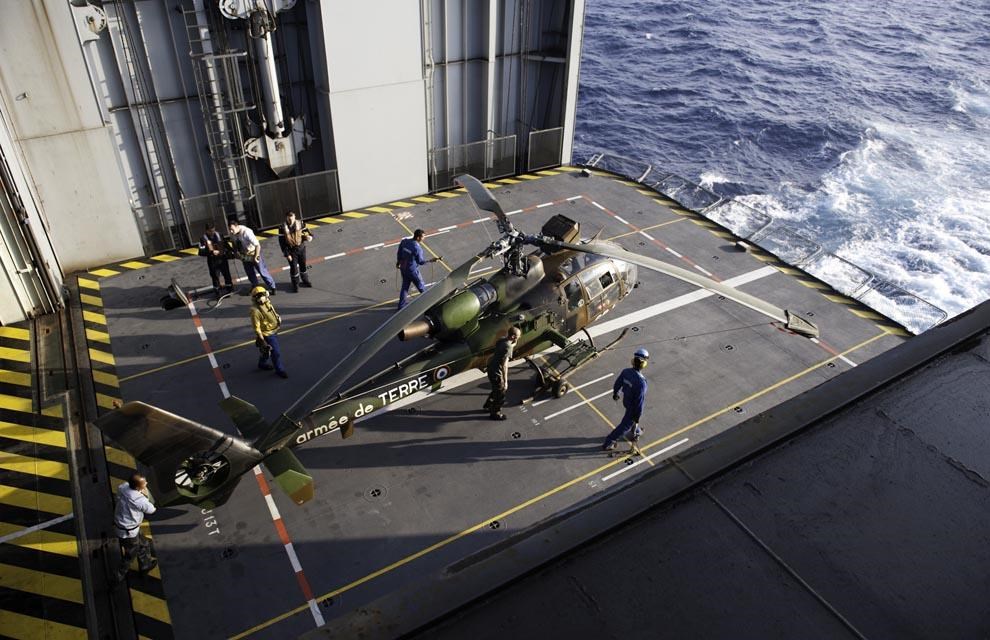

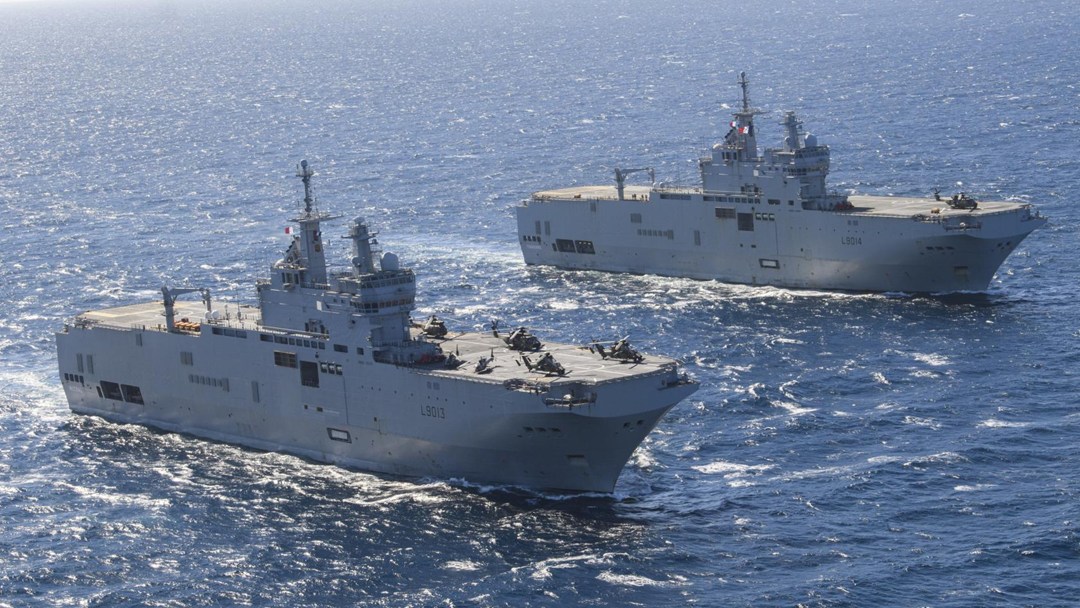

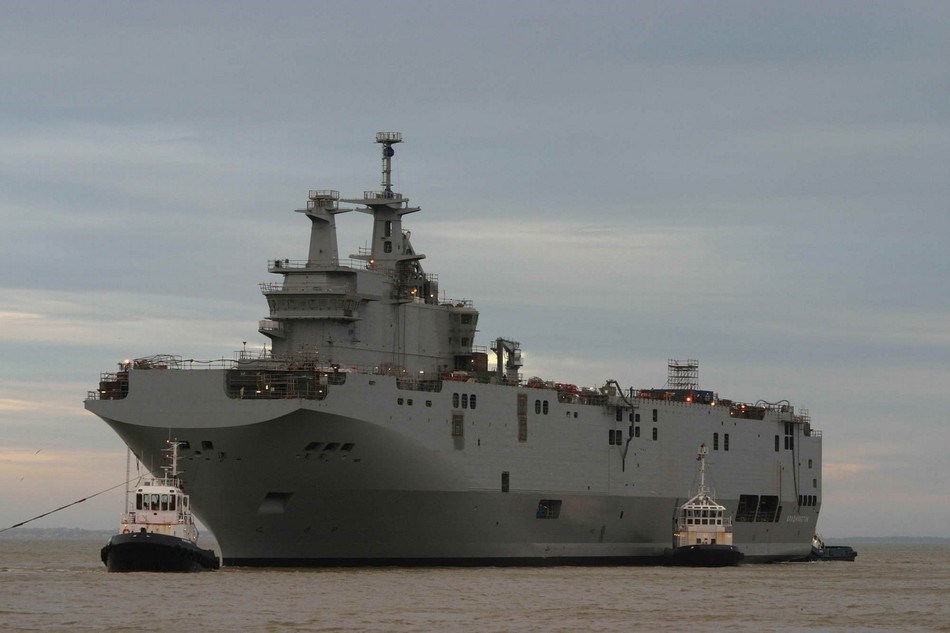

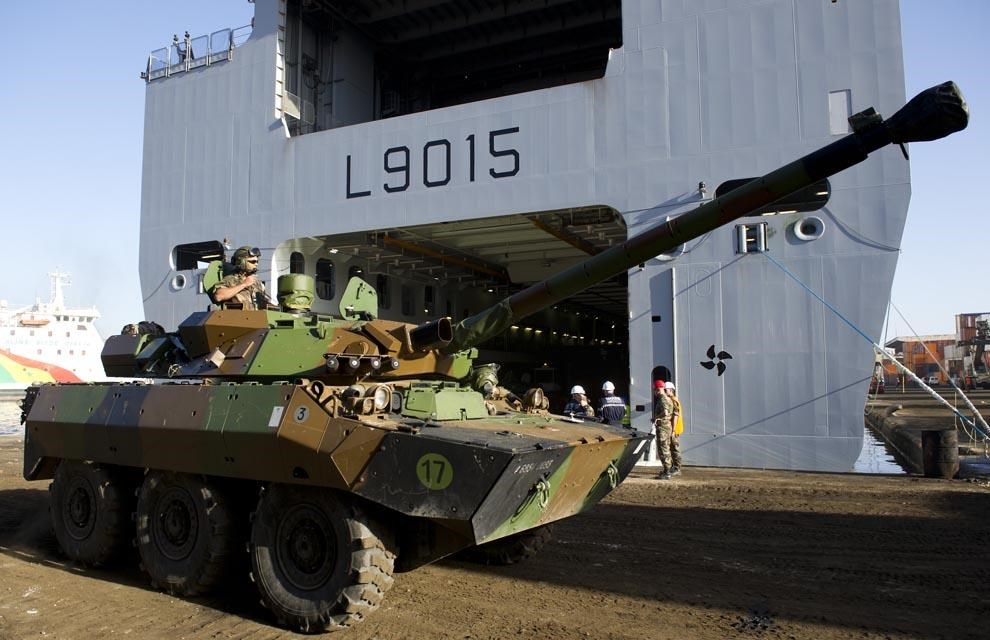

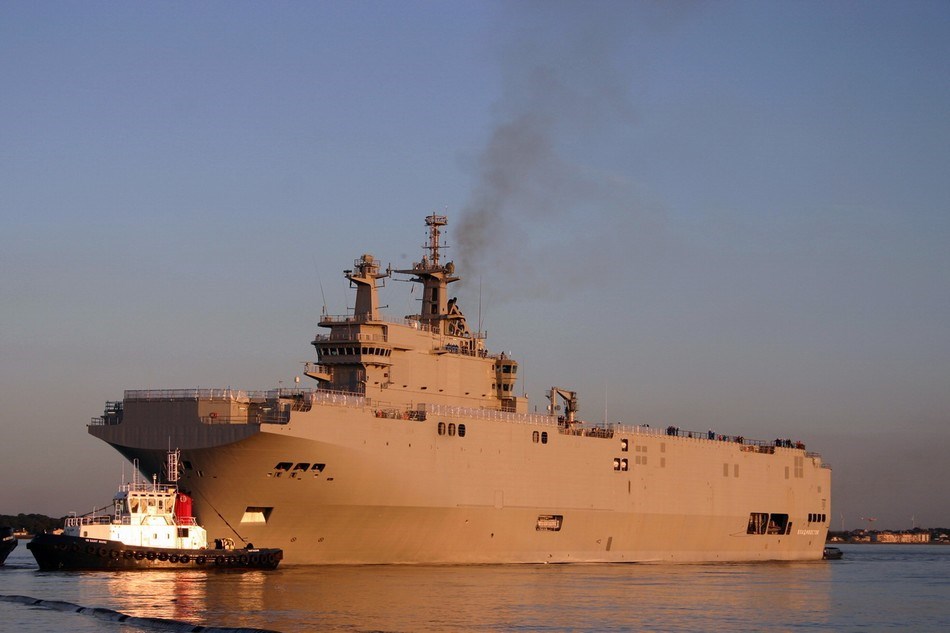

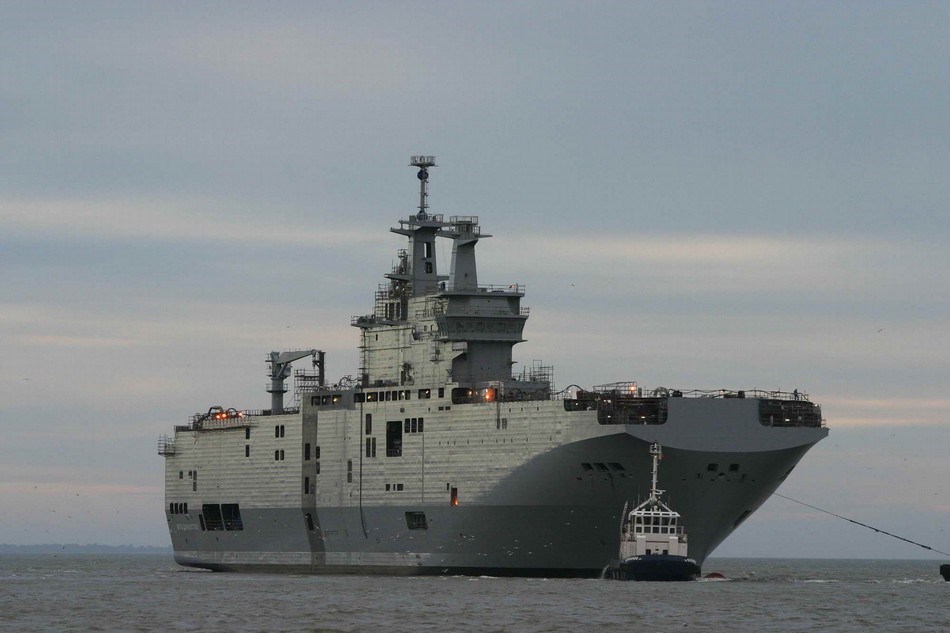

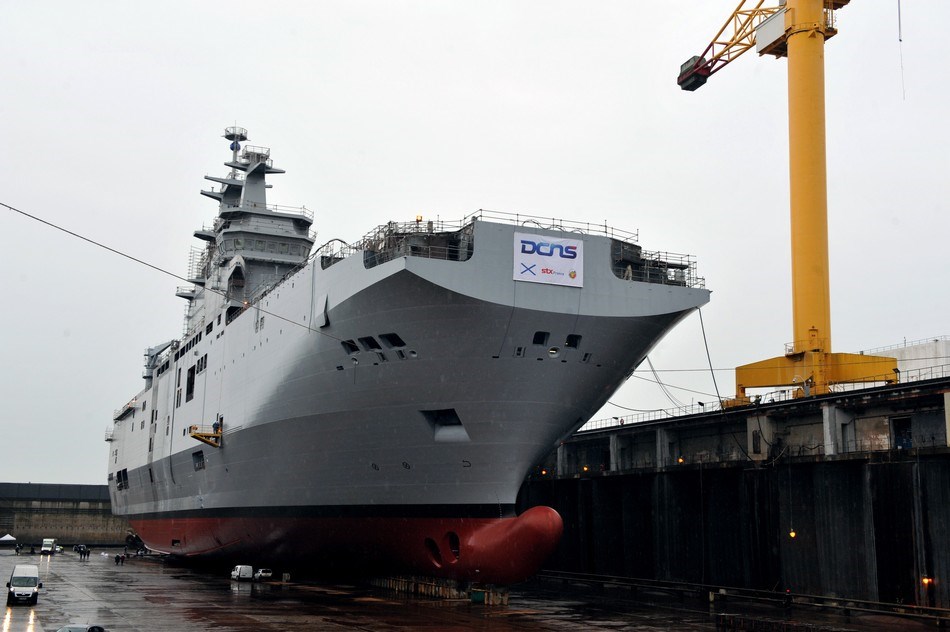

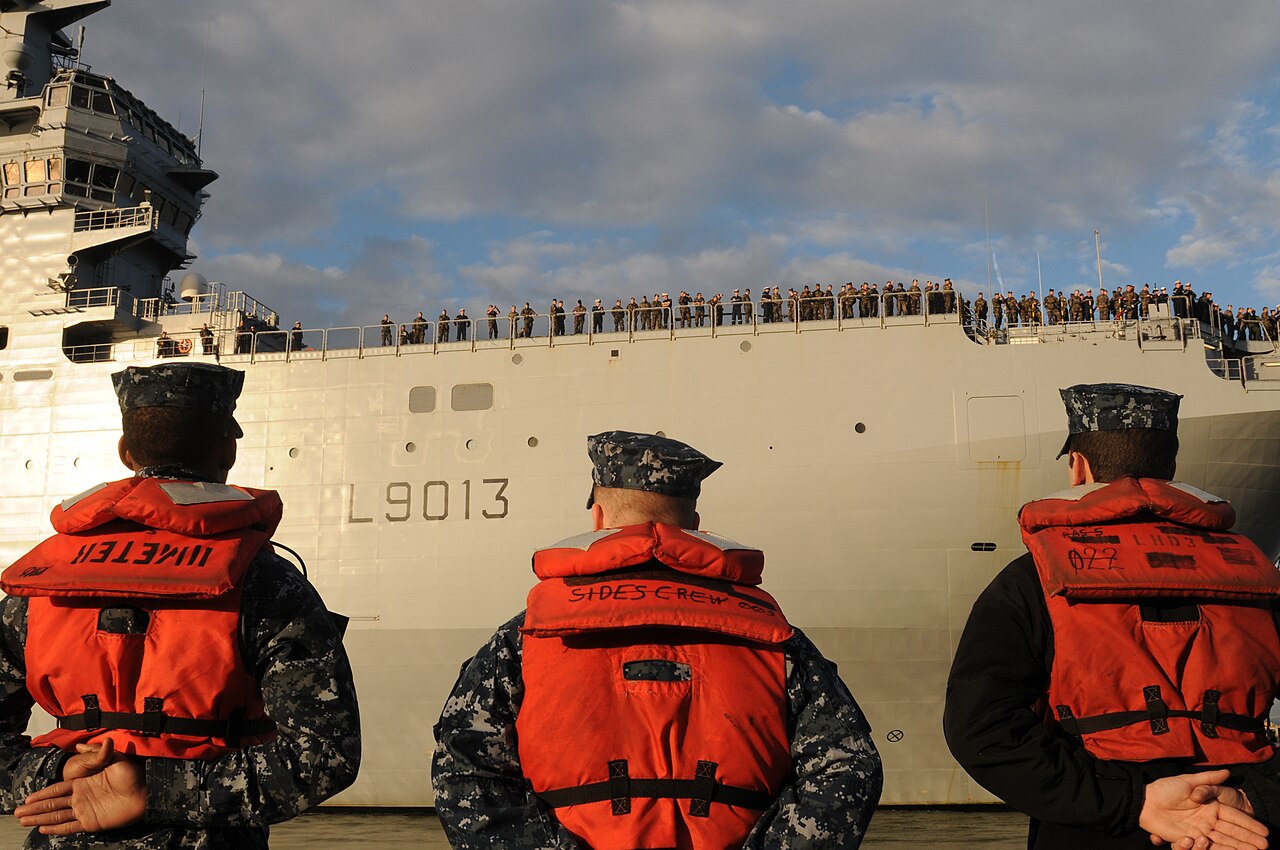

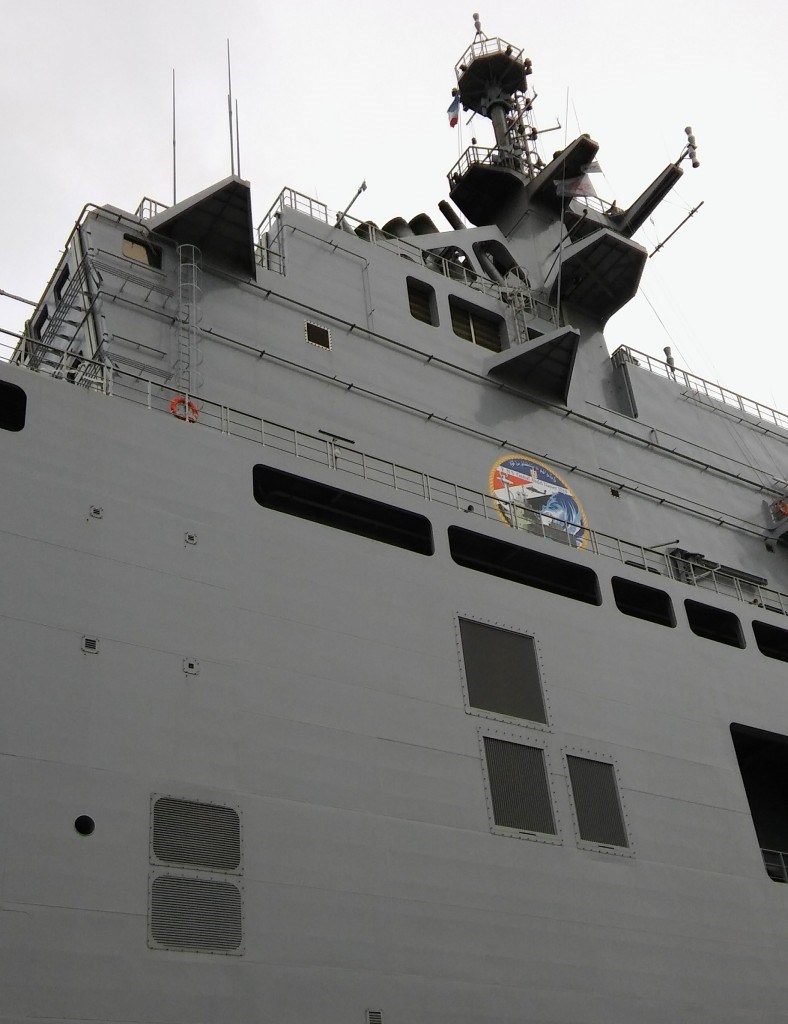

The Mistral-class landing platform dock ships are the result of the NTCD program and will provide improved amphibious assault capability to the French Navy. They will carry up to 20 helicopters and two hovercraft (LCAC) or four LCMs with a flight deck enabled to accommodate up to 10 helicopters and 7 of them in operation mode (takeoff/landing). Each NTCD ship will accommodate one-third of a regiment armored vehicles. Two ships ordered under the NTCD program are being built using civil standards and technologies in order to reduce costs. The BPC Mistral was launched October 6, 2004, at DCN shipyards in Brest. The program last review increased the production costs to 570 million euros, ten million more than previously regarded. The Mistral-class ships will perform command, amphibious assault, logistic support, humanitarian evacuation, hospital ship (63 beds) and naval warfare missions. It will feature an advanced electric propulsion system with two 10,000 shp propulsors. The self-defense capability will consists of two 30mm guns, a 3D radar, 2 optronic surveillance and fire control systems, and an unspecified short range missile system. NTCD's fully-automated platform management system will offer enhanced safety as well as reduced crew to operate the ship. The BPC (Bâtiment de Projection et de Commandement / Projection and Command Ship) Mistral program comprising two ships, Mistral and Tonnerre, is worth €560 million ($702 million). The shipbuilding and outfitting works are being carried out at Saint-Nazaire by Alstom Marine (Chantiers de l’Atlantique) and at Brest by DCN, both shipyards in France. DCN is the prime contractor for the BPC Mistral program. The French Navy ordered two ships in December 2000 replacing Foudre and Sirocco amphibious assault ships.

Naval & Littoral Specifications
Crew 160
Displacement 21500.00 tonnes
Beam 28.00 m
Max Speed 20.0 knots
Overview (Deagel)
Group Amphibious Assault Ships
Status Active
Also Known As BPC, NTCD
Origin France
Contractors Naval Group*, Chantiers de l'Atlantique, STX Europe
Initial Operational Capability (IOC) 2006
Total Production 3
Unitary Cost USD $350 million
Specifications (Deagel)
Crew 160
Number of Aircraft 16
Troops 450
Dimensions — Beam 28 meter
Dimensions — Length 199 meter
Mass — Full Displacement 21,500 ton
Performance — Max Range 20,400 kilometer
Speed — Cruise Speed 15 knot
Speed — Top Speed 20 knot
Time — Mission Endurance 45 day
Gear (Deagel)
Item 1 ASW Helicopters: AS 532SC Cougar
Item 2 ASW Helicopters: NH90 NFH (16)
Item 3 Landing Crafts: EDA-R (2)
Item 4 Landing Crafts: LCAC 1 (2)
Item 5 Optronic Systems: EOMS NG
Item 6 Radar Systems: MRR (1)

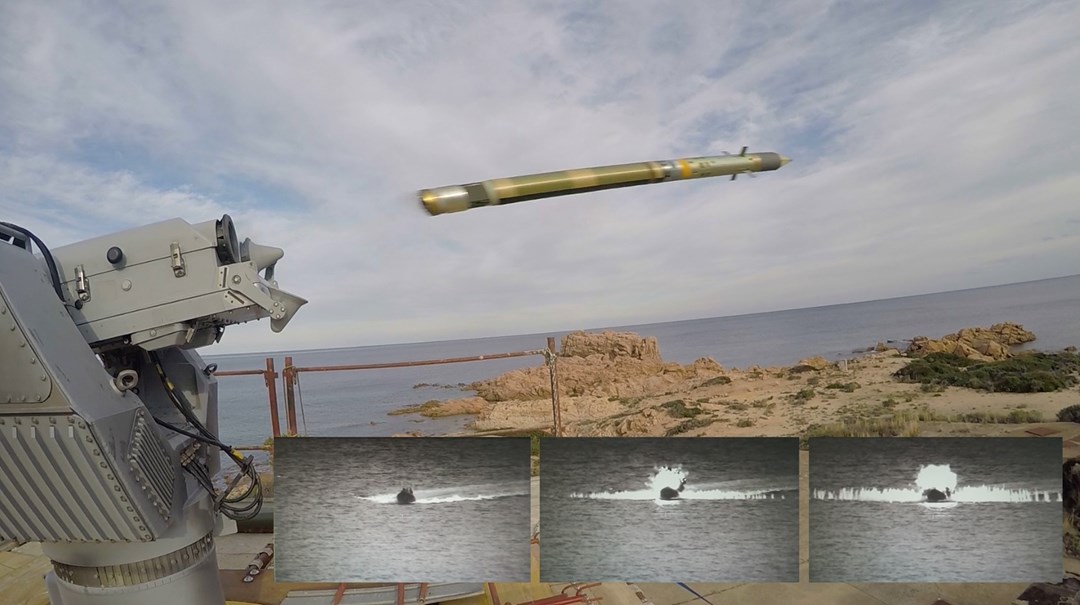

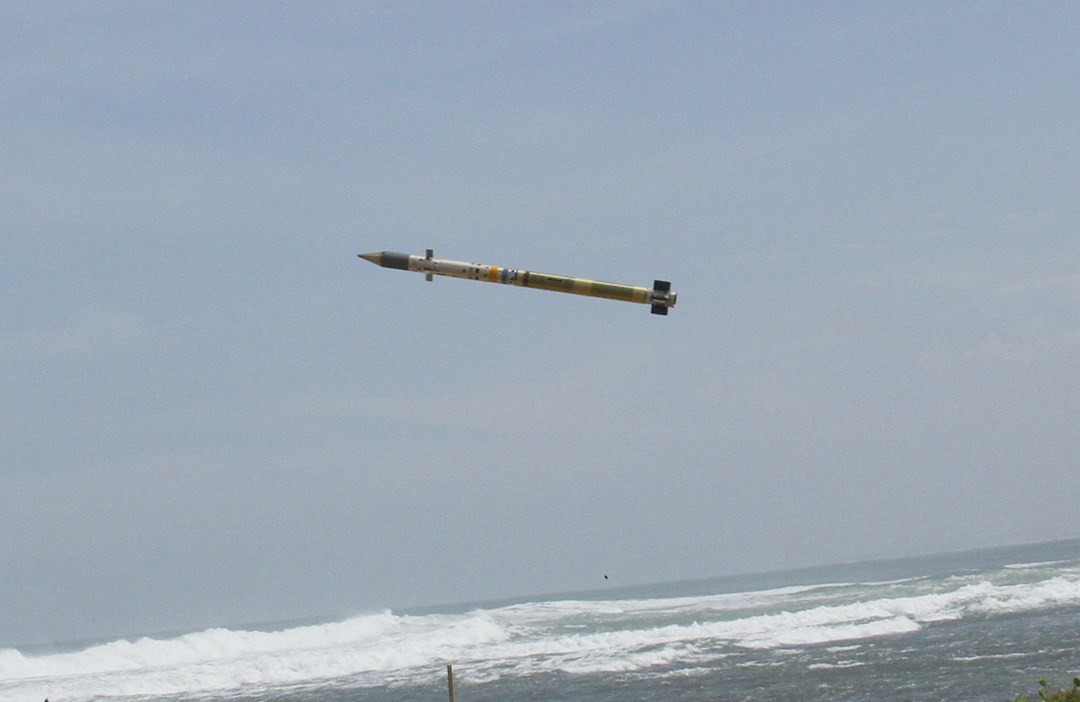

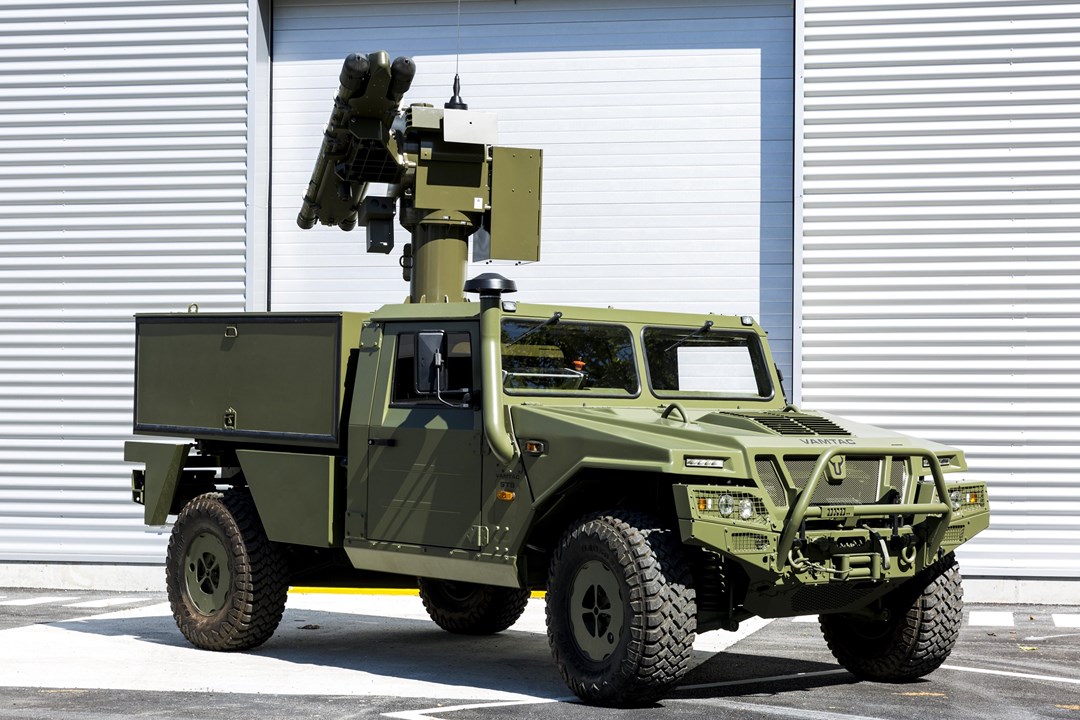

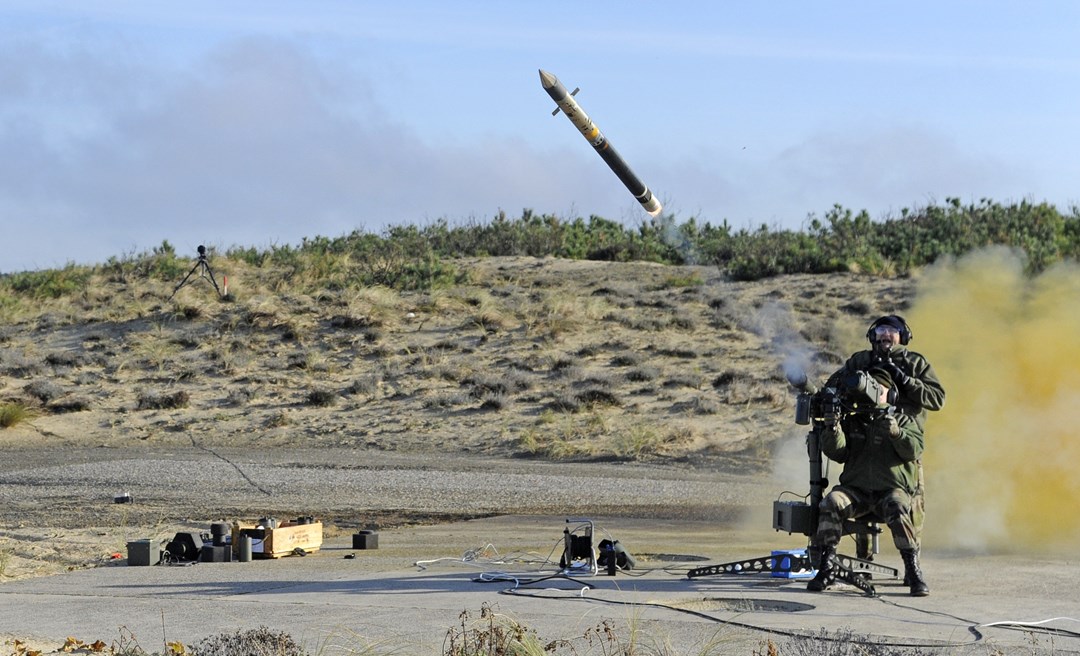

Item 7 Surface-to-Air Missiles: Mistral
Item 8 Utility & Transport Helicopters: H225M

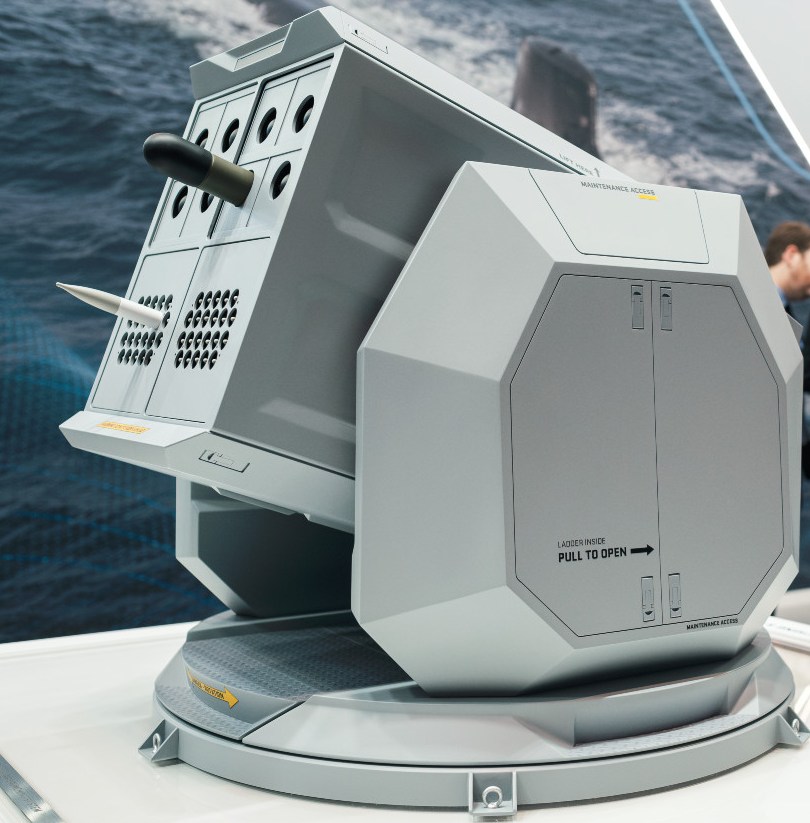

Item 9 Weapon Stations: Narwhal (2)
Variants
Variant 1 Mistral

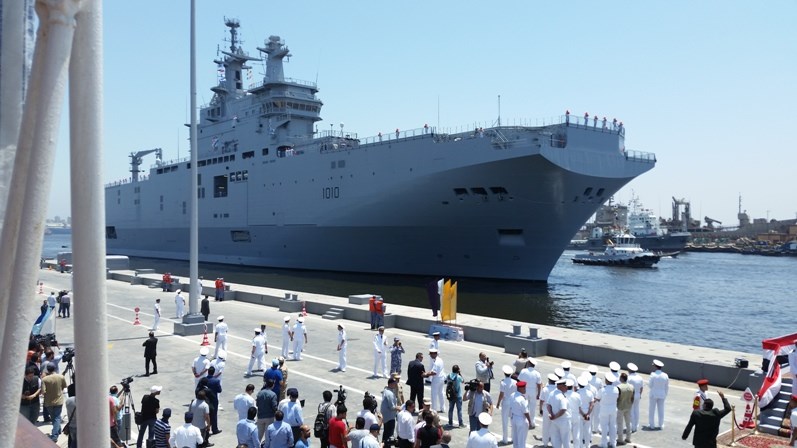

Variant 2 Gamal Abdel Nasser
Details
Country of Origin France
Category Landing Ships and Amphibious Assault Ships
Naval > Landing Ships and Amphibious Assault Ships
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
199 m
Width
28 m
Height
Weight
21500000 kg
Operators (21)
France
South Korea
Ukraine
Spain
Austria
Belgium
Chile
Croatia
Cyprus
Estonia
Finland
Hungary
Indonesia
New Zealand
Norway
Oman
Peru
Philippines
Qatar
Singapore
United Arab Emirates
