BOXER TURRA 30 German Infantry Fighting Vehicle (IFV)

BOXER TURRA 30

Infantry Fighting Vehicle (IFV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
BOXER TURRA 30 German Infantry Fighting Vehicle (IFV)
Designation
BOXER TURRA 30
Alternate Designation
BOXER TURRA 30
Equipment Type
Infantry Fighting Vehicle (IFV)
Manufacturer
Rheinmetall
Date of Introduction
2025
Description

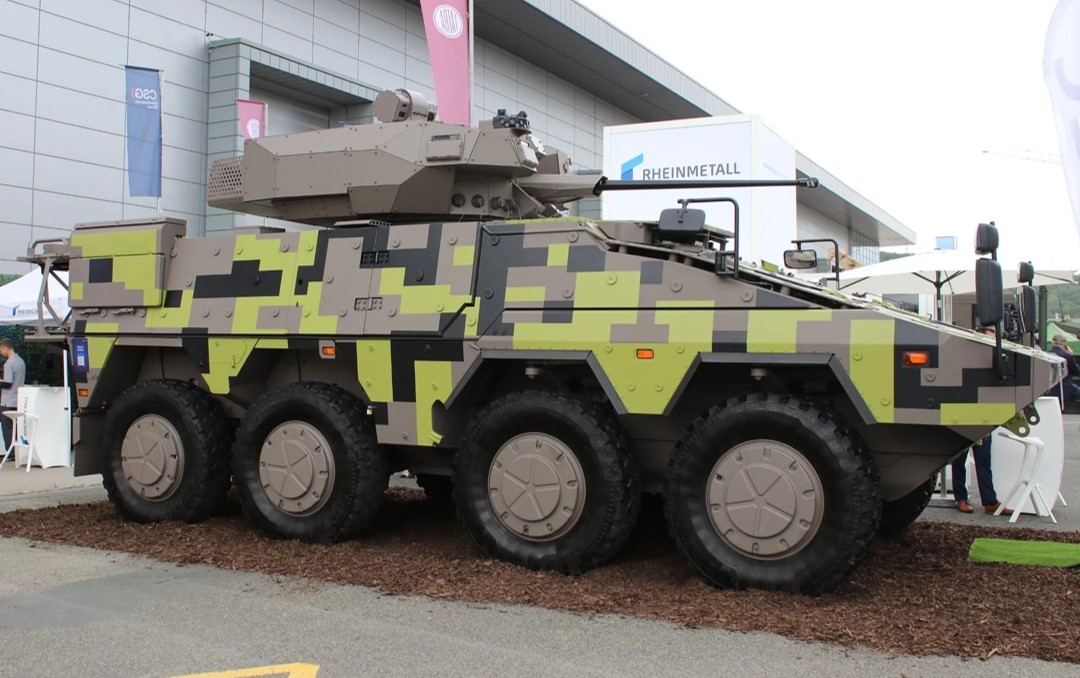

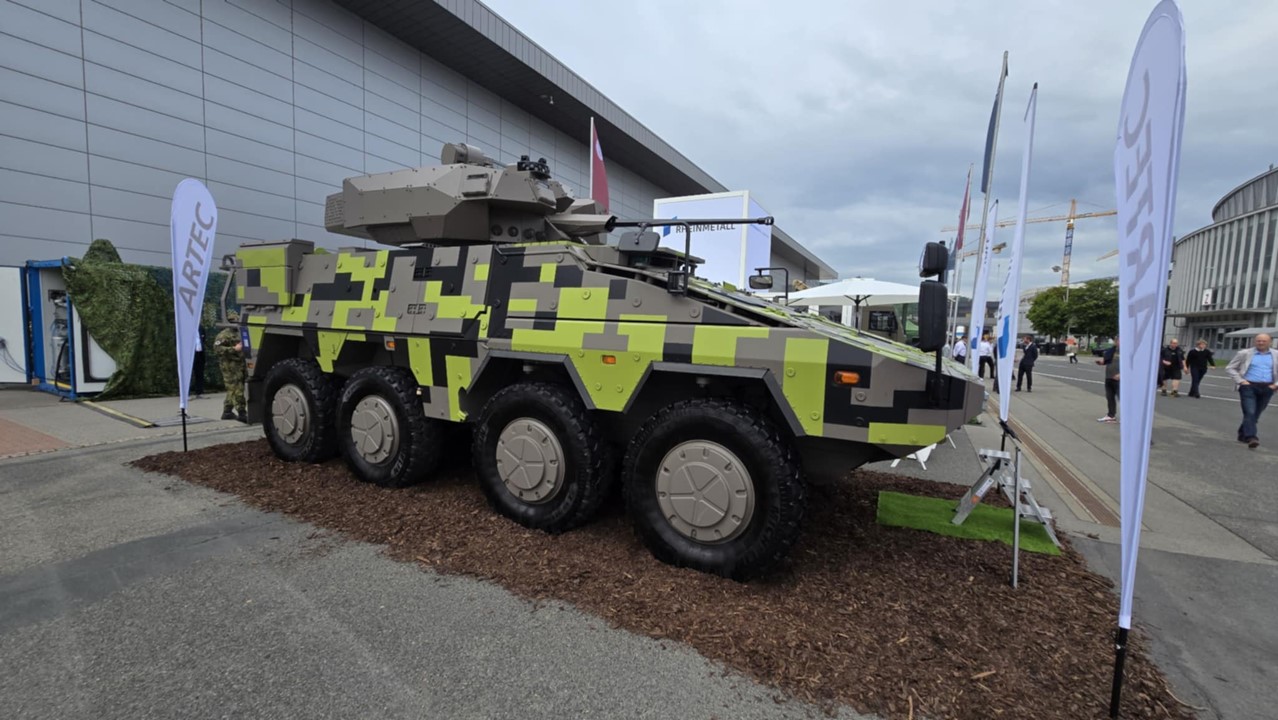

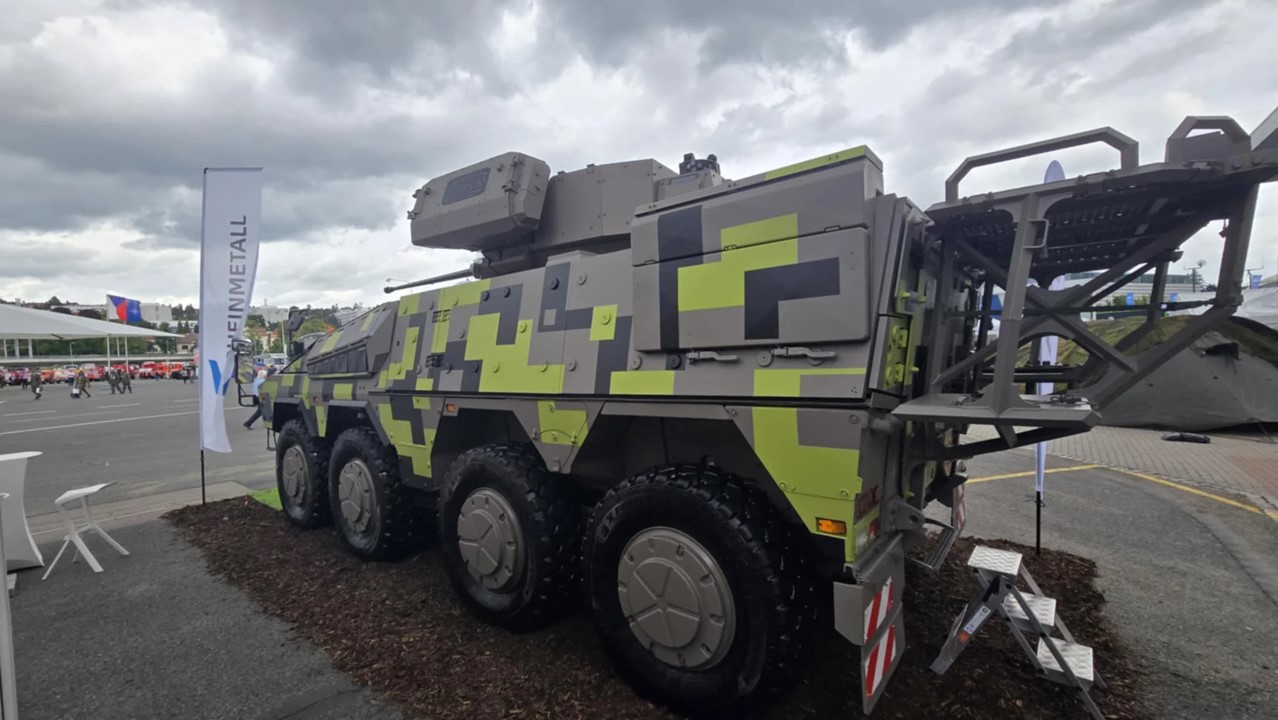

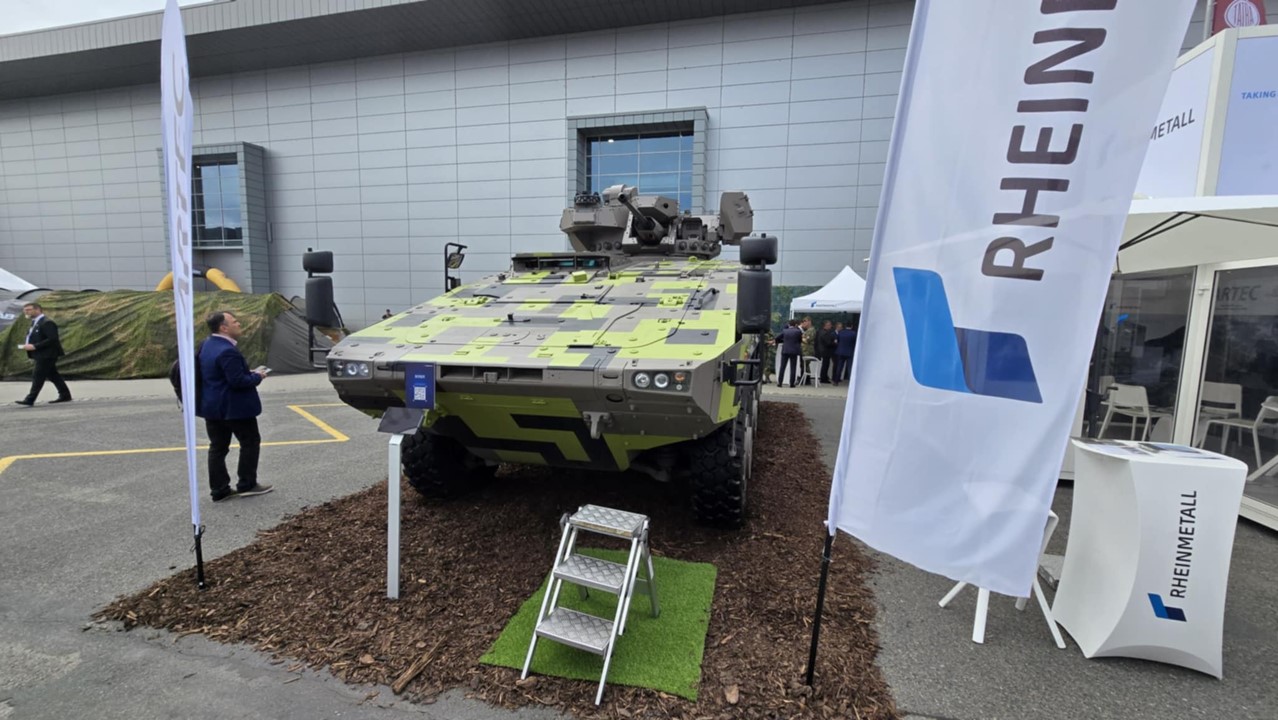

The BOXER TURRA 30 is a German Infantry Fighting Vehicle (IFV) known for its high mobility and armored protection. Its modular design allows for a wide range of mission-specific variants. The vehicle family is built around a common drive module with interchangeable, user-specific mission modules. In addition to the original variants, such as the personnel carrier, ambulance, combat engineer carrier, and command post vehicle, nearly 30 other versions have been developed for deployment in seven countries. Currently, there are around 1,800 BOXER vehicles under contract worldwide. This specific variant of the BOXER IFV is equipped with the TURRA 30 unmanned turret. By combining the BOXER's inherent high level of protection and mobility with advanced turret technology, this IFV variant offers state-of-the-art capabilities to meet modern military requirements. The medium-caliber TURRA 30 turret is a versatile system designed specifically for installation on armored vehicles. It integrates a 30mm cannon with air burst ammunition capability (ABM), SPIKE anti-tank guided missiles (ATGMs), and a coaxial 7.62mm machine gun. This system provides exceptional accuracy at long ranges, supported by advanced ballistic protection and a modular design. Designed for safe troop transportation, the BOXER TURRA 30 also delivers critical fire support and protection.

Ground Specifications
Crew 3
Mobility Type Wheeled (8x8)
Main Weapon 30mm cannon
Engine Multi-Fuel (810 hp)
NBC Protection Yes
Max Speed 100.0 km/h
Range 1050.0 km
System
Alternative Designation BOXER TURRA 30
Type Infantry Fighting Vehicle (IFV)
Manufacturer Rheinmetall
Configuration 8x8
Crew 3 ea
Passenger Capacity 8 ea
Air Transportation Boing C-17A Globemaster Aircraft, Antonov AN 124-100, Lockheed C-5 Galaxy
Dimensions
Length 8,000 mm
Width 2,990 mm
Height 3,789 mm
Weight, Combat 39,500 kg
Automotive
Engine Name MTU 8V199 V8
Engine Type multi fuel engine
Engine Power 810 hp
Maximum Range 1,050 km
Maximum Land Speed 100km/h
Amphibious No
Gradient 60%
Side Slope 30%
Vertical Step 0.70m
Trench 2.0m
Fording 1.20 m
Main Weapon System
Turret TURRA30
Type 1 x Bushmaster MK44S
Basic Load Up to 350 rounds in two belts
Coaxial Weapon System
Type 1 x FN MAG 7.62mm
Basic Load 600 rounds
Anti-Tank Guided Missile (ATGM)
Type 2 x SPIKE LR2 missiles
Protection
Hull Armor Medium-calibre cannons, HMG and small arms
Turret Armor Medium-calibre cannons, HMG and small arms
Applique Armor INA
Blast and Mine Protection Anti-tank mines, IEDs and EFP mines
ATGM and RPG Protection Optional APS and bomblet protection
NBC Protection Yes
Smoke Equipment Yes
Details
Country of Origin Germany
Category Land
Land
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8 m
Width
2.99 m
Height
3.79 m
Weight
39500 kg
Operators (1)
Germany
