An-12

An-12

Military Transport Aircrafts
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
An-12
Designation
An-12
Alternate Designation
An-12BK, Cub (NATO codename), Y-8 (Chinese version), Y-8D (Chinese export version)
Equipment Type
Military Transport Aircrafts
Manufacturer
Antonov ASTC
Date of Introduction
1959
Description

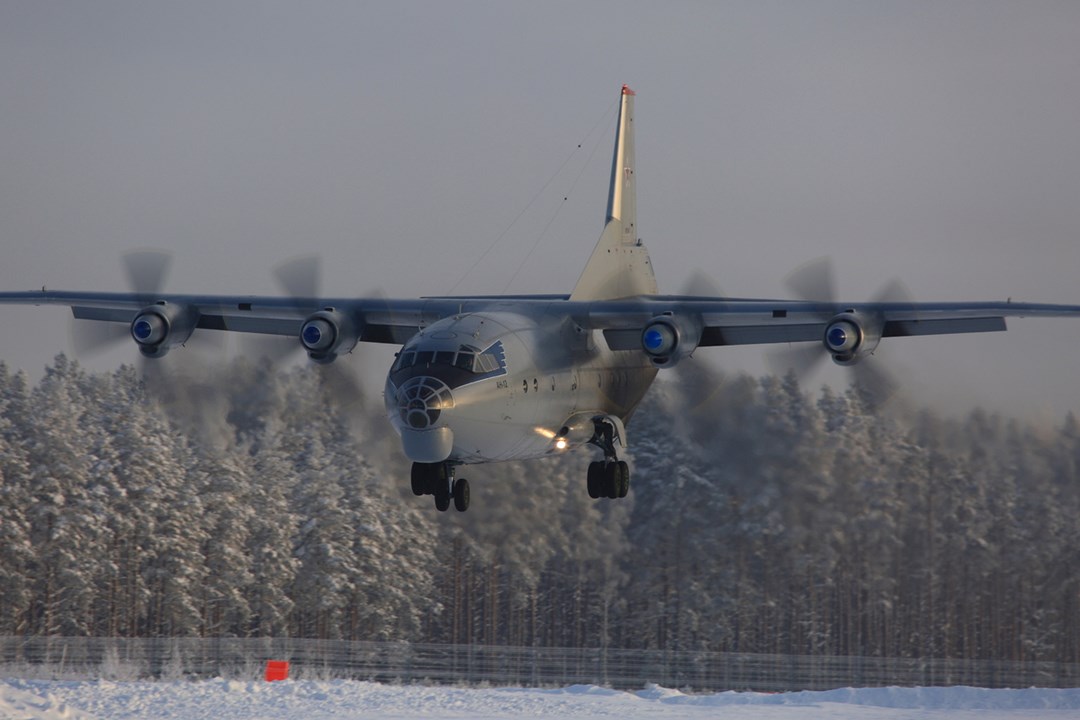

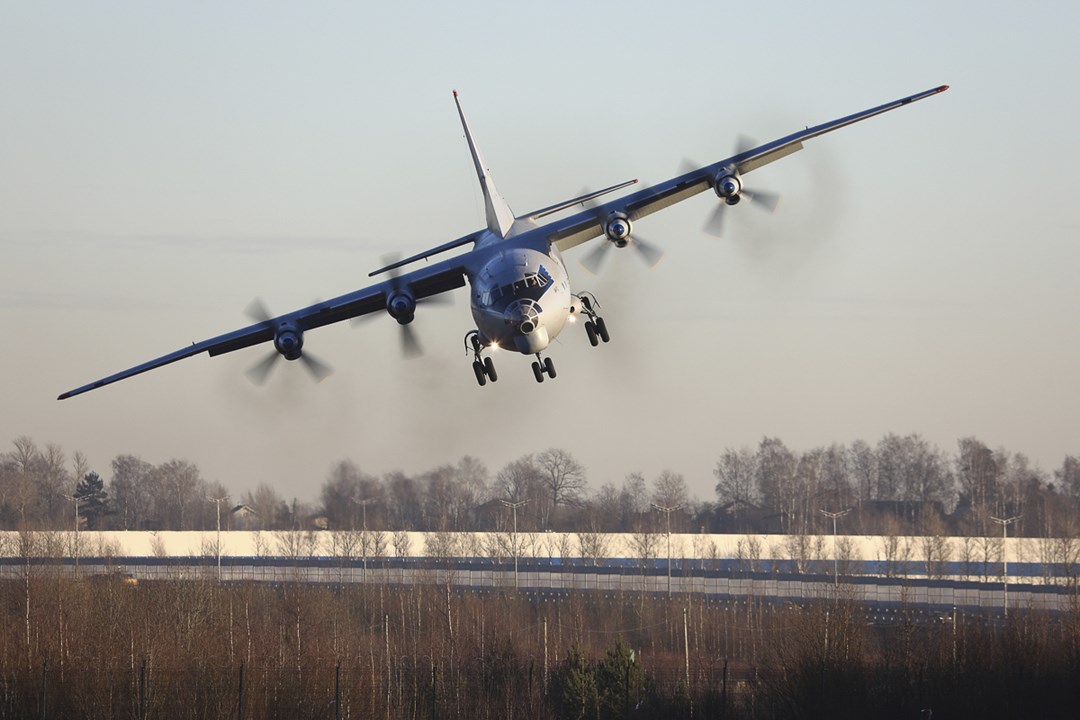

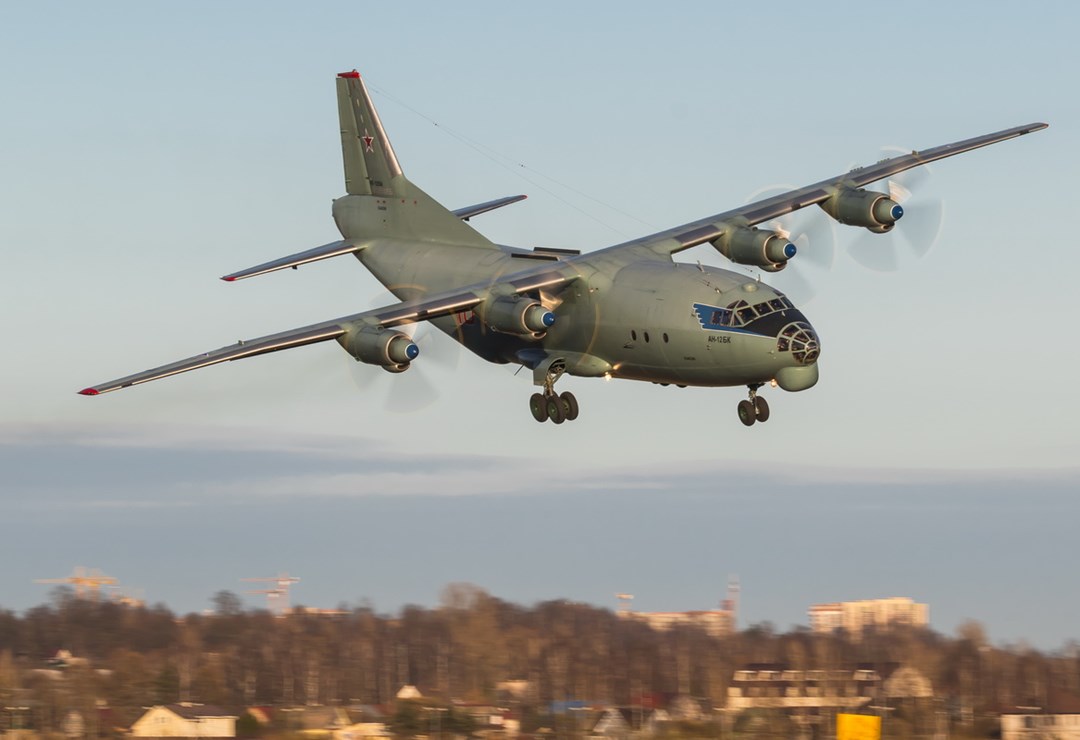

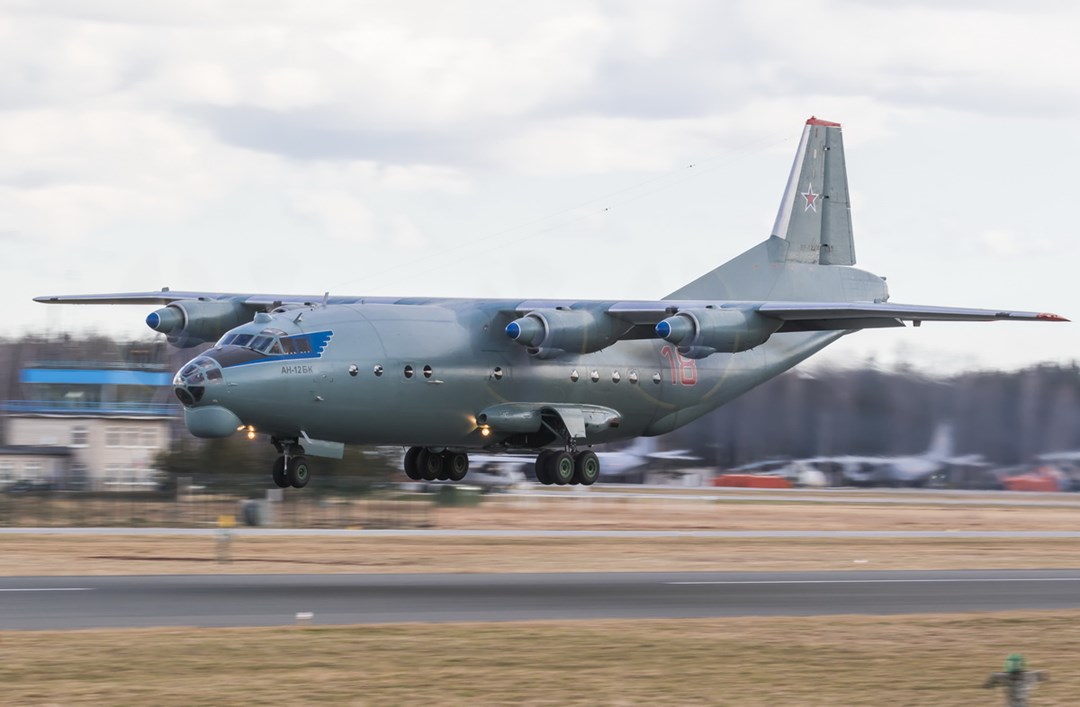

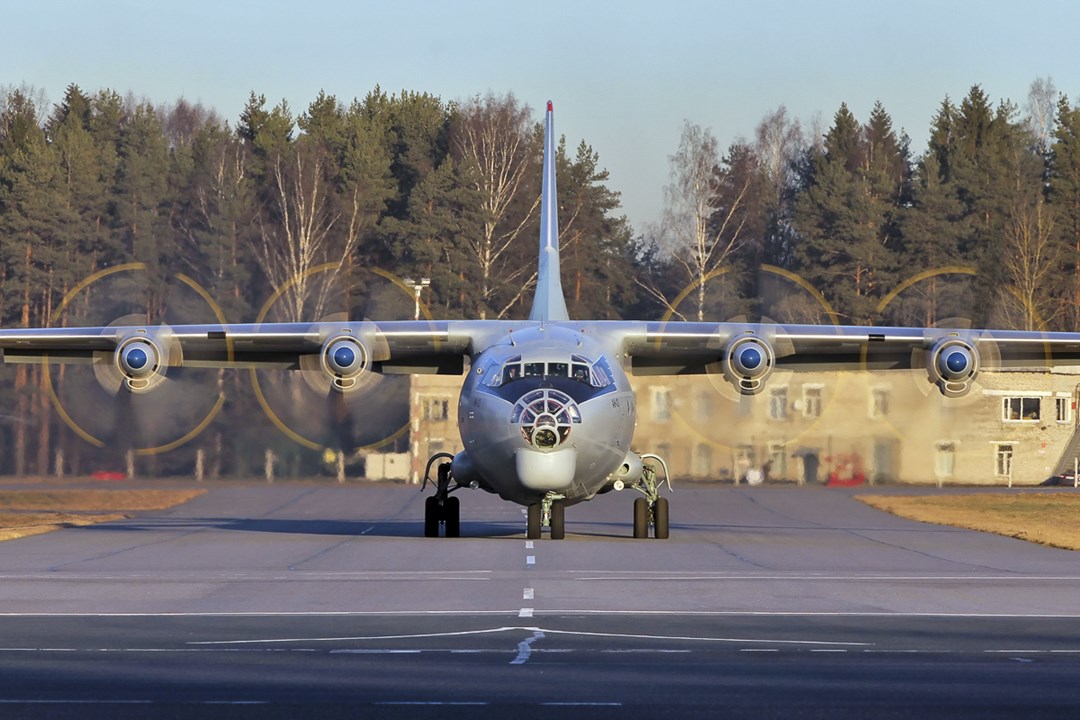

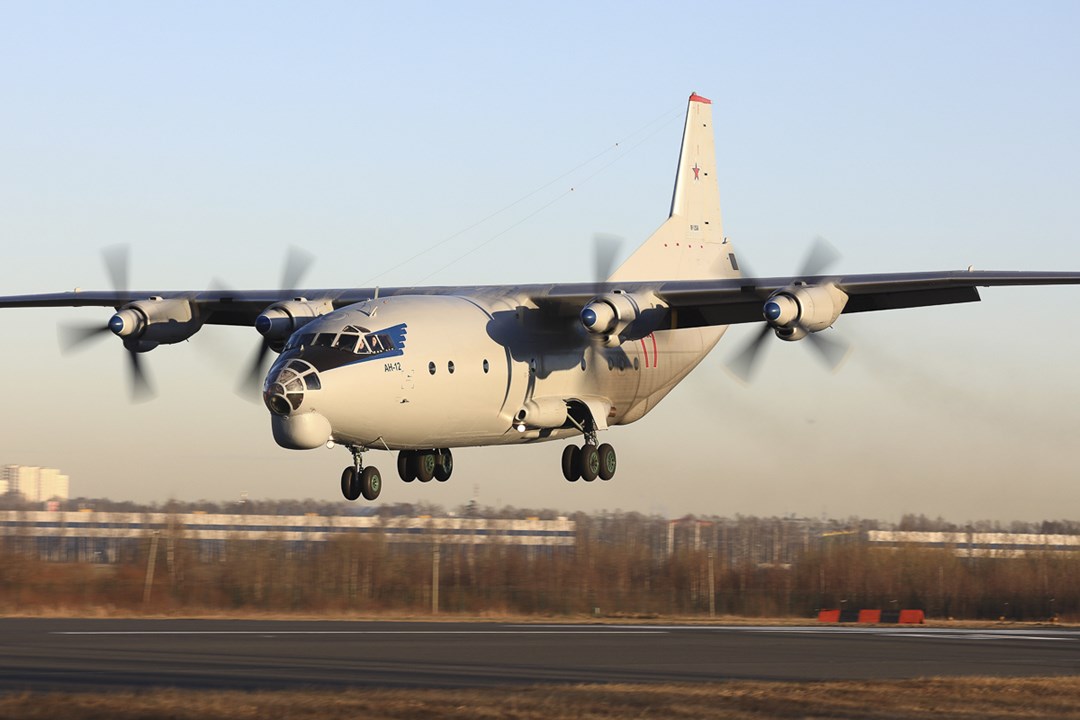

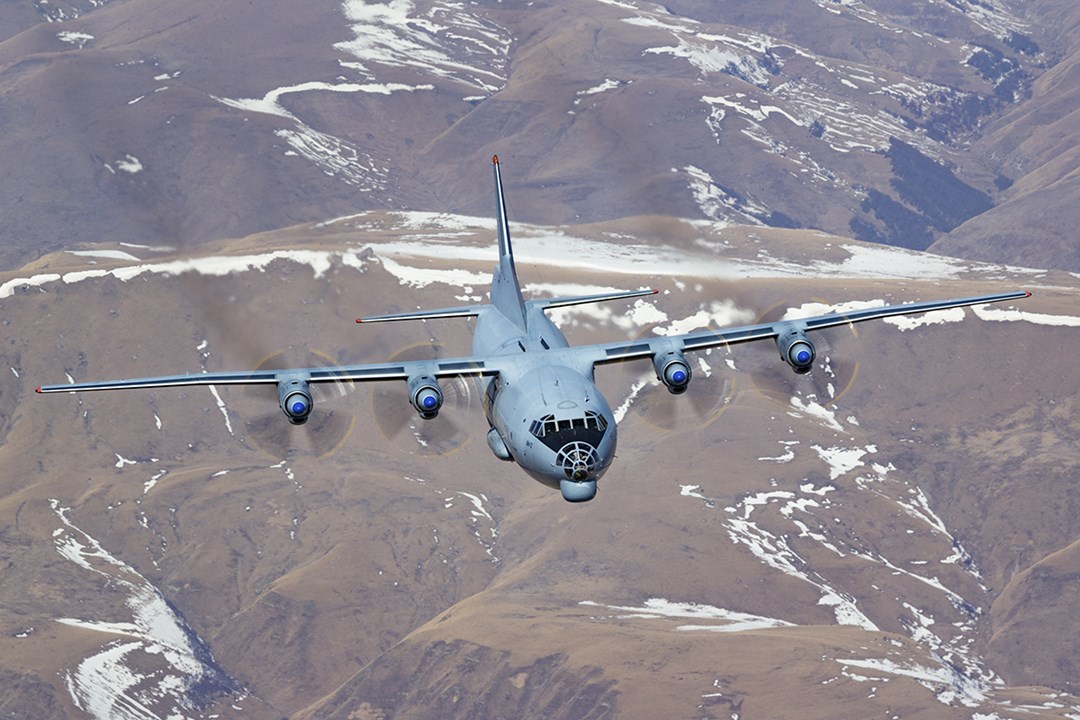

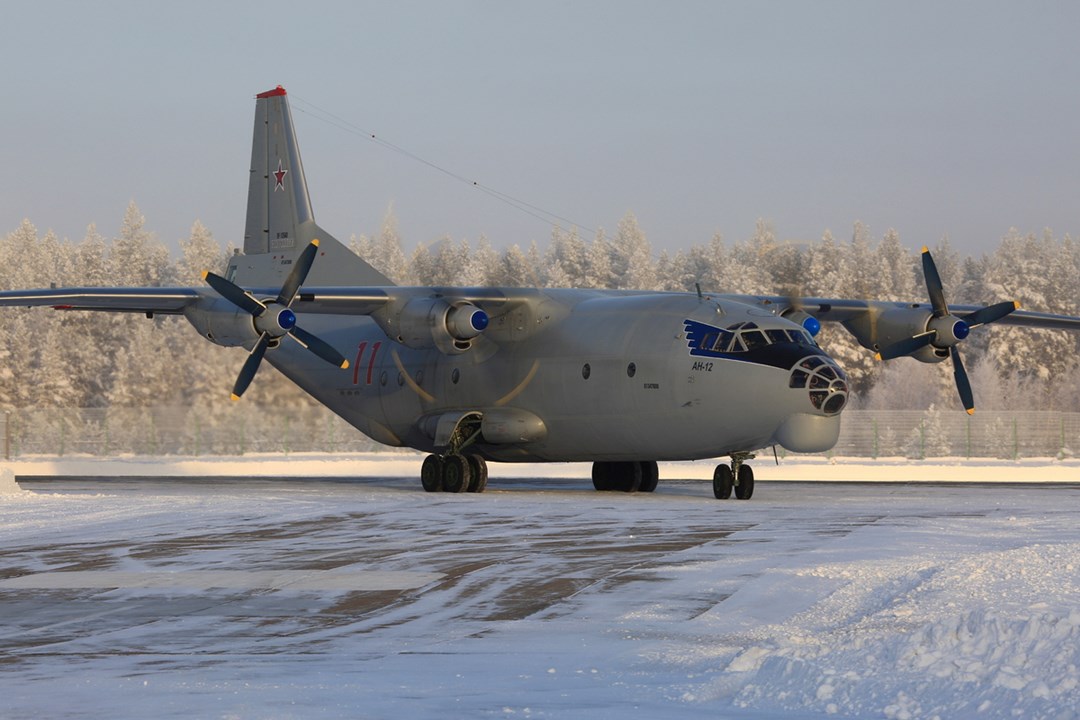

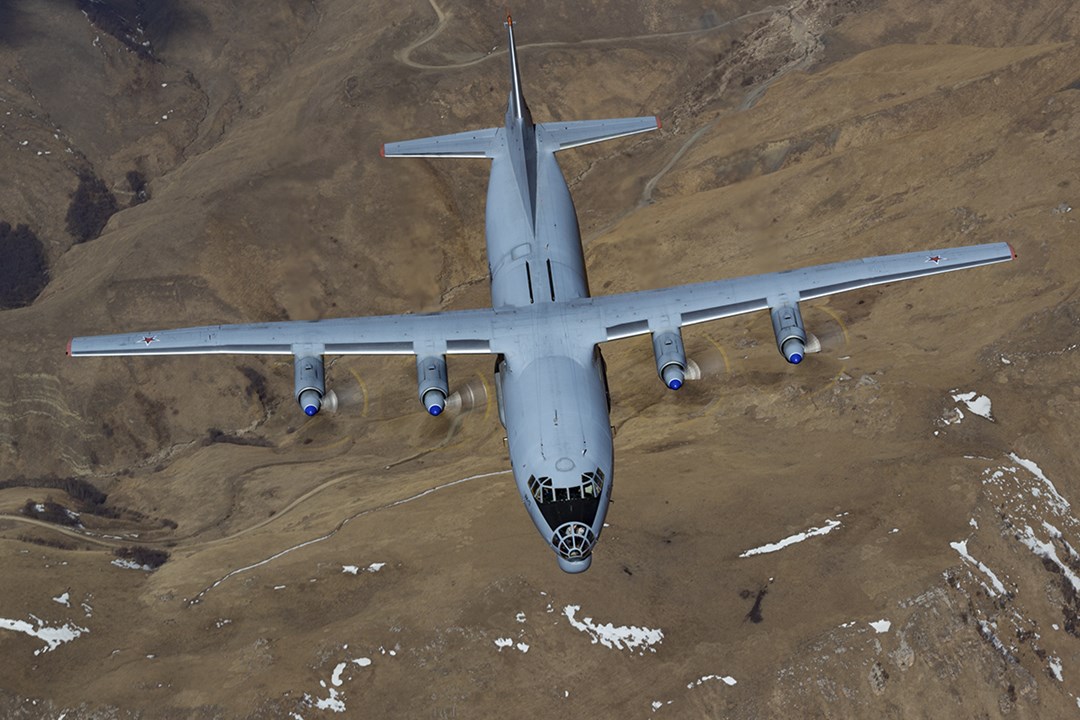

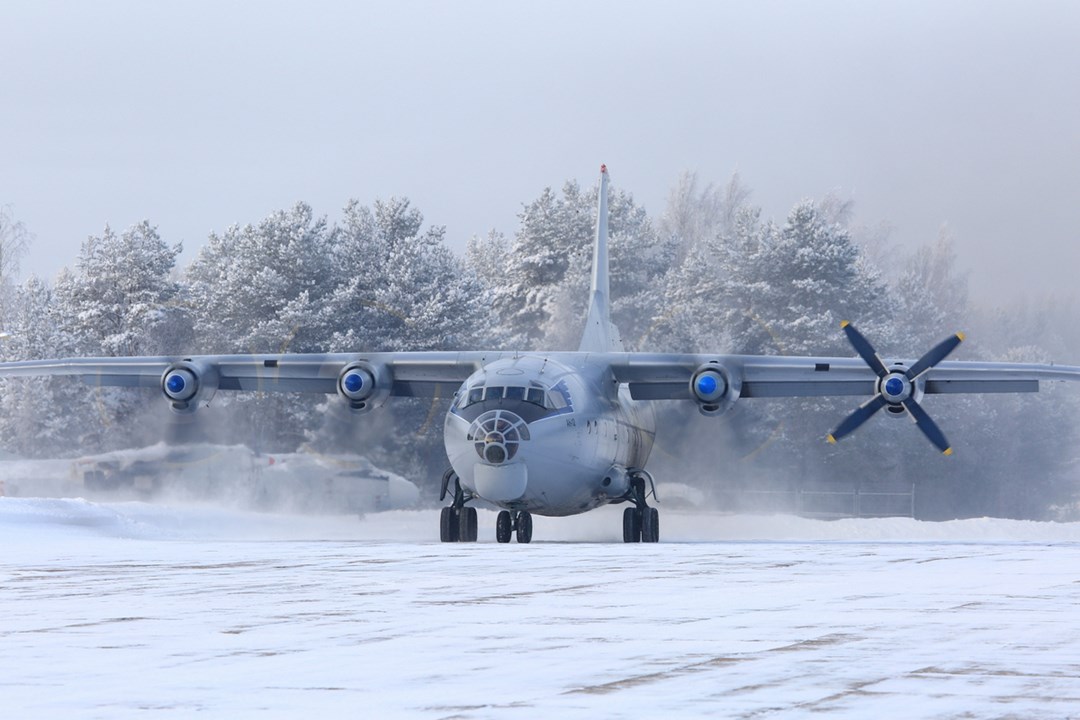

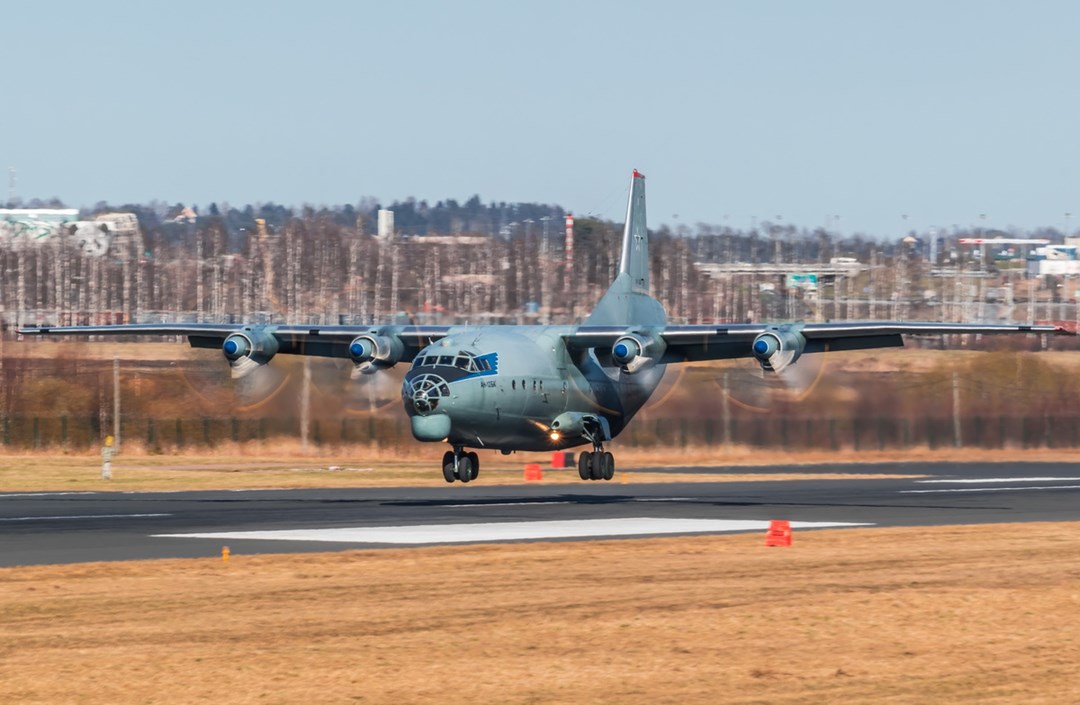

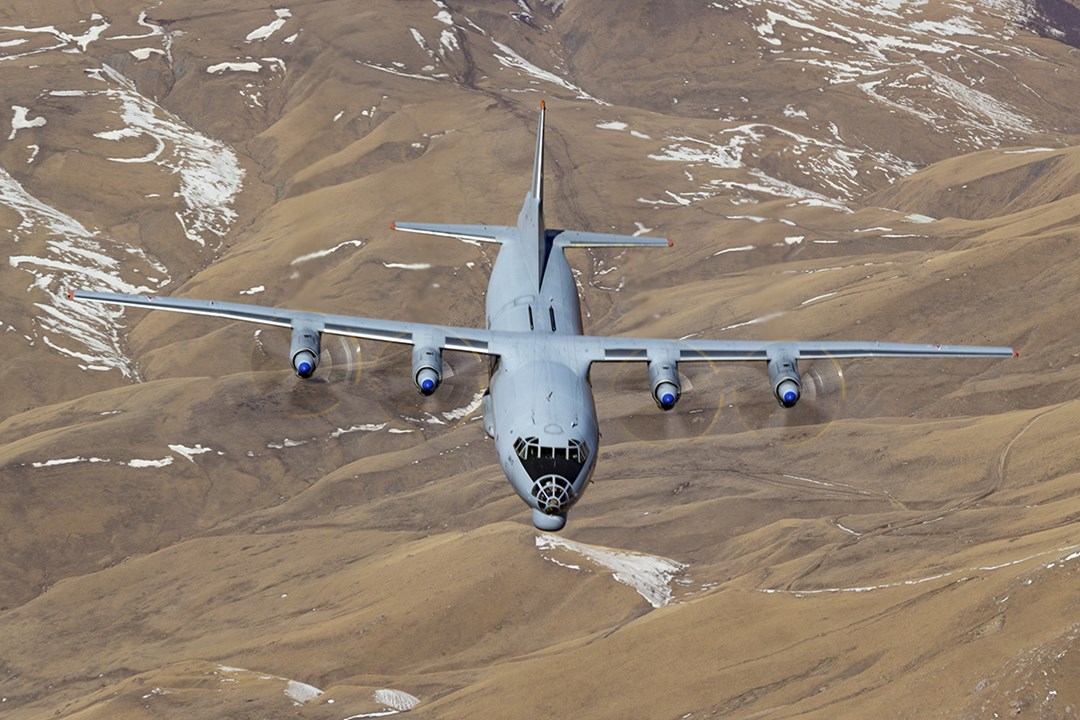

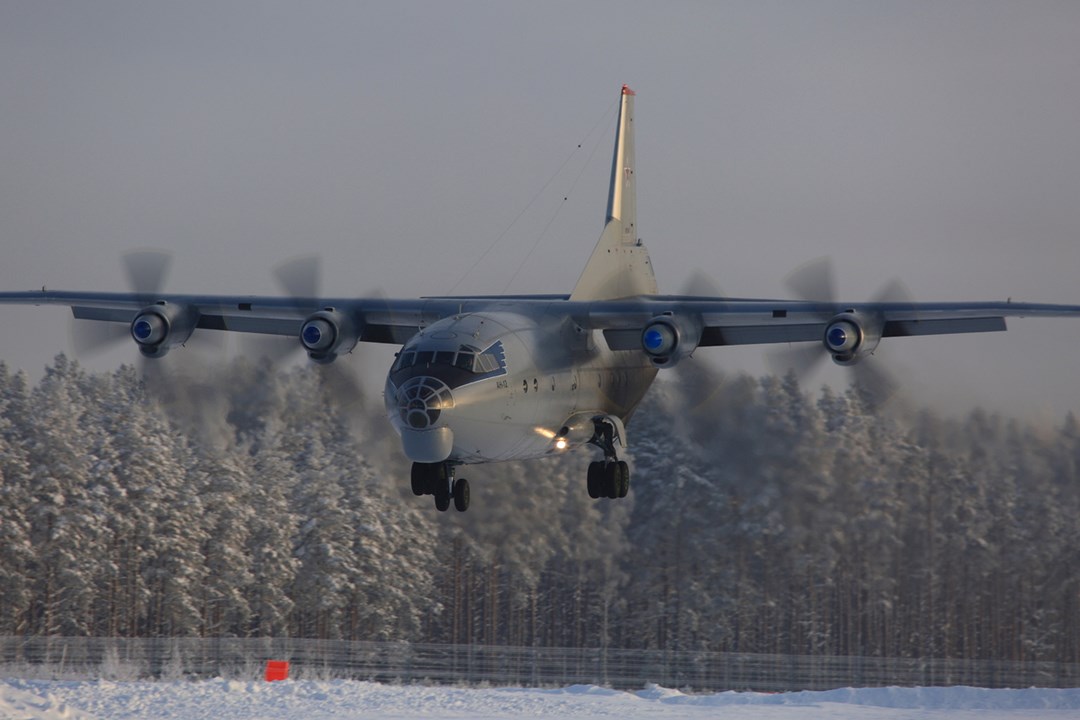

The Antonov An-12, NATO codename is Cub, is a four-turboprop, tactical military transport aircraft developed in the late 1950s by the former Soviet Union based on the An-10 turboprop aircraft. The aircraft is equipped with a rear ramp for quick load and off-load of cargo and personnel. It is powered by four AI-20K turboprop engines each developing 4,000-shp of power and driving a four-bladed propeller. The An-12 production ceased in 1973 paving the way for its replacement, the Ilyushin Il-76 turbofan-powered freighter. The An-12 was deemed as the Soviet counterpart to the NATO C-130 Hercules during the Cold War. In 1968, China introduced its own version of the An-12 aircraft named the Y-8. The Y-8 transport was exported to Burma, Sri Lanka and Sudan and still remains in service. The Y-8 aircraft forms the backbone of the People's Liberation Army Air Force (PLAAF) medium-lift transport capability as the An-12 played the same role for the Warsaw Pact from the 1960s through the 1980s. The Soviet Union produced roughly 900 An-12s and China has produced several hundreds more.

Air & Air Defense Specifications
Crew 6
Max Speed 777.0 km/h
Range 3600.0 km
Service Ceiling 10211 m
Wingspan 38.00 m
Overview (Deagel)
Group Military Transport Aircrafts
Status Active
Also Known As An-12BK, Cub (NATO codename), Y-8 (Chinese version), Y-8D (Chinese export version)
Origin Ukraine
Contractor Antonov ASTC
Initial Operational Capability (IOC) 1959
First Flight 1957
Total Production ?
Specifications (Deagel)
Crew 6
Number of Engines 4
Propeller Blades 4
Troops 90
Area — Wing Area 122 square meter
Dimensions — Height 10.5 meter
Dimensions — Length 33.1 meter
Dimensions — Main Gun Caliber 23 millimeter
Dimensions — Wingspan 38 meter
Mass — Cargo 20 ton
Mass — Empty Weight 28,000 kilogram
Mass — Max Takeoff Weight 61,000 kilogram
Performance — Ceiling 33,500 foot
Performance — Ferry Range 5,700 kilometer
Performance — Max Range 3,600 kilometer
Performance — Take Off Run Distance 700 meter
Power — Max Power at TakeOff 16,000 shp
Speed — Climb Rate 1,970 fpm
Speed — Cruise Speed 670 kph
Speed — Top Speed at High Altitude 777 kph
Gear (Deagel)
Item 1 Turboprop Engines: AI-20K (4)
Details
Country of Origin Ukraine
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
33.1 m
Width
38 m
Height
10.5 m
Weight
61000 kg
Operators (16)
Russia
China
Ukraine
Poland
India
Pakistan
Czech Republic
Egypt
Ethiopia
Iraq
Myanmar
Sri Lanka
Sudan
Tanzania
Uganda
Yemen
