Mi-8AMT Russian Multi-Role Helicopter

Mi-8AMT

Utility Helicopter

Spotted an error? Sign in to suggest an edit.

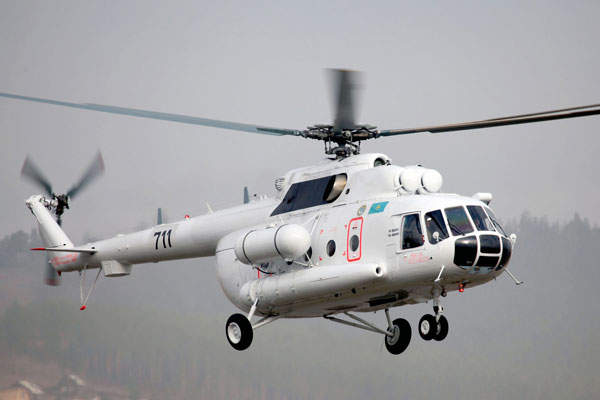

Mi-8AMT Russian Multi-Role Helicopter — Mi-8AMT(C).jpgTRADOC ODIN WEG

Basic Information

Name

Mi-8AMT Russian Multi-Role Helicopter

Designation

Mi-8AMT

Alternate Designation

Mi-8AMT

Equipment Type

Utility Helicopter

Manufacturer

—

Date of Introduction

2009

Description

Mi-8AMT is designed to solve a wide range of tasks: transporting passengers and cargo, transporting bulky cargo on an external load, conducting search and rescue operations, evacuating the injured. When developing the Mi-8AMT helicopter, the vast experience of operating more than 12,000 helicopters of the Mi-8 family in all climatic and natural zones was taken into account. “Comfort and safety!” Is the motto under which this passenger helicopter was created. To ensure the safety of passengers, the Mi-8AMT helicopter is equipped with three Class III emergency hatches that meet the requirements of FAR-29, as well as several additional emergency exits. For flights above the water surface, the helicopter is equipped with an emergency landing system, equipped with life jackets. The transport modification upon the customer’s request can be equipped with an additional right extended door, a ladder in the rear part of the cab.

Air & Air Defense Specifications

Crew 3

Engine Turboshaft (2200 hp)

Service Ceiling 4500 m

Variants

List of Variants - See Below Mi-8 Hip-A Mi-8 Hip-B Mi-8T Hip-C (Transportny, transport) Mi-8TM Mi-8TV Mi-8S Hip-C (Salon) Mi-8 VIP Mi-8VZPU Hip-D Mi-8TB Hip-E Mi-8TBK Hip-F ( Kommercheskiy, commercial) Mi-9 Hip-G Mi-8MPS Mi-8SMV Hip-J Mi-8P/PPA Hip-K Mi-8AMTSh/Mi-171Sh Mi-8AMTSh-V Mi-8AMTSh-VA Mi-8TG Mi-8 Rana Mi-8MTPR-1 Mi-17/Mi-8MT/Mi-8MTV/Mi-17V Hip-H Mi-17P Mi-17PI Mi-17PG Mi-17Z-II Mi-17MD Mi-17KF Mi-171 Mi-171M/Mi-171A2 Mi-17M/Mi-171V Mi-172 Mi-8MTV (Visotnii, high altitude) Mi-17 Pratap Mi-17-1VA Mi-17V5 Mi-171E Mi-171E2

System

Alternative Designation Mi-8AMT

Type Medium twin-turbine Multi-Role helicopter

Manufactuer Ulan-Ude Aviation Plant

Mission The helicopter can carry out multiple missions including search and rescue (SAR), surveillance, patrolling, fire-fighting, medical evacuation (MEDEVAC), and observation missions. It can also be deployed for transportation of cargo and personnel.

Crew 3 (2x pilots, 1x flight engineer) ea

Blades, Main Rotor 5

Blades, Tail Rotor 3 ea

Day/Night Capable The Mi-8AMT is equipped with instruments and avionics allowing operation in day, night, and instrument meteorological conditions.

All Weather Capable The Mi-8AMT is equipped with instruments and avionics allowing operation in day, night, and instrument meteorological conditions.

Takeoff or Landing Limitations INA

Vertical Climb Rate 9 m/s

Number of Hard Points 4 ea

Cargo Capacity 4,000 kg

Seat Capacity 37 troop seats or 26 passenger chairs.

Landing Gear Fixed main gear struts run down and out from attachment points on the upper, rear fuselage. A second strut holds the wheel well away from the lower fuselage. The two-wheel nose gear is fitted under the fuselage just behind the cockpit

Winch The helicopter is fitted with LPG-150M winch and SLG-300 hoist systems for lifting people during search and rescue tasks.

External Sling An external sling hydraulic weighing system is attached to carry up to 4,000kg of payload. The helicopter can perform lifting, loading and unloading of freight in-flight.

Note Additional equipment onboard the Mi-8AMT includes an anti-icing system, fluorescent lighting, a spotlight with IR filter, information and emergency lighting panels, and winches.

Dimensions

Length, with Rotors Turning 25.2 m

Length, Fuelage 18.2 m

Width 2.5 m

Height 5.65 m

Main Rotor Diameter 21.3 m

Tail Rotor Diameter 3.9 m

Cargo Compartment, Length 5.3 m

Cargo Compartment, Width 2.3 m

Cargo Compartment, Height 1.8 m

Weight, Maximum Gross 12,000 kg

Weight, Normal Takeoff 11,100 kg

Weight, Empty 6,350 kg

Automotive

Engine Name 2 x TV3-117VM

Engine Type Medium twin-turbine

Engine Power Each engine develops a take-off power of 2,200 hp and a contingency power of 2,200 hp.

Speed, Maximum 250 km/h

Speed, Average 230 km/h

Service Ceiling 4,500 m

Range, Maximum Load 350 km

Range, Normal Load 460 km

Range, with Auxilery Fuel 950 km

Fuel, Internal 445 liters

Fuel, Internal Aux Tank 915 liters ea

Fuel, External Fuel Tank 45 liters in port tank, 680 liters in starboard tank

Service Ceiling, Service 4,500 m

Service Ceiling,Hover (out of ground effect) 800 m

Service Ceiling,Hover (in ground effect) 1,900 m

Vertical Climb Rate 9 m/s

Note Maximum operational height is 6,000m, and the helicopter can operate in temperatures ranging between +50°C and -50°C. It can also withstand high winds.

Communications

Radio INA

Door Mounted Gun

Note Loaded combat troops can fire personal weapons through windows from inside cabin.

Wing Mounted Weapons

Additional Armament that can be equipped on the Mi-8T 2 x 7.62-mm or 1 x 12.7-mm MG 4-6 - AT-2C Swatter or AT-3 Sagger ATGMs 4-6 - 57-mm rocket pods (16 each) 2 - 80-mm rocket pods (20 each) 4 - 250-kg bombs 2 - 500-kg bombs 2 - 12.7-mm MG pod 2 - Twin 23-mm gun pods 1,830 liters Additional fuel tanks

Rocket System

Name UB-32 (rocket pod)

Type 57 mm, reusable, 32-salvo rocket pod

Length, Launcher 2,080 mm

Diameter, Launcher 464 mm

Basic Load for the UB-32 Rocket Pod 4, one on each hardpoint ea

Number of Rockets in each UB-32 Rocket Pod 32 ea

Rocket

Name S-5 Rockets

Type Rocket

Length, Rocket 2,080 mm

Diameter, Rocket 481 mm

Weight Empty 103 kg

Weight Loaded 264 kg

Warhead Types produced in a variety of sub-types with different warheads, including HEAT anti-armour (S-5K), high-explosive fragmentation (S-5M/MO), smoke, and incendiary rounds

Maximum Effective Range 3-4 km depending on the warhead and fuze

Basic Load 32 S-5 Rockets per UB-32 Rocket Pod

Fire Control

Fire Control System Type INA

Fire Control Radar INA

Digital or Analog Cockpit INA

Direct Fire Control Yes

Laser Designator INA

Automated Helmet INA

Position Location System Yes

Weather Radar Type 8A-813

Navigation DISS-32-90 Doppler navigation under tailboom

Note Mi-8AMT multi-role helicopter is equipped with advanced navigation and radio communications equipment for improved situational awareness. The latest in-cockpit piloting equipment ensures flight safety. The helicopter also features multifunctional global positioning system (GPS) / global satellite navigation system (GLONASS), a forward looking infrared (FLIR) system and an early ground proximity warning system.

Protection

Armor Type Bolt-on

Fuselage semi-monocoque pod and boom fuselage has a nearly stepless front

Cockpit Glass large, five-section windshield and lower nose windows

Stealth Properties No

Heat Signature Reduction IR over engine exhausts

Add on Armor Available

NBC Protection Yes

EW INA

EW Counter Measures/CCM INA

Counter Measures (Chaff/Flares) Yes,

Jammer Hot Brick IR

Image Sources

Notes https://www.ainonline.com/aviation-news/defense/2019-12-23/kazakhstan-becoming-regional-aircraft-industryservice-hub; https://www.flickr.com/photos/unminusca/14340362469; https://www.jetphotos.com/photo/11076551;

Details

Country of Origin Russia

Category Rotary Wing Aircraft

Air > Rotary Wing Aircraft

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

—

Width

2.5 m

Height

5.65 m

Weight

12000 kg

Operators (1)

Russia
