WOLF

WOLF

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
WOLF
Designation
WOLF
Alternate Designation
Equipment Type
Tactical Vehicles
Manufacturer
Rafael, Carmor Integrated Vehicle Solutions
Date of Introduction
2005
Description

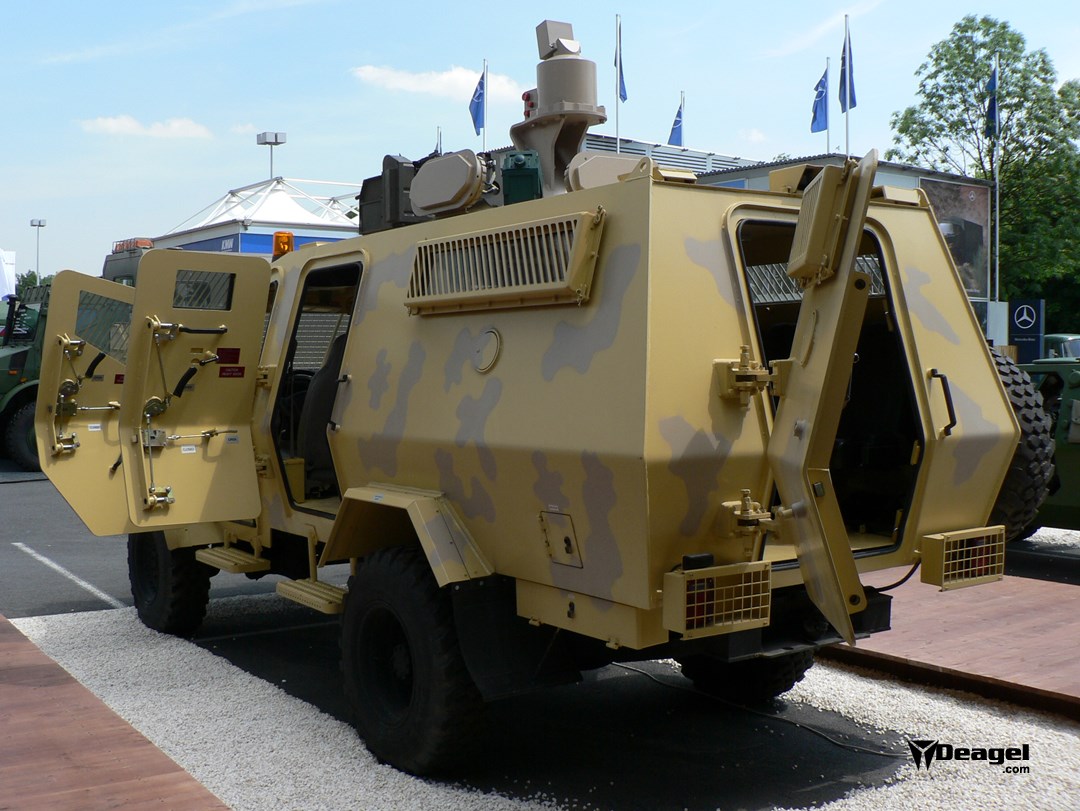

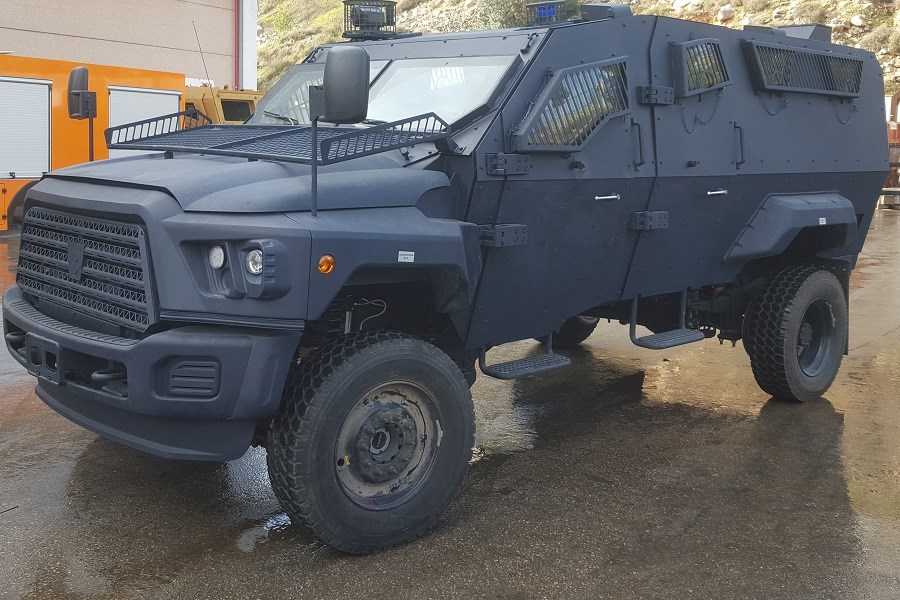

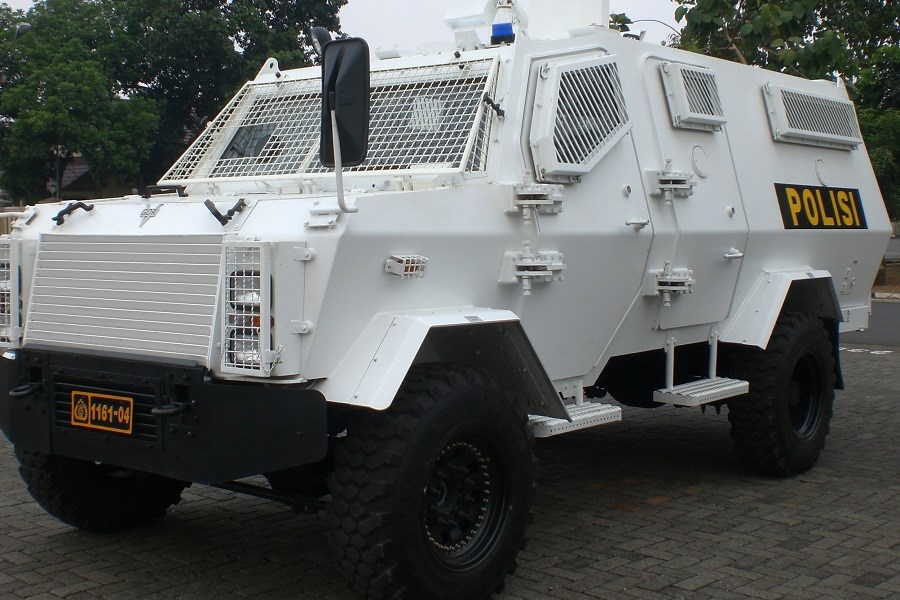

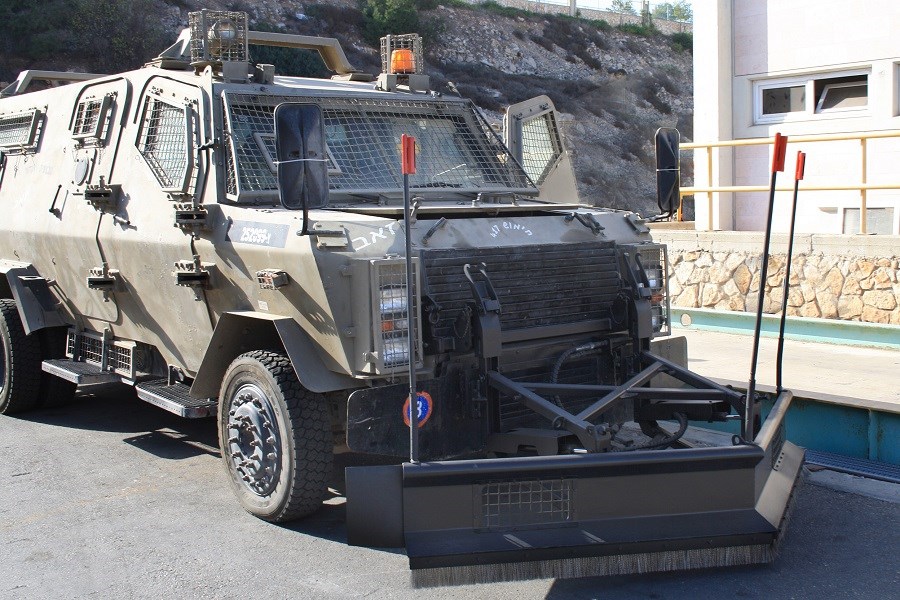

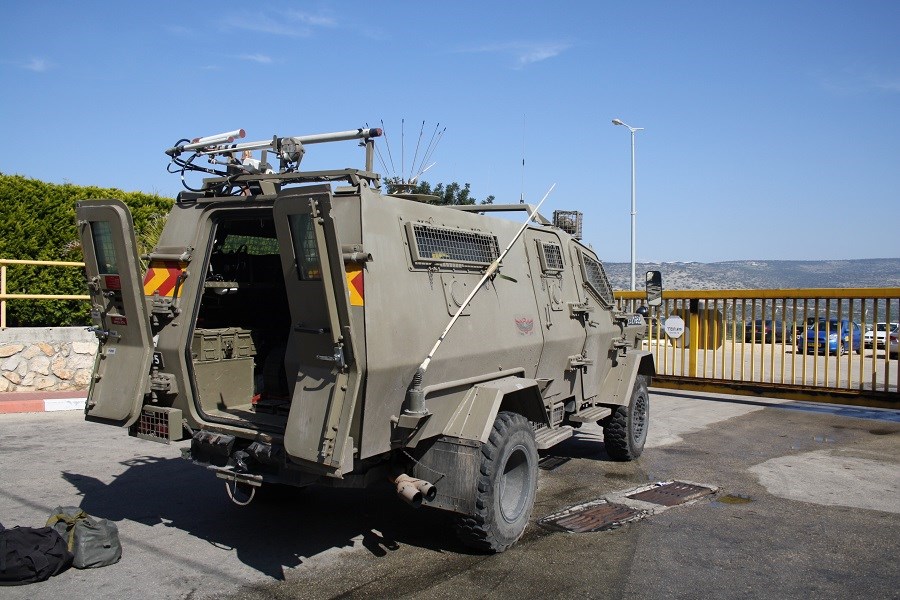

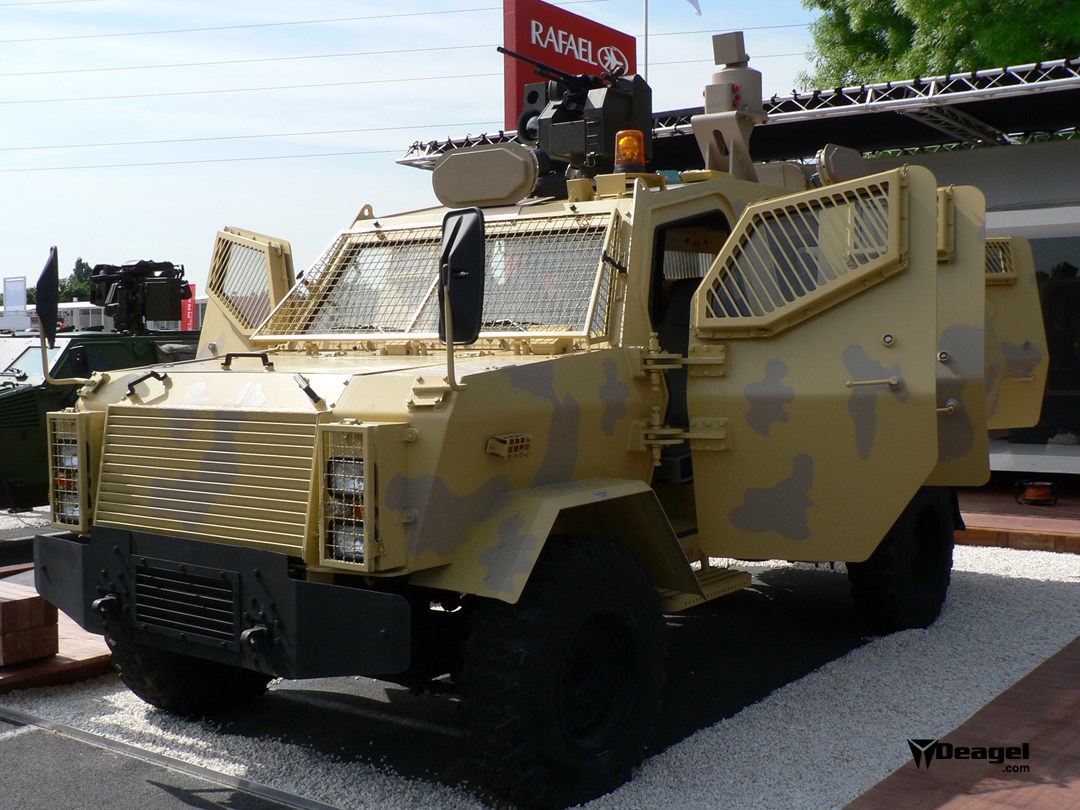

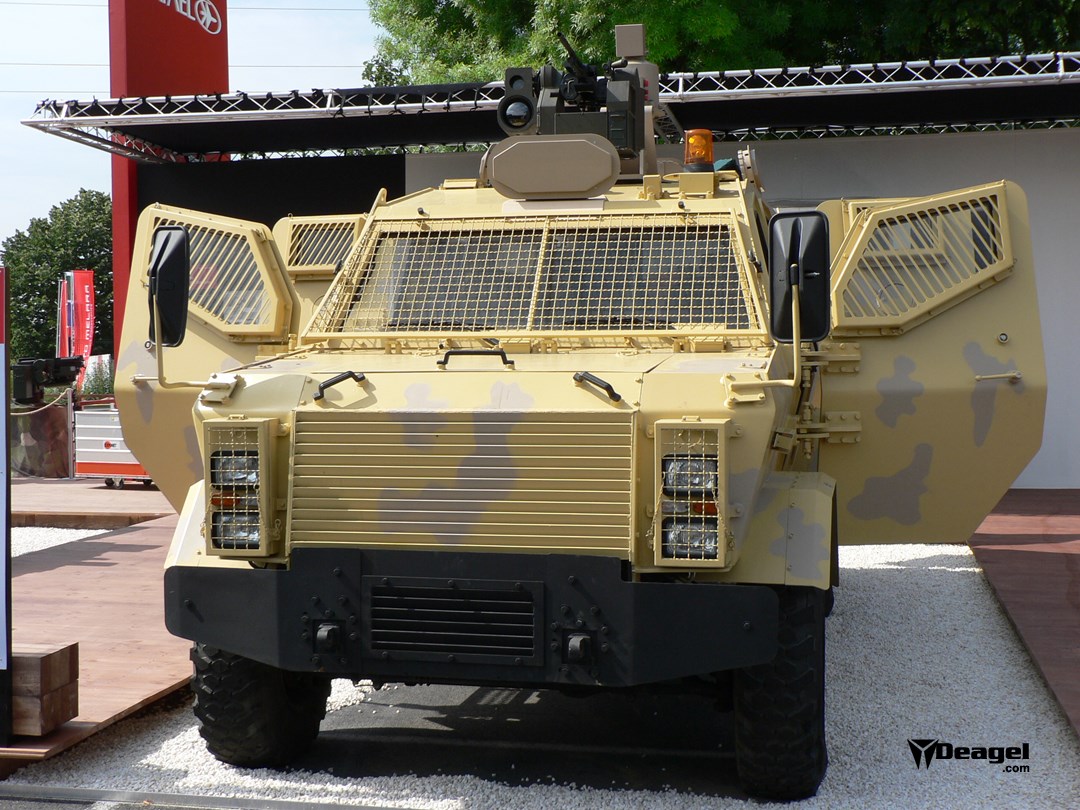

The WOLF is a 4x4, 6-10-tonc class, multi-purpose armored vehicle with a high degree of flexibility thanks to its interior design. It has been built utilizing a low-cost Ford Motor commercial 4x4 chassis with an automatic gearbox driven by a diesel engine. The vehicle's armor and design offers a high degree of protection. It has been approved by the Israel Ministry of Defense and is available in troop carrier, command vehicle, rescue vehicle, logistics support and ambulance configurations. The WOLF has a seating capacity for up to 11-man. Early in 2005, the Israel Ministry of Defense placed a $14 million order for WOLF light armored vehicles (LAV). These vehicles will serve to replace aging light vehicles used by the Armed Forces of Israel. The WOLF production was established to be done at the Hatehof company, now Carmor Integrated Vehicle Solutions, in Israel a partner to Rafael which developed the vehicle. These vehicles can be fitted with a Remote Controlled Weapon Station (RCWS) adding fire support capability to the vehicle with crew protected under armor. The first WOLF light armored vehicle was handed over to the Israel Defense Force (IDF) on Thursday, July 14, 2005 at Rafael facilities in Haifa. To date, Israel has ordered WOLF vehicles worth roughly $20 million.

Ground Specifications
Troop Capacity 11
Overview (Deagel)
Group Tactical Vehicles
Status Active
Origin Israel
Contractors Rafael*, Carmor Integrated Vehicle Solutions
Initial Operational Capability (IOC) July 2005
Total Production ?
Specifications (Deagel)
Troops 11
Wheel Drive 4
Wheels 4
Dimensions — Height 2.4 meter
Dimensions — Length 5.8 meter
Dimensions — Width 2.4 meter
Mass — Empty Weight 6,000 kilogram
Mass — Max Weight 10,000 kilogram
Power — Power 325 shp
Details
Country of Origin Israel
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.8 m
Width
2.4 m
Height
2.4 m
Weight
10000 kg
Operators (1)
Israel
