F123 Brandenburg

F123 Brandenburg

Frigates
Spotted an error? Sign in to suggest an edit.
F123 Brandenburg

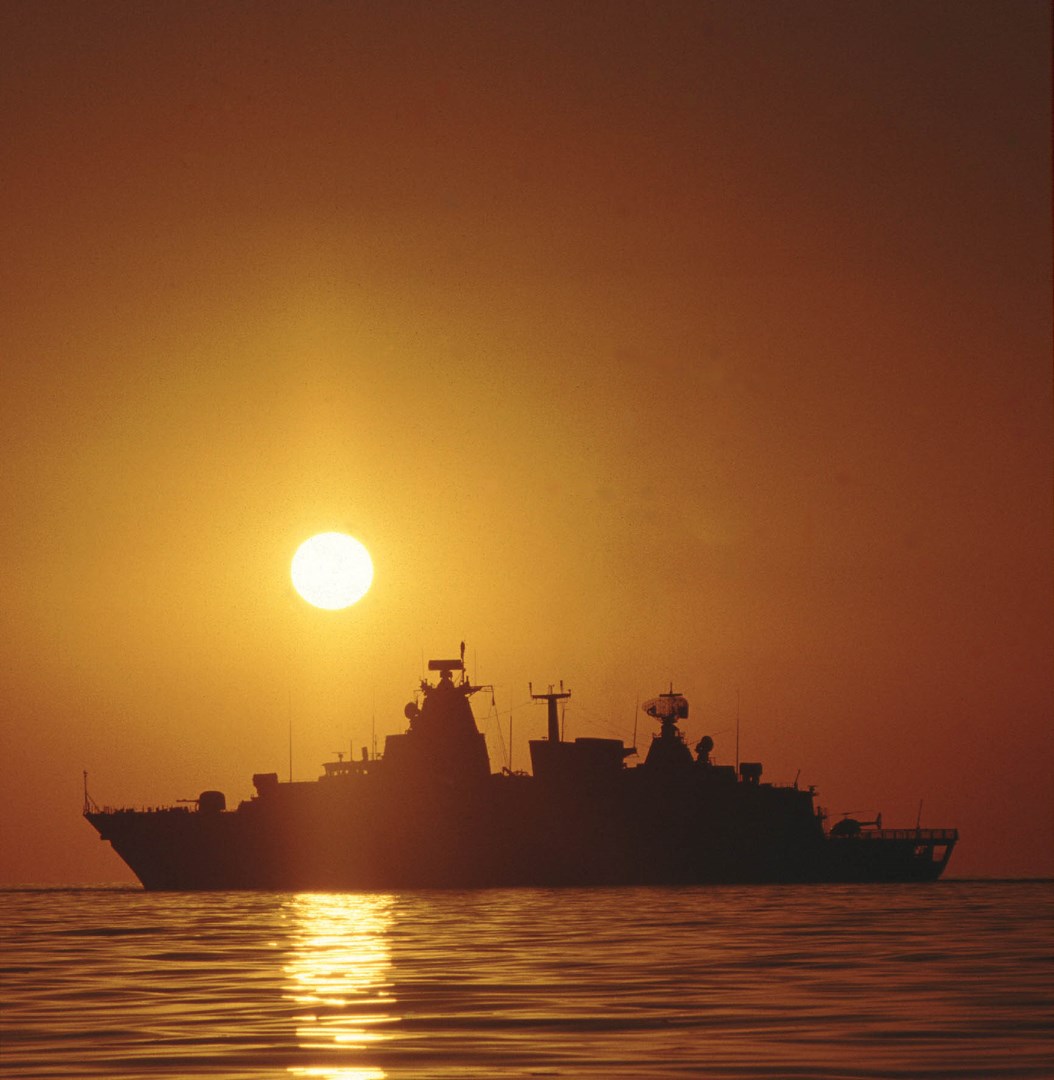

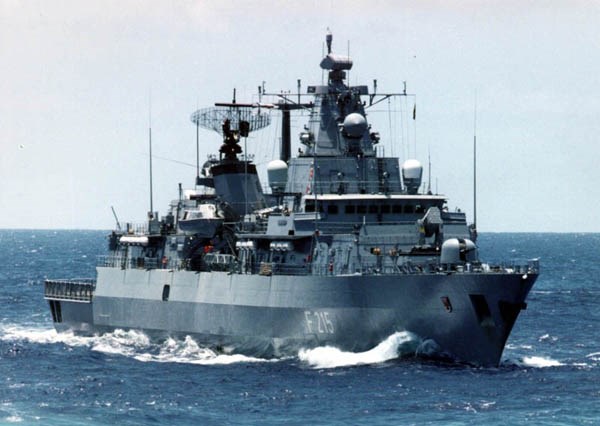

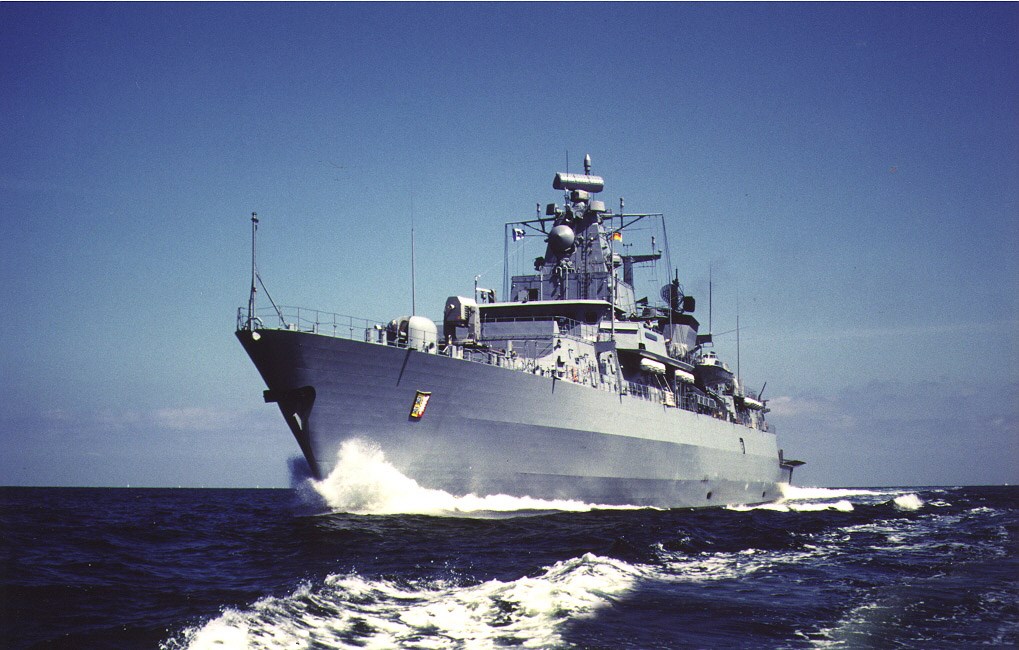

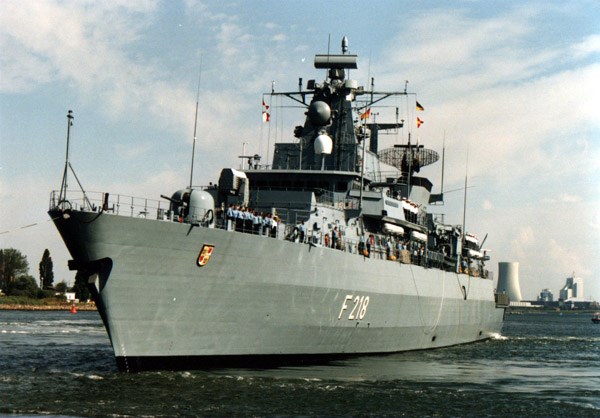

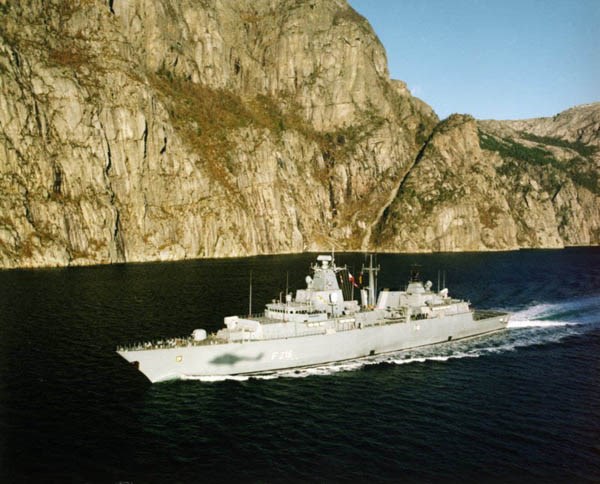

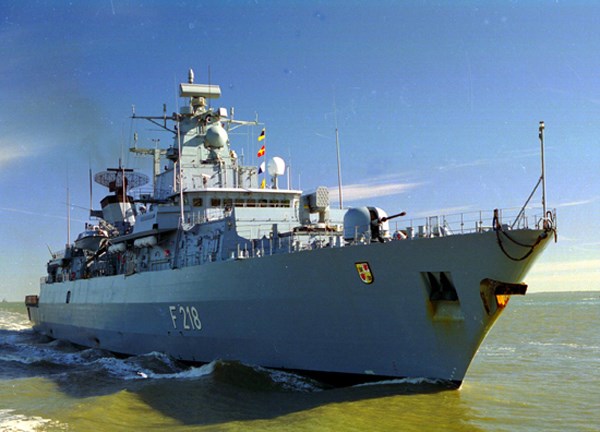

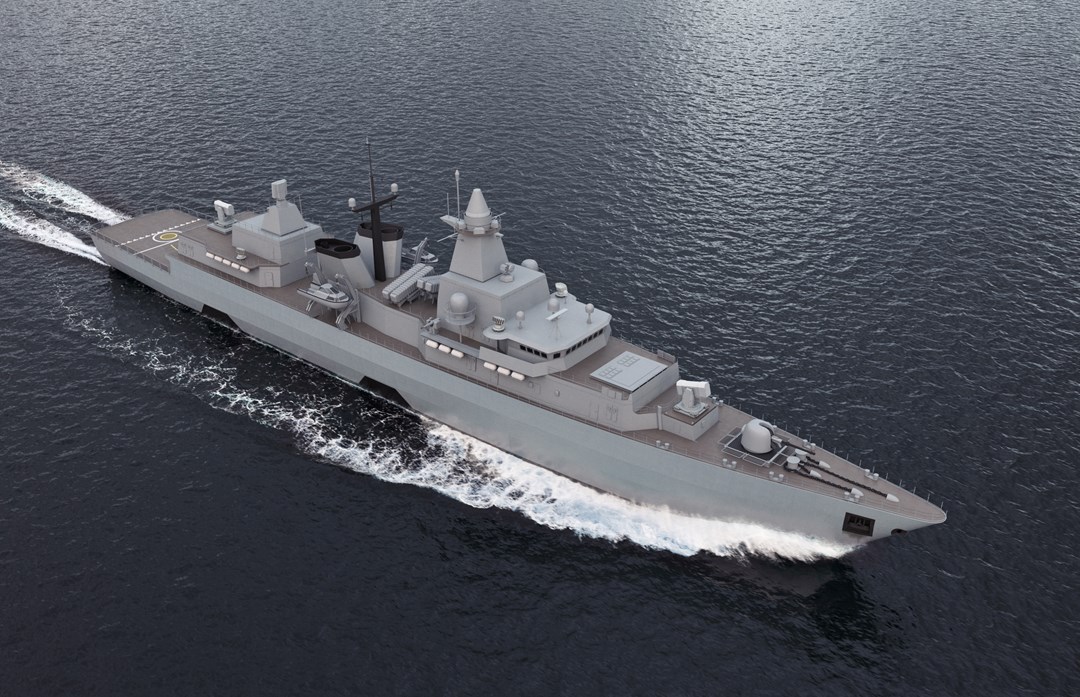

Operational Photo
deagel.com
Basic Information
Name
F123 Brandenburg
Designation
F123 Brandenburg
Alternate Designation
Type 123
Equipment Type
Frigates
Manufacturer
Howaldtswerke-Deutsche Werft GmbH, ThyssenKrupp AG
Date of Introduction
1994
Description

The F123-class frigates, also called Brandenburg-class, were conceived for Anti-Submarine Warfare (ASW) with secondary Anti-Air Warfare (AAW) capability for self-defense purposes only. The Type 123 ships have stealth features (reduced radar signature) for improved survivability. The German Navy ordered 4 F124-class frigates in the 1990s. The F123 frigates were built employing modular construction reducing the time and costs for such an operation. The ships include growth potential, advanced sensors and anti-aircraft systems. They can accommodate Lynx helicopters and were armed with Exocet and Seasparrow missiles, torpedoes, small caliber guns and a single 76mm gun. The first F123-class frigate was commissioned by the German Navy in 1994.

Naval & Littoral Specifications
Crew 230
Displacement 4700.00 tonnes
Beam 16.70 m
Draft 4.40 m
Max Speed 30.0 knots
Overview (Deagel)
Group Frigates
Status Active
Also Known As Type 123
Origin Germany
Contractors Howaldtswerke-Deutsche Werft GmbH, ThyssenKrupp AG
Initial Operational Capability (IOC) 1994
Total Production 4
Unitary Cost USD $380 million
Specifications (Deagel)
Crew 230
Number of Weapons 20
Dimensions — Beam 16.7 meter
Dimensions — Draft 4.4 meter
Dimensions — Length 139 meter
Dimensions — Main Gun Caliber 76 millimeter
Mass — Full Displacement 4,700 ton
Performance — Max Range 6,500 kilometer
Power — Total Combined Power 50,000 shp
Speed — Cruise Speed 18 knot
Speed — Top Speed 30 knot
Gear (Deagel)
Item 1 Anti-Ship Missiles: MM38 Exocet (4)
Item 2 ASW Helicopters: Super Lynx (2)
Item 3 Decoy Systems: MASS
Item 4 Naval Gun Systems: 76/62 Compact (1)
Item 5 Radar Systems: LW08 (1)
Item 6 Radar Systems: SMART-S (1)
Item 7 Sea-Based Air Defense Systems: Mk-31 RAM
Item 8 Ship Power Plants: LM2500 (2)
Item 9 Surface-to-Air Missiles: RIM-116A/B RAM
Item 10 Surface-to-Air Missiles: RIM-7M SeaSparrow (16)
Variants
Variant 1 F123 Brandenburg
Variant 2 F123 Upgraded
Details
Country of Origin Germany
Category Frigates
Naval > Frigates
Sources

deagel.com: https://www.deagel.com/x/x/a000441

Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
139 m
Width
16.7 m
Height
—
Weight
4700000 kg
Operators (1)
Germany
