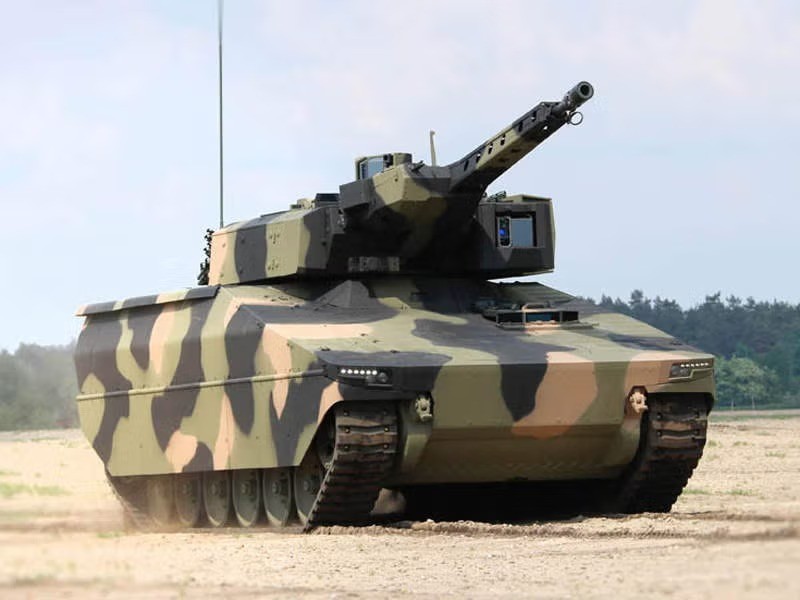

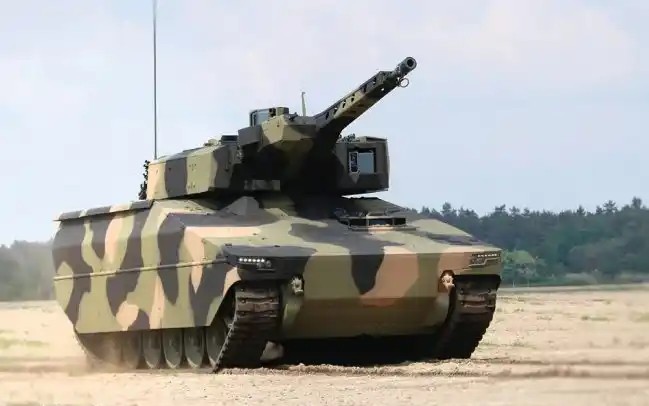

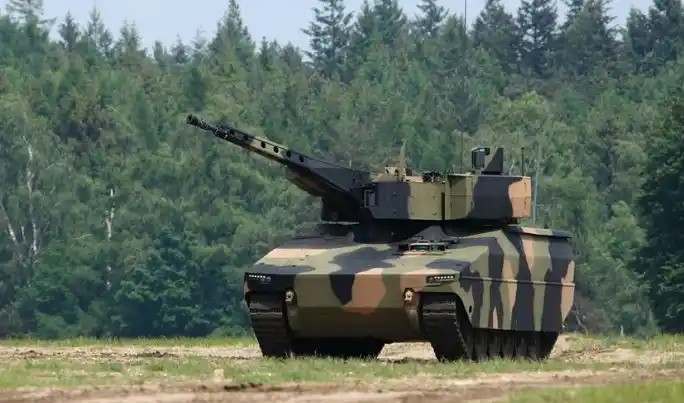

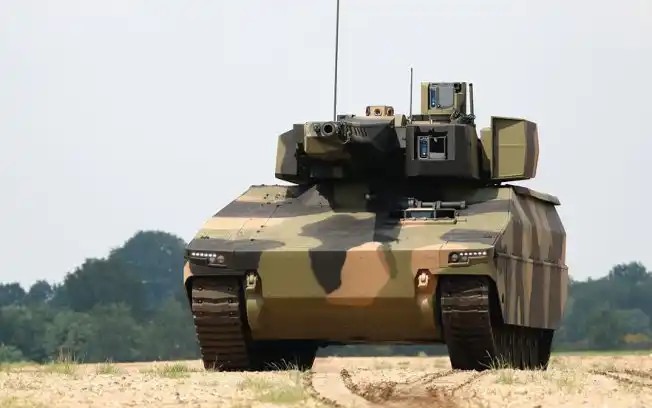

KF31 Lynx German Infantry Fighting Vehicle (IFV)
KF31 Lynx
Infantry Fighting Vehicle (IFV)
Other
Basic Information
Name
KF31 Lynx German Infantry Fighting Vehicle (IFV)
Designation
KF31 Lynx
Alternate Designation
KF31 Lynx
Equipment Type
Infantry Fighting Vehicle (IFV)
Manufacturer
Rheinmetall
Date of Introduction
2016
Description
The KF31 Lynx German Infantry Fighting Vehicle (IFV) is fitted with a two-man turret LANCE armed with a stabilized, externally powered, airburst-capable automatic cannon (either 30mm or 35mm). This enables Lynx to effectively engage targets with high precision at ranges of up to 3,000 meters – even on the move. The turret has a reserve of 200 rounds of two different ammunition types for the main weapon.
Ground Specifications
Crew
3
Mobility Type
Tracked
Main Weapon
30mm or 35mm automatic cannon
Engine
Diesel (1140 hp)
Active Protection
Yes
NBC Protection
Yes
Max Speed
65.0 km/h
Range
500.0 km
System
Alternative Designation
KF31 Lynx
Type
Infantry Fighting Vehicle (IFV)
Manufacturer
Rheinmetall
Configuration
Track
Crew
3 ea
Passenger Capacity
6 ea
Dimensions
Length
7.2 m
Width
3.6 m
Height
3.3 m
Weight, Combat
38 tons
Automotive
Engine Name
Liebherr Engine
Engine Type
Diesel
Engine Power
1,140 hp
Power-to-Weight Ratio
26 hp/t
Maximum Range
500 km
Maximum Land Speed
65 km/h
Amphibious
No
Gradient
60%
Side Slope
30%
Vertical Step
1.0 m
Trench
2.5 m
Fording
1.5 m
Main Weapon System
Note
The Lynx Infantry Fighting Vehicle (IFV) is equipped with a Rheinmetall LANCE turret, which features a stabilized and externally powered automatic cannon available in either 30mm or 35mm calibers. This turret enables the crew to effectively engage targets at a maximum range of 3,000 meters.
Additionally, the IFV can be outfitted with an anti-tank guided missile (ATGM) launcher and a secondary remotely controlled weapon system that includes a 7.62mm co-axial machine gun. The secondary weapon station is integrated with the main optics for enhanced targeting capability.
Coaxial Weapon System
Note
1 x 7.62mm co-axial machine gun
Protection
Hull Armor
Modular armor concept which provides protection against antitank weapons, medium-caliber ammunition, artillery shrapnel, IEDs and artillery shell splinters. The Rheinmetall KF31 Lynx is equipped with a Mine and IED protection packages, decoupled seats and the optional hard-kill Active Defense System (ADS) to increase the survivability of the vehicle. The hull and turret of the Rheinmetall KF31 Lynx are protected against antitank weapons, medium-caliber ammunition, artillery shrapnel, IEDs and bomblets using a modular armor concept.
Applique Armor
INA
Active Protection System
Yes
NBC Protection
Yes
Smoke Equipment
Yes
Image Sources
Details
Country of Origin
Germany
Category
Land
Land
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.2 m
Width
3.6 m
Height
3.3 m
Weight
38000 kg
Operators (2)
Germany
Hungary
