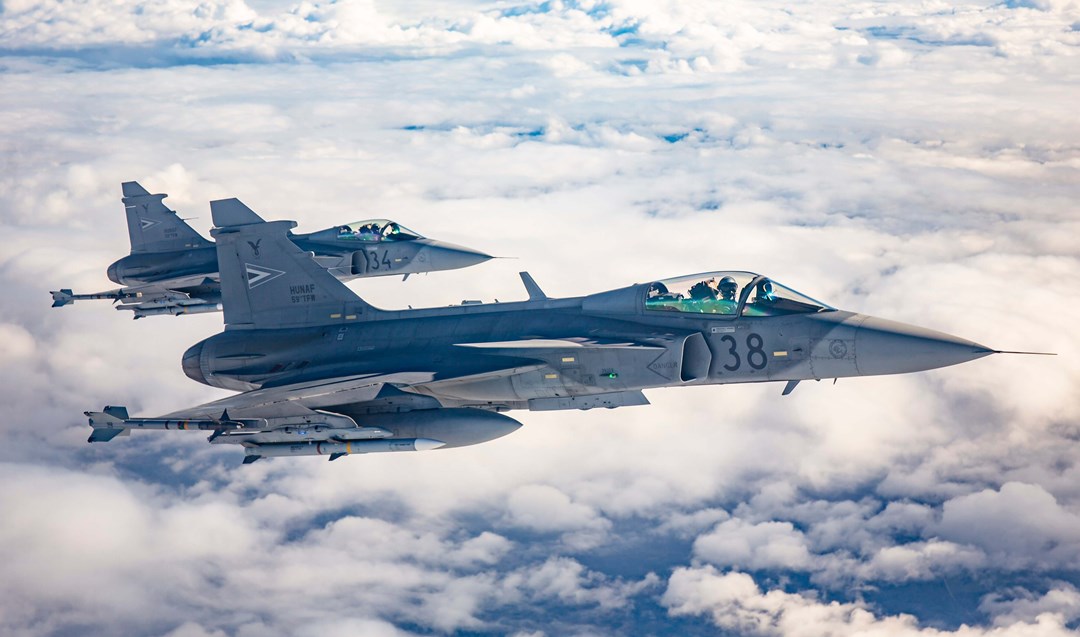

JAS 39F Gripen
JAS 39F Gripen
Multi-Role Fighters
Basic Information
Name
JAS 39F Gripen
Designation
JAS 39F Gripen
Alternate Designation
F-39, Gripen F, Gripen NG
Equipment Type
Multi-Role Fighters
Manufacturer
Saab
Date of Introduction
2023
Description
The JAS 39F Gripen, also known as Gripen F, is a twin-seat advanced version of the Gripen fighter aircraft deployed by the Swedish Air Force in the late 1990s. The Gripen E/F aircraft are powered by a General Electric F414G engine. They also feature new avionics and displays as well as an Active Electronically Scanned Array (AESA) radar. The next generation Gripen delivers enhanced flight handling, aerodynamics, performance and endurance. Switzerland selected the Gripen E/F aircraft as the replacement for its F-5E/F Tiger in November 2011.
Air & Air Defense Specifications
Crew
2
Max Speed
2469.6 km/h
Range
1500.0 km
Service Ceiling
16000 m
Wingspan
8.60 m
Overview (Deagel)
Group
Multi-Role Fighters
Status
Active
Also Known As
F-39, Gripen F, Gripen NG
Origin
Sweden
Contractor
Saab
Initial Operational Capability (IOC)
2023
Total Production
11
Specifications (Deagel)
Crew
2
External Stations
10
Number of Engines
1
Area — Wing Area
30 square meter
Dimensions — Height
4.5 meter
Dimensions — Length
15.9 meter
Dimensions — Main Gun Caliber
27 millimeter
Dimensions — Wingspan
8.6 meter
G-load — Max Maneuvering Load Factor
9 g
G-load — Min Maneuvering Load Factor
-3.00 g
Mass — Empty Weight
8,000 kilogram
Mass — Max Takeoff Thrust
22,000 pound
Mass — Max Takeoff Weight
16,500 kilogram
Mass — Payload
5,100 kilogram
Performance — Ceiling
16,000 meter
Performance — Ferry Range
4,000 kilometer
Performance — Landing Run Distance
600 meter
Performance — Radius of Operation
1,500 kilometer
Performance — Take Off Run Distance
500 meter
Speed — Cruise Speed
0.80 mach
Speed — Supercruise Speed
1.2 mach
Speed — Top Speed at High Altitude
2 mach
Gear (Deagel)
Item 1
Air-to-Air Missiles: AIM-120C AMRAAM
Item 2
Air-to-Air Missiles: IRIS-T
Item 3
Air-to-Air Missiles: Meteor
Item 4
Anti-Ship Missiles: RBS15 Gungnir (4)
Item 5
Bombs: GBU-39/B (16)
Item 6
Decoy Systems: BriteCloud
Item 7
Fighter Aircraft Engines: F414G (1)
Item 8
Helmets: Targo (1)
Item 9
Jamming Systems: Arexis (1)
Item 10
Jamming Systems: Lightweight Air-Launched Decoy Missile
Item 11
Medium Caliber Cannons: BK 27 (1)
Item 12
Optronic Systems: Skyward-G (1)
Item 13
Radar Systems: Raven ES-05 (1)
Variants
Variant 1
JAS 39C Gripen
Variant 2
JAS 39D Gripen
Variant 3
JAS 39E Gripen
Variant 4
JAS 39F Gripen
Details
Country of Origin
Sweden
Category
Multirole Aircraft
Air > Multirole Aircraft
Sources
deagel.com: https://www.deagel.com/x/x/a000532
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
15.9 m
Width
8.6 m
Height
4.5 m
Weight
16500 kg
Related Equipment (1)
Variant of
Operators (5)
Ukraine
Brazil
Colombia
Switzerland
Thailand
