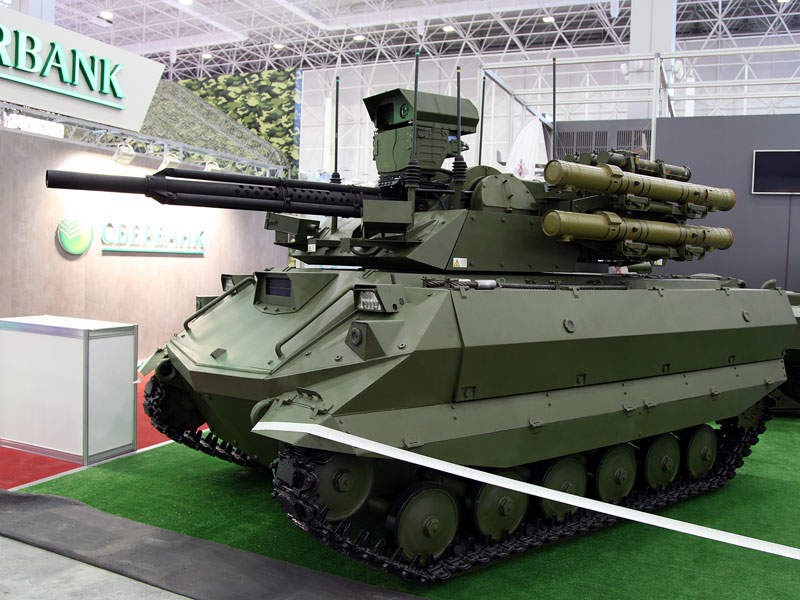

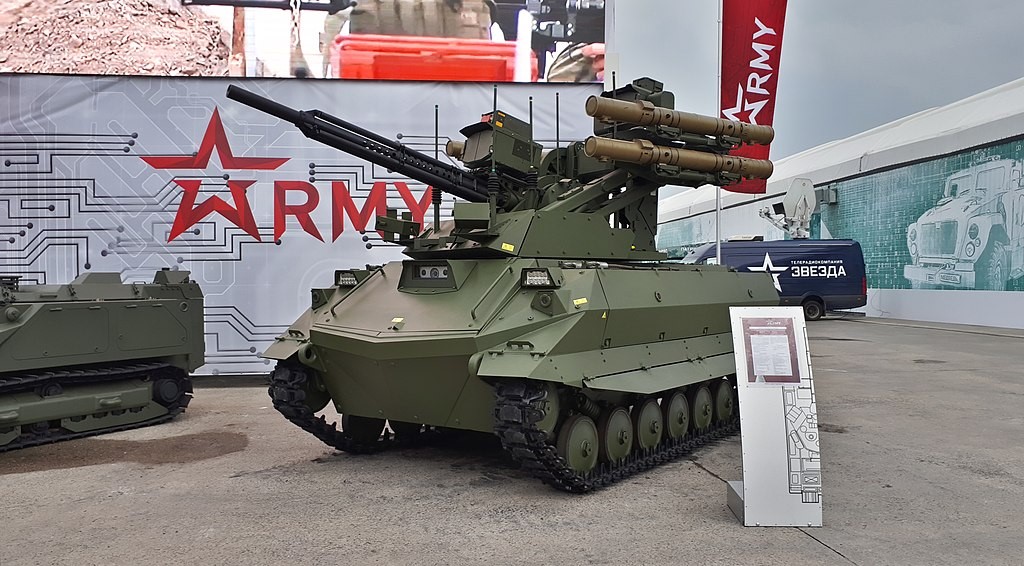

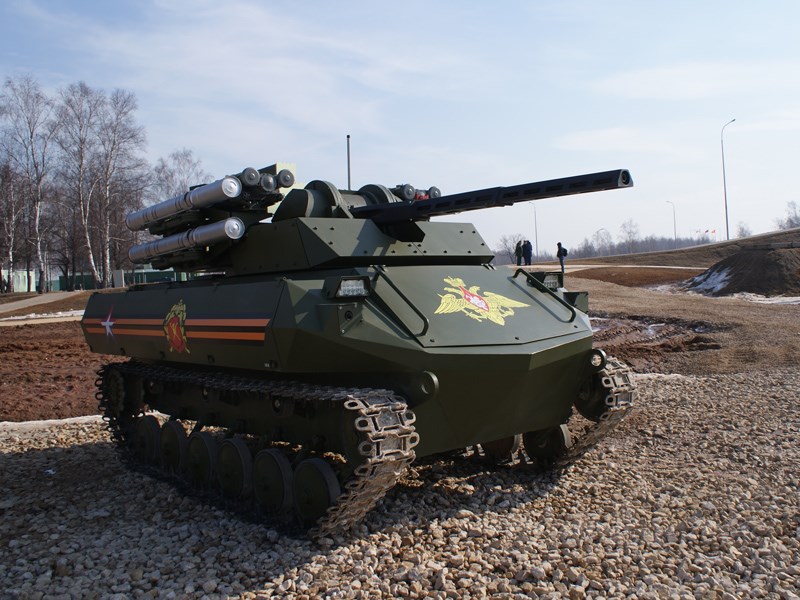

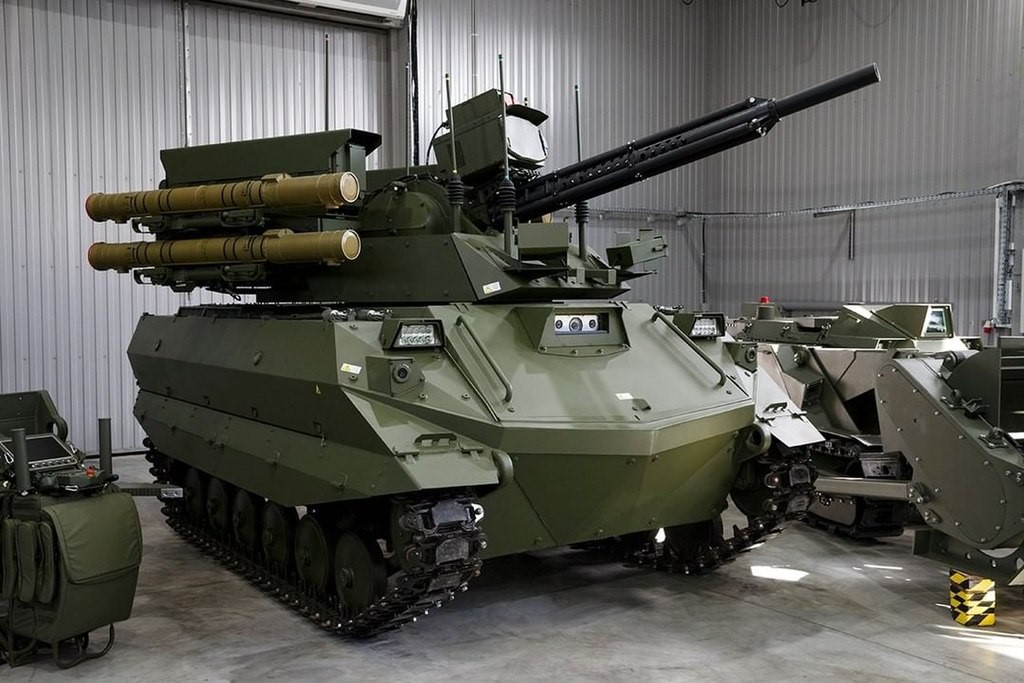

Uran-9 Russian Tracked Unmanned Ground Vehicle (UGV)
Uran-9
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Uran-9 Russian Tracked Unmanned Ground Vehicle (UGV)
Designation
Uran-9
Alternate Designation
Uran-9
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
JSC 766 UPTK
Date of Introduction
2019
Description

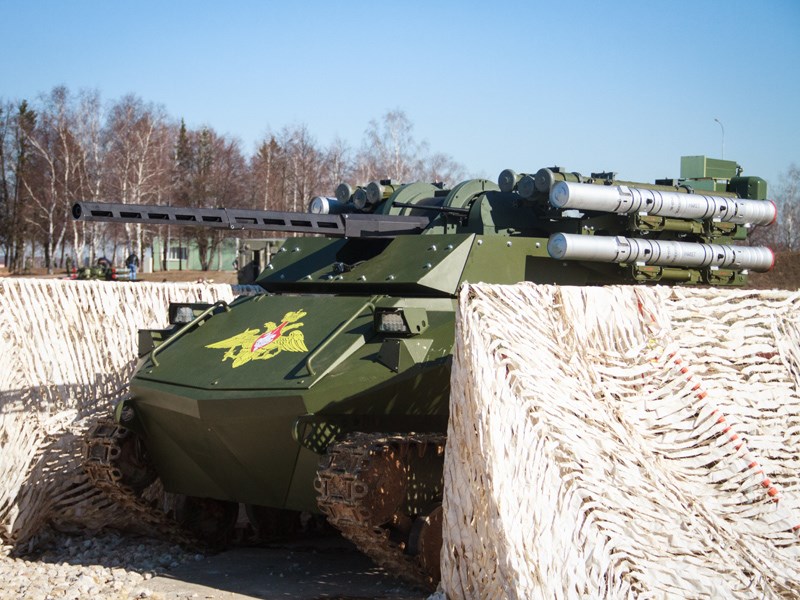

The Uran-9 Russian Tracked Unmanned Ground Vehicle (UGV) is designed to provide remote reconnaissance and fire support to a variety of tasks conducted by the counter-terrorism, reconnaissance, and military units in urban environments. Fitted with a variety of weapons and sensors, the robot will improve the combat effectiveness of the infantry squads, while offering maximum protection to the personnel. The Uran-9 robot complex consists of four unmanned ground vehicles, one mobile command station, and a tractor for the transportation of robots.
Ground Specifications
Mobility Type
Tracked
Main Weapon
4 x 9M120-1 Ataka anti-tank guided missile launchers
Engine
Diesel-Electric Hybrid (420 hp)
Range
6.0 km
Variants
2A42
Standard Version.
2A72
Lighter simplified variant with a lower number of parts, a longer barrel, and higher muzzle velocity, but also a lower rate of fire. It is long recoil-operated, not gas-operated.
ABM-M30M3
Remote Weapon Station made by Impulse-2, for Uran-9 or different armored vehicles.
ABM-M30M3 Vikhr
Remote weapon station made by Impulse-2.
TRT-30
Remote weapon station.
ZTM-1, KBA-2
Ukrainian production.
System
Alternative Designation
Uran-9
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
JSC 766 UPTK
Configuration
Tracked
Composition

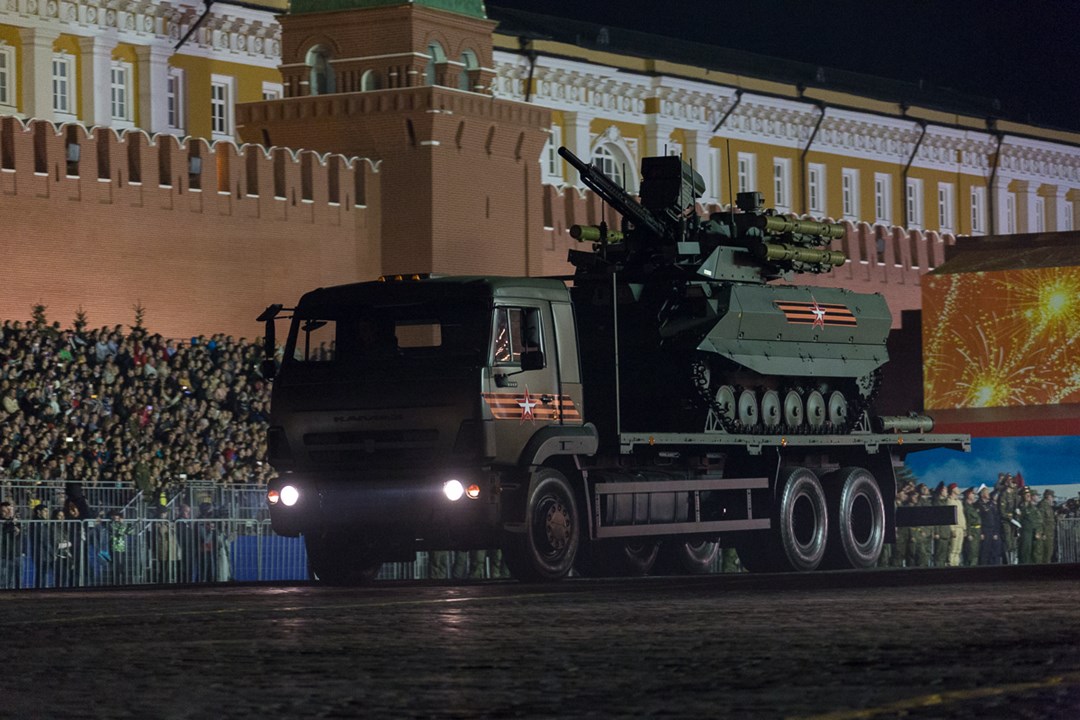

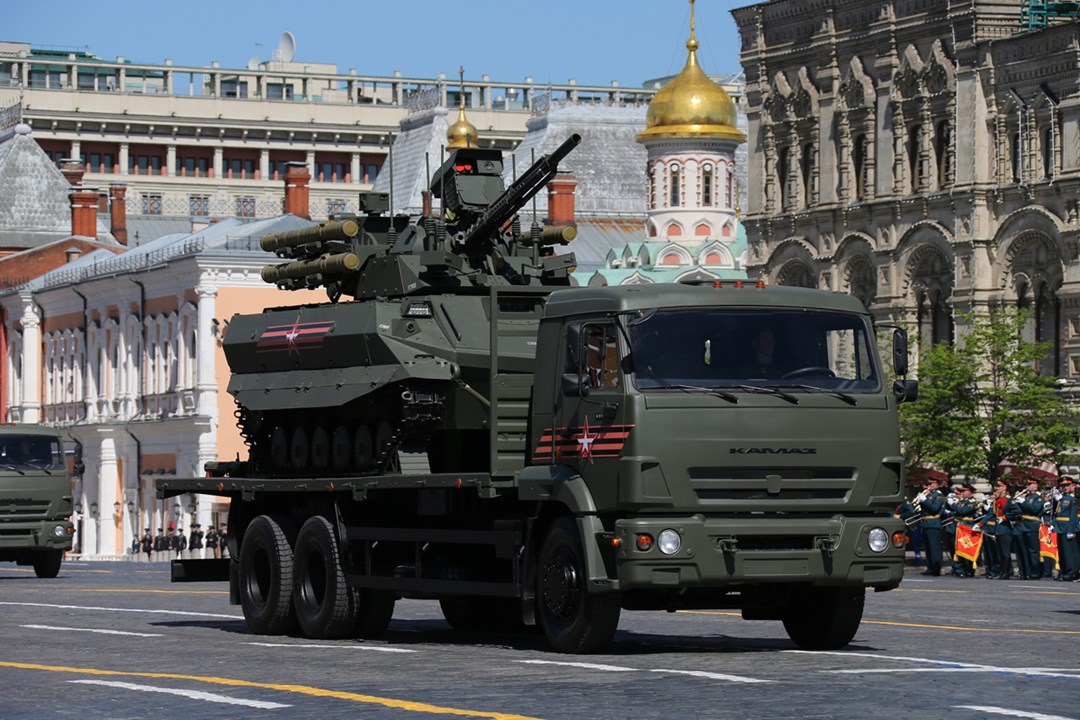

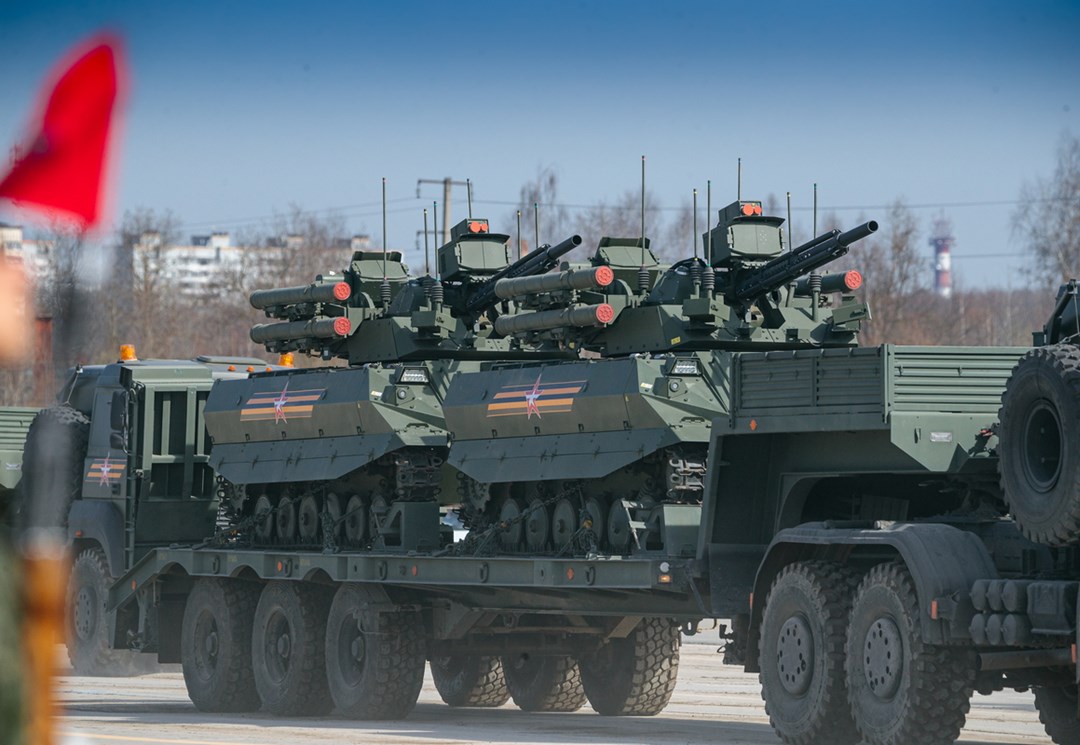

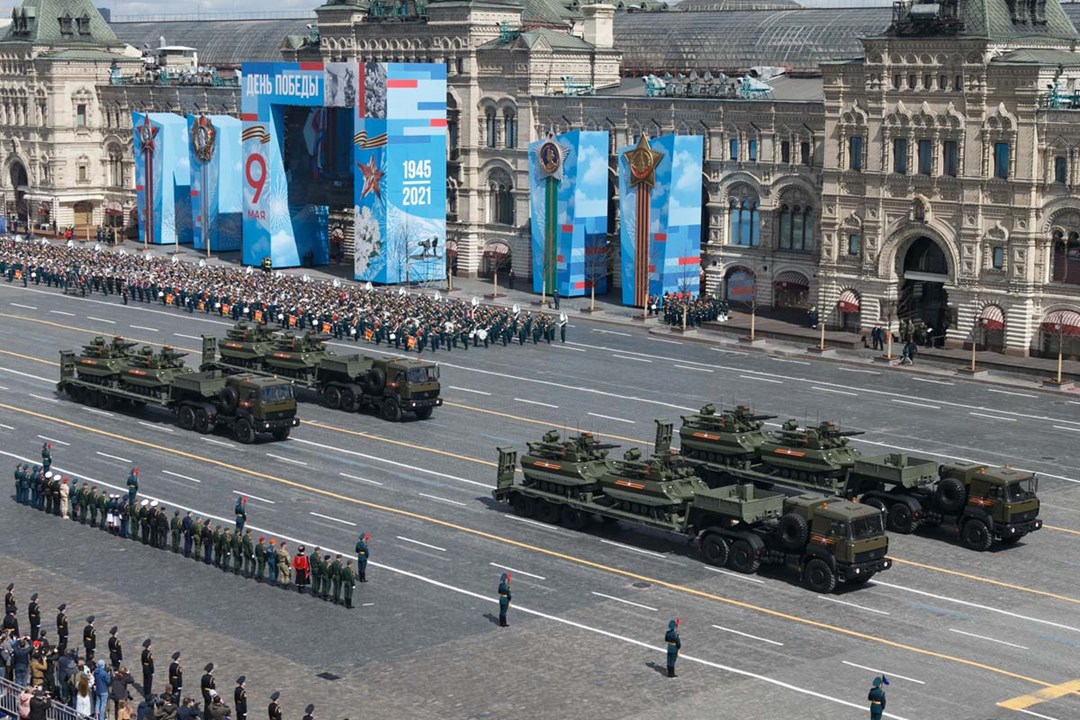

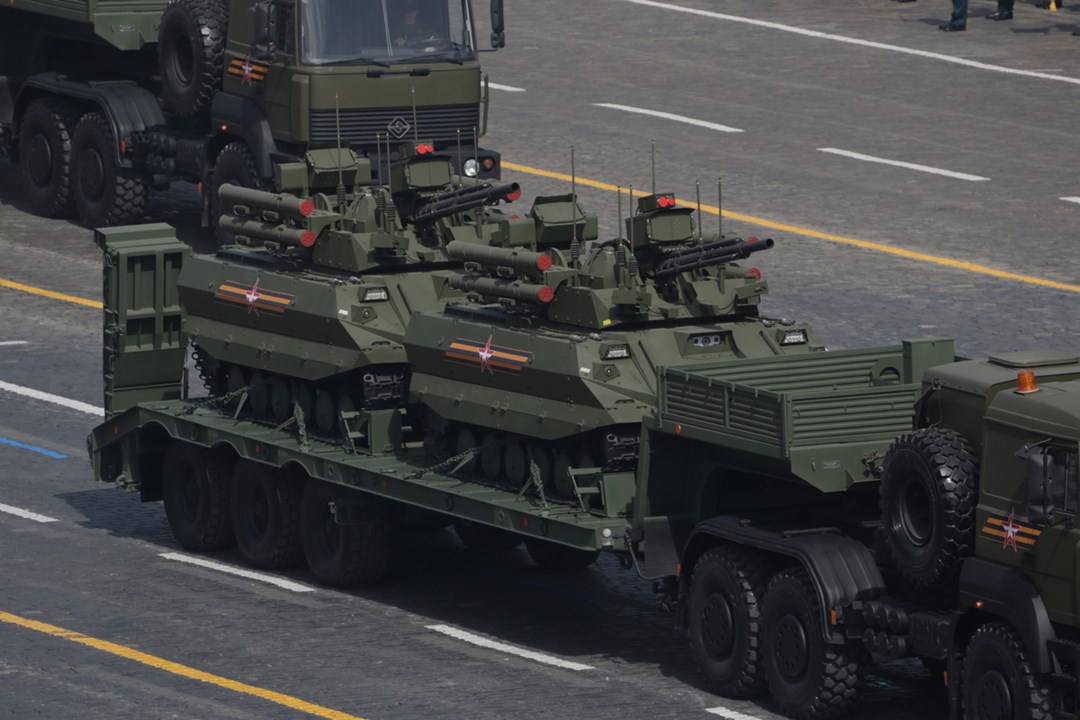

The Uran-9 robot complex consists of four unmanned ground vehicles, one mobile command station, and a tractor for the transportation of robots.
Crew
Unmanned
Sensors
The robotic system is equipped with a wide range of remote-controlled sensor modules such as laser warning system, and electro-optic and thermal imaging cameras.
The onboard fire control system consists of automatic target detection, identification and tracking devices, as well as a ballistic computer. It is capable of detecting and tracking enemy targets travelling at a distance of 6km during the day and at 3km at night.
Dimensions
Length
5.12 m
Width
2.53 m
Height
2.5 m
Weight, Combat
10,000 kg
Automotive
Engine Name
9M82 TK Voskoye Izmil Uran
Engine Type
Diesel-Electric
Engine Power
420 hp
Operation
The Uran-9 robot can be operated in either autonomous or manual mode. In autonomous mode, the vehicle can automatically identify, detect, track and defend enemy targets based on the pre-programmed path set by the operator. The vehicle uses detour path finding for obstacle avoidance in the autonomous mode.
Maximum Range
INA
Maximum Controller Range
The Uran-9 robot is manually controlled by a single operator from a mobile command and control station mounted on a 6×6 tactical truck from a safe distance of 3km. It can also be controlled by means of a portable control panel, in the manual mode.
Maximum Speed (Road)
35 km/h
Maximum Speed (Off-Road)
10 km/h
Cross-Country Speed
25 km/h
Ground Pressure
0.6kg/sq.
Main Weapon System
Turret
The Uran-9 robotic system is fitted with a remotely operated turret for mounting different light and medium-caliber weapons and missiles, based on mission needs.
Anti-Tank Guided Missile System
The weapon system has 4 x 9M120-1 Ataka anti-tank guided missile launchers, two on each side, to defeat the enemy main battle tanks and armored targets.
Firing Range
0.4km to 6km
Penetration
800mm behind explosive reactive armor (ERA).
Coaxial Weapon System
Name
1 x PKTM 7.62mm General-Purpose Machine Gun
Type
General-Purpose Machine Gun
Caliber
7.62 mm
Rate of Fire
700-800 rds/min
Muzzle Velocity
850 m/s
Range of Fire
1,500 m
Basic Load
INA
Note
The PKTM 7.62mm General-Purpose Machine Gun is used to engage ground-based light armored targets.
Auxiliary Weapon System
Name
1 x 30mm 2A72 Automatic Cannon
Type
Automatic Cannon
Caliber
30 mm
Action
Gas-operated
Rate of Fire
200 to 300 rds/min (low)
550-800 rds/min (high)
Muzzle Velocity
960 m/s
Maximum Firing Range
4,000 m
Effective Firing Range
2,000 m
Feed System
Twin Feed
Note
The 2A72 Automatic Cannon is used for defense against ground and low-flying aerial targets.
Flamethrower
Name
6 x 93mm Rocket-Propelled Shmel-M Reactive Flamethrowers
Type
Rocket-Propelled Reactive Flamethrower
Caliber
93 mm
Placement
3 x 93mm Rocket-Propelled Shmel-M Reactive Flamethrowers on each side of the turret.
Maximum Range
1 km
Note
The Shmel-M can destroy enemy manpower and weaponry inside protective shelters and field fortifications.
Protection
Armor
The Uran-9 unmanned ground combat vehicle has the ability to resist firing of small arms ammunition and shell splinters. The steel armor plates of the hull offer protection for the vehicle suspension.
Applique Armor
Available
NBC Protection
No
Smoke Equipment
INA
Image Sources
Notes
https://en.wikipedia.org/wiki/Uran-9; https://en.m.wikipedia.org/wiki/File:Multifunctional_robotic_combat_system_%22Uran-9%22_during_the_%22Armiya_2021%22_exhibition_(front-left_view).jpg; https://en.m.wikipedia.org/wiki/File:%D0%91%D0%BE%D0%B5%D0%B2%D0%BE%D0%B9_%D1%80%D0%BE%D0%B1%D0%BE%D1%82_%D0%A3%D1%80%D0%B0%D0%BD-9.jpg;
Details
Country of Origin
Russia
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.12 m
Width
2.53 m
Height
2.5 m
Weight
10000 kg
Operators (1)
Russia
