Project 1155

Destroyers

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Project 1155

Designation

Project 1155

Alternate Designation

Fregat, Udaloy I

Equipment Type

Destroyers

Manufacturer

Severnaya Verf, Severnoye Design Bureau, Yantar

Date of Introduction

1980

Description

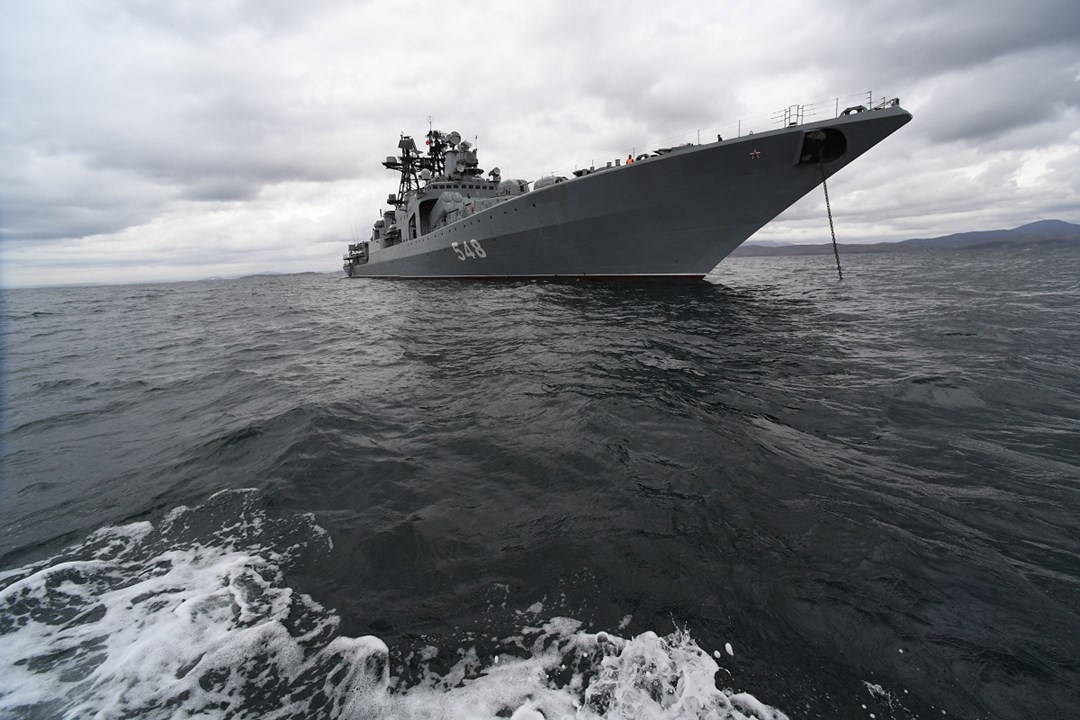

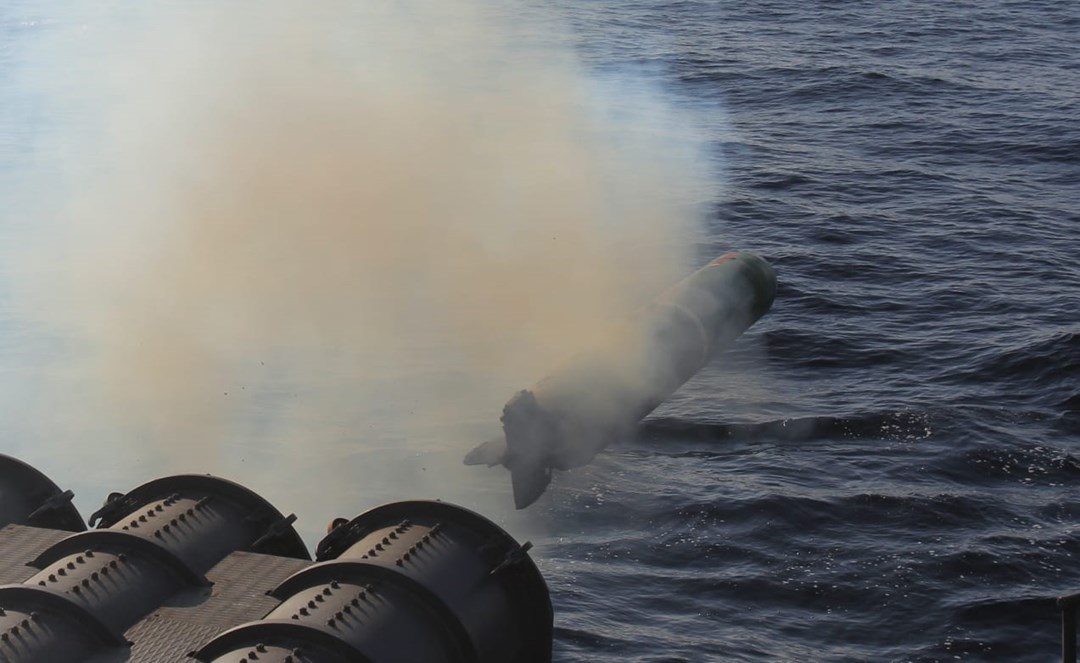

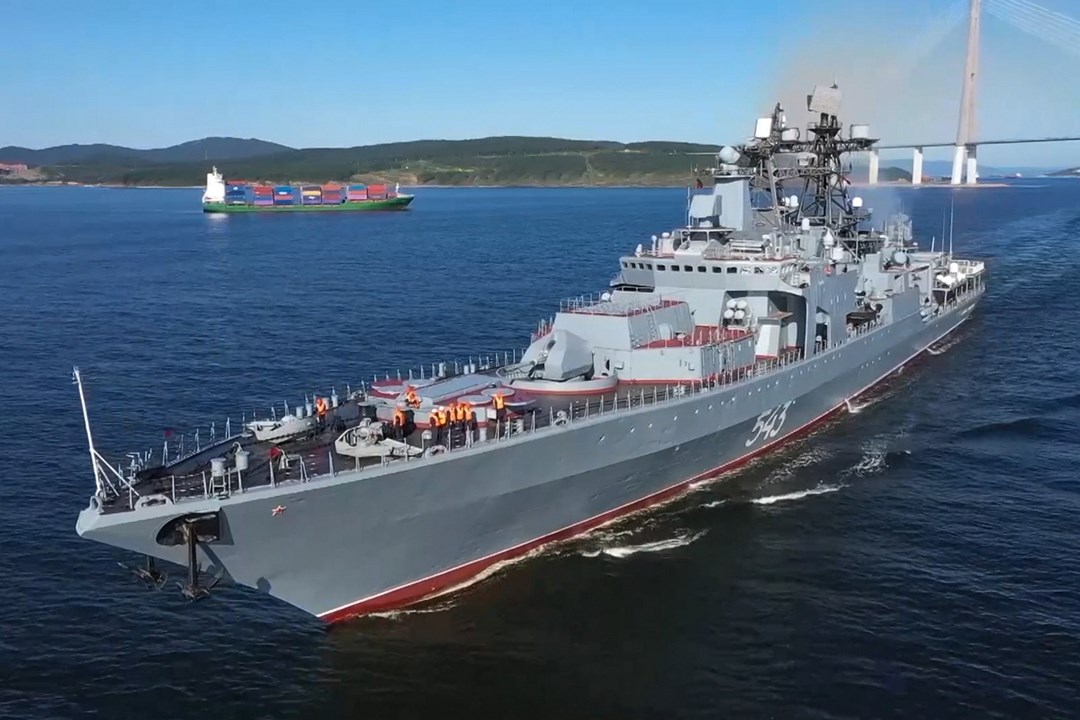

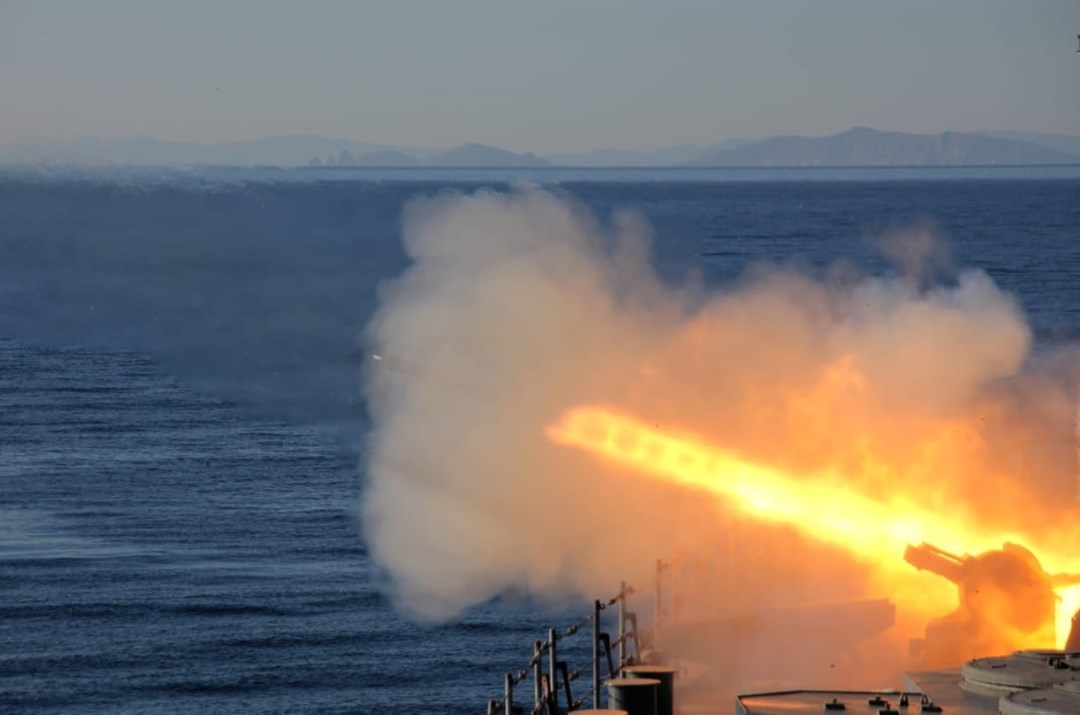

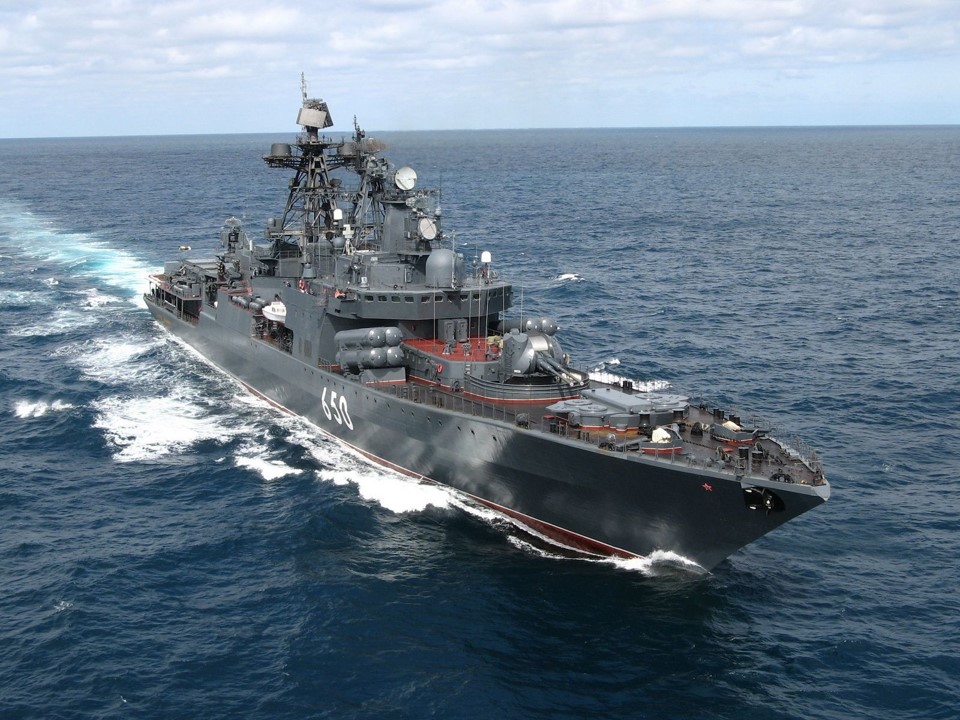

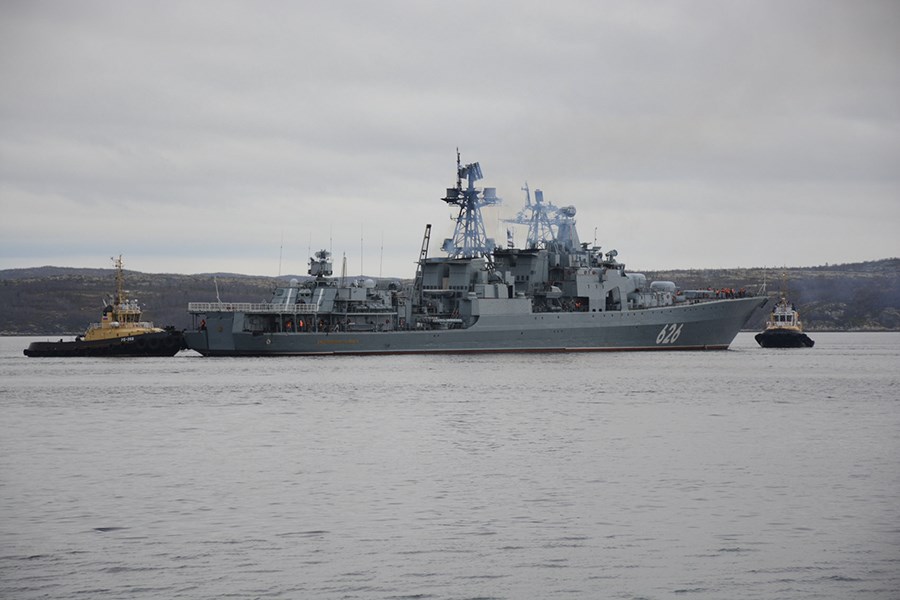

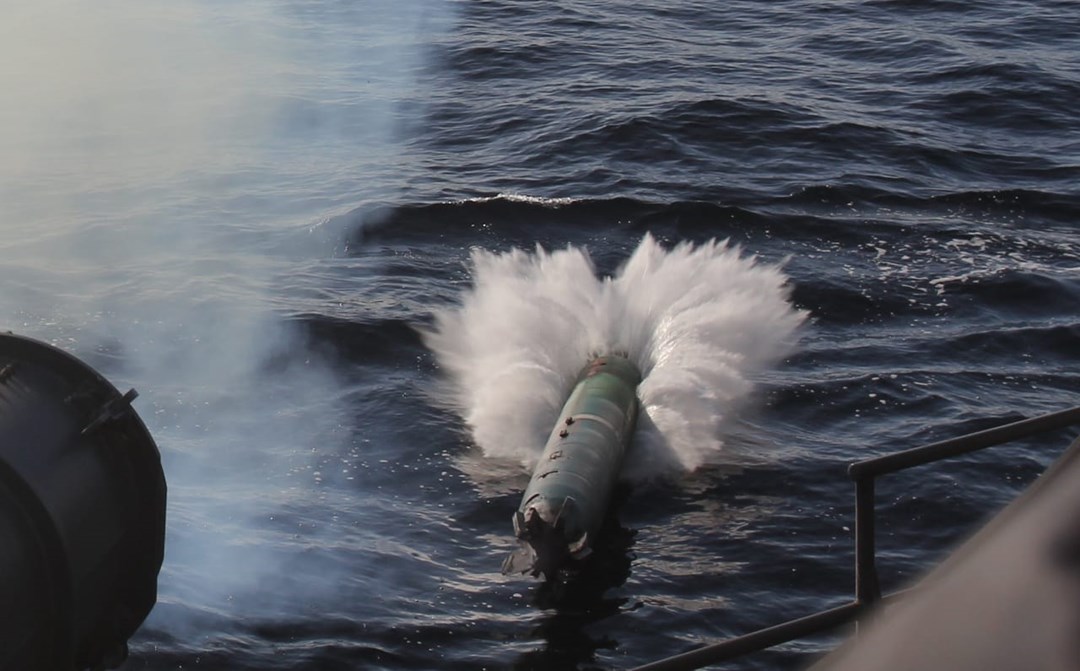

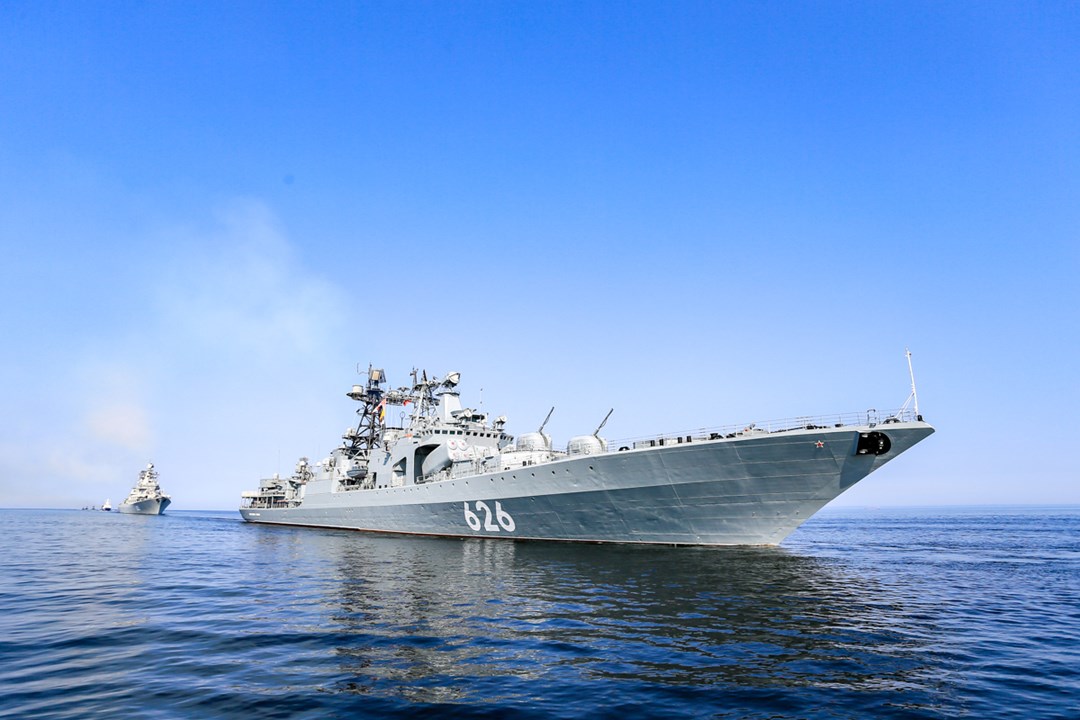

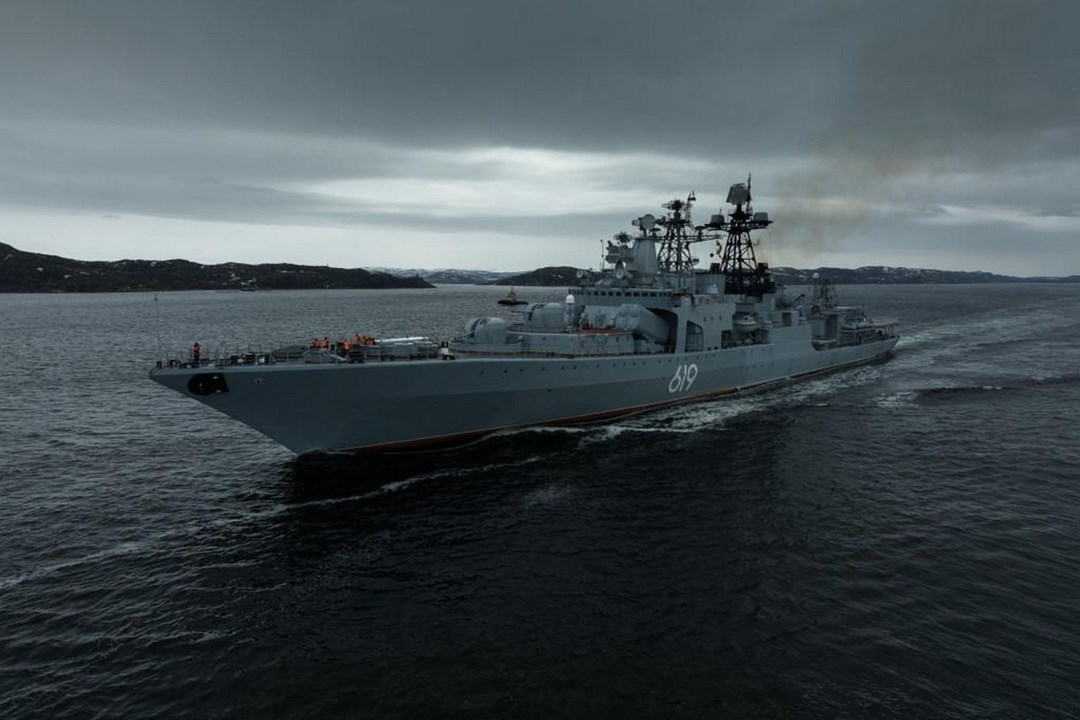

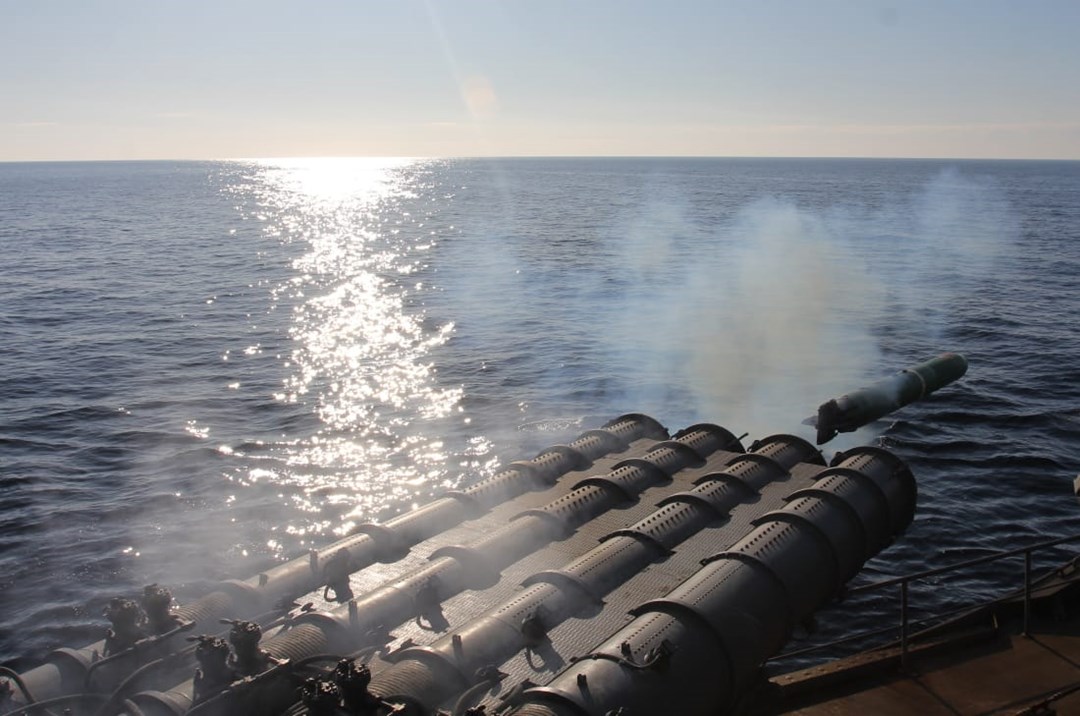

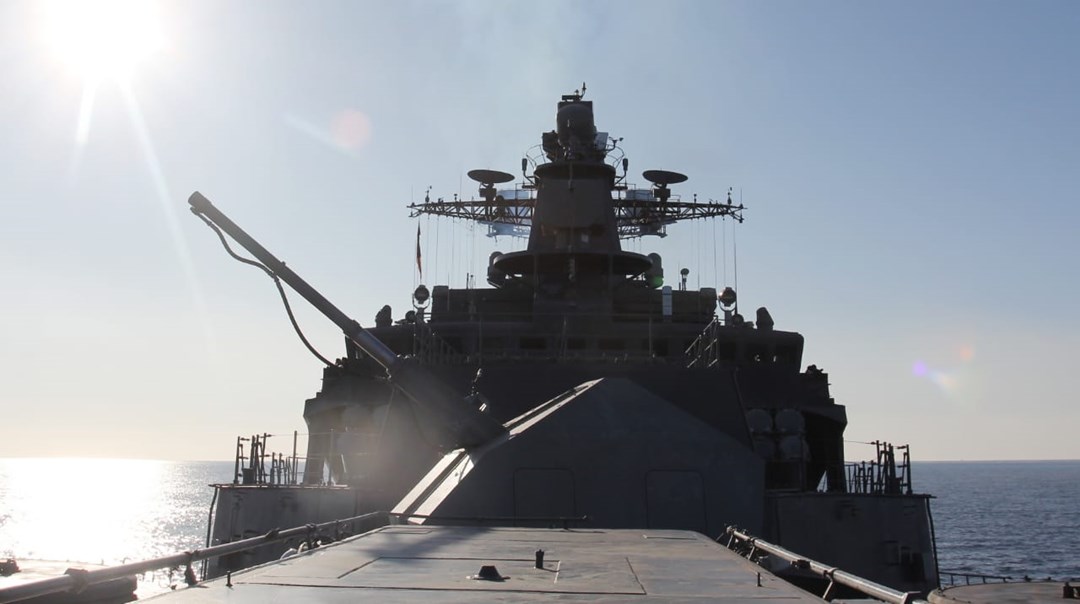

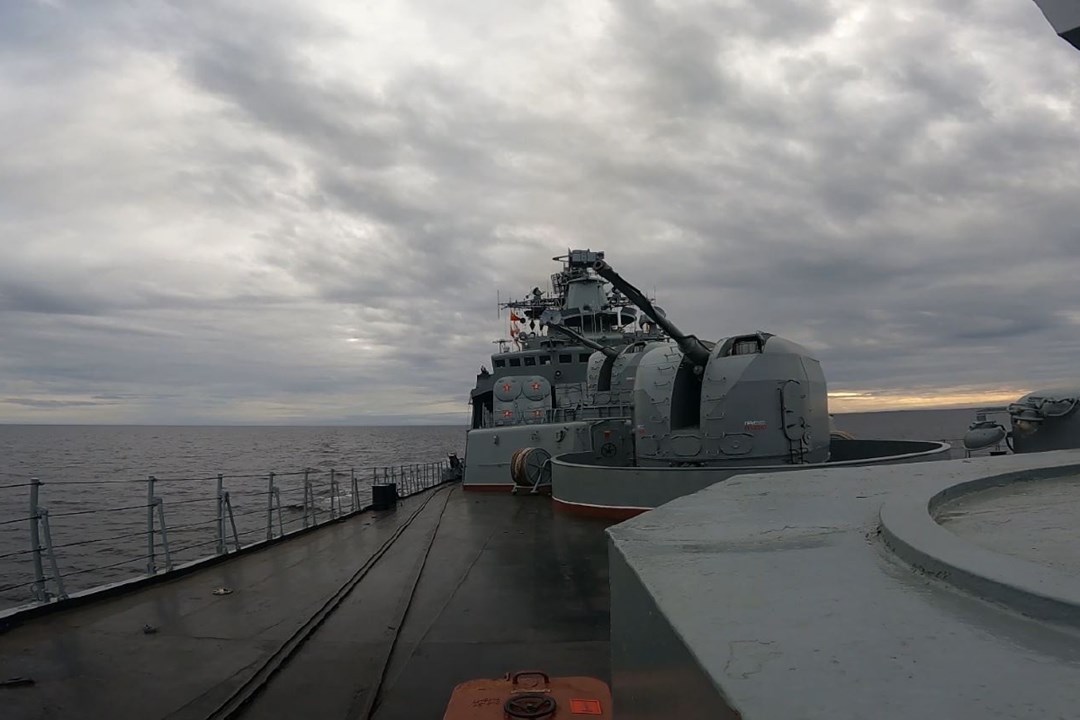

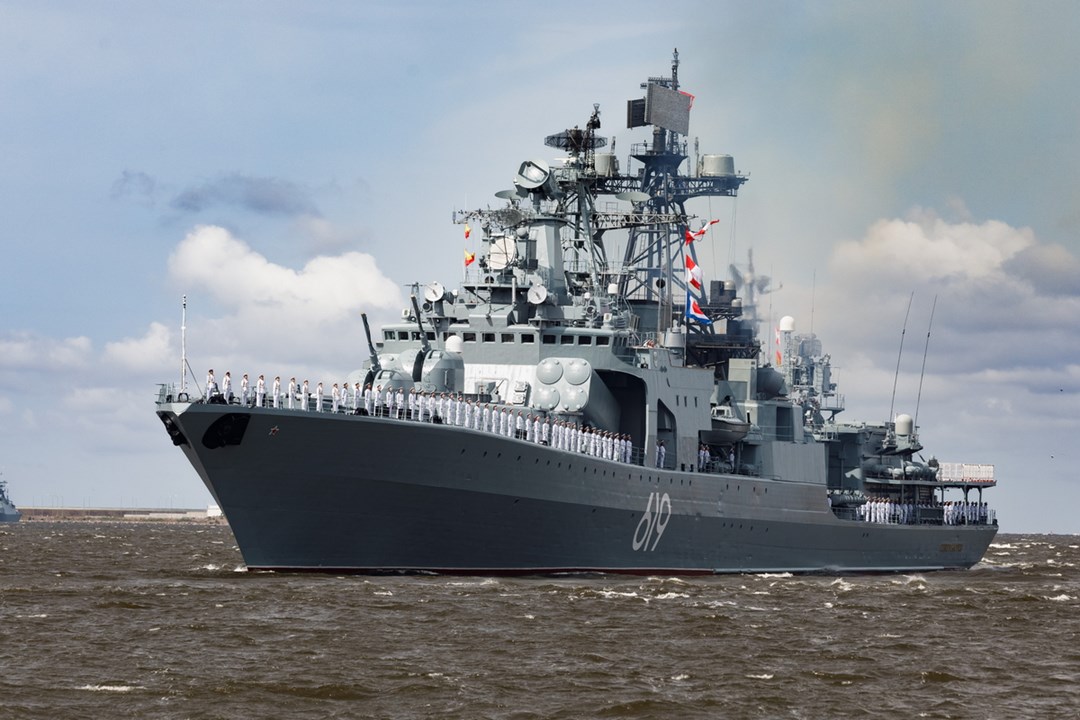

The Project 1155 Udaloy I class destroyers were designed to overcome the shortfalls detected on Krivak-series of anti-submarine frigates which entered service in the 1970s within the Soviet Navy. Their weapon system consists of eight SS-N-14 anti-submarine/ship missiles, eight Klinok Surface-to-Air Missile (SAM) systems with eight 9M331 missiles, two quadruple 533mm torpedo tubes, two RBU-6000 anti-submarine rocket systems, two 100mm single-barrel AK-100 multifunction gun and four 30mm AK-630 close-in weapons provided for ship's self-defense against surface and airborne threats. The Soviet Navy commissioned 12 Udaloy I class destroyers between 1980 and 1991. As of February 2018 only seven destroyers remain in active duty with the Russian Navy. One Udaloy I destroyer was upgraded to the Udaloy II standard and returned to active duty in 2013.

Naval & Littoral Specifications

Crew 300

Displacement 7570.00 tonnes

Beam 19.30 m

Draft 6.20 m

Max Speed 35.0 knots

Overview (Deagel)

Group Destroyers

Status Active

Also Known As Fregat, Udaloy I

Origin Russia

Contractors Severnaya Verf, Severnoye Design Bureau, Yantar

Initial Operational Capability (IOC) 1980

Total Production 12

Specifications (Deagel)

Crew 300

Number of Aircraft 2

Number of Engines 4

Number of Weapons 72

Torpedo Tubes 8

Dimensions — Beam 19.3 meter

Dimensions — Draft 6.2 meter

Dimensions — Length 163 meter

Dimensions — Main Gun Caliber 100 millimeter

Mass — Full Displacement 7,570 ton

Mass — Standard Displacement 6,930 ton

Performance — Max Range 10,500 nautical mile

Power — Total Combined Power 120,000 hp

Speed — Economical Speed 14 knot

Speed — Top Speed 35 knot

Gear (Deagel)

Item 1 Anti-Submarine Rockets: RBU-6000 (2)

Item 2 Anti-Submarine Rockets: SS-N-14 (8)

Item 3 ASW Helicopters: Ka-25 (2)

Item 4 ASW Helicopters: Ka-27 (2)

Item 5 Radar Systems: Fregat MA (1)

Item 6 Sea-Based Air Defense Systems: Klinok (8)

Item 7 Ship Power Plants: DT-59 (2)

Item 8 Surface-to-Air Missiles: 9M331 (64)

Variants

Variant 1 Project 1155

Variant 2 Project 1155.1

Variant 3 Project 1155M

Details

Country of Origin Russia

Category Destroyers

Naval > Destroyers

Sources

deagel.com: https://www.deagel.com/x/x/a000334

Classification

Domain

Naval & Littoral

Equipment Status

Active

Dimensions

Length

163 m

Width

19.3 m

Height

—

Weight

7570000 kg

Related Equipment (1)

Variant of

Udaloy Class (Project 1155 Fregat Class) Russian Anti-Submarine Guided-Missile Destroyer

Udaloy Class

Anti-Submarine Guided-Missile DestroyerRussia

View details

Operators (1)

Russia
