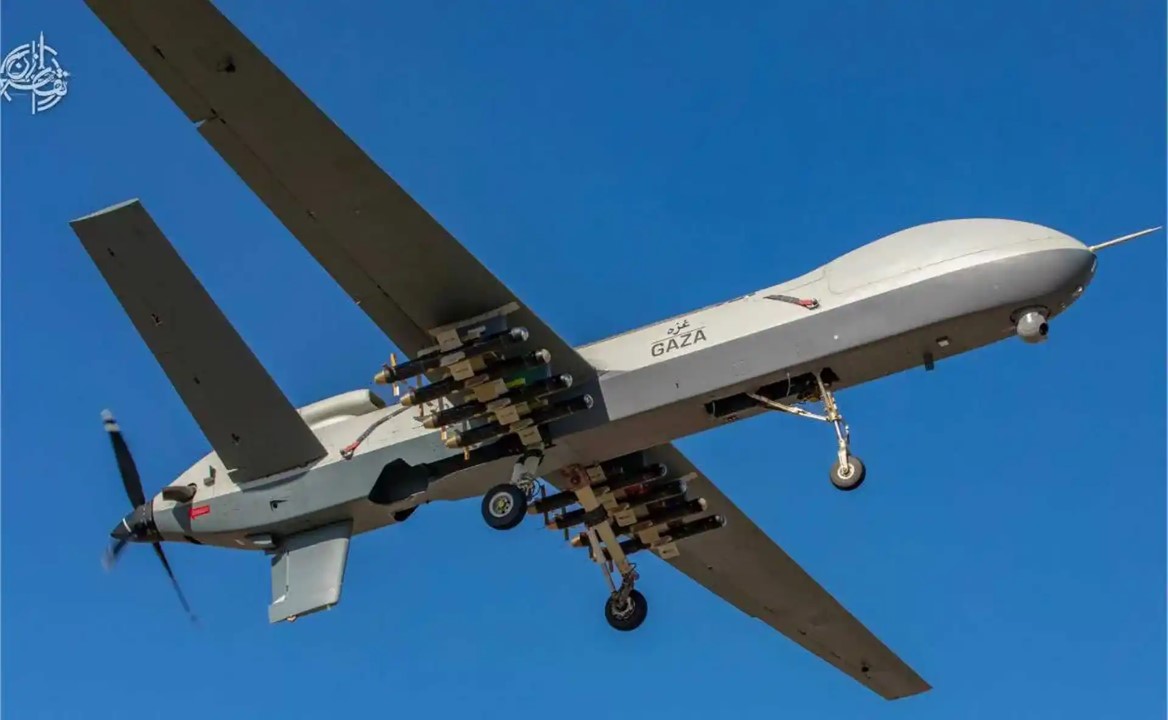

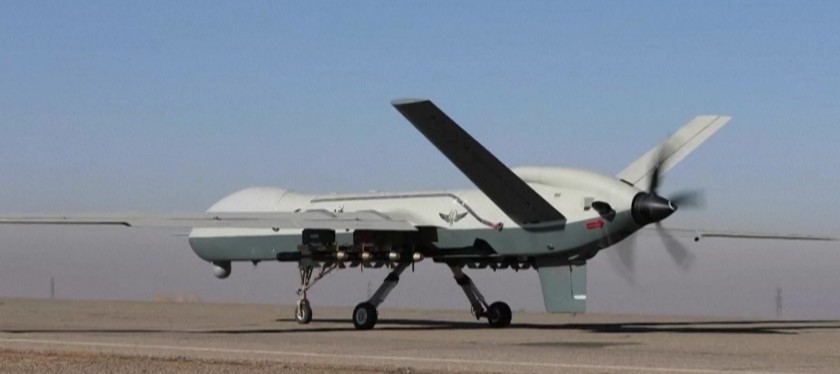

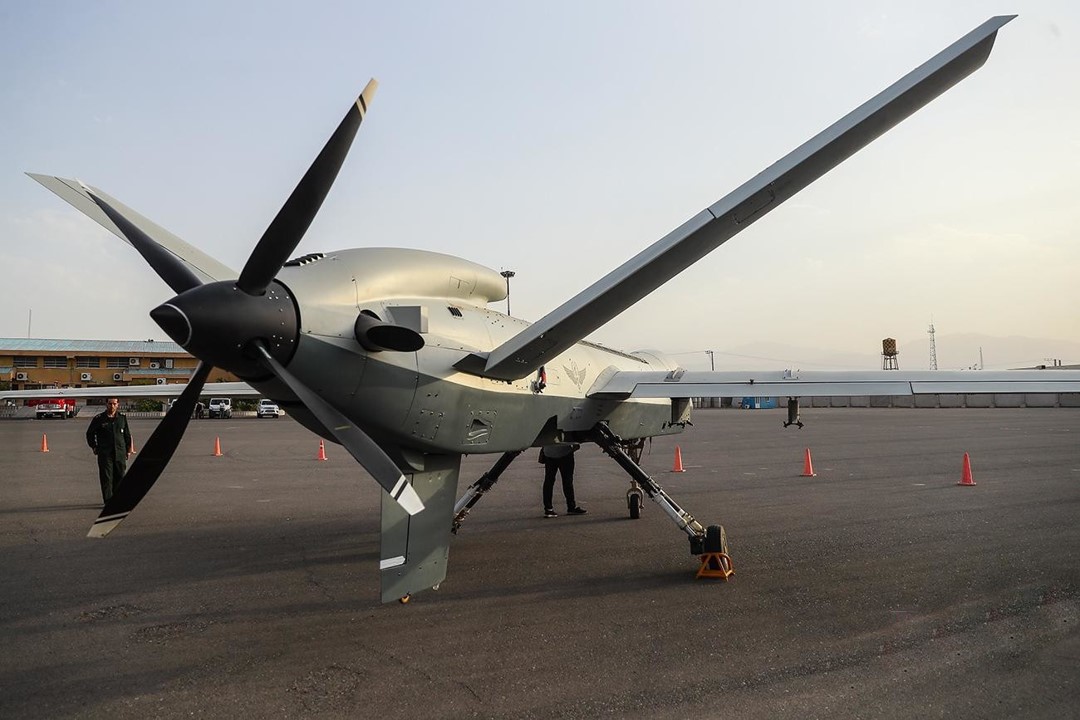

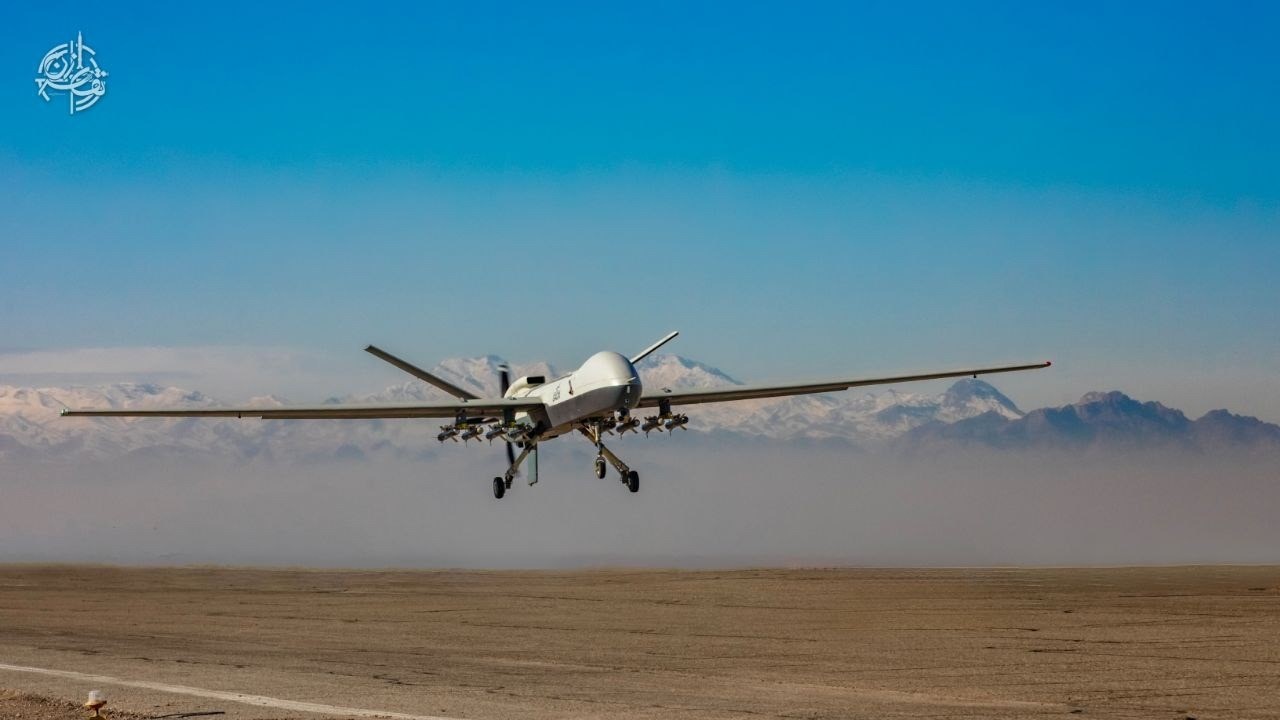

Shahed-149 (Gaza) Iranian Unmanned Aerial Vehicle (UAV)
Shahed-149
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Shahed-149 (Gaza) Iranian Unmanned Aerial Vehicle (UAV)
Designation
Shahed-149
Alternate Designation
Shahed-149; Gaza
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
HESA
Date of Introduction
2022
Description
The Shahed-149 (Gaza) Iranian Unmanned Aerial Vehicle (UAV) is designed for intelligence, surveillance, target acquisition, and reconnaissance (ISTAR) missions, the Shahed-149 features advanced avionics, including electro-optical/infrared (EO/IR) sensors, synthetic aperture radar (SAR), and satellite communication (SATCOM), allowing for beyond-line-of-sight (BLOS) operations and real-time targeting. The integration of these technologies positions the Shahed-149 as a critical asset for Iran's military, enhancing its ability to conduct long-endurance missions over hostile or contested environments.
Air & Air Defense Specifications
Engine
1 × Turboprop engine
Range
4000.0 km
Endurance
25.00 hrs
Service Ceiling
10668 m
Wingspan
21.00 m
Payload Capacity
500 kg
System
Alternate Designation
Shahed-149; Gaza
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Iran Aircraft Manufacturing Industrial Company (HESA)
Payload Capacity
500 kg
Dimensions
Length
10.0 m
Height
3.2 m
Wingspan
21.0 m
Maximum Takeoff Weight
3,200 kg
Automotive
Engine Name
INA
Engine Type
1 × Turboprop engine
Engine Power
INA
Maximum Speed
INA
Cruising Speed
215 km/h
Maximum Range
4,000 m
Service Ceiling
10,668 m
Endurance
25 hours
Armament
Note
The Shahed-149 is armed with Sadid-345 precision-guided glide bombs, which are lightweight and designed for precision strikes against both stationary and moving targets. The Sadid-345 weighs approximately 34 kilograms, is 1.63 meters in length, and features four fixed fins for stability along with four deflectable tail fins for guidance. It is equipped with electro-optical and GPS-assisted navigation, ensuring an accuracy of 2.5 to 5 meters circular error probable (CEP). The bomb has an estimated range of 6 kilometers, providing stand-off strike capabilities and reducing the drone's exposure to enemy air defenses.
The warhead of the Sadid-345 contains a composition of H6 explosives designed for anti-armor and anti-personnel effects. Upon detonation, it creates a lethal radius of about 30 meters, making it effective for precision strikes with minimal collateral damage.
Image Sources
Details
Country of Origin
Iran
Category
UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
10 m
Width
21 m
Height
3.2 m
Weight
3200 kg
Operators (1)
Iran
