GCZ-112 Chinese Tracked Multi-Purpose Engineer Vehicle (TMPEV)
GCZ-112
Tracked Multi-Purpose Engineer Vehicle (TMPEV)
Other
Basic Information
Name
GCZ-112 Chinese Tracked Multi-Purpose Engineer Vehicle (TMPEV)
Designation
GCZ-112
Alternate Designation
GCZ-112
Equipment Type
Tracked Multi-Purpose Engineer Vehicle (TMPEV)
Manufacturer
NORINCO
Date of Introduction
2013
Description

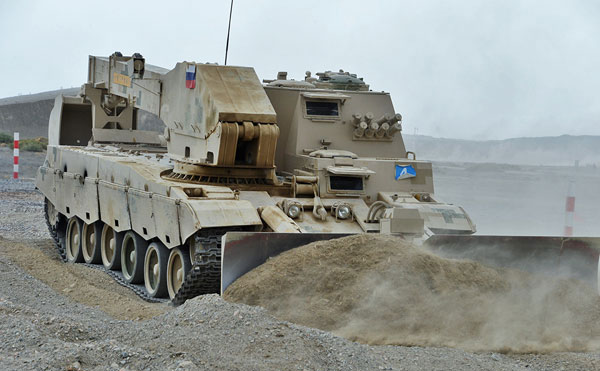

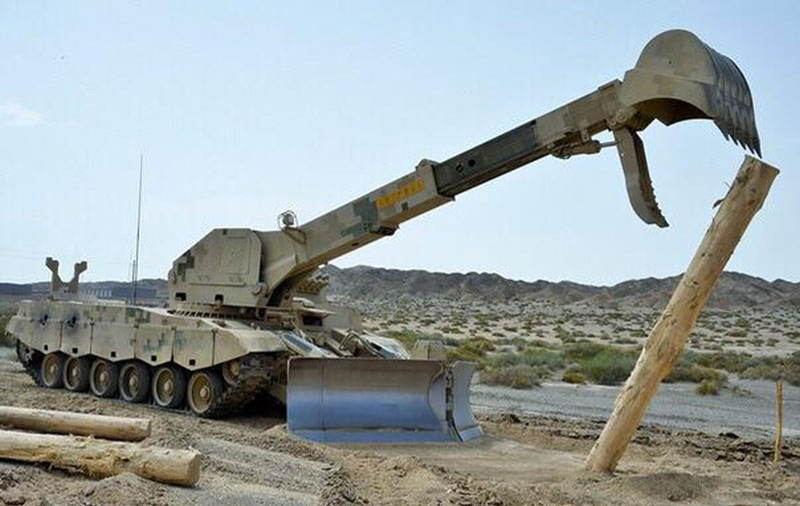

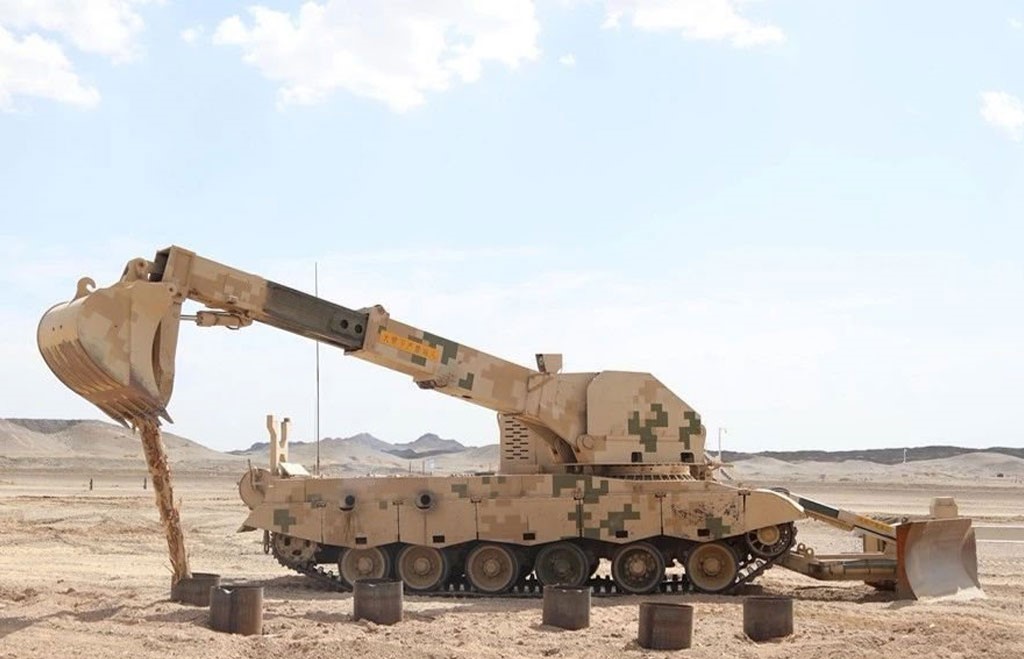

The GCZ-112 Chinese Tracked Multi-Purpose Engineer Vehicle (TMPEV) main roles are to provide combat engineer support while accompanying armored/mechanized troops, which includes road repair, emergency military road construction, non-explosive obstacle clearing, and towing and recovery operations. The GCZ112 can also be used to construct technical weapons emplacements and flat-bottomed pits. The vehicle is mainly composed of a modified Type 79 tank chassis, and combined dozer blade, crane, and winch.
Ground Specifications
Crew
3
Mobility Type
Tracked
Engine
Diesel (730 hp)
NBC Protection
Yes
Max Speed
45.0 km/h
Range
400.0 km
Variants
Type GCZ-110 Tracked Multi-Purpose Engineer Vehicle (TMPEV)
The GCZ-110 Tracked Multi-Purpose Engineer Vehicle (TMPEV) is based on a Type 96 main battle tank chassis. This armored engineer vehicle is in service with the Chinese military.
System
Alternative Designation
GCZ-112
Type
Tracked Multi-Purpose Engineer Vehicle (TMPEV)
Roles
Road repair, construction, construction of field defenses, non-explosive obstacle clearance, towing, and recovery
Manufacturer
NORINCO - China North Industries Group Corporation - CNGC
Crew
3 ea
Chassis
T-79 tank chassis with T-96 suspension
Ground Penetrating Radar
No
Mine Clearing
No
Proofing Roller
No
Bucket Loader
No
Back-hoe Excavator
No
Winch
Yes
Dimensions
Length
9.86 m
Width
3.34 m
Height
2.95 m
Weight, Combat
37,500 kg
Ground Pressure
INA
Dozer Blade
Power Source
Hydraulic
Shape
Adjustable to straight or V-shaped
Maximum Cutting Depth
0.40 m
Note
During earthworking operations the dozer blade has a capacity of around 250 m³. When not in use the blade is folded upwards.
Crane
Power Source
Hydraulic
Telescopic
Yes
Telescopic Range
3.5 m
Capacity
16 tons
Capacity While Moving
3 tons
Maximum Height of Crane
8.4 m
Automotive
Engine Name
12150L-7BW (same at T-79 tank)
Engine Type
Diesel
Engine Power
730 hp
Cruising Range
400 km
Speed, Maximum Road
45 km/h
Speed, Average Cross Country
INA
Speed, Maximum Swim
Not Amphibious
Gradient
60 %
Side Slope
30 %
Vertical Step
0.7 m
Trench
2.7 m
Fording Depth
1.4 m
Main Weapon System
Note
The Type GCZ-112 carries no defensive armament.
Protection
Hull Armor
203 mm. Protection of the Type GCZ-112 should be similar to that of the Type 96 main battle tank. This engineer vehicle was designed to operate under enemy fire.
Applique Armor
Available
Rubber Skirts
Yes, to protect against RPGs
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
China
Category
Route Clearing Vehicles
Land > Engineer Systems > Route Clearing Vehicles
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.86 m
Width
3.34 m
Height
2.95 m
Weight
37500 kg
Operators (1)
China
