Angara 1.1
Angara 1.1
Space Launch Systems
Basic Information
Name
Angara 1.1
Designation
Angara 1.1
Alternate Designation
—
Equipment Type
Space Launch Systems
Manufacturer
Khrunichev Space Center
Date of Introduction
2013
Description

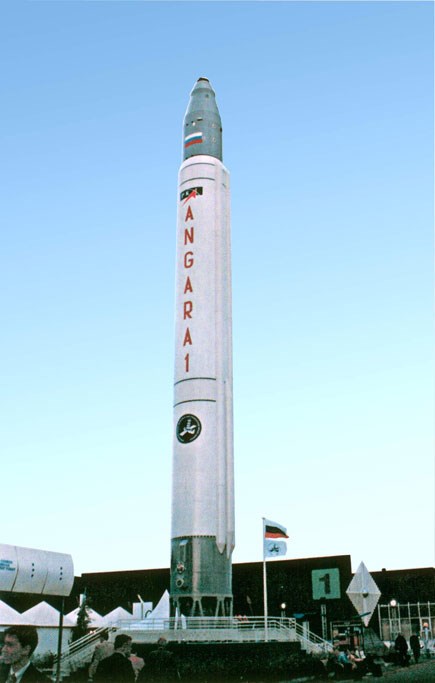

The Angara 1.1 is a small-lift space launch vehicle comprising a single Common Rocket Module (CRM) and the Rockot upper stage. This launch vehicle has been designed to put payloads of up to 2,000 kg into low-Earth orbit at altitudes of 200 kilometers and 63-degree of inclination with a maximum lift-off mass of 149 tons. The Rockot upper stage is 2.5 x 2.62 meters in diameter and 6.74 meters in length. The Angara 1.1 is the smaller member of the family of space launch systems.
Overview (Deagel)
Group
Space Launch Systems
Status
Cancelled
Origin
Russia
Contractor
Khrunichev Space Center
Initial Operational Capability (IOC)
2013
Total Production
?
Specifications (Deagel)
Crew
0
Number of Stages
1
Mass — Max Lift-off Thrust
212 ton
Mass — Max Lift-off Weight
149 ton
Mass — Payload to LEO
2,000 kilogram
Performance — Orbit
200 kilometer
Gear (Deagel)
Item 1
Rocket Engines: RD-191 (1)
Variants
Variant 1
Angara 1.1
Variant 2
Angara A3
Variant 3
Angara A7
Variant 4
Angara 1.2
Variant 5
Angara A5
Variant 6
Angara A5M
Variant 7
Angara A5V
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a000232
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
149000 kg
Operators (1)
Russia
