CV90

Tracked Armored Vehicles

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

CV90

Designation

CV90

Alternate Designation

—

Equipment Type

Tracked Armored Vehicles

Manufacturer

Bofors Defence and Hagglunds

Date of Introduction

—

Description

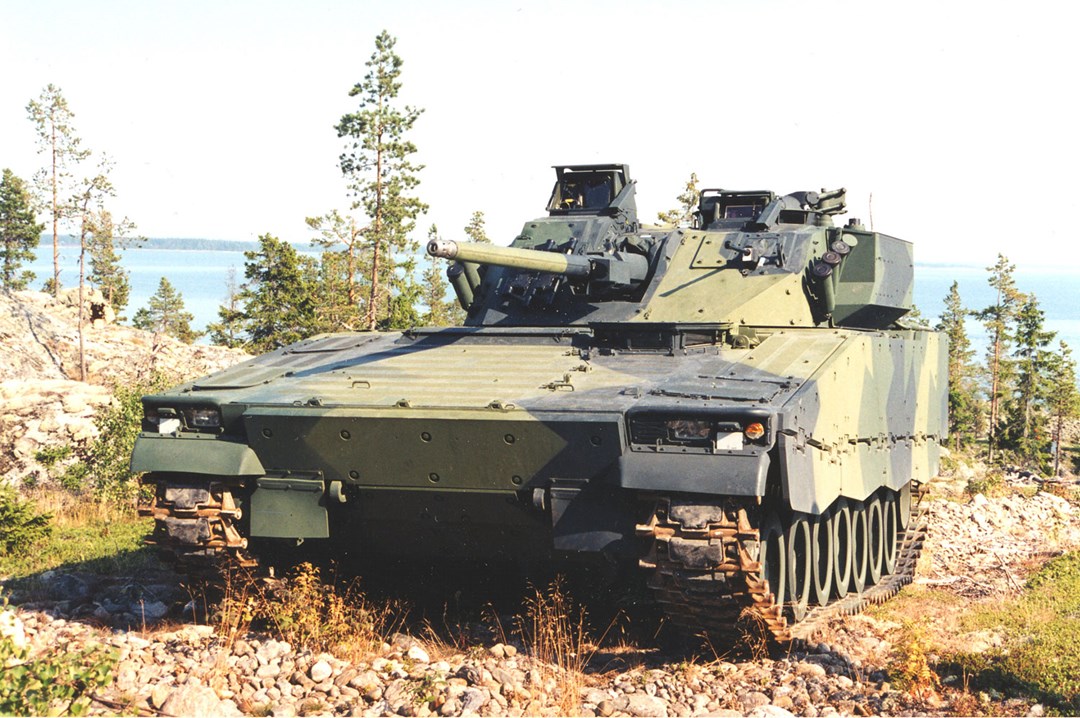

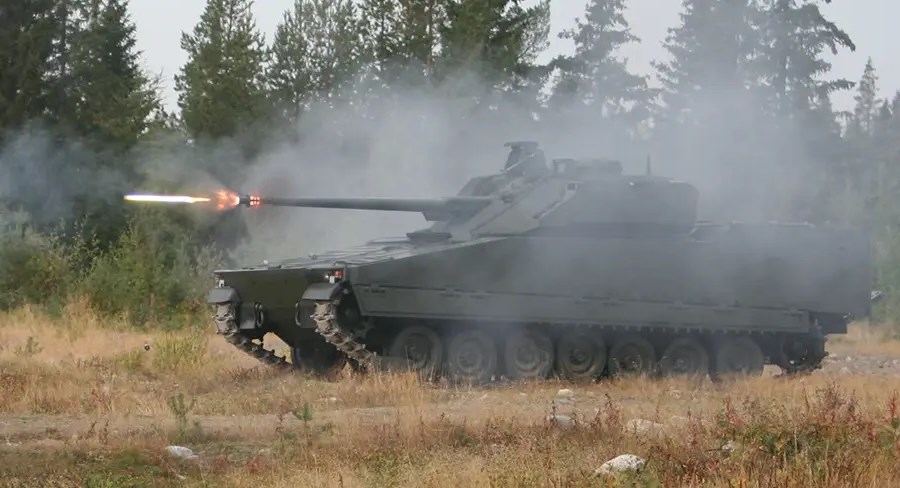

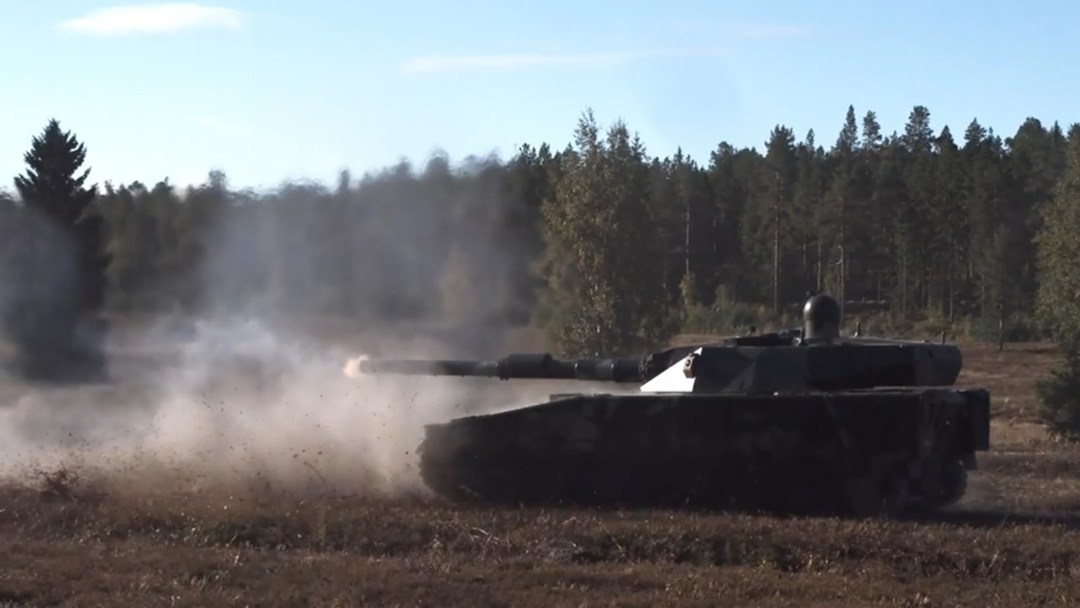

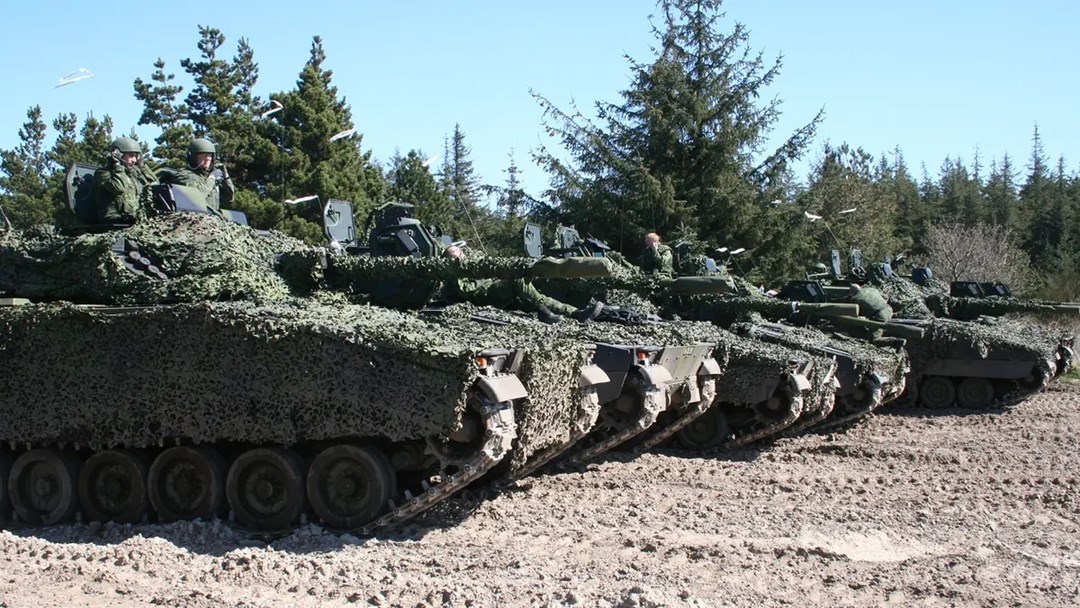

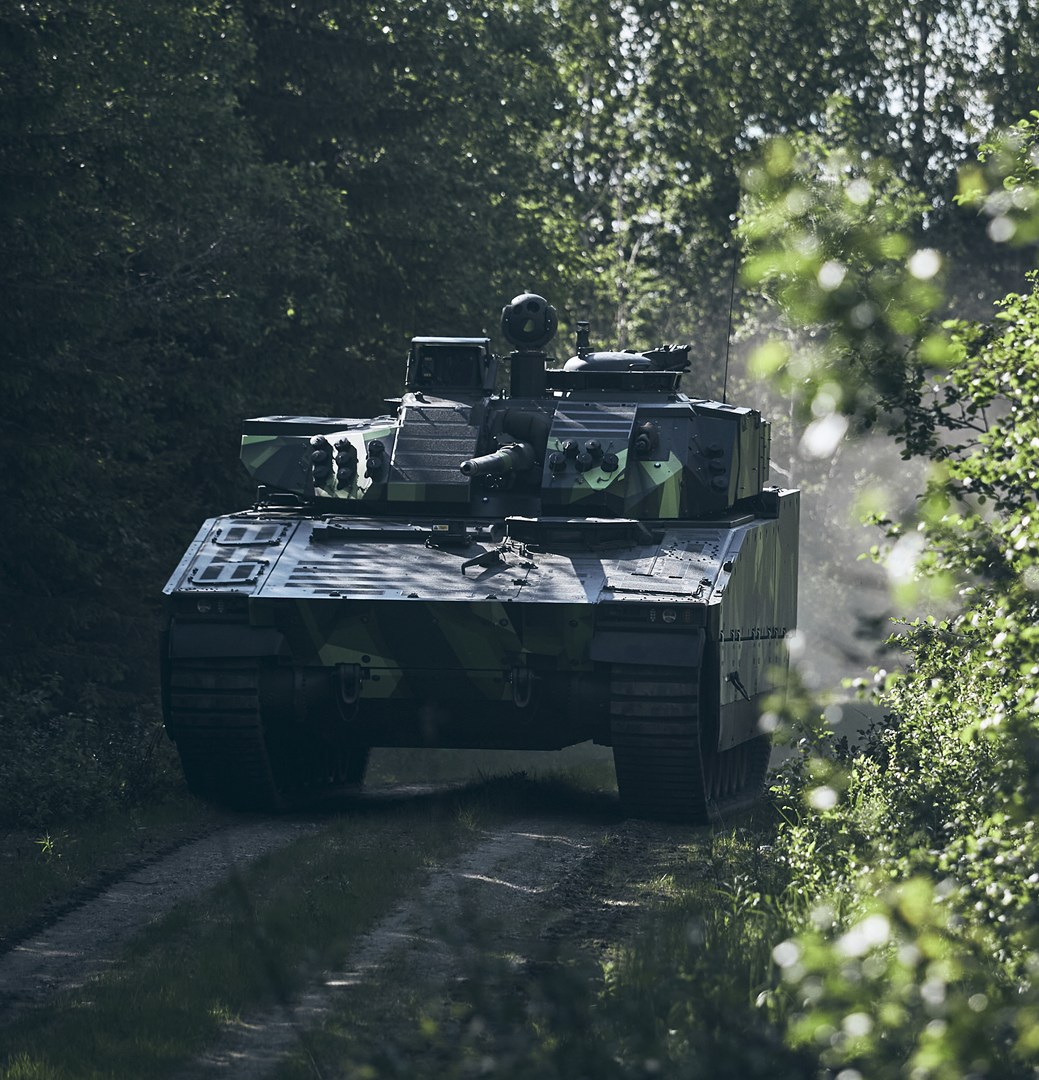

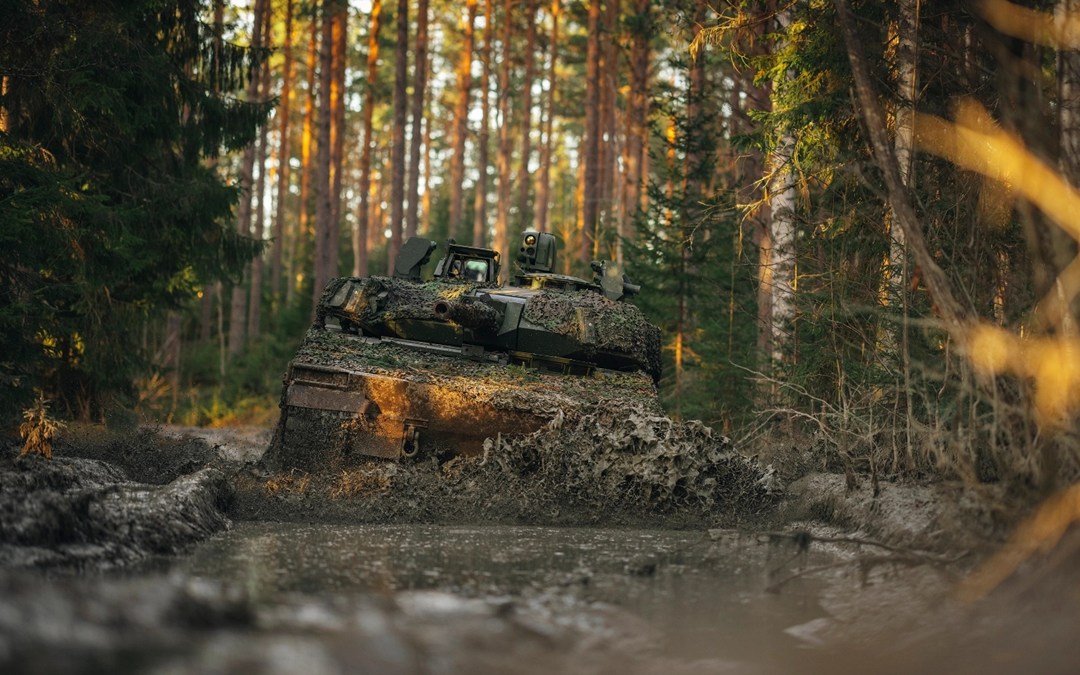

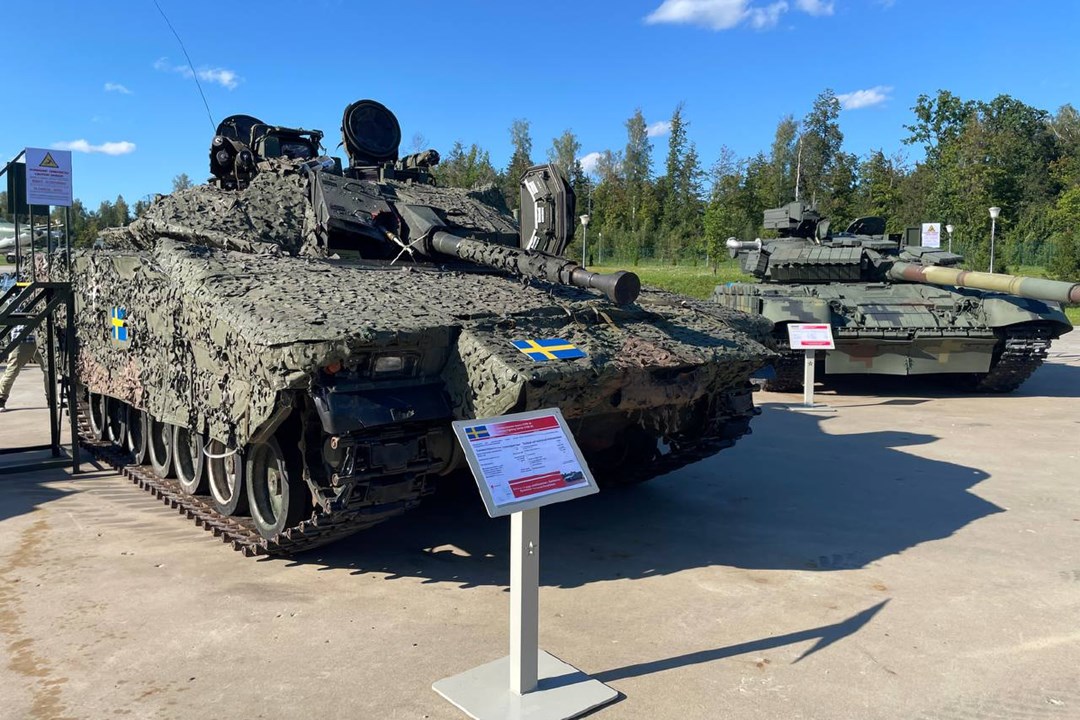

The CV90 is a family of modular ground combat vehicles designed to carry out the most part of modern mechanized units missions. The CV90 vehicles are extremely agile, all-terrain capable, with minimized radar and IR signatures to achieve high survivability. They also feature reduced maintenance costs and high growth potential. The CV90's turret is electrically operated and houses a UTAAS sight providing day/night and all-weather detection and fire control capabilities. The CV90 vehicles are the result of a joint venture between Bofors Defence and Hagglunds. The first CV90 vehicles where delivered to the Swedish Army in 1993. In addition, Norway, Switzerland and Finland have ordered CV90 armored vehicles. Netherlands joined CV90 customers club in December 2004. The vehicles weighing 20 to 30 tons are powered by a single Scania DI16 diesel engine providing 600-670 hp.

Ground Specifications

Crew 3

Mobility Type Tracked

Main Weapon 40 millimeter

Max Speed 70.0 km/h

Range 600.0 km

Overview (Deagel)

Group Tracked Armored Vehicles

Status Active

Also Known As Strf 9040, Stridsfordon 90

Origin Sweden

Contractors Alvis Plc, United Defense

Total Production 355

Specifications (Deagel)

Ammunition Load 224

Crew 3

Rolling Rubber Wheels 7

Troops 8

Dimensions — Height 2.5 meter

Dimensions — Length 6.6 meter

Dimensions — Main Gun Caliber 40 millimeter

Dimensions — Width 3.2 meter

Mass — Combat Weight 28,000 kilogram

Mass — Empty Weight 24,000 kilogram

Performance — Max Range 600 kilometer

Power — Power 600 shp

Rate — Max Rate of Fire 330 roundperminute

Speed — Top Speed 70 kph

Gear (Deagel)

Item 1 Naval Gun Systems: 40mm Mk3 (1)

Item 2 Optronic Systems: UTAAS (1)

Variants

Variant 1 CV9040

Variant 2 CV9040C

Variant 3 CV9040 AAV

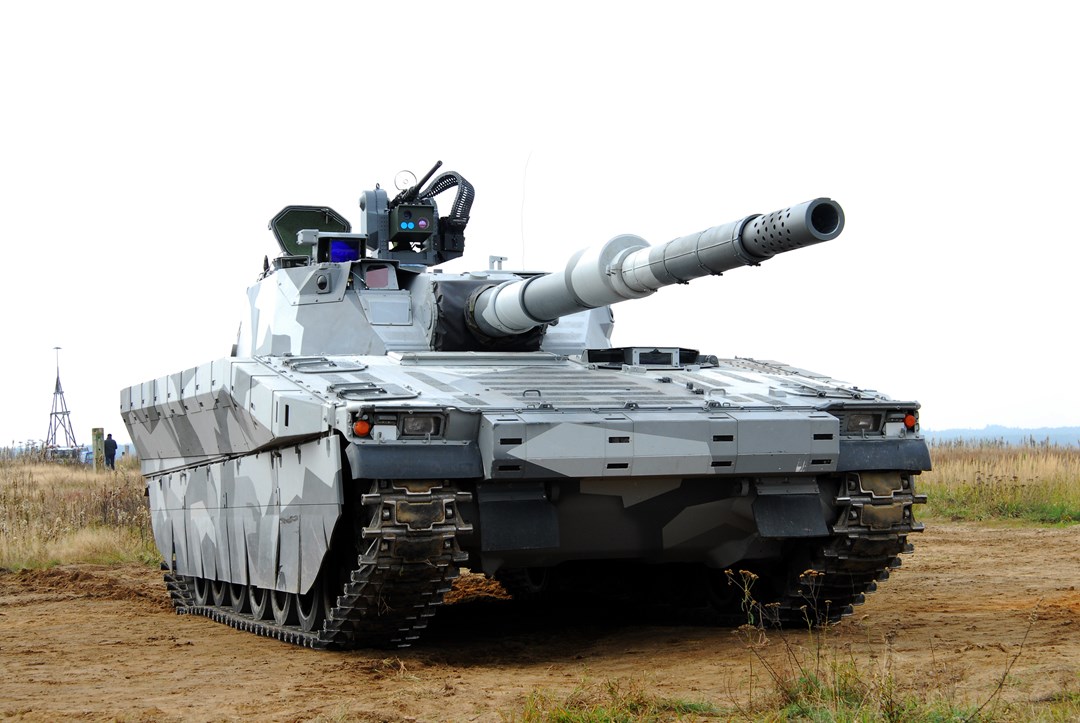

Variant 4 CV90120

Variant 5 CV90 FOV

Variant 6 CV90 FCV

Variant 7 CV90105

Variant 8 CV9030

Variant 9 CV9030 MkII

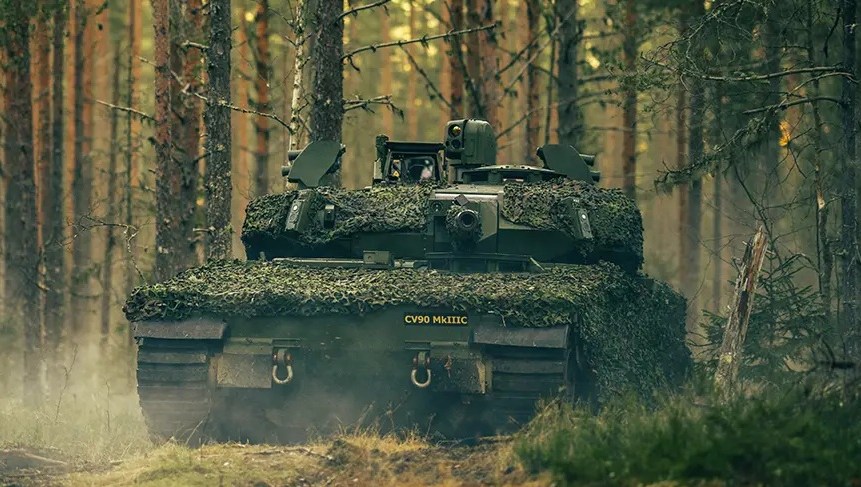

Variant 10 CV9035 MkIII

Variant 11 CV9030 COM

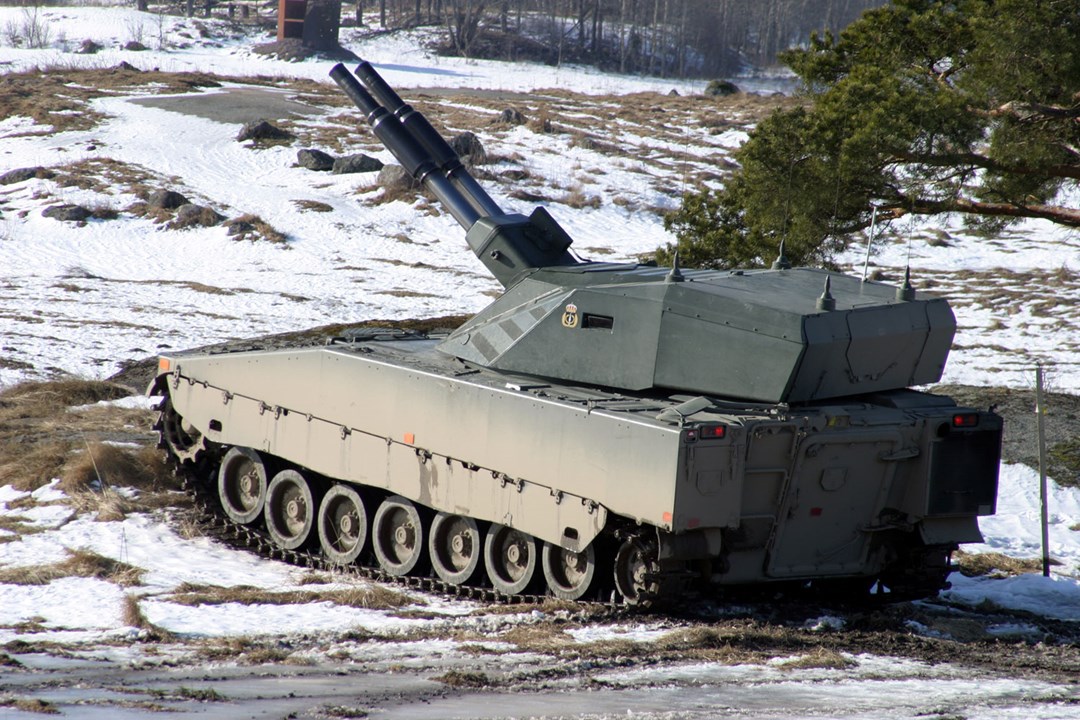

Variant 12 CV90 AMOS

Variant 13 CV90 Sting

Variant 14 CV90 Armadillo

Variant 15 CV90 FMV

Variant 16 CV90 MkIV

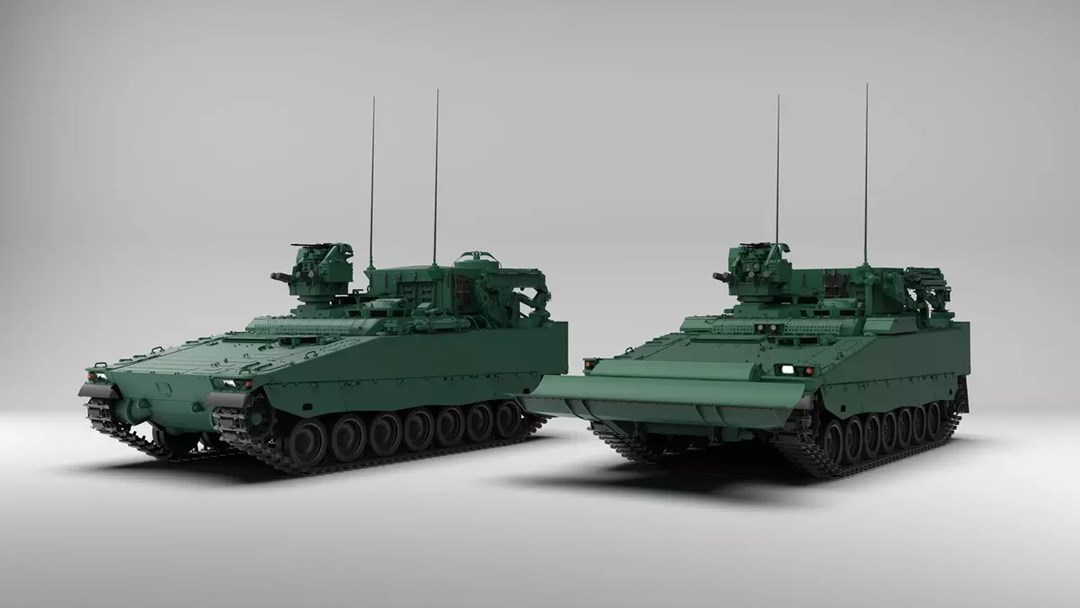

Variant 17 CV90 CEV

Details

Country of Origin Sweden

Sources

deagel.com: https://www.deagel.com/x/x/a000589

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

6.6 m

Width

3.2 m

Height

2.5 m

Weight

28000 kg

Operators (5)

Sweden

Finland

Netherlands

Norway

Switzerland
