48Ya6-K1 Podlet K1 TALL SHIELD Russian Mobile Long-Range High-Altitude Surveillance Radar

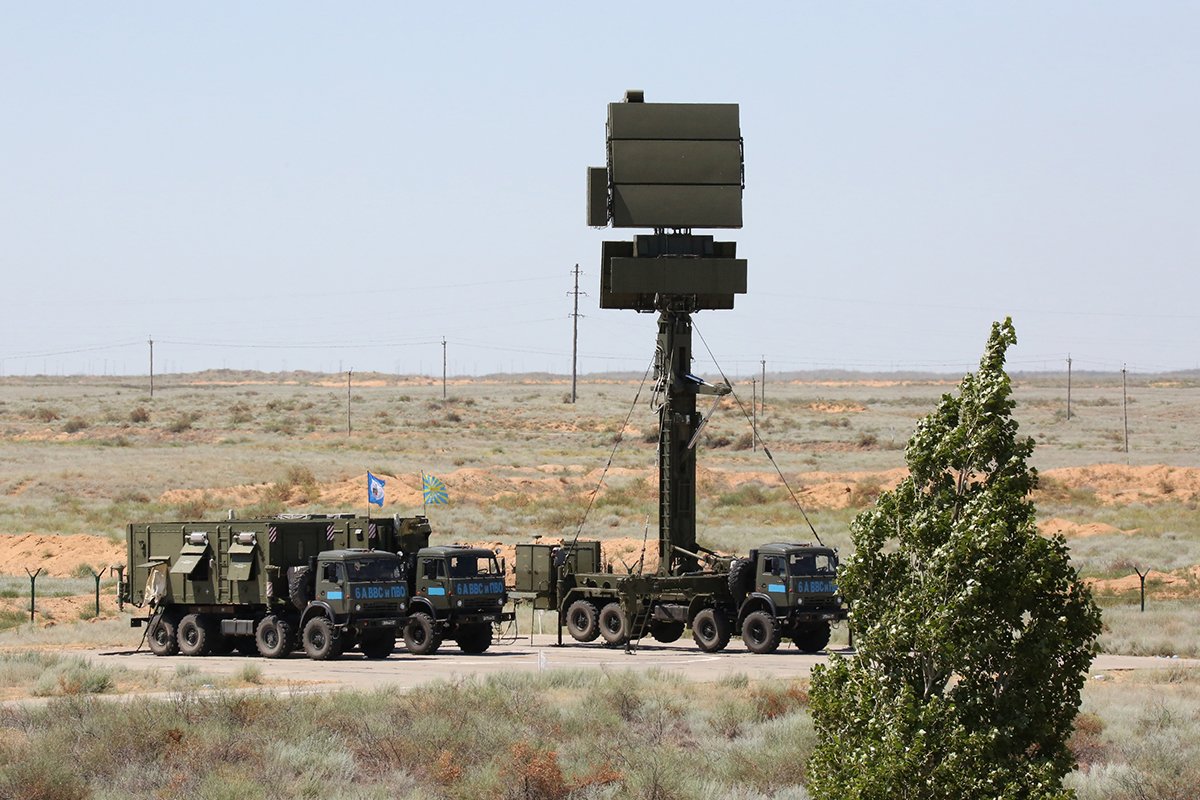

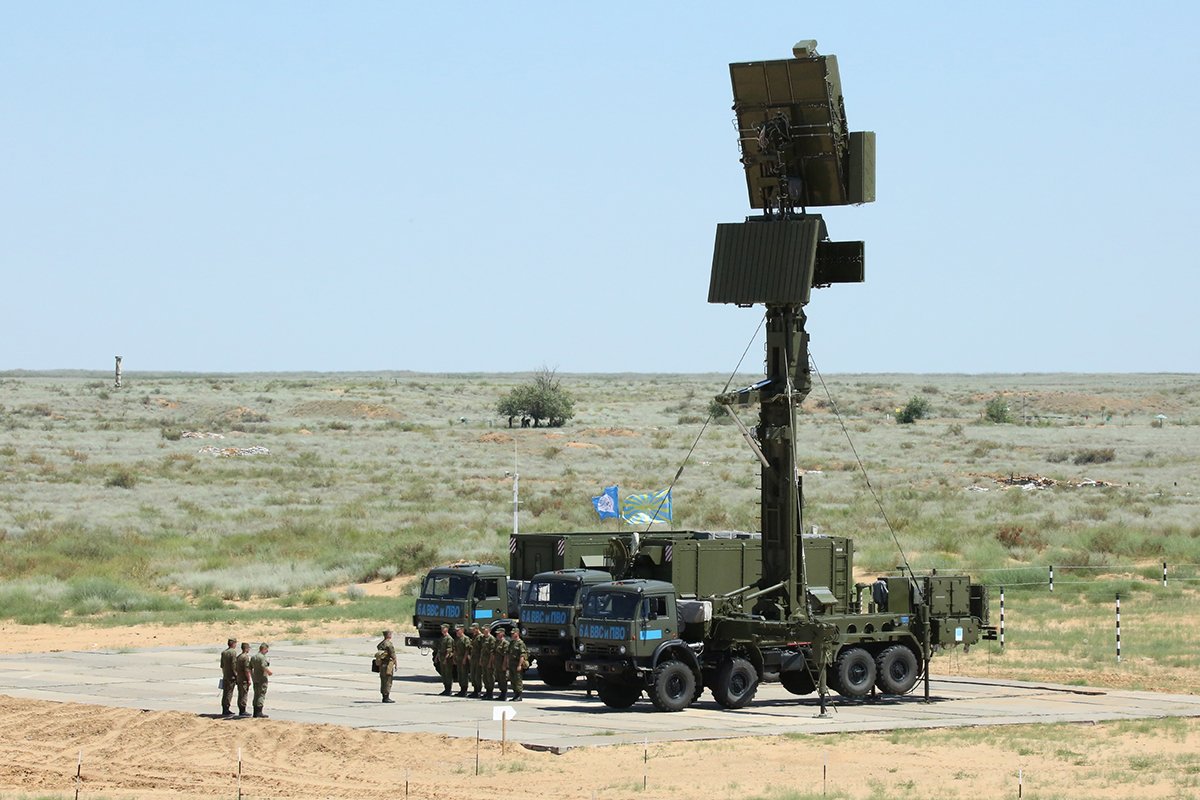

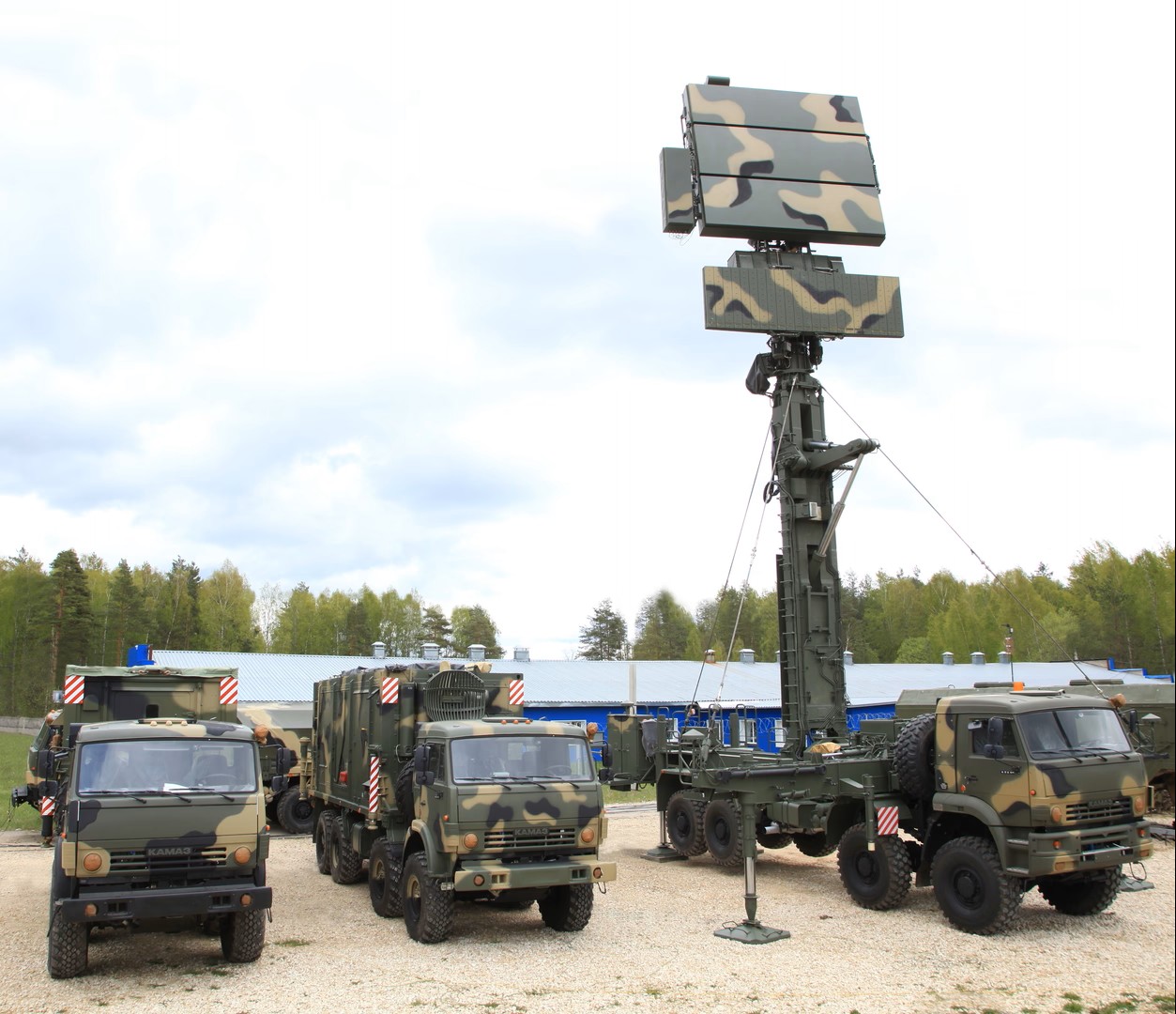

The Radar 48Ya6-K1 “Podlet K1” (Cyrillic: 48Я6-К1 «Подлет-К1»; translated: “Approach”) is a mobile three-coordinate S-Band radar of low-altitude, a circular scan of a combat mode and inter-service application. It uses a phased-array antenna (the upper big array) for detecting and tracking of low-altitude aims. The lower two back-to-back arrays are secondary radar, the thinner array for international standard (SIF Mark Ⅻ), the larger for the national Russian IFF. The narrow antenna next to the big array is a compensation antenna for protection against jamming. --- Additional Data (TRADOC ODIN WEG) --- Frequency: 2.7–3.2 GHz (S, NATO Band E) Antenna Dimensions: 5 x 2 m Associated Weapon Systems: С-400 (S-400): 48Н6ДМ / 48N6DM Role: Low-Altitude Surveillance Remarks: Main S-400 low-altitude radar --- From Radartutorial.eu (https://www.radartutorial.eu/19.kartei/02.surv/karte040.en.html) --- The Radar 48Ya6-K1 “Podlet K1” (Cyrillic: 48Я6-К1 «Подлет-К1»; translated: “Approach” ) is a mobile three-coordinate S band (IEEE designation) or E/F band (NATO designation) radar of low-altitude, a circular scan of a combat mode and inter-service application. It uses a phased array antenna (the upper big array) for detecting and tracking of low-altitude aims. The lower two back-to-back arrays are secondary radar , the thinner array for international standard (SIF Mark Ⅻ), the larger for the national Russian IFF. The narrow antenna next to the big array is a compensation antenna for protection against jamming.
