CIRIT

CIRIT

Rockets
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
CIRIT
Designation
CIRIT
Alternate Designation
Equipment Type
Rockets
Manufacturer
ROKETSAN
Date of Introduction
2011
Description

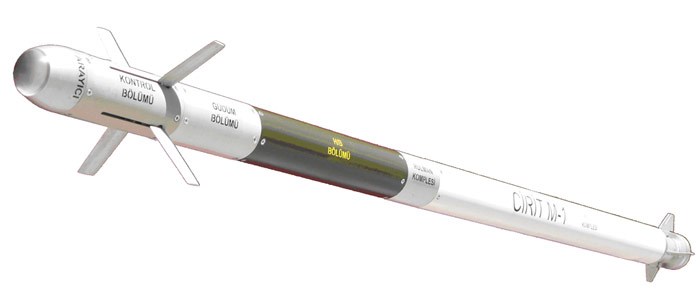

The CIRIT is a 70mm semi-active laser guided rocket intended as a low-cost, highly accurate and effective solution against light armored vehicles and ground targets at ranges between 1,500 and 8,000 meters. It is fully compatible with LAU and M launchers commonly used by Western aircraft and the MIL-STD-1760 interface standard. Roketsan is developing the CIRIT rocket to arm the T-129 ATAK, AH-1P and AH1-W attack helicopters used by the Armed Forces of Turkey. The rocket is fitted with an insensitive motor and a tri-mode insensitive warhead. The warhead can take out armored targets, personnel or can provide incendiary effects. CIRIT's mid-course guidance is carried out by an inertial measurement unit plus magnetometer with the semi-active laser seeker taking care of the terminal guidance.

Ground Specifications
Range 8.0 km
Overview (Deagel)
Group Rockets
Status Active
Origin Turkiye
Contractor ROKETSAN
Initial Operational Capability (IOC) 2011
Total Production ?
Specifications (Deagel)
Dimensions — Caliber 70 millimeter
Dimensions — Length 1.9 meter
Mass — Weight 15 kilogram
Performance — Max Range 8,000 meter
Performance — Min Range 1,500 meter
Details
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.9 m
Width
Height
Weight
15 kg
Operators (1)
United Arab Emirates
