Grille German Unmanned Aerial Vehicle (UAV)

Grille

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Grille German Unmanned Aerial Vehicle (UAV)
Designation
Grille
Alternate Designation
Grille
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Avilus
Date of Introduction
2025
Description

The Grille German Unmanned Aerial Vehicle (UAV) enhances the standard assets of the evacuation chain and acts as a force multiplier for existing capabilities. In situations where operational or tactical circumstances require additional resources, the system can be rapidly deployed. It improves frontline logistics by supplementing traditional supply methods with on-demand delivery. When the operational tempo, terrain, or threat conditions surpass the capacity of conventional assets, the Grille serves as a valuable force multiplier.

Air & Air Defense Specifications
Engine Electric (240 hp)
Max Speed 86.0 km/h
Cruise Speed 86.0 km/h
Range 51.0 km
Service Ceiling 2100 m
System
Alternate Designation Grille
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Avilus
Flight Control Primary and secondary flight control system
Autonomy Missions are executed by full-automatic flight control based on jamming resilient navigation signals of an inertial reference unit (IRU).
Navigation Satellite and inertial navigation
Data Links Multiple LOS and BLOS links

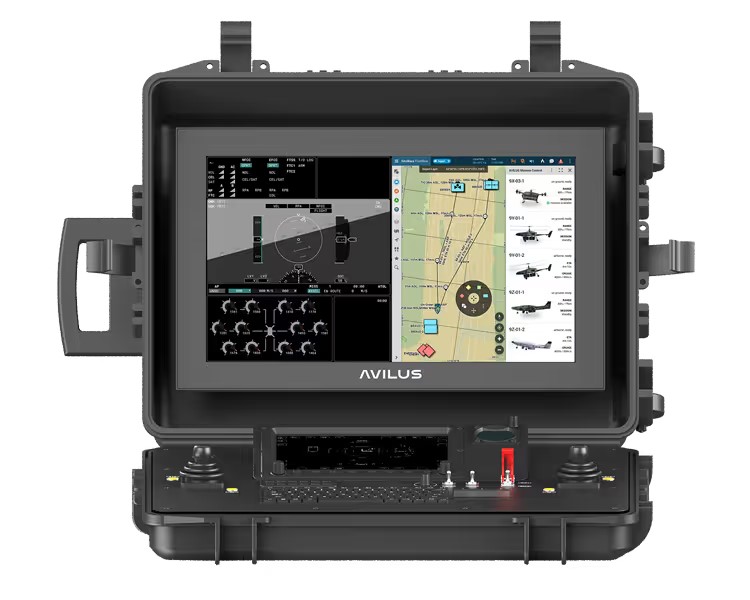

Ground Control Duplex GCS integrated in mobile PECC
Battle Management Integrated for planning and monitoring

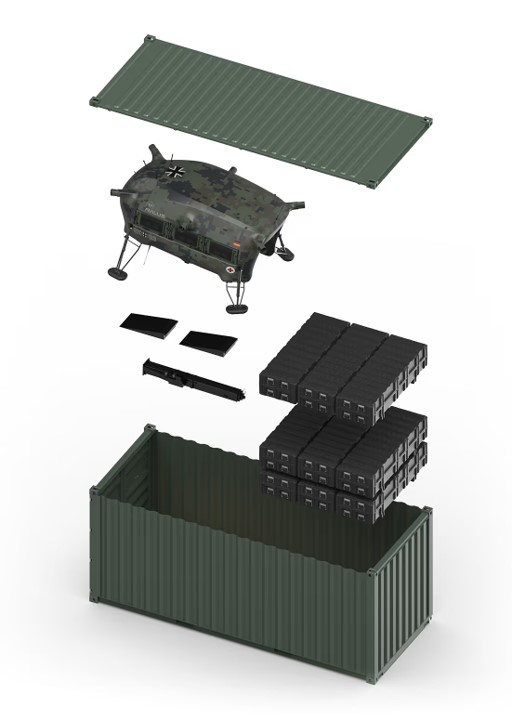

Mobility The aircraft fits an ISO 20 feet container, is assembled in 15 minutes and lands on a trailer with its integrated high precision landing system.
Patient Payload 135 kg (298 lb)
Medical Cabin 40 kg (88 lb)
Total Payload 175 kg (386 lb)
Rescue System Ballistic parachute
Dimensions
Enclosing Diameter 7.8 m (25 ft)
Height INA
Propeller Diameter 2.25 m (7 ft)
Maximum Takeoff Weight 750 kg (1653 lb)
Automotive
Engine Name INA
Engine Type Full electric
Engine Power 240 kW (326 HP)
Maximum Speed INA
Cruise Speed 86 km/h (47 kts)
Maximum Range 51 km
Service Ceiling 2,100 m (6,890 ft)
Endurance INA
Details
Country of Origin Germany
Category UAVs
Air > UAVs
Filter Label
G
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
340.19 kg
Operators (1)
Germany
