55Zh6M Nebo-M (Top Card) Russian Multi-Band AESA Anti-Stealth Radar Complex

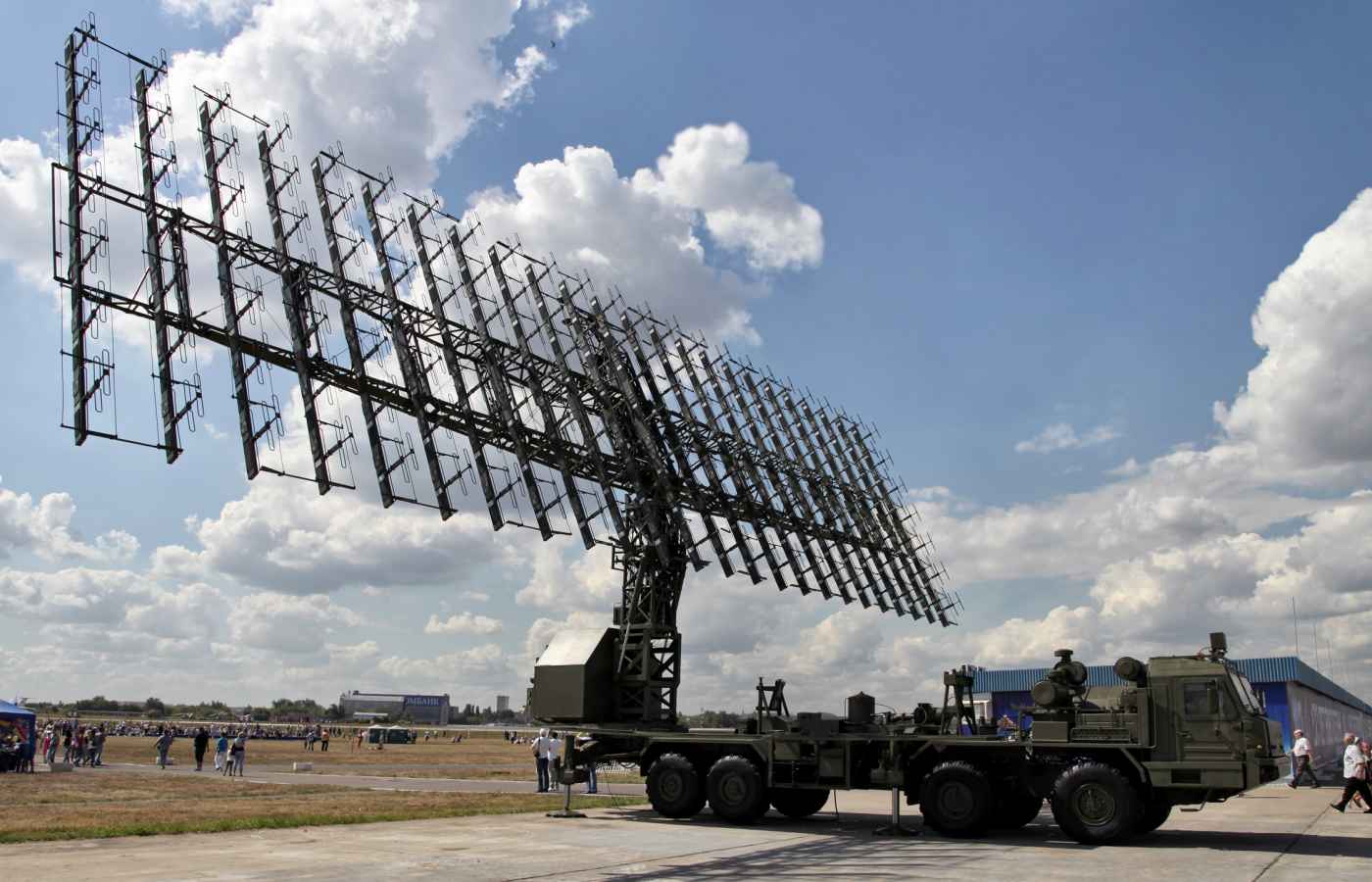

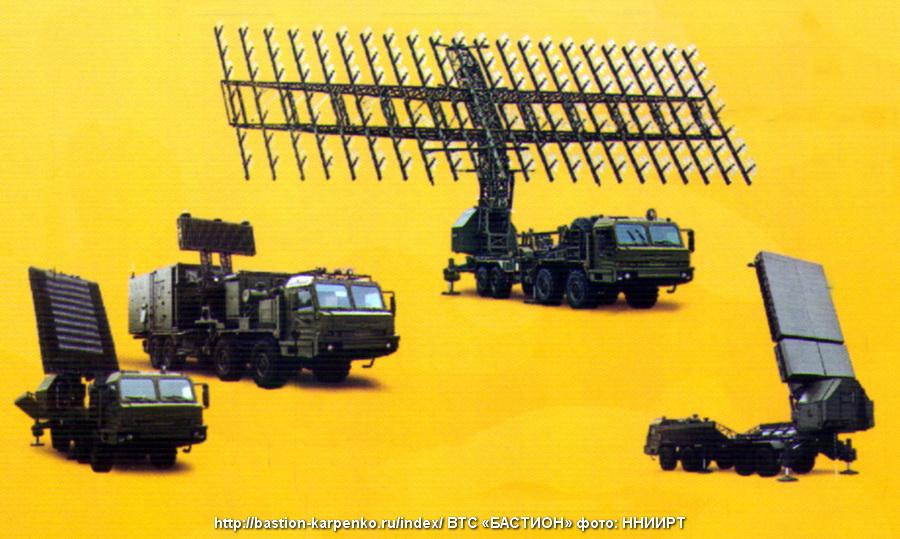

The 55Zh6ME Nebo-M RLM-ME is a VHF-band 3D acquisition radar, forming part of the larger Nebo-M programmable multi-band radar system. Operating with a peak power of 140 kW and a pulse repetition frequency of 300 Hz, it provides target accuracy of less than 400 meters and 0.67 degrees, with an antenna rotation speed of 3 or 6 revolutions per minute. This radar complex integrates a central data fusion unit, a command post module, and three distinct radar components, each mounted on an 8x8 24-ton truck. The RLM-ME is the successor to the 1L13 Nebo-SV “Box Spring” and is distinguishable by its vertical polarization, with the entire system capable of deployment or stowage within 40 minutes.
