TBR-119 Chinese SDR Transceiver

TBR-119

SDR Transceiver

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

TBR-119 Chinese SDR Transceiver

Designation

TBR-119

Alternate Designation

TBR-119

Equipment Type

SDR Transceiver

Manufacturer

—

Date of Introduction

2004

Description

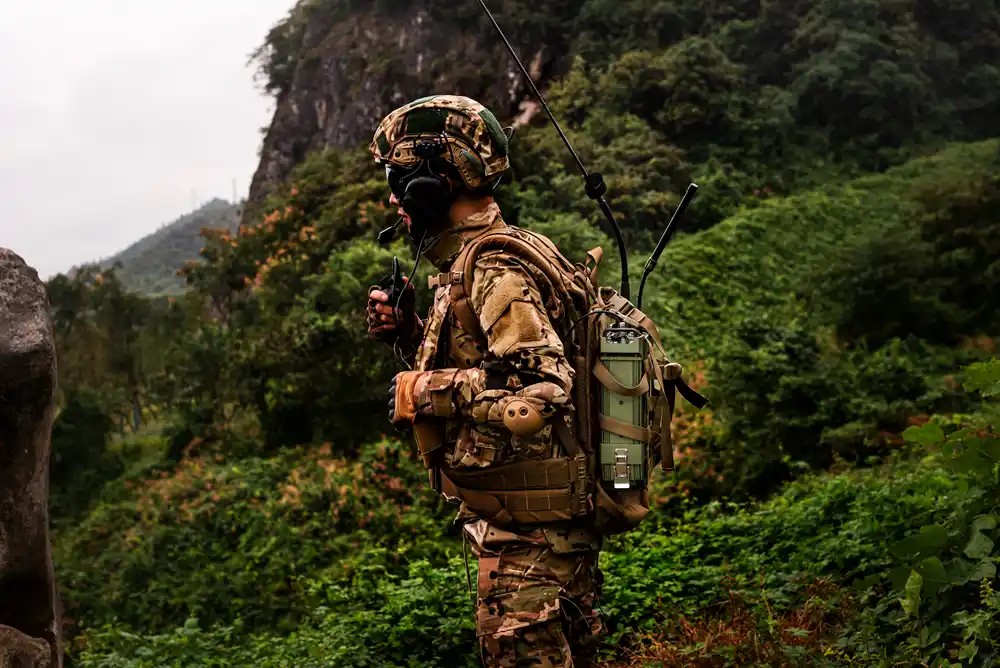

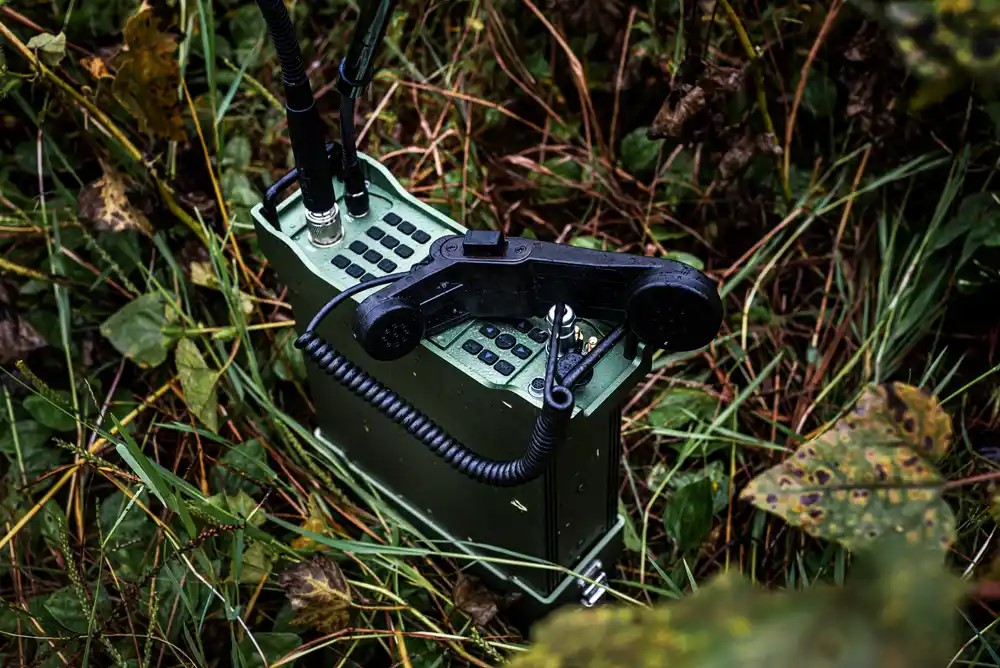

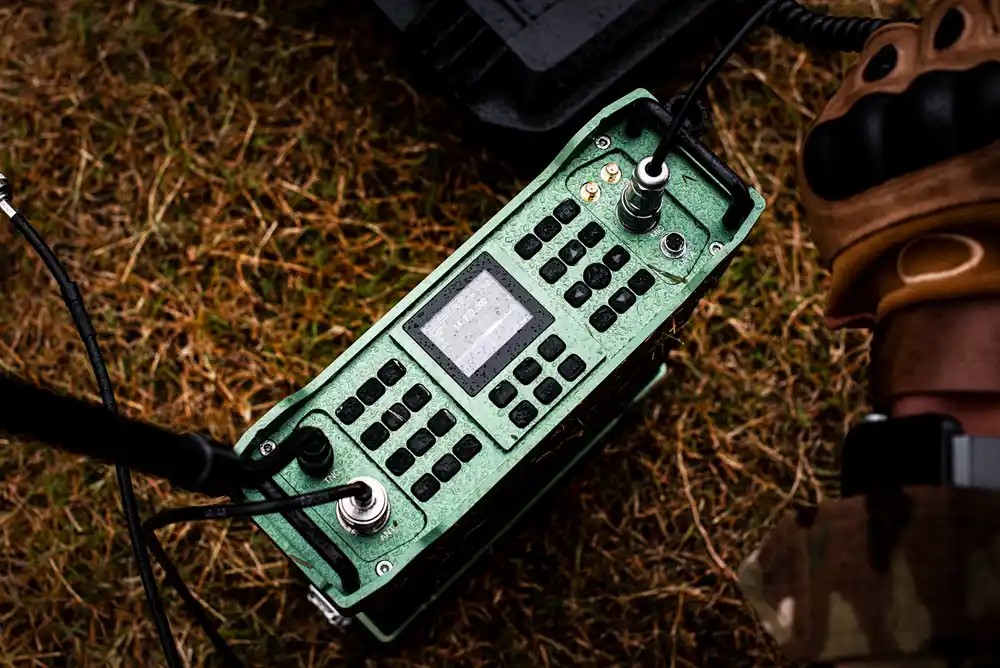

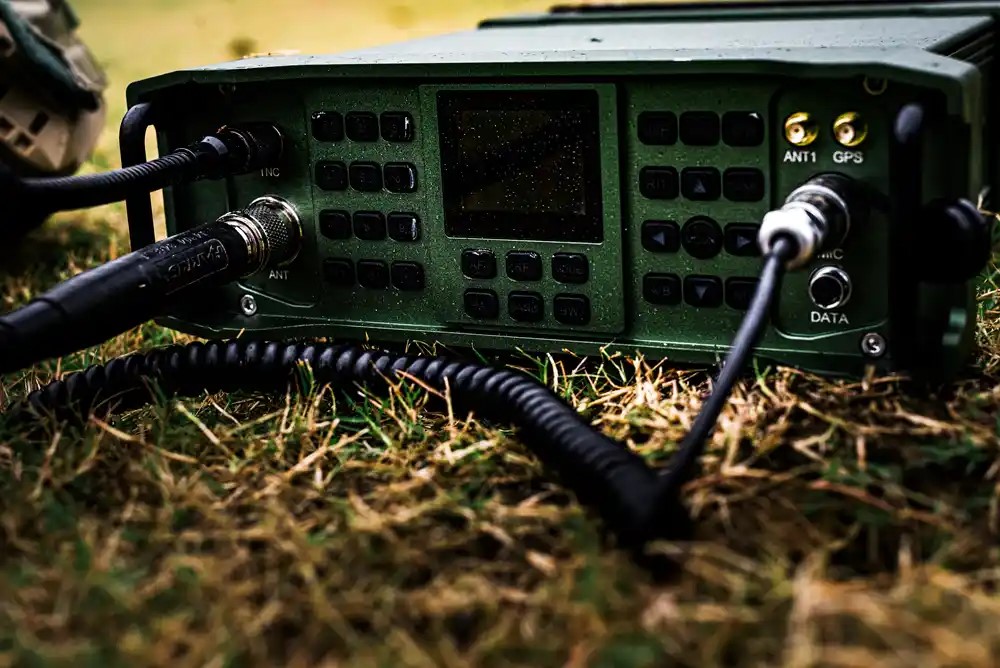

The TBR-119 Chinese SDR Transceiver is a multi-purpose vehicle/backpack tactical radio station with all the functions of traditional ones. It supports SSB, CW, AM, FM, DMR. The radio station is equipped with fully automatic antenna tuner and can use various tactical and static antennas. The protection capability reaches IP67 and military aviation plug is adopted. The system includes a backpack station, a vehicle-mounted dock and a base station dock. When working in a vehicle-mounted or base station mode, the output RF power is short-wave 20W or 100W (100W power amplifier is optional) PEP and UV 20W. It can also be used as a relay. Based on the new generation SDR software radio technology platform, it can meet the needs of most users and provide digital upgrade options for military and security users: digital voice, digital encryption, frequency hopping and other high-end functions. Meanwhile, Bluetooth module, GPS positioning module, electronic compass module and barometer (altitude meter) module are built in. Optional satellite communication modules: iridium module, maritime satellite module.

Ground Specifications

Crew 1

System

Alternative Designation TBR-119

Type SDR Transceiver

Crew 1 ea

Frequency 1.5~74MHz

Package 1 x TBR-119 Main Unit (Built-in battery); 1 x Backpack Shortwave Antenna; 1 x UV Antenna; 1 x Charger; 1 x Handheld Microphone; 1 x USB Cable

UV Antenna Model: BF-10; Frequency range: 110~520MHz Withstand power: 30W VSWR: ≤1.5

Transmitting Mode FM, DMR, SSB, CW, AM, FSK, RTTY

Output Power HF: 20W/100W

Number of Channels 100 ea

Receiving Mode FM, DMR, SSB, CW, AM, FSK, RTTY

Receiving Frequency Range 100kHz - 2 GHz

Battery Compartment The battery pack is separated from the main machine, and the snap-in design makes it quick to replace the battery.

Receiving and Transmitting Performance Large reception dynamic range and extremely high reception sensitivity can help distinguish weaker signals in strong noise. When the power supply is under the condition of 16.8 V, its HF transmission power reaches 20W or 100W (100W power amplifier module is selected) and UV10W, which can significantly enhance the uplink signal of the platform and berth. This means longer communication distance, better signal-to-noise ratio and communication quality.

Signal Relay Function The radio station can be used as a relay to realize signal relay forwarding.

Remote Control The radio station provides a terminal interface, and the console can be installed locally.

Satellite Synchronous Frequency Hopping Frequency hopping is used to resist active jamming and eavesdropping. The frequency hopping function uses (GPS) synchronous mode, with a hopping speed of 1 to 5 hops optional, and can adapt to different antennas by changing the frequency hopping bandwidth.

Digital Voice and Digital Encryption Optional digital voice, vocoder processing speed can be 700/1200/2400 bps, which can complete digital processing of audio signal under the condition of poor signal-to-noise ratio, with short delay, complete noise-free, and encryption based on digital signal.

Data Transmission Modem A variety of built-in or external modem can be selected, and the data throughput exceeds 4800bps.

Dimensions

Length 320 mm

Width 240 mm

Height 80 mm

Weight, Combat less than 5 kg

Image Sources

Notes https://unicomradio.com/product/guohe-tbr-119-hf-vhf-uhf-all-mode-sdr-tactical-transceiver/;

Details

Country of Origin China

Category Multiband Radios

Land > Communication Equipment > Multiband Radios

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

0.32 m

Width

0.24 m

Height

0.08 m

Weight

5 kg

Operators (1)

China
