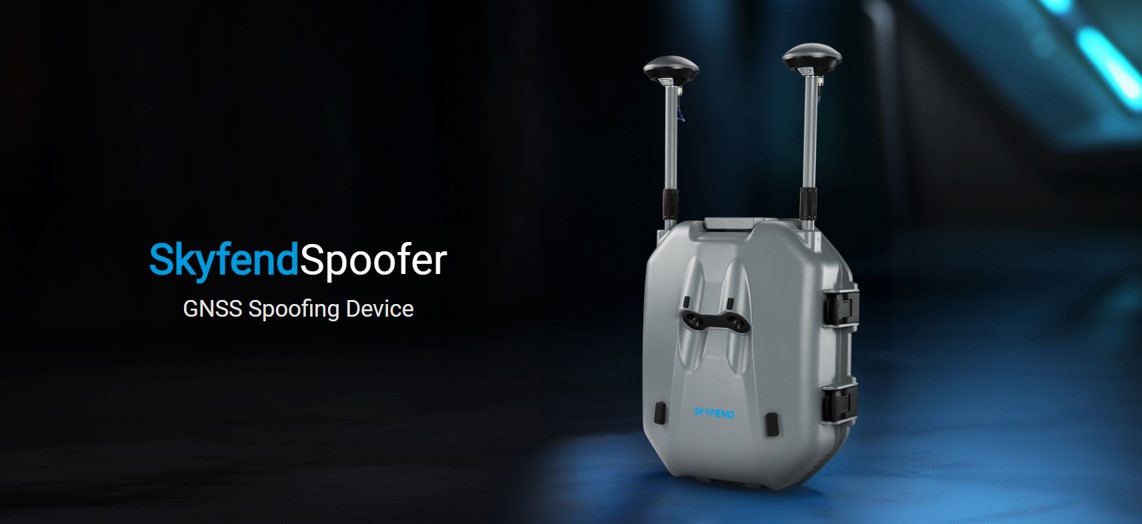

Skyfend Spoofer Chinese Anti-Drone Spoofing Device
Skyfend Spoofer
Counter-UAS System
Other
Basic Information
Name
Skyfend Spoofer Chinese Anti-Drone Spoofing Device
Designation
Skyfend Spoofer
Alternate Designation
Skyfend Spoofer
Equipment Type
Counter-UAS System
Manufacturer
Skyfend Technology
Date of Introduction
2023
Description

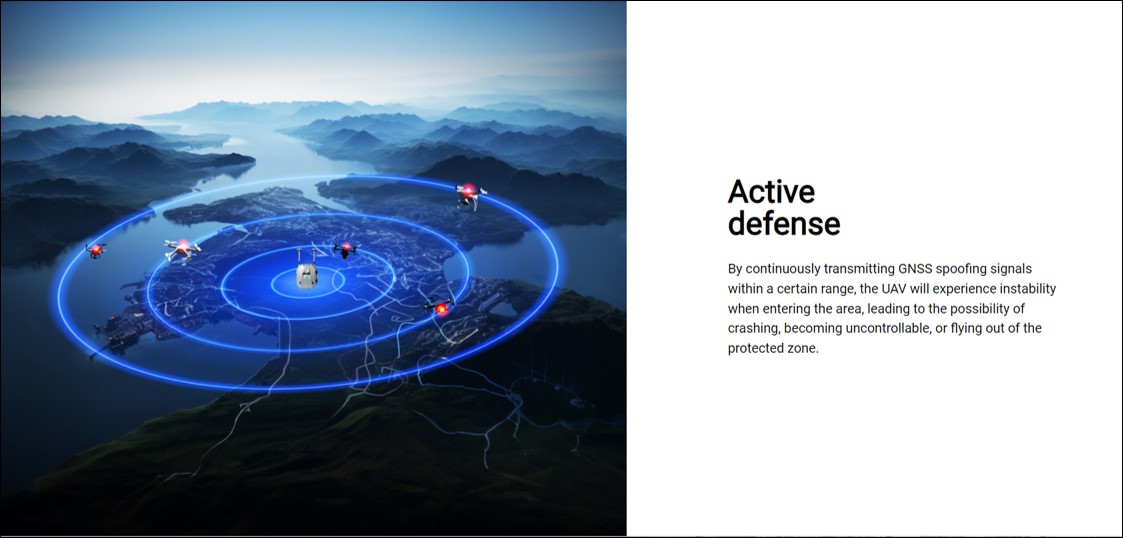

The Skyfend Spoofer Chinese Anti-Drone Spoofing Device is an advanced GNSS navigation spoofing device engineered explicitly for SUAVs. Its primary purpose is to enforce area denial, redirect drones to predetermined orientations and manipulate their flight paths to designated locations. When combined with radar, spectrum detection devices and jammers, it can cause drones to crash or force them to land at appointed locations. Counter UAV/Counter UAS/Anti-Drone.
Ground Specifications
Crew
1
Range
2.0 km
System
Alternate Designation
Skyfend Spoofer
Type
Anti-Drone Spoofing Device
Manufacturer
Skyfend Technology
Crew
1 ea
Frequencies
All Frequencies of BDS, GPS, GLONASS, Galileo Systems
Power
100 W
Singal Power
Less than 5 W
Operation Time
8 hours
Start of Time
Less than 10 seconds
Signal Intrusion Time
5-10 seconds
Time Synchronization Accuracy
Less than 50 nanoseconds
Success Rate
100%
Spoofing Accuracy
Less than 30 m
Time Interval between Two Spoofings
0 seconds

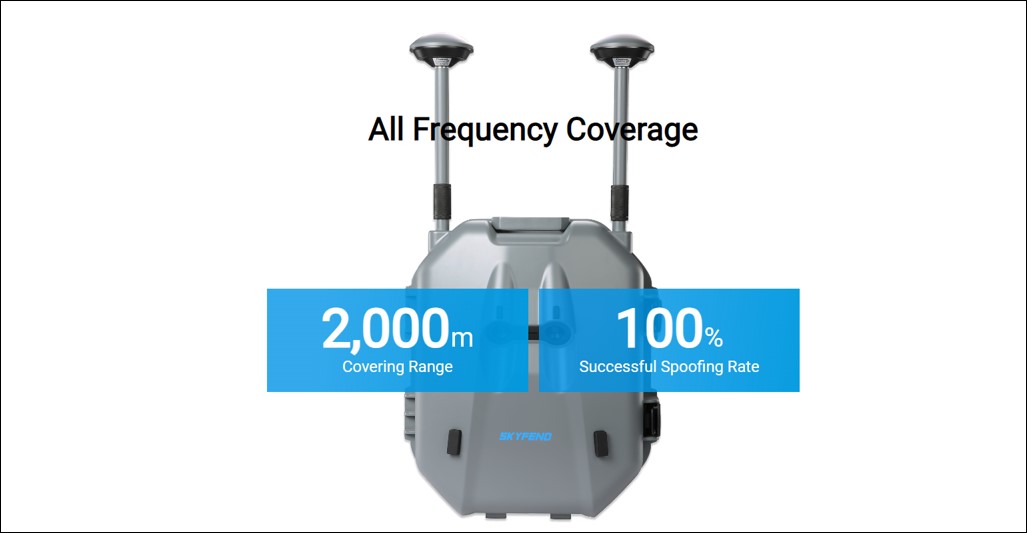

Effective Coverate Range
2,000 m
Battery
Battery-powered & 220V AC powered
Temperature Range
-30 ~ +60 ℃
Water Resitance
IP65 rating
Dimensions (with Antennas Deployed)
Length
840 mm
Height
406 mm
Width
204 mm
Radius of Antennas
77 mm
Weight
8.5 kg
Details
Country of Origin
China
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.84 m
Width
0.2 m
Height
0.41 m
Weight
8.5 kg
Operators (1)
China
