Matka Class (Project 206MR Class) Ukrainian Guided Missile Patrol Boat
Patrol Boat
Other
Basic Information
Name
Matka Class (Project 206MR Class) Ukrainian Guided Missile Patrol Boat
Designation
—
Alternate Designation
Matka PTG, Guided Missile Boat, Project 206MR Vikhr
Equipment Type
Patrol Boat
Manufacturer
Sudostroitel'noye Obyedineniye "Almaz" (Sredniy Neva)
Date of Introduction
1977
Description
The Matka Class (Project 206MR Class) Ukrainian Guided Missile Patrol Boat is part of a group of hydrofoil missile boats built for the Soviet Navy (Baltic Fleet and Black Sea Fleet). The Soviet designation is Project 206MR Vikhr. Following the 1997 Black Sea Fleet partition treaty all Black Sea Fleet Matka class boats were passed to the Ukrainian Navy.
Naval & Littoral Specifications
Crew
30
Beam
7.60 m
Draft
3.26 m
Variants

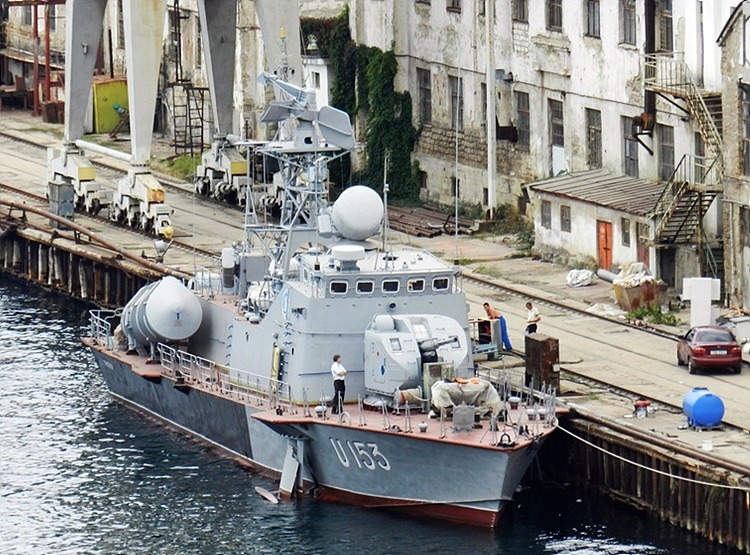

P153 Pryluky
The Pryluky is the last ship active in this class. Due to limited supply of P-25 "Termite" anti-ship missiles, Ukrainian Navy removed the onboard CT-97m missile launch cannisters to make room for future "Neptune" missile launchers. Unknown if Neptune missile launchers were successfully installed and tested.
System
Alternative Designation
Matka PTG, Guided Missile Boat, Project 206MR Vikhr
Type
Hydrofoil Guided Missile Patrol Boat
Builder
Sudostroitel'noye Obyedineniye "Almaz" (Sredniy Neva), Kolpino, Russia
Complement
Crew of 30 personnel
Dimensions
Length
38.6 m
Beam
7.6 m
Draft
3.26 m
Displacement, Standard
233 tons
Displacement, Full Load
257 tons
Propulsion System
Engine Name
3 x General Electric LM503 B2 or Zvezda M504
Engine Type
Diesel
Propulsion
Shaft, Propeller
Engine Power
15,000 hp
Maximum Speed
42 kts
Maximum Range
600 nm (1,100 km)
Endurance
5 days
Weapons Systems
Weapons System #1
Name
Otobreda Cannon (Italian Manufacturer)
Type
Naval Gun / Deck Gun
Caliber
76 mm
Maximum Firing Range (High Explosive Cartridge)
16,000 m
Weapons System #2
Name
AK-630 CIWS
Type
Close-In Weapon System
Caliber
30 mm
Quantity
1 system turret
Barrel Length
1,629 mm (64 in)
Height
1,070 mm (42 in) (above deck)
Weight
1,000 kg (2,200 lb)
Rate of Fire
4,000–5,000 rounds/min
Muzzle Velocity
880-900 m/s
Feed System
Belt
Sights
Radar / TV-optical
Maximum Effective Range, Aerial Targets
4,000 m (13,000 ft)
Maximum Effective Range, Surface Targets
5,000 m (16,000 ft)
Weapons System #3
Name
P-15 "Termite"
Type
Anti-ship missile
Weight
2,580 kg (5,690 lb)
Length
5.8 m (19 ft)
Diameter
0.76 m (2 ft 6 in)
Warhead
454 kg (1,001 lb) hollow charge high explosive
Engine
Liquid-propellant rocket, solid-propellant rocket booster
Wingspan
2.4 m (7 ft 10 in)
Operational Range
40 kilometers (25 mi) / 80 kilometers (50 mi)
Flight Altitude
25 to 100 meters (82 to 328 ft)
Speed (Maximum)
Mach 0.95
Guidance System
Autopilot (inertial guidance), active radar homing, supplemented in some with infrared homing
Fire Control System (FCS)
Name
Bass Tilt
Digital FCS
Yes
Combat Management System
Yes
Fire Control Radar
Yes
Radar Systems
Surface Search Radar
Plank Shave Radar
Surveillance Radar
INA
Navigation Radar
SRN-207
Protection
Countermeasures
Offboard Countermeasures Chaff and Decoy Launching System.
NBC Water Washdown System
Yes
EW
Yes
Image Sources
Details
Country of Origin
Russia
Category
Naval
Naval
Filter Label
M
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
38.6 m
Width
7.6 m
Height
—
Weight
257000 kg
Operators (3)
Russia
Ukraine
Soviet Union
