Type 744 Class (Yannan Class) Chinese Buoy Tender

Type 744

Deep Ocean Minesweeper
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Type 744 Class (Yannan Class) Chinese Buoy Tender
Designation
Type 744
Alternate Designation
Type 744
Equipment Type
Deep Ocean Minesweeper
Manufacturer
Date of Introduction
1981
Description

Type 744 buoy tender and its derivatives with the NATO reporting name Yannan (延南) class is a class of Chinese buoy tender that is in service with the People's Liberation Army Navy (PLAN) and Chinese civilian governmental establishments. It is a boat or vessel which services and replaces buoys. Type 744 employs design modifications based on the experience with earlier ships. Type 744 is designed by the 708th Institute of China State Shipbuilding Corporation. The 708th Institute is more commonly known as China Shipbuilding and Oceanic Engineering Design Academy. Construction began in December 1979 and four were completed, with the last ship entering service in May 1981. The most obvious external visual difference between Types 744 and 994 is that the former lacks the mast in the bow. Type 744 buoy tenders were not transferred from military to civilian authorities, and remained in PLAN service. The ship received NATO reporting name as Yannan (延南) class.

Naval & Littoral Specifications
Crew 44
Beam 11.80 m
Draft 4.00 m
Variants
Type 744A In January 2017, Type 744A, an improved version of Type 744 entered Chinese service, replacing earlier Type 744 No Dongbiao 263, which retired from Chinese Navy on August 1, 2015 and transferred to civilian service. This latest (as of 2017) buoy tender of Chinese navy is similar in size in comparison to earlier models, but automation is greatly enhanced. Type 744A is capable of performing designed tasks under sea state 3 and safely navigation in sea state 5. However, there are disagreement over the type designation of this ship in that according to Chinese type designation convention, improved versions of existing types are followed by either A or G, and new design would receive a different number. Although the ship is an improvement of earlier Type 744, some Chinese media claims that the designation is Type 944A instead,but there is known official confirmation of Type 944 from China.
Haibiao (海标) 624 Commissioned: 1980 Status: Active

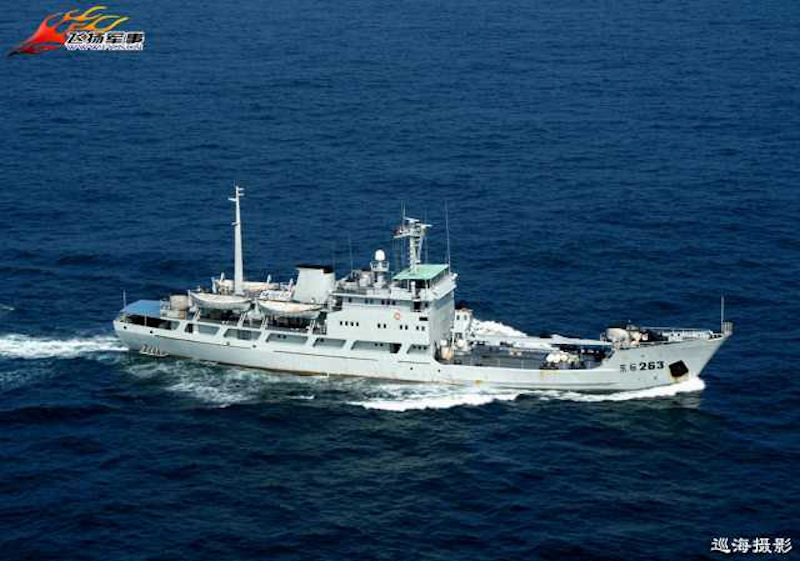

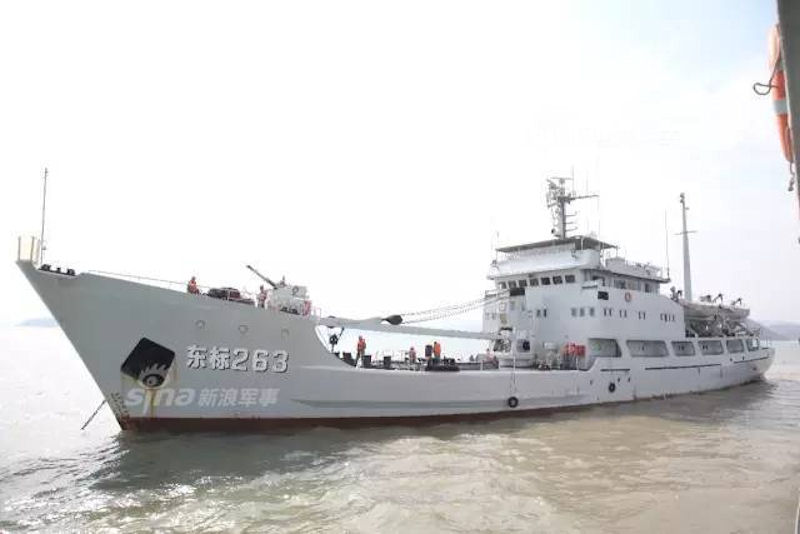

Dongbiao (东标) 263 Commissioned: 1980 Status: Active
Nanbiao (南标) 463 Commissioned: 1980 Status: Active

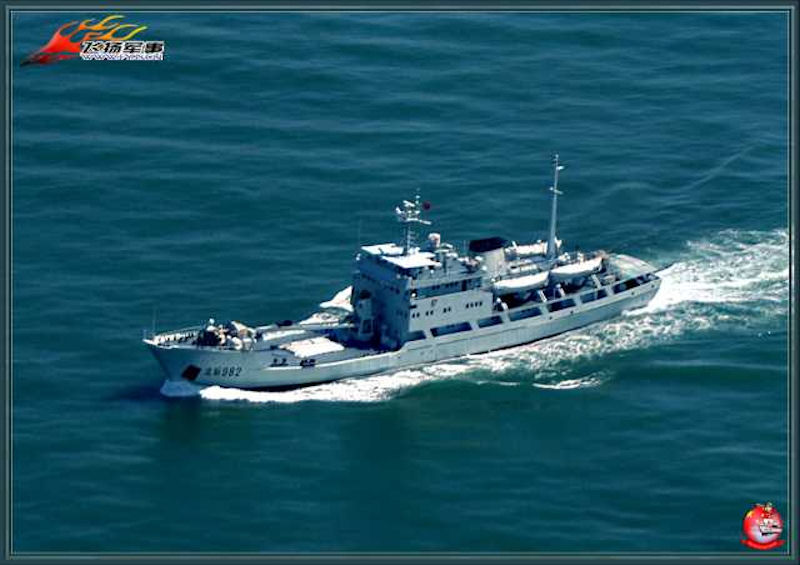

Beibiao (北标) 982 Commissioned: 1981 Status: Active
Beibiao (北标) 983 Commissioned: 1981 Status: Active
Dongbiao (东标) 265 Commissioned: 2017 Status: Active
System
Alternative Designation Type 744
Type Buoy Tender
Builder China Shipbuilding and Oceanic Engineering Design Academy.
Crew 44
Bunks 52
Crane PBW 12/15 60 kW x 1
Dimensions
Length 66.6 m
Beam 11.8 m
Draft 4 m
Fuel Oil Tank 161 cubic meters
Fresh Water Tank 276 cubic meters
Displacement, Standard INA
Displacement, Full Load INA
Propulsion System
Engine Name 2 x 8NVD48A-20
Engine Type Diesel Engine
Engine Power @ 973 kW each
Maximum Range INA
Maximum Speed INA
Protection
Active Protection System None
Countermeasures None
NBC Water Washdown System Yes
Details
Country of Origin China
Category Special Purpose Ships
Naval > Special Purpose Ships
Filter Label
T
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
66.6 m
Width
Height
Weight
Operators (1)
China
