HZH Y100 Chinese Unmanned Aerial Vehicle (UAV)

HZH Y100

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
HZH Y100 Chinese Unmanned Aerial Vehicle (UAV)
Designation
HZH Y100
Alternate Designation
HZH Y100
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Hongfei Aviation Technology Co., Ltd
Date of Introduction
2025
Description

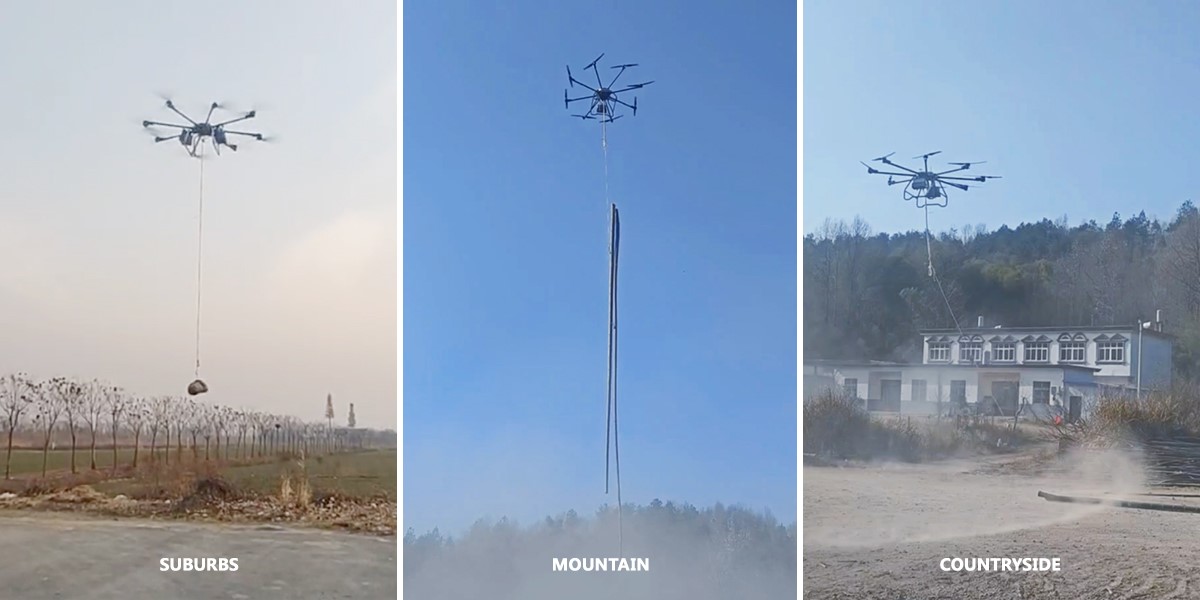

The HZH Y100 Chinese Unmanned Aerial Vehicle (UAV) is designed for heavy-duty aerial transport. It stands out with its impressive payload capacity of up to 100kg and an extended flight time of 60 minutes. Equipped with diverse transport tasks, it's ideal for delivering goods in challenging environments like mountains, urban areas, and vast distances. The HZH Y100 Heavy-Lift Drone, with its 100kg payload capacity and 60-minute flight time, redefines aerial transport through its stability, speed, and efficiency, offering a cost-effective solution for transporting goods across challenging terrains.

Air & Air Defense Specifications
Engine Battery
Max Speed 72.0 km/h
Range 7.0 km
Endurance 60.00 hrs
Service Ceiling 5 m
Payload Capacity 100 kg
System
Alternate Designation HZH Y100
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Hongfei Aviation Technology Co., Ltd
Payload Capacity 100 kg
Camera Camera Type: 14x Single-light Pod; Effective Pixels: 12 Million; Lens Focal Length: 14x Zoom; Min; Focus Distance: 10 mm
Remote Control
Model H12 (Android OS)
Remote Controller H16, 7-inch Remote Controller with Screen
Max. Signal Range 5 km
Operating Frequency 2,400-2,483Ghz
Dimensions 190 mm (L); 152 mm (W); 94 mm (H)
Charging Port TYPE-C
Duration 6-20 hours
Dimensions

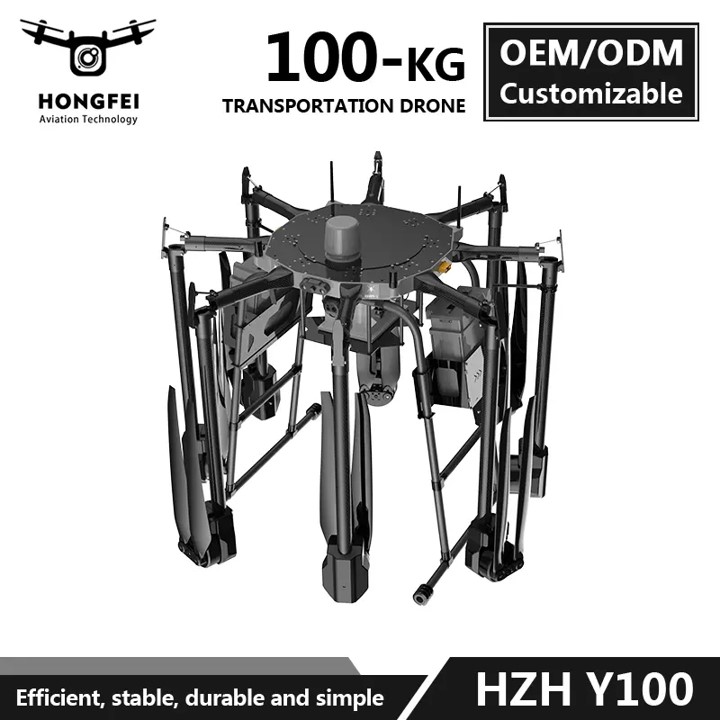

Dimensions (folded) 1,479 mm (L); 1,470 mm (W); 1,130 mm (H)
Dimensions (unfolded) 4,190 mm (L); 4,190 mm (W); 1,130 mm (H)
Weight (excluding battery) 60 kg
Weight (including battery) 82 kg
Max. Take-off Weight 270 kg
Automotive
Engine Name 18S 40000mAh*2
Engine Type Battery
Engine Weight 11.2 kg
Maximum Speed 72 km/h
Maximum Range 7 km
Service Ceiling 5 km
Endurance 60 min
Details
Country of Origin China
Category UAVs
Air > UAVs
Filter Label
H
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
4.19 m
Height
Weight
270 kg
Operators (1)
China
