Yatagan

Yatagan

Main Battle Tanks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Yatagan
Designation
Yatagan
Alternate Designation
KERN2-120 (prototype name), T-84-120
Equipment Type
Main Battle Tanks
Manufacturer
KMDB
Date of Introduction
2000
Description

The Yatagan, also referred to as T-84-120 or KERN2-120, is a further development of the Oplot/T-84 main battle tank featuring a 120mm NATO-compliant smoothbore main gun fed by an autoloader, which allows to keep a crew of three-man. The new tank is targeted at the export market focusing on NATO countries. The Yatagan main battle tank (MBT) was introduced in 2000 and was demonstrated in Turkey during evaluation trials by the Turkish Army. It benefits from several solutions developed during T-72-120 tank modernization program. The Yatagan turret-mounted weapon package includes a 120mm smoothbore gun with 40 rounds of which 22 in the autoloader, one 12.7mm KT-12.7 anti-aircraft machine gun with 450 rounds, and a 7.62mm KT-7.62 coaxial machine gun with 4,000 rounds. The 6TD-2 two-stroke, multi-fuel, liquid-cooled 6-cylinder diesel engine, fuel injected engine develops 1,200-hp at 2,600 rpm allowing a maximum speed on-road of 65 kph.

Ground Specifications
Crew 3
Main Weapon 120mm smoothbore gun (120mm)
Max Speed 65.0 km/h
Range 540.0 km
Overview (Deagel)
Group Main Battle Tanks
Status Active
Also Known As KERN2-120 (prototype name), T-84-120
Origin Ukraine
Contractor KMDB
Initial Operational Capability (IOC) 2000
Total Production ?
Specifications (Deagel)
Ammunition Load 40
Crew 3
Dimensions — Ground Clearance 515 millimeter
Dimensions — Height 2.8 meter
Dimensions — Length 9.7 meter
Dimensions — Main Gun Caliber 120 millimeter
Dimensions — Width 3.8 meter
Mass — Combat Weight 48 ton
Percentage — Gradient 63 %
Percentage — Side Slope 36 %
Performance — Ditch Crossing Ability 2.9 meter
Performance — Fording Depth 5 meter
Performance — Max Range 540 kilometer
Performance — Step Climbing Ability 1 meter
Power — Power 1,200 hp
Pressure — Ground Pressure 0.93 kg/cm2
Speed — Cross Country Speed 50 kph
Speed — Top Speed 65 kph
Volume — Fuel Tank Capacity 1,300 liter
Gear (Deagel)
Item 1 Anti-Tank Guided Missiles: Stugna
Variants

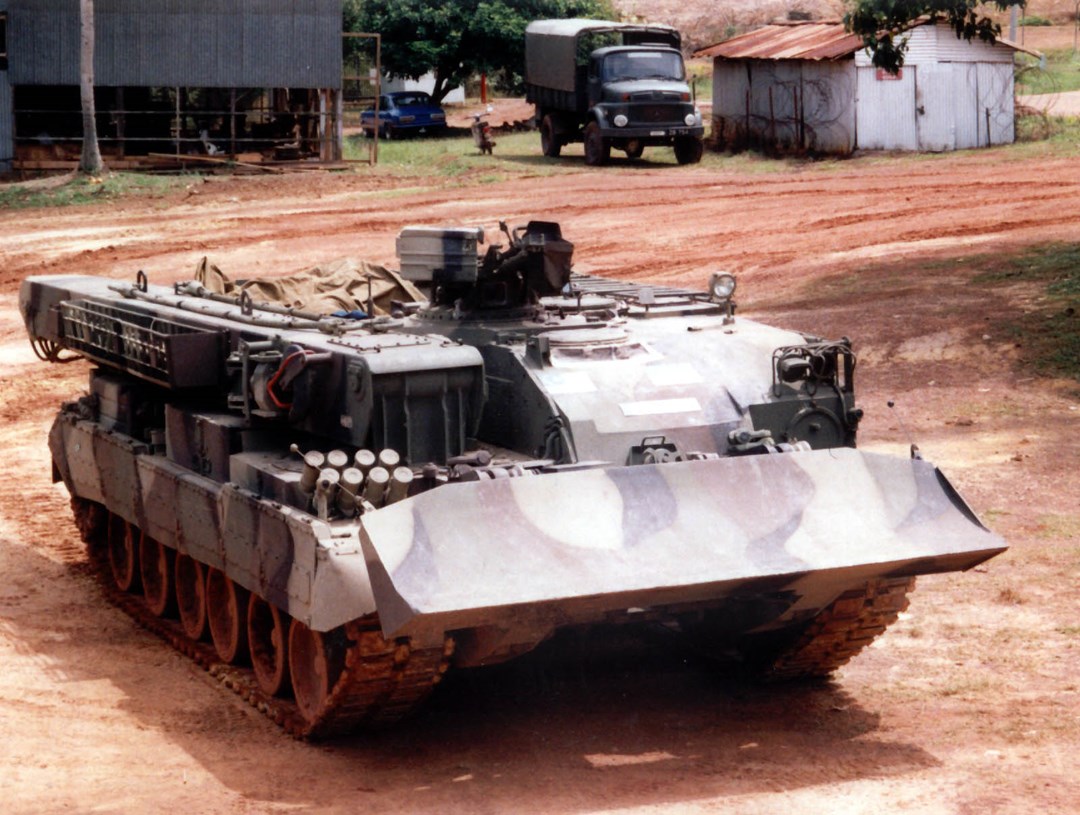

Variant 1 BREM-84
Variant 2 Oplot
Variant 3 Yatagan
Details
Country of Origin Ukraine
Category Tanks
Land > Tanks
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.7 m
Width
3.8 m
Height
2.8 m
Weight
48000 kg
Operators (2)
Ukraine
Turkey
