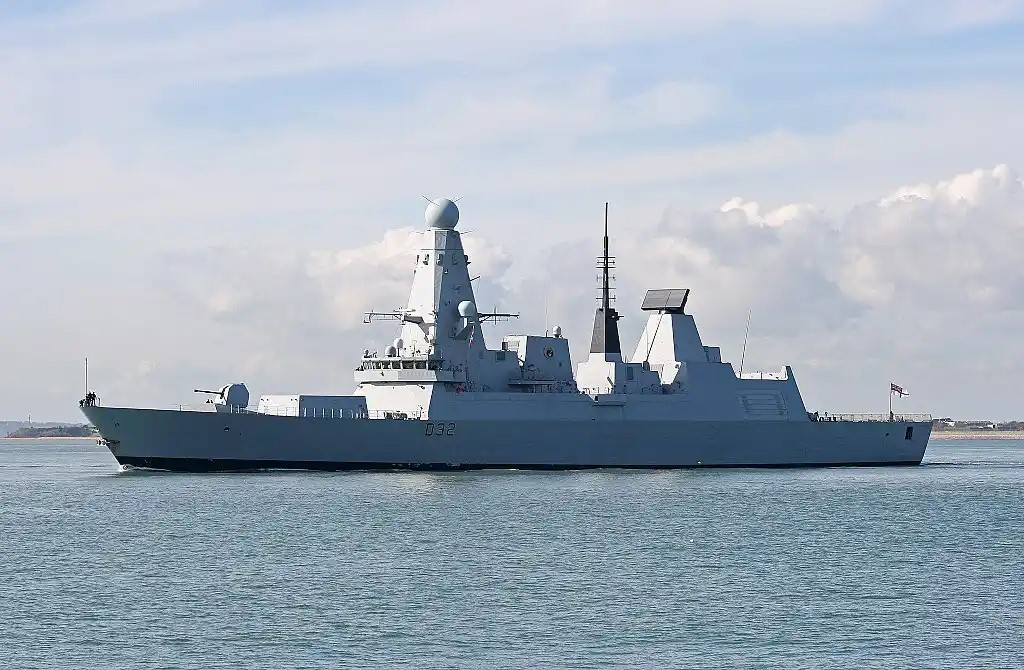

Type 45

Type 45

Destroyers
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Type 45
Designation
Type 45
Alternate Designation
D Class, Daring, T45
Equipment Type
Destroyers
Manufacturer
BAE Systems, VT Shipbuilding
Date of Introduction
2009
Description

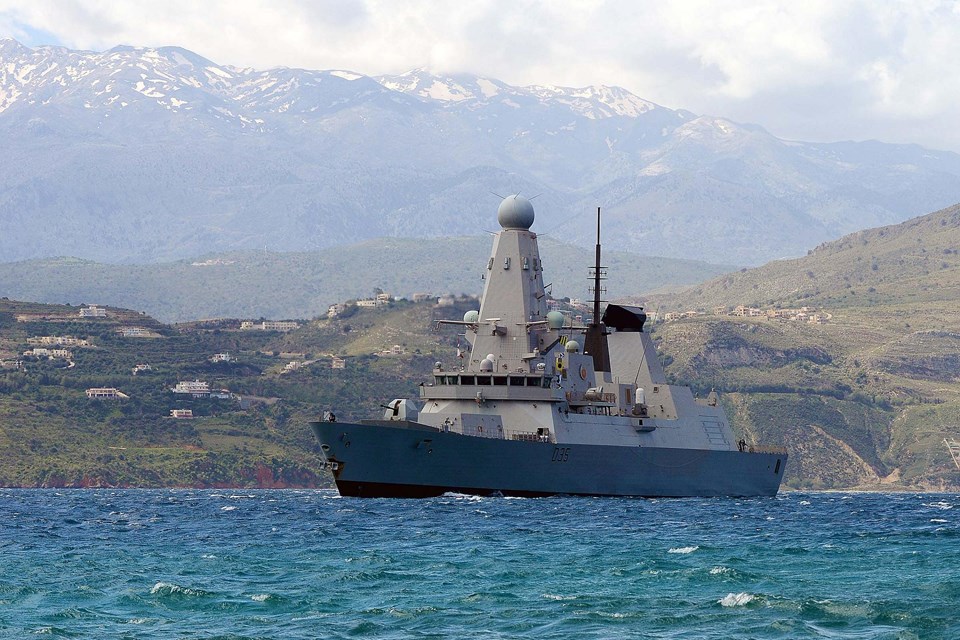

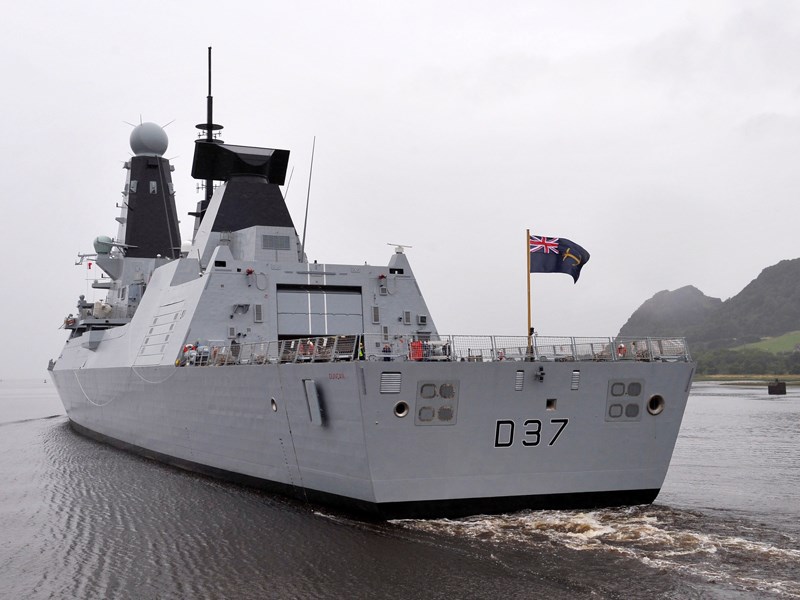

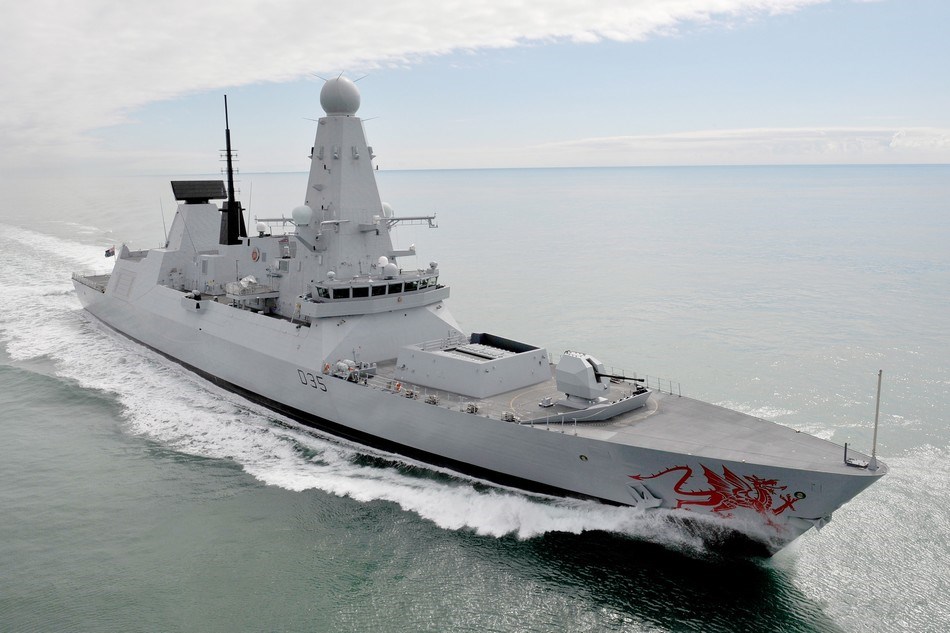

The Daring-class destroyers have been designed to perform anti-air warfare (AAW) missions well into the 21st century against advanced airborne threats such as aircraft and missiles. These destroyers will be capable of perform anti-surface, anti-submarine, and other undisclosed missions. Type 45 destroyers will replace current Type 42 AAW destroyers providing vessels with increased size, range and performance. The Type 45 destroyers will provide improved survivability with revolutionary radar and infrared signature reduction factors for stealth. These ships will also feature reduced life cycle costs. The electrical propulsion system will be one of the keys of the Type 45 destroyers design. Growth potential will allow to assume emerging warfare missions, for example littoral warfare, integrating new weapon systems, sensors and other equipment. The PAAMS developed jointly by the United Kingdom, France, and Italy will be the main armament of Type 45 destroyers. PAAMS includes the ASTER 15 and ASTER 30 missiles and the Sylver vertical launch system (VLS), the European counterpart to US ESSM, Standard SM-2, and Mk41 VLS respectively. PAAMS (with 48-cell Sylver) and the SAMPSON radar system will provide advanced area defense capability to the Daring-class destroyers. The Royal Navy plans to purchase up to 12 Type 45 destroyers. A contract has been placed for the first three ships of this class. The HMS Daring destroyer will achieve initial operational capability by 2007. On August 26, 2004, the second Type 45 anti-air warfare destroyer, named HMS Dauntless, production was launched at BAe Systems' shipyard at Govan in Glasgow. Following the latest British Defense Review the Type 45 program was scaled down from 12 to 8 destroyers. The current contract between the UK MoD and BAe Systems as Type 45 program prime contractor includes six destroyers with two additional ships completing a class of eight ships. The first six destroyers are valued at £6 billion ($10+ billion) with construction being carried out at BAe System's shipyards on the Clyde and Vosper Thornycroft at Portsmouth, both in the UK. HMS Daring was launched February 1st, 2006 by the Countess of Wessex at BAE Systems' Scotstoun shipyard in Glasgow. In July 2021 the Royal Navy decided to upgrade all the existing destroyers adding a new 24-cell launcher for CAMM surface-to-air missiles. These ships will get 48 Aster 30 missiles from an upgraded version intead of the previous mix of Aster 30 and Aster 15 missiles.

Naval & Littoral Specifications
Crew 190
Displacement 9400.00 tonnes
Beam 21.20 m
Draft 7.40 m
Max Speed 29.0 knots
Overview (Deagel)
Group Destroyers
Status Active
Also Known As D Class, Daring, T45
Origin United Kingdom
Contractors BAE Systems, VT Shipbuilding
Initial Operational Capability (IOC) July 23, 2009
Total Production 6
Unitary Cost USD $1.5 billion
Specifications (Deagel)
Crew 190
Number of Aircraft 1
Number of Engines 2
Number of Weapons 80
Dimensions — Beam 21.2 meter
Dimensions — Draft 7.4 meter
Dimensions — Length 152 meter
Dimensions — Main Gun Caliber 114 millimeter
Mass — Full Displacement 9,400 ton
Mass — Standard Displacement 8,400 ton
Performance — Max Range 13,000 kilometer
Power — Total Combined Power 43 MW
Speed — Cruise Speed 18 knot
Speed — Top Speed 29 knot
Time — Mission Endurance 45 day
Gear (Deagel)
Item 1 Anti-Ballistic Missiles: Aster B1 NT (48)

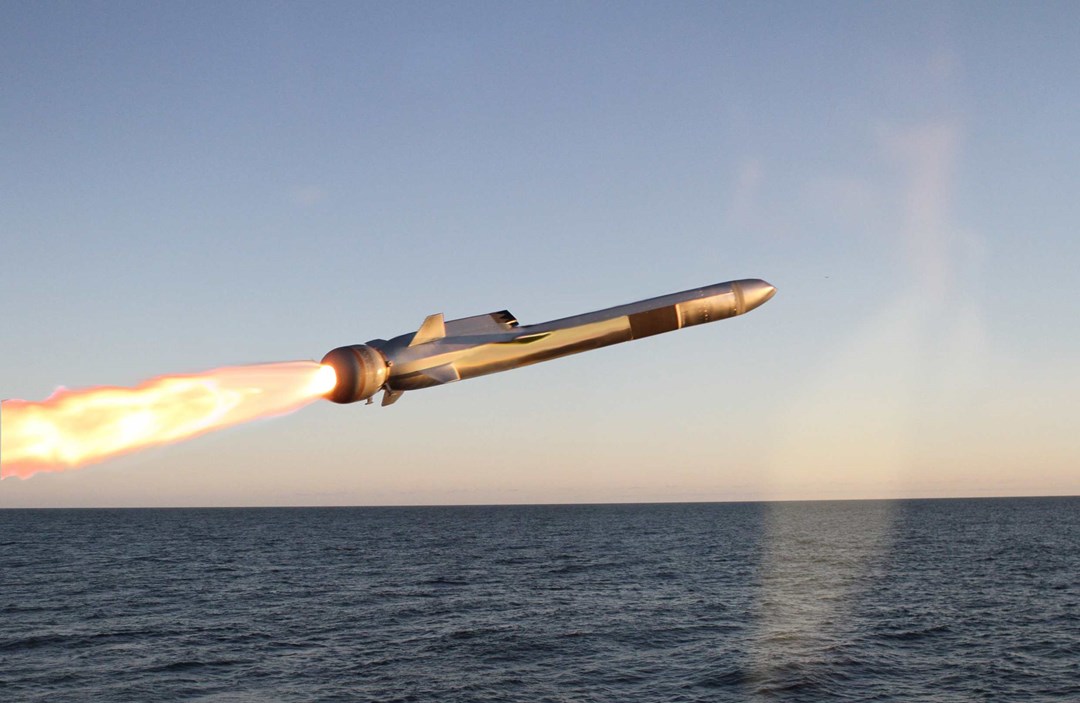

Item 2 Anti-Ship Missiles: NSM (8)
Item 3 Anti-Ship Missiles: RGM-84D Harpoon (8)
Item 4 ASW Helicopters: EH101 Merlin (1)
Item 5 ASW Helicopters: Wildcat HMA (2)
Item 6 Combat Management Systems: NECSYS (1)
Item 7 Communications Devices: Series 8000 (1)
Item 8 Decoy Systems: Sea Sentor (1)
Item 9 Missile Launchers: Sylver (6)
Item 10 Radar Systems: S1850M (1)
Item 11 Radar Systems: Sampson (1)
Item 12 Sea-Based Air Defense Systems: Mk 15 Phalanx Block 1B (2)
Item 13 Sea-Based Air Defense Systems: Sea Viper (1)
Item 14 Ship Power Plants: WR-21 ICR (2)
Item 15 Sonar Systems: MFS 7000 (1)
Item 16 Surface-to-Air Missiles: Aster 15 (16)
Item 17 Surface-to-Air Missiles: Aster 30 (32)
Item 18 Surface-to-Air Missiles: CAMM(M) (24)
Details
Country of Origin United Kingdom
Category Destroyers
Naval > Destroyers
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
152 m
Width
21.2 m
Height
—
Weight
9400000 kg
Related Equipment (1)
Operators (1)
United Kingdom
