Type 64 Chinese Projected Grenade
Type 64
Non-Lethal Projected Grenade
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Type 64 Chinese Projected Grenade
Designation
Type 64
Alternate Designation
Type 64
Equipment Type
Non-Lethal Projected Grenade
Manufacturer
China North Industries Group Corporation Limited
Date of Introduction
1964
Description
The Type 64 Chinese Projected Grenade is a high-explosive (HE), fragmentation, recoilless, fin and spin stabilized projected grenade.
System
Alternate Designation
Type 64
Type
Projected Grenade
Manufacturer
INA
Design

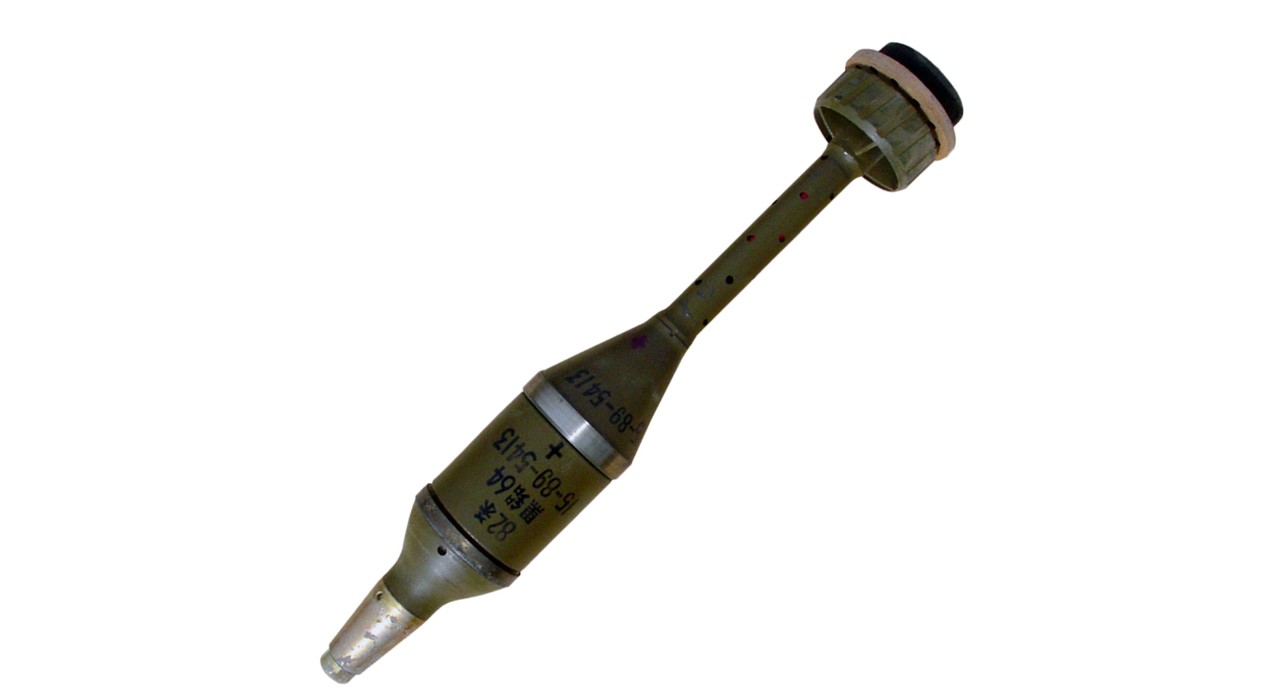

The grenade is of multi-piece construction and consists of a fuze or shipping plug, ogive, cylindrical body, base and boom and fin assembly.
The ogive is bottle-shaped and has two opposed spanner holes and a forward bourrelet surface.
The base has a rear bourrelet then tapers inward.
The boom is cylindrical and has 20 flash holes and has a shrouded, pre-engraved, four-bladed fin at the rear.
The base of the boom has an ignition cartridge retainer.
An unfired grenade would have a propellant bag attached to the boom and a blow-out disc mounted on the boom at the rear of the fin.
Note
The Type 64 projected grenade should not be confused as a mortar (not fired via a mortar tube) or projectile (no driving band), however, it does have pre-rifling around the fins.
Dimensions
Length
INA
Diameter
INA
Weight
INA
Image Sources
Notes
INA;
Details
Country of Origin
China
Category
Projected Grenade
Land > Grenades > Projected Grenade
Filter Label
T
Sources
Wikidata (https://www.wikidata.org/wiki/Q65042054)
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
China
