Hameenmaa

Hameenmaa

Patrol Boats
Spotted an error? Sign in to suggest an edit.
Hameenmaa

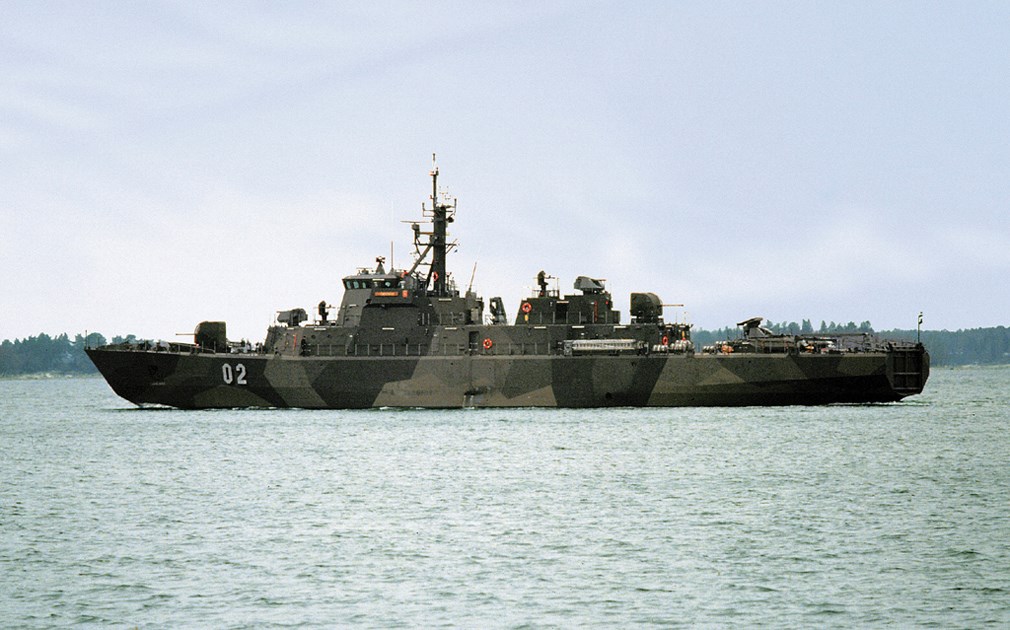

Operational Photo
deagel.com
Basic Information
Name
Hameenmaa
Designation
Hameenmaa
Alternate Designation
—
Equipment Type
Patrol Boats
Manufacturer
STX Europe
Date of Introduction
1992
Description

The Finnish Navy Hameenmaa is a class of minelayers capable of operating in all sea conditions with outstanding reliability, which was one of the ship's design goals, and designed as well to serve as support ship as secondary mission role in the Baltic Sea area. These ships are powered by two diesel engines and two shafts developing 6,300-hp of power and a top speed of 19 knots. These ships are fitted with the TRS-3D radar, Simrad hull-mounted sonar, six Mistral surface-to-air missiles, two 40mm Mk3 gun systems, two dual 23mm anti-aircraft guns, two RBU-1200 anti-submarine warfare (ASW) rocket launcher and 100 to 150 sea mines. The Finnish Navy received two ships in 1992 which were modernized in 2007. A third vessels is under construction and scheduled for delivery in 2013.

Naval & Littoral Specifications
Crew 70
Displacement 1330.00 tonnes
Beam 11.60 m
Draft 3.00 m
Max Speed 19.0 knots
Overview (Deagel)
Group Patrol Boats
Status Active
Origin Finland
Contractor STX Europe
Initial Operational Capability (IOC) 1992
Total Production 3
Specifications (Deagel)
Crew 70
Dimensions — Beam 11.6 meter
Dimensions — Draft 3 meter
Dimensions — Length 77 meter
Dimensions — Main Gun Caliber 40 millimeter
Mass — Full Displacement 1,330 ton
Power — Total Combined Power 6,300 hp
Speed — Top Speed 19 knot
Gear (Deagel)
Item 1 Naval Gun Systems: 40mm Mk3 (2)
Item 2 Radar Systems: TRS-3D (1)
Item 3 Surface-to-Air Missiles: Mistral (6)
Item 4 Surface-to-Air Missiles: Umkhonto (6)
Item 5 Surface-to-Air Missiles: Umkhonto Block 2 (6)
Details
Country of Origin Finland
Sources

deagel.com: https://www.deagel.com/x/x/a002799

Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
77 m
Width
11.6 m
Height
—
Weight
1330000 kg
Operators (1)
Finland
