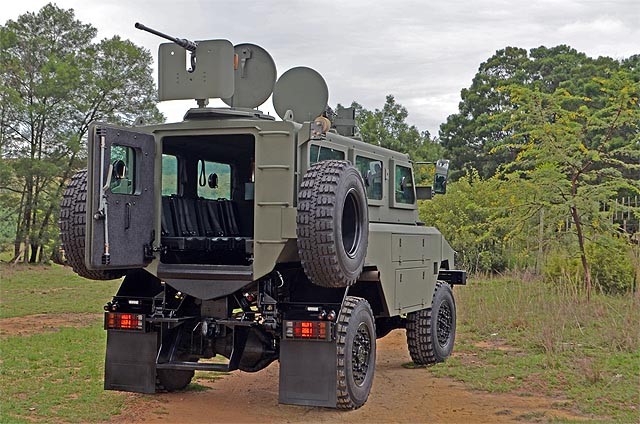

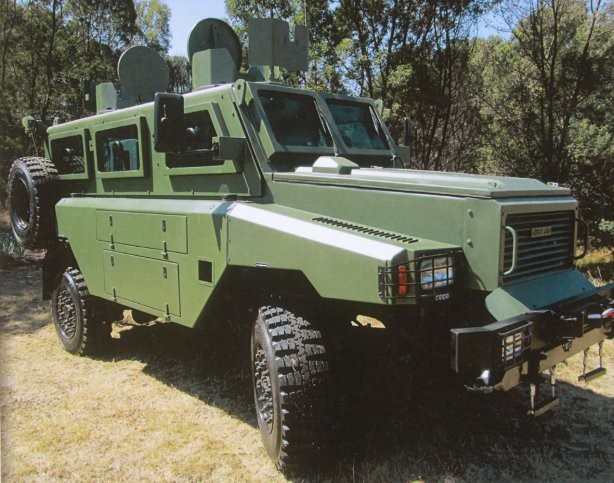

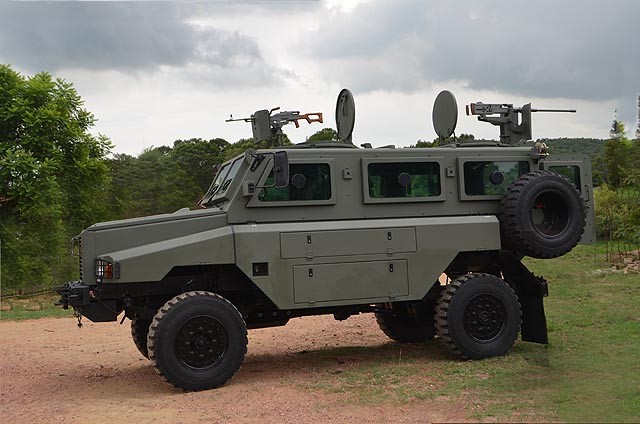

REVA III South African 4x4 Mine Resistant Ambush Protected (MRAP)
REVA III
Mine-Resistant Ambush Protected (MRAP)
Other
Basic Information
Name
REVA III South African 4x4 Mine Resistant Ambush Protected (MRAP)
Designation
REVA III
Alternate Designation
REVA III
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
Integrated Convoy Protection (ICP)
Date of Introduction
2008
Description
The REVA III South African 4x4 Mine Resistant Ambush Protected (MRAP) provides blast and ballistic protection for infantry sections during patrol operations in battle environments where the threats are varied and unpredictable. The REVA III is the base variant of the family and the most widely used vehicle offered by ICP. It is offered with a short and long wheelbase and it is believed that the long wheelbase is the primary configuration.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Engine
6-Cylinder Turbocharged Diesel (170 hp)
NBC Protection
Yes
Max Speed
100.0 km/h
Range
500.0 km
Variants
REVA V
The REVA V is a larger version of the REVA III designed to perform similar roles but with improved off-road mobility.
REVA Ambulance
The REVA ambulance is based on the REVA V.
REVA IV 6×6 ARV
This is the first 6×6 vehicle type to be developed by ICP.
System
Alternative Designation
REVA III
Type
Mine Resistant Ambush Protected (MRAP)
Manufacturer
Integrated Convoy Protection (ICP)
Configuration
4x4
Crew
2 ea
Passengers
8 ea
Payload Capacity
1,300 kg
Dimensions
Length
6.0 m
Width
2.48 m
Height
2.6 m
Weight, Standard
8,200 kg
Weight, Combat
9,500 kg
Ground Clearance
0.24 m
Wheelbase
3.2 m
Automotive
Engine Name
Cummins GBT 5.9TC
Engine Type
in line-6, turbocharged, diesel
Engine Power
170 hp at 2,500 rpm
Power-to-Weight Ratio
17.89 hp/t
Fuel Capacity
200 liters
Maximum Range
500 km
Maximum Speed
100 km/h
Amphibious
No
Gradient
50%
Angle of Approach
28 deg
Angle of Departure
40 deg
Turning Radius
7.75 m
Suspension
semi-elliptical springs and double-acting hydraulic shock-absorbers
Main Weapons System
Note
The REVA III can be armed with protected weapon stations to the front and rear of the roof. Typically the weapon stations consist of a gun shield and the roof hatch locked in the vertical position. The weapon selection would depend on the end-user, but could include general-purpose MGs and heavy MGs.
Protection
Armor
The REVA III has a welded V-shaped monocoque double skin hull, which range from B7 to B7+ and STANAG 4569 Level 3 or Level 4 standard, which provides protection to 7.62 × 51 mm armour-piercing attack at a distance of 30 m with a muzzle velocity of 930 m/s. There is a 25 mm gap between the two layers of welded steel armour and the upper hull is supported by a V-shaped bottom plate that is internally reinforced by means of a capping plate for enhanced blast protection.
Applique Armor
Available
Mine Protection
Mine protection is to STANAG 4569 Level 3, which is 10 kg blast anti-tank mine under any wheel station. On the sides of the hull is an additional steel plate 6 mm thick to provide additional protection against IEDs and explosive-formed projectile attacks. The ballistic glass is 63 mm thick on the REVA III and the use of a two-piece windshield may facilitate maintenance as the size of ballistic glass that must be handled if damaged is relatively small compared with a large single-piece windshield.
NBC Protection
Yes
Smoke Equipment
INA
Image Sources
Details
Country of Origin
South Africa
Category
Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6 m
Width
2.48 m
Height
2.6 m
Weight
9500 kg
Operators (7)
South Africa
Equatorial Guinea
Iraq
Nigeria
Somalia
Thailand
Yemen
