CH-9 (Rainbow-9) Chinese Unmanned Aerial Vehicle (UAV)

The CH-9

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
CH-9 (Rainbow-9) Chinese Unmanned Aerial Vehicle (UAV)
Designation
The CH-9
Alternate Designation
The CH-9; Rainbow-9
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Chinese Unmanned Aerial Vehicle (UAV)
Date of Introduction
2024
Description

The CH-9 (Rainbow-9) Chinese Unmanned Aerial Vehicle (UAV) delivers compelling strategic benefits to military operators. It serves as a cost-effective alternative to traditional bomber aircraft while significantly reducing operational risks through unmanned deployment. The platform provides enhanced tactical flexibility in various combat scenarios, coupled with improved mission endurance. Its versatile deployment options allow for adaptation to different operational requirements and theater conditions. The system’s exceptional operational versatility manifests through several key capabilities. Its strong load-carrying capacity enables diverse mission profiles, while plateau short takeoff and landing capabilities ensure operation from various terrain types. The platform features enhanced environmental adaptation for reliable performance across different conditions. Advanced reconnaissance capabilities combine with improved surveillance systems to provide comprehensive situational awareness. The system’s effective cooperative combat abilities enable seamless integration with other military assets, enhancing overall force effectiveness.

Air & Air Defense Specifications
Max Speed 420.0 km/h
Range 11500.0 km
Endurance 40.00 hrs
Service Ceiling 11000 m
Wingspan 24.80 m
Payload Capacity 480 kg
System
Alternate Designation The CH-9; Rainbow-9
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Chinese Unmanned Aerial Vehicle (UAV)
Payload Capacity 480 kg
Sensors The CH-9 incorporates state-of-the-art sensor systems that enhance its combat effectiveness: Advanced Electro-Optical turret systems; Four large rectangular wing-mounted sensor pods; External bulbous array for comprehensive surveillance; Modern Synthetic Aperture Radar (SAR) systems; Electronic Warfare/Electronic Intelligence (EW/ELINT) capabilities; Potential Anti-Submarine Warfare (ASW) systems.
Dimensions
Length 12.0 m
Height INA
Wingspan 24.8 m
Maximum Takeoff Weight 5,000kg
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Maximum Speed 420 km/h
Maximum Range 11,500 km
Service Ceiling 11,000 m
Endurance 40 hours
Armament

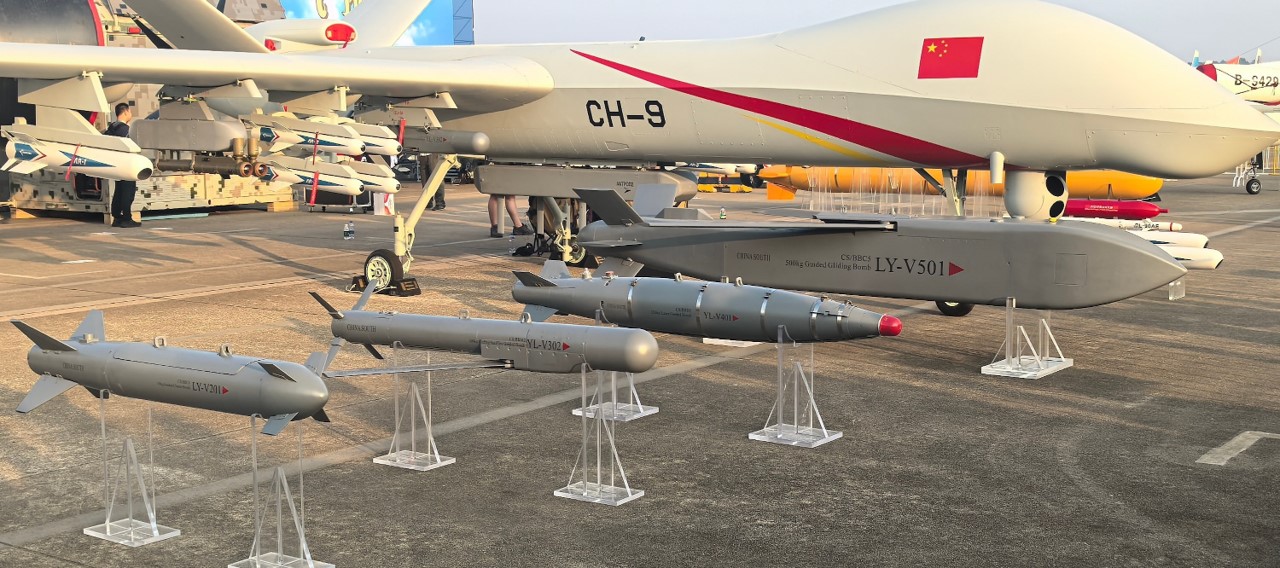

Note The platform’s weapons integration capabilities demonstrate significant advancement in unmanned combat systems. At its core, the system features KD-21 Air-Launched Ballistic Missile compatibility, complemented by integration with various cruise missile systems. The weapons suite includes advanced glide bombs and guided munitions, along with AGM-114 Hellfire equivalent systems. Multiple hardpoints provide extensive configuration options for diverse weapon loadouts, ensuring mission flexibility and combat effectiveness.
Details
Country of Origin China
Category UAVs
Air > UAVs
Filter Label
C
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
12 m
Width
24.8 m
Height
Weight
5000 kg
Operators (1)
China
