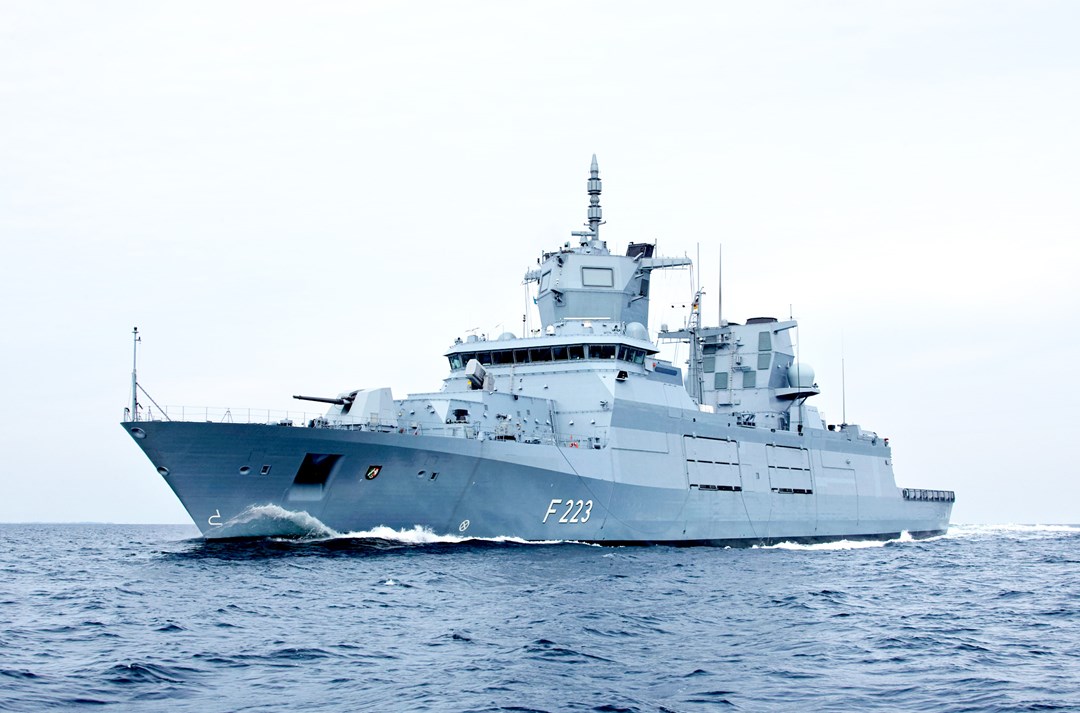

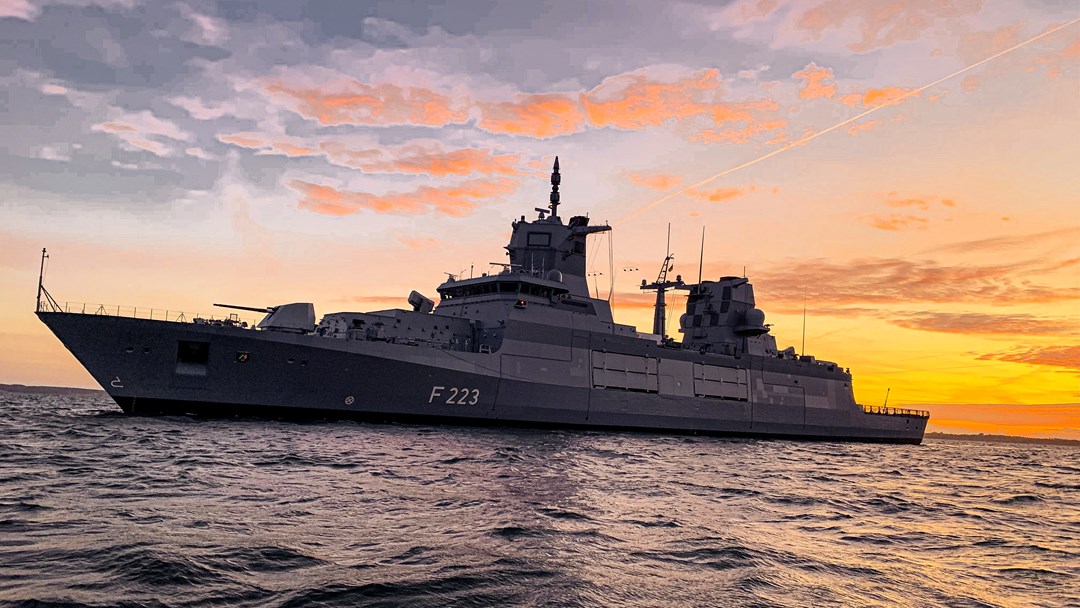

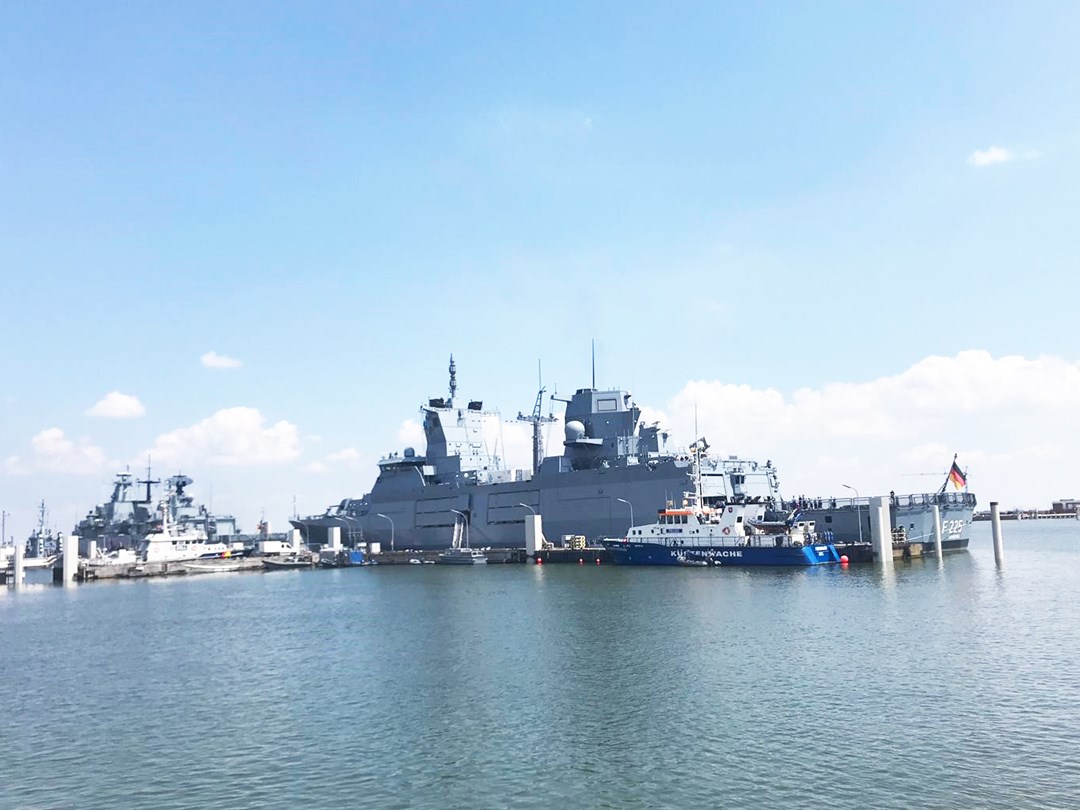

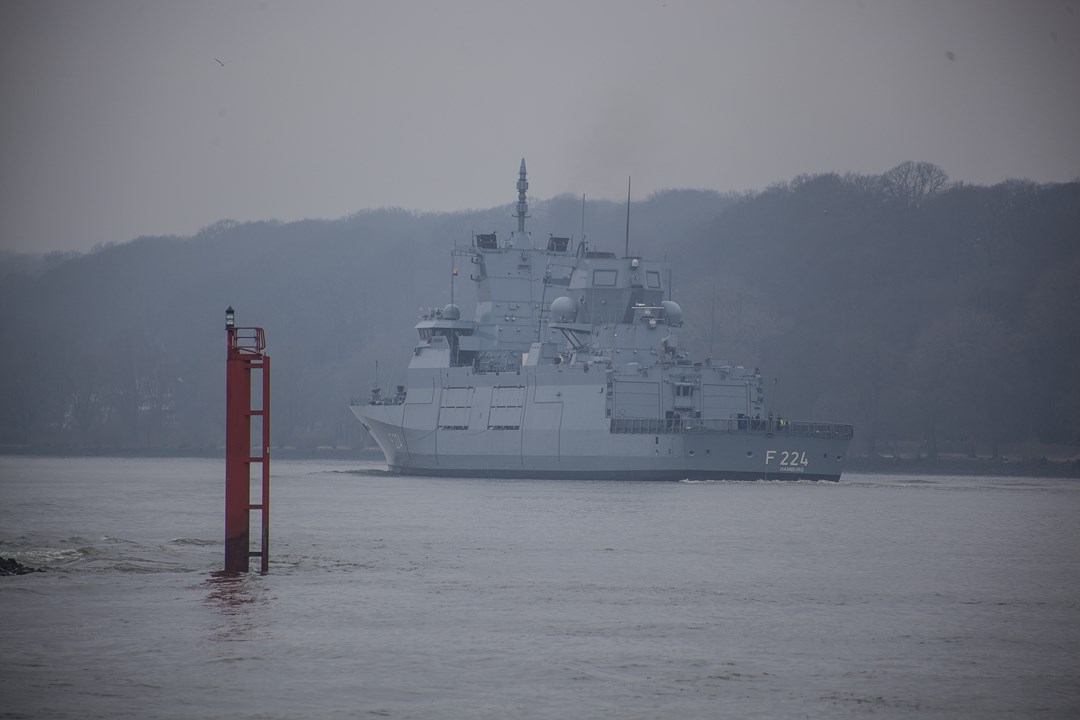

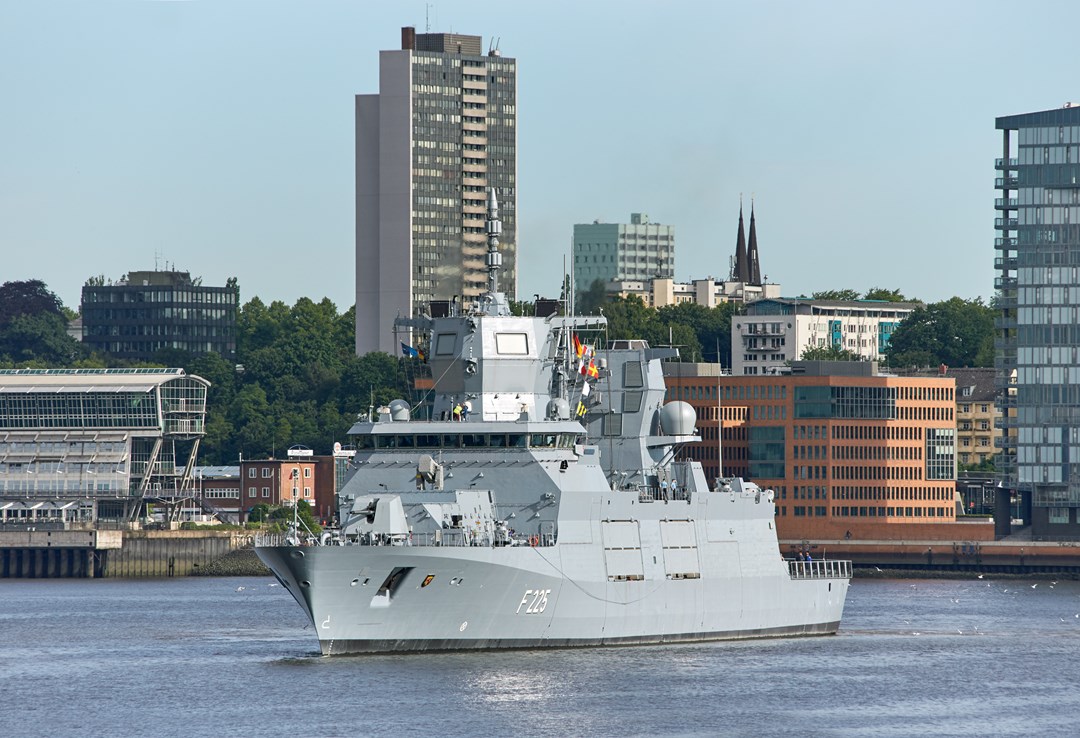

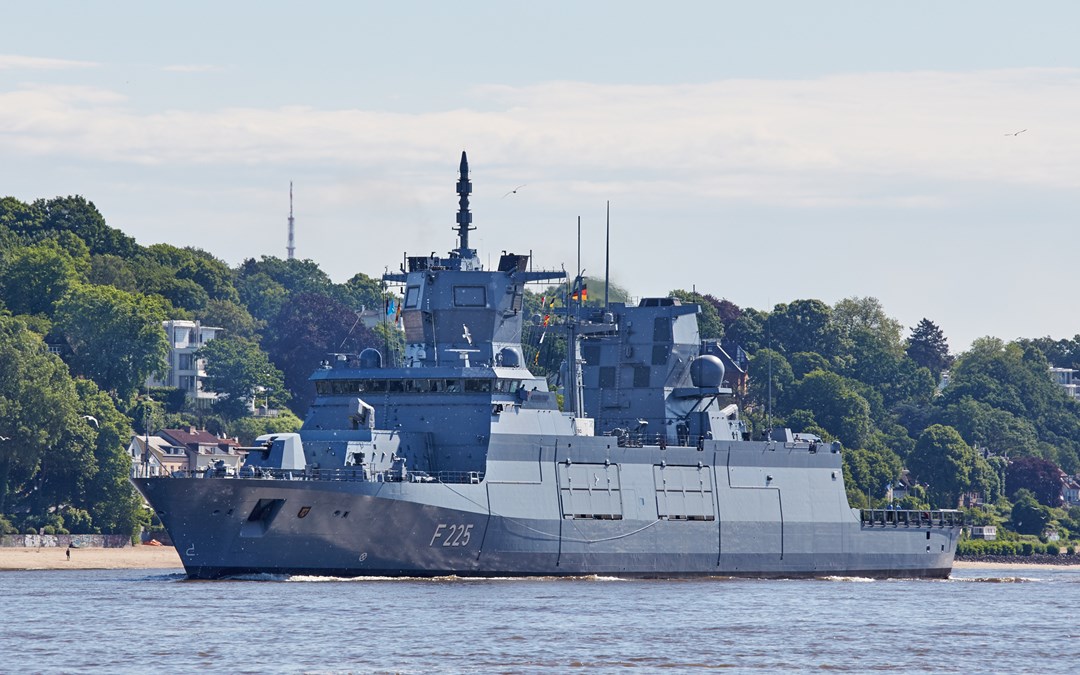

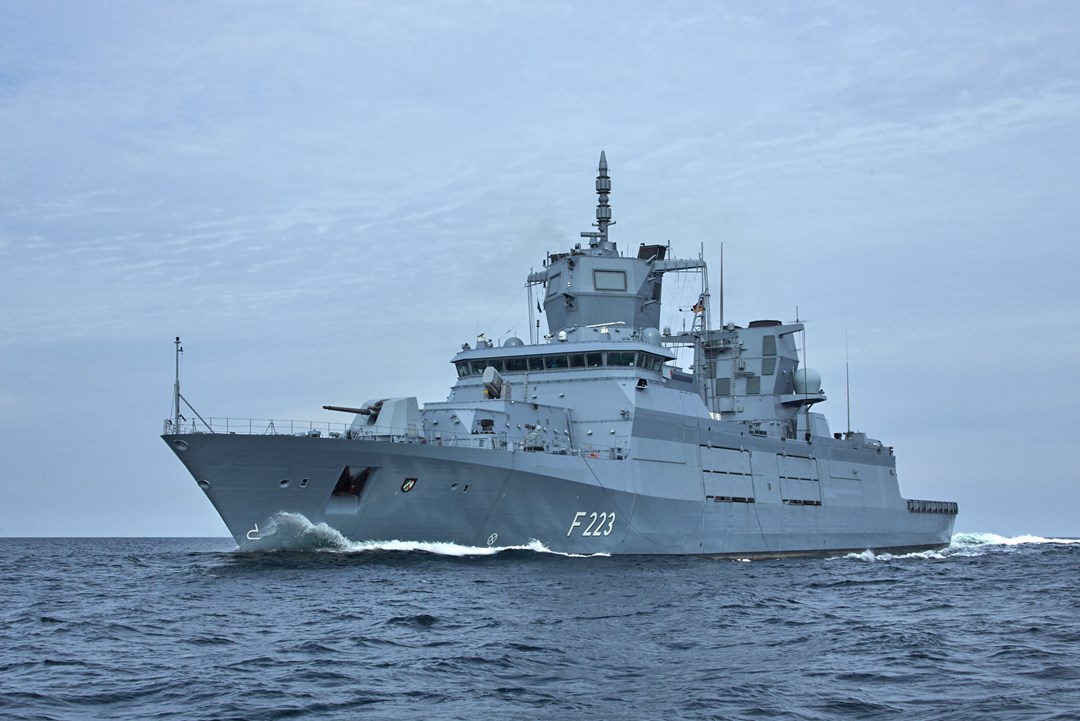

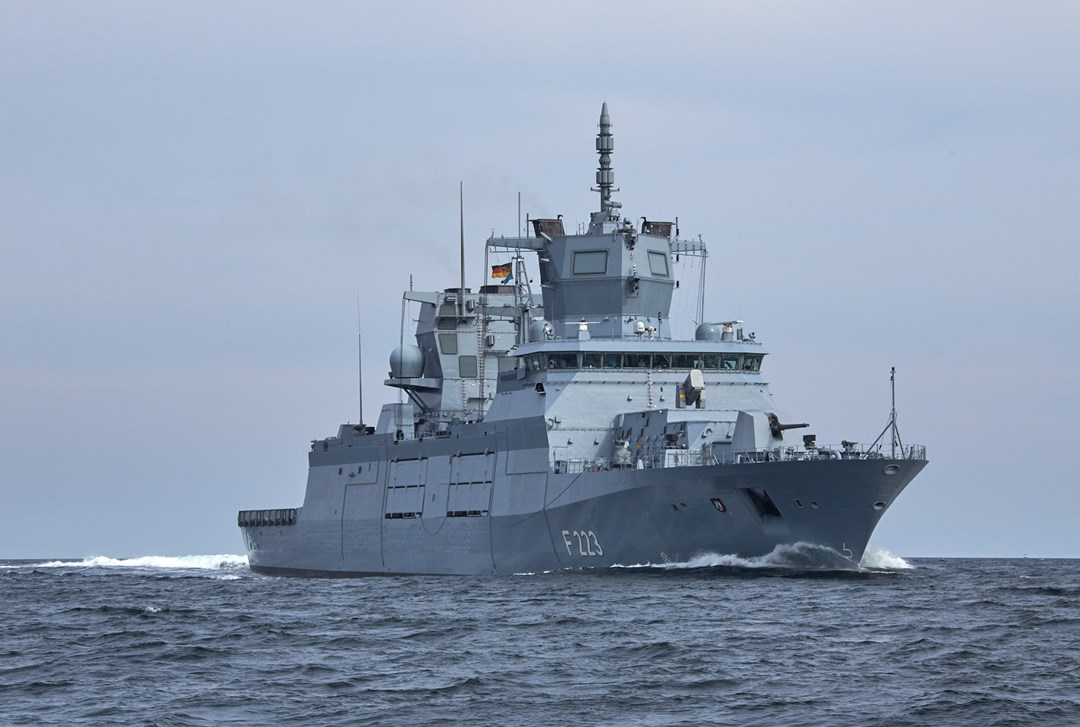

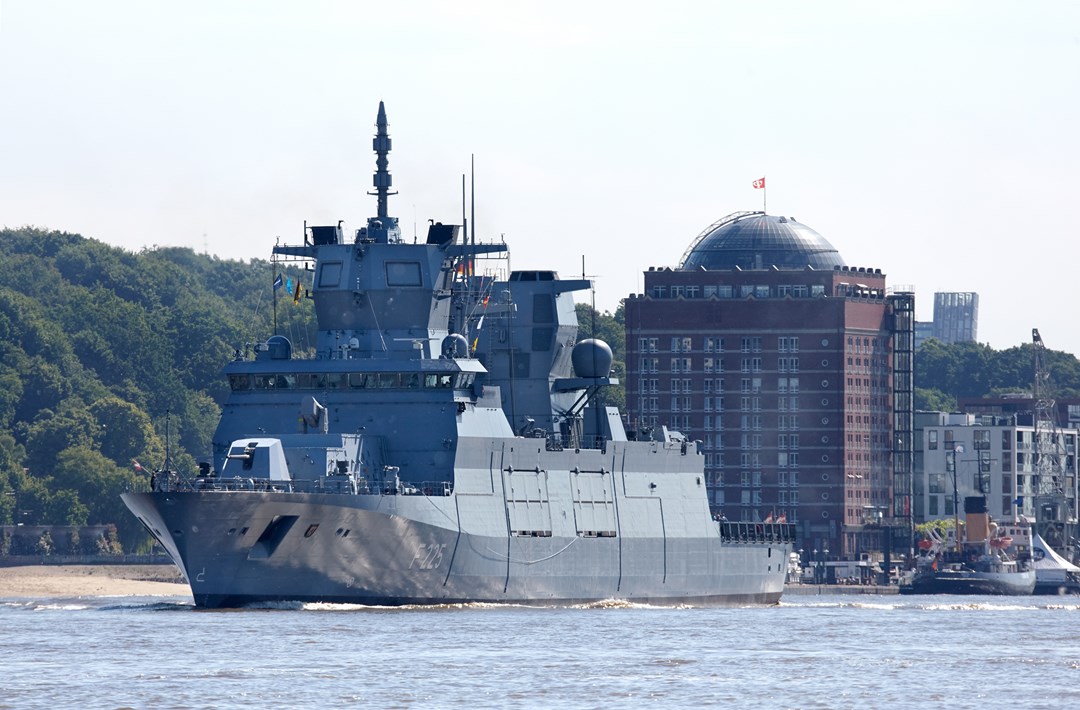

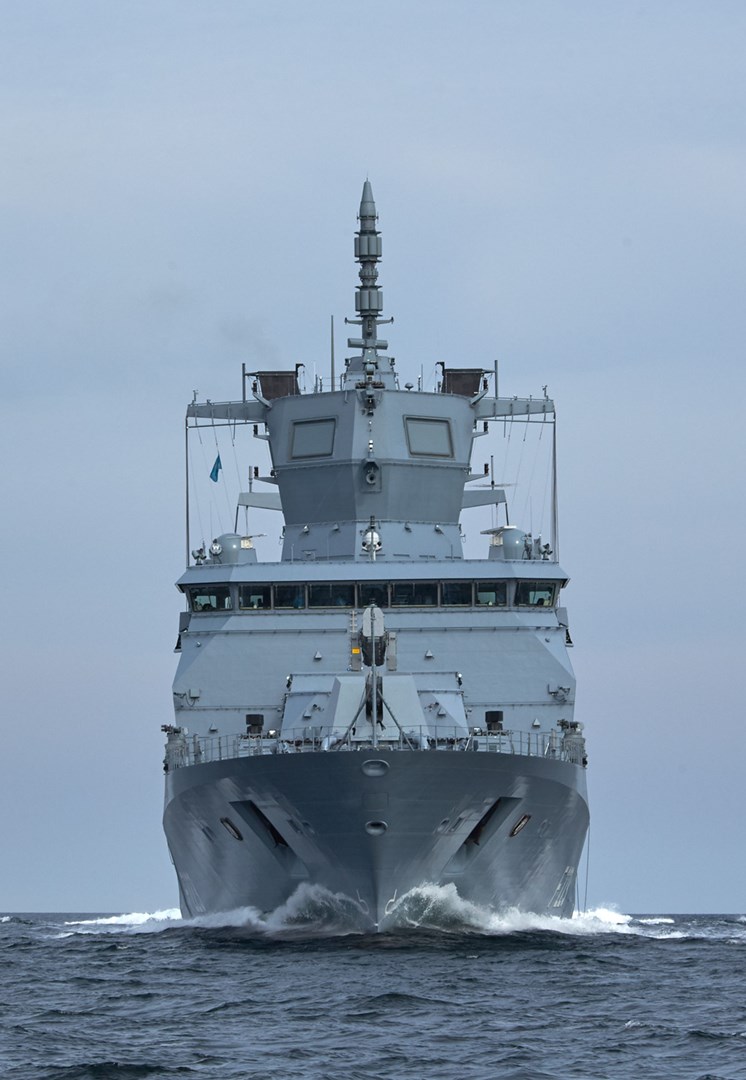

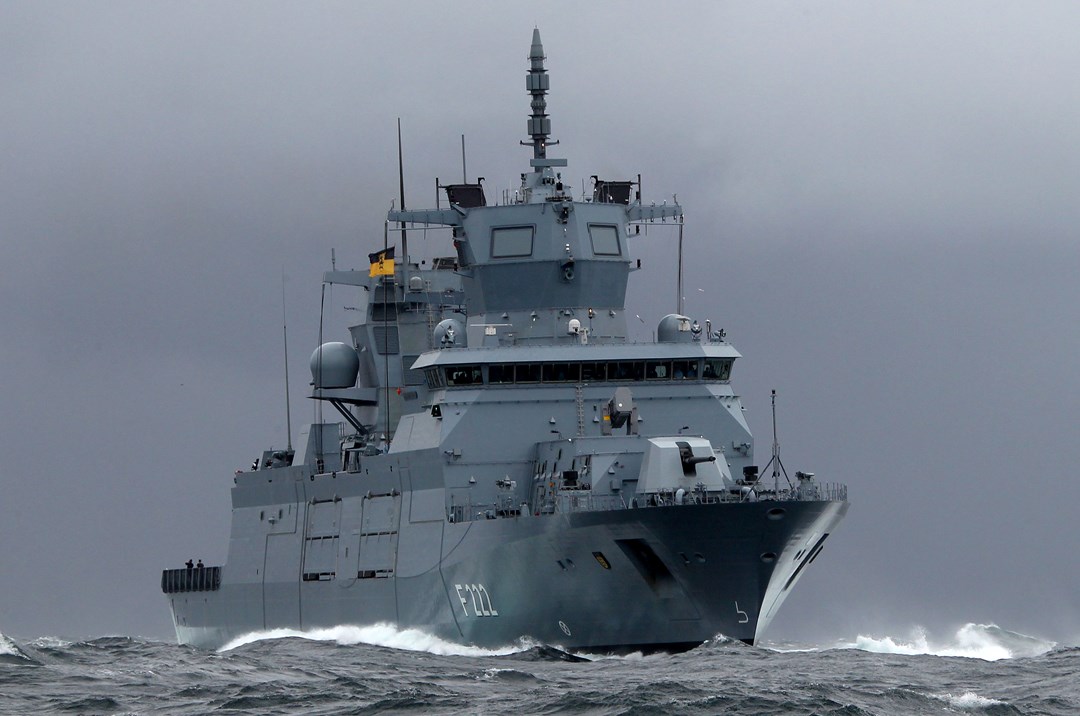

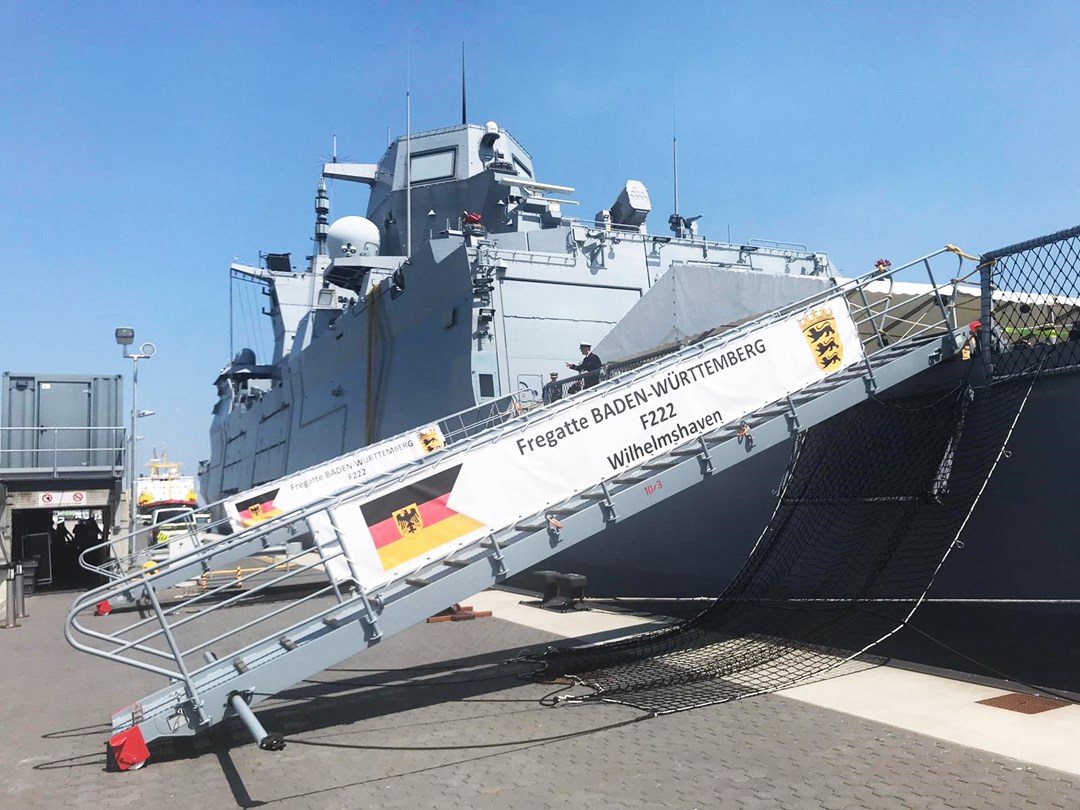

F125 Baden-Wurttemberg

F125 Baden-Wurttemberg

Frigates
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
F125 Baden-Wurttemberg
Designation
F125 Baden-Wurttemberg
Alternate Designation
—
Equipment Type
Frigates
Manufacturer
ThyssenKrupp AG
Date of Introduction
2019
Description

The F125 Baden-Wurttemberg class frigates are still in early stage of construction and will replace the eight F122 Bremen-class frigates in the German Navy two by one beginning around 2016. These ships will be charged with escort duties providing protection to naval formations against underwater threats such as submarines and the emerging underwater threats. Another key element of F125 design is her ability to conduct operations within multinational task groups in a network-centric operations environment and to confront asymmetric threats. F125 class frigates development is being carried out by ThyssenKrupp Marine Systems and Friedrich Lurssen Werft. In March 2006 EADS was selected by the consortium responsible for the F125 frigate development to supply the open architecture command and control and weapons deployment system known as FuWES.

Naval & Littoral Specifications
Crew 126
Displacement 7200.00 tonnes
Beam 18.40 m
Draft 5.00 m
Max Speed 26.0 knots
Overview (Deagel)
Group Frigates
Status Active
Origin Germany
Contractor ThyssenKrupp AG
Initial Operational Capability (IOC) June 17, 2019
Total Production 4
Specifications (Deagel)
Crew 126
Troops 64
Dimensions — Beam 18.4 meter
Dimensions — Draft 5 meter
Dimensions — Length 149 meter
Mass — Full Displacement 7,200 ton
Performance — Max Range 4,000 nautical mile
Power — Total Combined Power 32,000 kW
Speed — Cruise Speed 18 knot
Speed — Top Speed 26 knot
Gear (Deagel)
Item 1 Decoy Systems: MASS
Item 2 Naval Gun Systems: 127/64 Lightweight (1)
Item 3 Projectiles: Vulcano
Item 4 Radar Systems: TRS-4D/NR (1)
Item 5 Sea-Based Air Defense Systems: Mk-31 RAM (1)
Item 6 Ship Power Plants: LM2500 (1)
Item 7 Weapon Stations: MLG 27 (2)
Details
Country of Origin Germany
Category Frigates
Naval > Frigates
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
149 m
Width
18.4 m
Height
—
Weight
7200000 kg
Operators (1)
Germany
