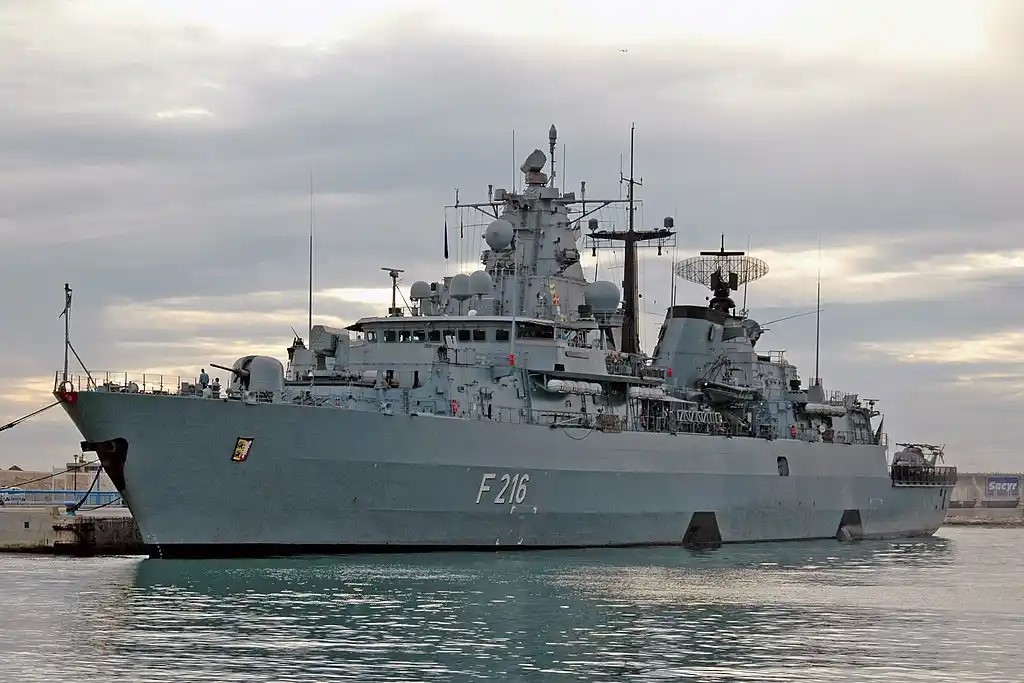

Brandenburg Class (Type 123 Class) German Frigate
Brandenburg Class
Frigate
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Brandenburg Class (Type 123 Class) German Frigate
Designation
Brandenburg Class
Alternate Designation
Brandenburg Class; Type 123 Class
Equipment Type
Frigate
Manufacturer
Blohm + Voss, Hamburg; Howaldtswerke, Kiel; Thyssen Nordseewerke, Emden; Bremer Vulkan, Vegesack/Thyssen Nordseewerke
Date of Introduction
1994

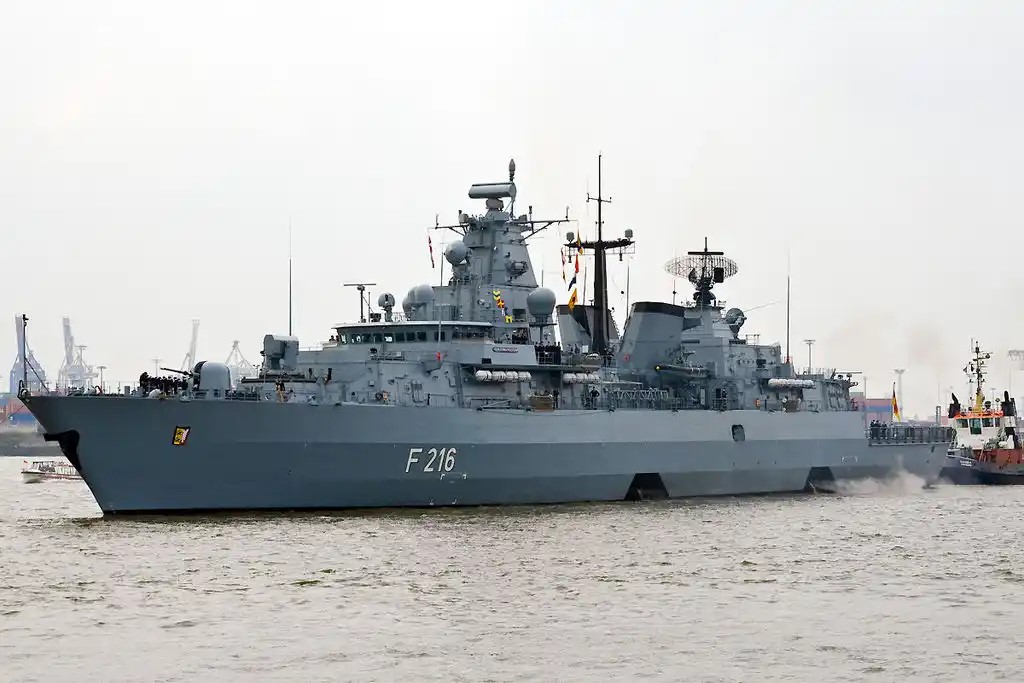

Description
The Brandenburg Class (Type 123 Class) German Frigate is a class of German frigate. They were ordered by the German Navy in June 1989 and completed and commissioned between 1994 and 1996, replacing the Hamburg-class destroyers.
Naval & Littoral Specifications
Crew
26
Beam
16.70 m
Draft
6.30 m
Variants
Brandenburg
Commissioned: 1994
Status: Active
Schleswig-Holstein
Commissioned: 1995
Status: Active
Bayern
Commissioned: 1994
Status: Active
Mecklenburg-Vorpommern
Commissioned: 1995
Status: Active
System
Alternative Designation
Brandenburg Class; Type 123 Class
Type
Frigate
Builder
Blohm + Voss, Hamburg; Howaldtswerke, Kiel; Thyssen Nordseewerke, Emden; Bremer Vulkan, Vegesack/Thyssen Nordseewerke
Crew
26 officers, 193 enlisted
Dimensions
Length
138.9 m
Height
INA
Beam
16.7 m
Draft
6.3 m
Displacement, Standard
INA
Displacement, Full Load
3,600 tons
Propulsion System
Engine Name
2 x 2 GE LM2500
Engine Type
Gas Turbines
Engine Power
51,000 hp (38 MW) sustained
Generator
2 x MTU 20V 956 TB92 diesels; 11,070 hp(m) (8.14 MW) sustained
Maximum Range
4,000 n miles (7,408.0 km) at 18 kt (33.3 km/h)
Maximum Speed
29 kt (53.7 km/h)
Missile Weapon Systems
Missile Weapon System #1
Name
8 x McDonnell Douglas RGM-84D Harpoon Block IC
Type
Surface-to-Surface Missile
Active Radar Homing
124+ km
Speed
Mach 0.85
Warhead
221.6 kg
Missile Weapon System #2
Name
2 x Mk 49 launchers for 21 x Rolling Airframe Missiles
Type
Surface-to-Air Missile
Maximum Range
passive IR/anti-radiation homing to 9.6 km
Speed
Mach 2.5
Warhead
9.3 kg
Gun Weapon Systems
Main Gun System #1
Name
1 x Oto Melara
Type
Naval Gun
Caliber
76 mm
Rate of Fire
105 rds/min
Maximum Range
16 km
Weight of Shell
6 kg
Main Gun System #2
Note:
2 x Rheinmetall MLG 27, 27 mm Naval Gun.
Torpedoes' System
Note
4 x 324 mm Mk 32 Mod 9 (2 twin) tubes; anti-submarine. Honeywell Mk 46 Mod 2; active/passive homing to 11 km (5.9 n miles) at 45 kt; thermal; warhead 44 kg.
Radar Systems
Air/Surface Search Radar
1 x Thales SMART-S; 3D; F-band (being replaced with Saab Sea Giraffe 1X; I-band).
Air Search Radar
1 x Thales LW08; D-band (being replaced with Saab Sea Giraffe 4A; E/F-band).
Navigation Radar
2 x Sperry Bridgemaster E; I-band.
Fire Control Radar
2 x Thales STIR 1.8 trackers [Ref 10] (being replaced with Saab CEROS 200; I/J/K-band).
Sonar Systems
Active Search and Attack Sonar
1 x Atlas Elektronik DSQS-21B Mod 2; hull-mounted; active search and attack; medium frequency.
Fire Control System
Combat Data Systems
1 x Thales SABRINA 21 (being replaced with Saab 9LV). Link 11. Link 16. satcom.
Weapon Control System
1 x Thales MWCS. 2 optical sights. RDE MSP 600 optronic sensor/tracker.
Aviation Faculties
Flight Deck
Yes
Hanger
INA
Aircraft
2 x Super Lynx Mk 88A
Protection
Hull Armor
INA
Physical Countermeasures
4 x Rheinmetall MASS-4L decoy launchers
Electronic Countermeasures
EADS FL 1800S Stage II; intercept and jammers.
NBC Water Washdown System
Yes
Image Sources
Notes

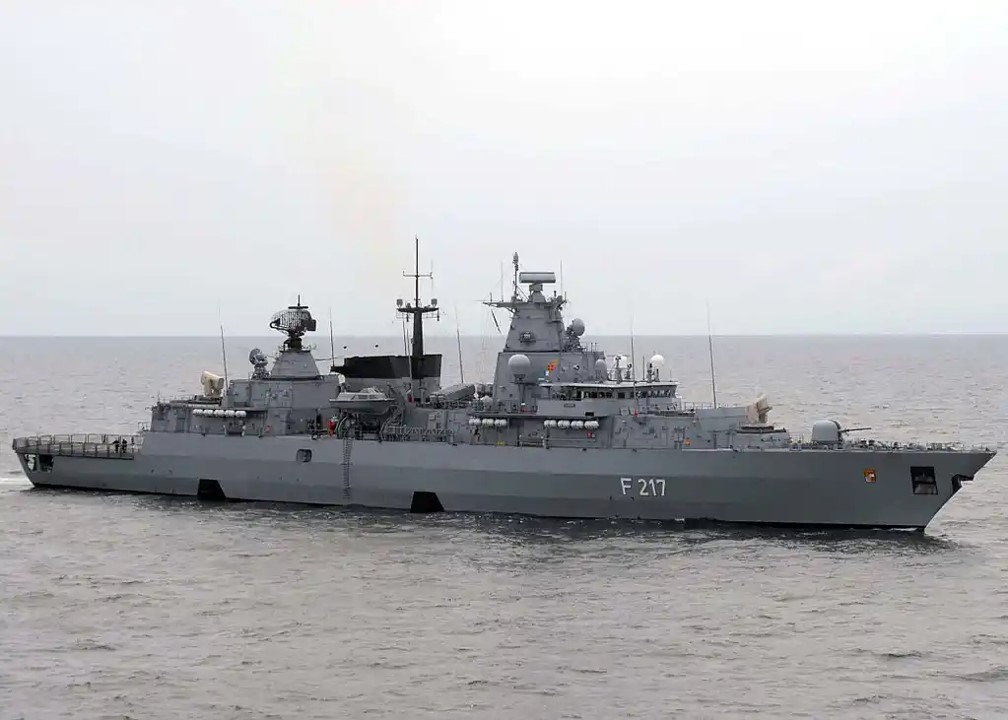

https://en.wikipedia.org/wiki/Brandenburg-class_frigate; https://en.m.wikipedia.org/wiki/File:German_frigate_Bayern_(F217)_underway_in_the_Baltic_Sea_on_13_June_2008_(080613-N-3396B-046).jpg; https://en.wikipedia.org/wiki/German_frigate_Schleswig-Holstein;
Details
Country of Origin
Germany
Category
Naval
Naval
Filter Label
B
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
138.9 m
Width
16.7 m
Height
—
Weight
3600000 kg
Operators (1)
Germany
