Terrex 2

Terrex 2

Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Terrex 2
Designation
Terrex 2
Alternate Designation
—
Equipment Type
Wheeled Armored Vehicles
Manufacturer
ST Kinetics
Date of Introduction
2017
Description

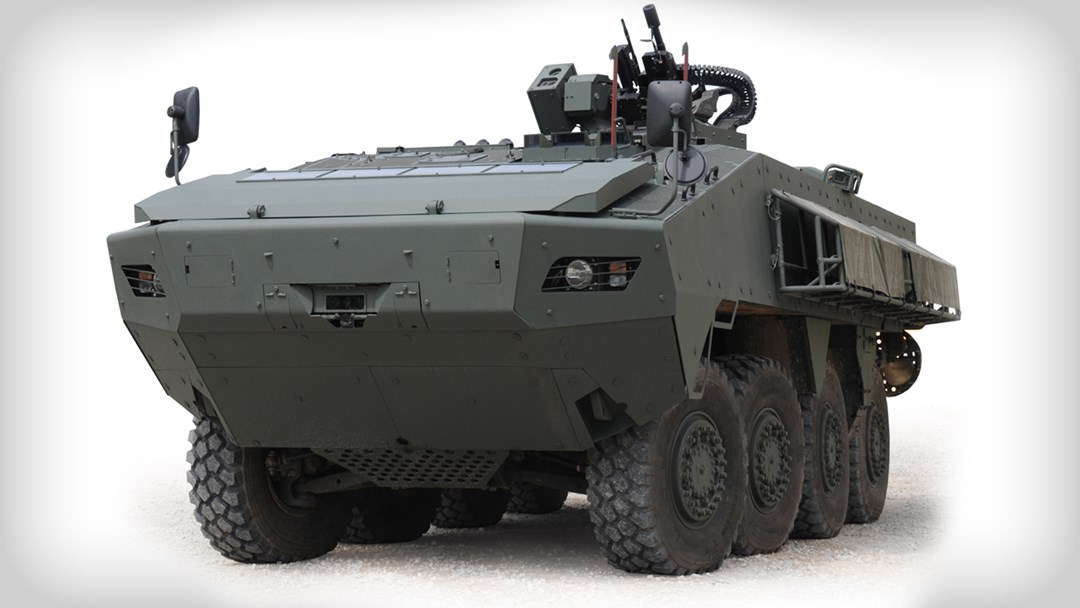

The Terrex 2 is a cutting-edge 8x8 wheeled armored vehicle designed to deliver superior mobility, protection and network centric warfare capabilities. It features a double-V hull to provide protection against mines and Improvised Explosive Devices (IEDs) blasts. The Terrex 2 30-ton class vehicle is lethal and highly survivable in both land and littoral missions. It is powered by a Carterpillar C9.3 540-hp or 600-hp diesel engine developing a top speed in excess of 90 kilometers per hour (kph) over a distance of 600 kilometers on road. Two rear-mounted water-jets allow the Terrex 2 to travel at 11 kph on water. The vehicle can integrate a 30mm unmanned turret to provide fire support to its 12 infantrymen.

Ground Specifications
Crew 2
Troop Capacity 12
Max Speed 90.0 km/h
Range 600.0 km
Overview (Deagel)
Group Wheeled Armored Vehicles
Status Active
Origin Singapore
Contractor ST Kinetics
Initial Operational Capability (IOC) 2017
Total Production ?
Specifications (Deagel)
Crew 2
Troops 12
Wheel Drive 8
Wheels 8
Degree — Approach Angle 40 °
Degree — Departure Angle 40 °
Dimensions — Height 2.8 meter
Dimensions — Length 8 meter
Dimensions — Main Gun Caliber 30 millimeter
Dimensions — Track 2.5 meter
Dimensions — Width 3.6 meter
Energy — Max Torque 1,900 Nm
Mass — Combat Weight 30,000 kilogram
Mass — Payload 9,000 kilogram
Percentage — Gradient 60 %
Percentage — Side Slope 30 %
Performance — Ditch Crossing Ability 2 meter
Performance — Fording Depth 2 meter
Performance — Max Range 600 kilometer
Performance — Step Climbing Ability 0.60 meter
Performance — Turning Radius 17 meter
Power — Power 600 hp
Speed — Top Speed 90 kph
Speed — Top Swimming Speed 11 kph
Variants
Variant 1 Terrex AV81
Variant 2 Terrex 2
Variant 3 Terrex 3
Details
Country of Origin Singapore
Sources

deagel.com: https://www.deagel.com/x/x/a002214

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8 m
Width
3.6 m
Height
2.8 m
Weight
30000 kg
Operators (1)
Singapore
