D-12K Russian Unmanned Aerial Vehicle (UAV)

D-12K

Tactical Unmanned Aerial Vehicle (UAV)

Spotted an error? Sign in to suggest an edit.

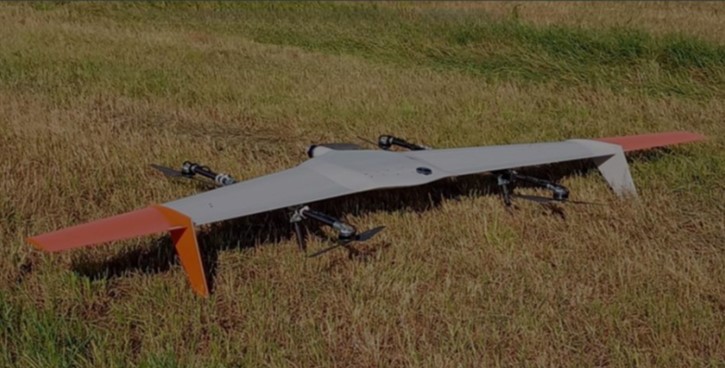

D-12K Russian Unmanned Aerial Vehicle (UAV) — D-12K Russian UAV (AA)TRADOC ODIN WEG

Basic Information

Name

D-12K Russian Unmanned Aerial Vehicle (UAV)

Designation

D-12K

Alternate Designation

D-12K

Equipment Type

Tactical Unmanned Aerial Vehicle (UAV)

Manufacturer

Aeromax Group

Date of Introduction

2022

Description

The D-12K is a Russian Unmanned Aerial Vehicle (UAV) designed for vertical takeoff and landing, powered by an electric motor. This model has been developed to conduct various operations, including remote sensing of the Earth's surface and cargo transportation. The D-12K system comprises two main components: 1. An unmanned aerial vehicle (UAV), which is based on a "flying wing" aerodynamic design. 2. A Ground Control Station (GCS). The D-12K can be outfitted with several advanced technologies, including: - A high-resolution nadir camera - High-resolution nadir and perspective cameras - A thermal imager and a multispectral camera - A geodetic receiver that operates on L1 and L2 frequencies, in addition to a multi-system receiver - A laser scanner This sophisticated configuration enables the D-12K to accomplish its intended tasks effectively.

Air & Air Defense Specifications

Engine Electric

Max Speed 35.0 km/h

Range 100.0 km

Endurance 1.50 hrs

Service Ceiling 4000 m

Wingspan 3000.00 m

Payload Capacity 1 kg

Variants

D-12 The D-12 Russian Unmanned Aerial Vehicle (UAV) features a "flying wing" aerodynamic design. This model is specifically built for aerial photography and remote sensing of the Earth's surface. It is capable of carrying payloads of up to 2 kg and can cover distances of up to 250 km. Applications of the D-12 UAV include: - Aerial photography - Photo and video monitoring - Thermal imaging and multispectral photography - Aerial laser scanning

System

Alternate Designation D-12K

Type Unmanned Aerial Vehicle (UAV)

Manufacturer Aeromax Group

Payload Capacity 1.5 kg

Payloads Aerophotographic Camera Aerophotographic camera is designed to capture a series of image frames of the underlying terrain from the aircraft board and saving them on a solid-state recorder

Aerial Laser Scanners Aerial laser scanners are used for geodetic measurements during geotechnical investigations, surveying, cadastral and land management works.

Multispectral Camera Enables images of the same area in different areas of the electromagnetic spectrum, revealing processes and phenomena that are difficult to detect in a visible spectrum image.

Professional Thermal Imaging Camera AC-130/40T The AC-130/40T possesses a function of real-time temperature measurement and when saving photos of an object each pixel of the picture contains information about temperature.

Multipurpose Payload AC- 170/30/19T Multipurpose payload AC-170/30/19T combines at once visual and thermal imaging matrices. This helps to reduce the camera weight and allows to receive twice as large the data during the flight, hence increasing the efficiency of air inspection.

Take-off Mode Vertical

Landing Mode Vertical

Dimensions

Length 900 mm

Height INA

Wingspan 3,000 mm

Maximum Takeoff Weight 12 kg

Automotive

Engine Name INA

Engine Type Electrical motor

Engine Power INA

Maximum Speed 35 m/s (126 km/h)

Flight Course Speed 22–24 m/s (80–90 km/h)

Maximum Range 100 km

Service Ceiling 4,000 m

Wind limit speed, no more 15 m/s

Endurance 1.5 hours

Image Sources

Notes https://www.aeromax-group.com/products/airplanetypeuas/d-12k/

Details

Country of Origin Russia

Category UAVs

Air > UAVs

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

0.9 m

Width

3 m

Height

—

Weight

12 kg

Operators (1)

Russia
