ZBD08

Wheeled Armored Vehicles

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

ZBD08

Designation

ZBD08

Alternate Designation

—

Equipment Type

Wheeled Armored Vehicles

Manufacturer

NORINCO

Date of Introduction

—

Description

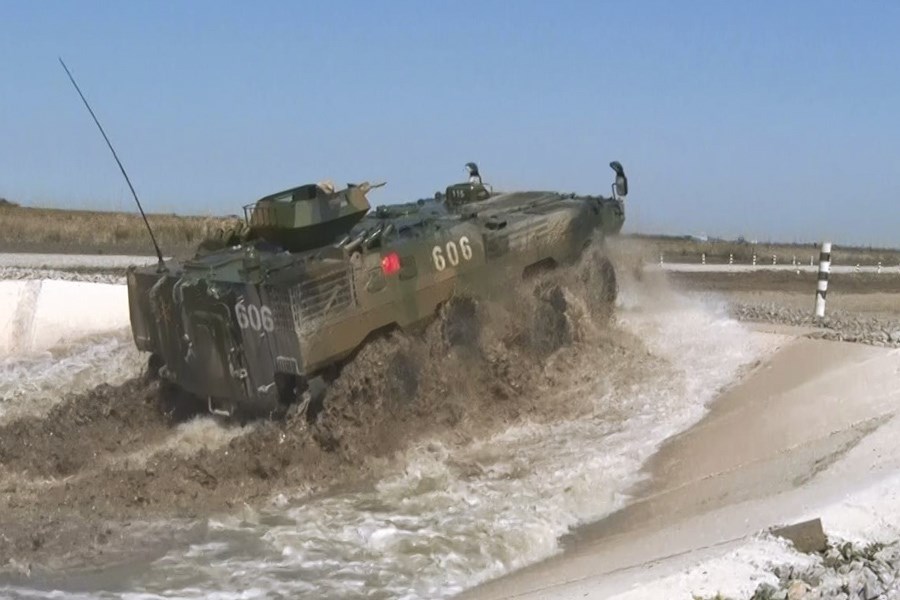

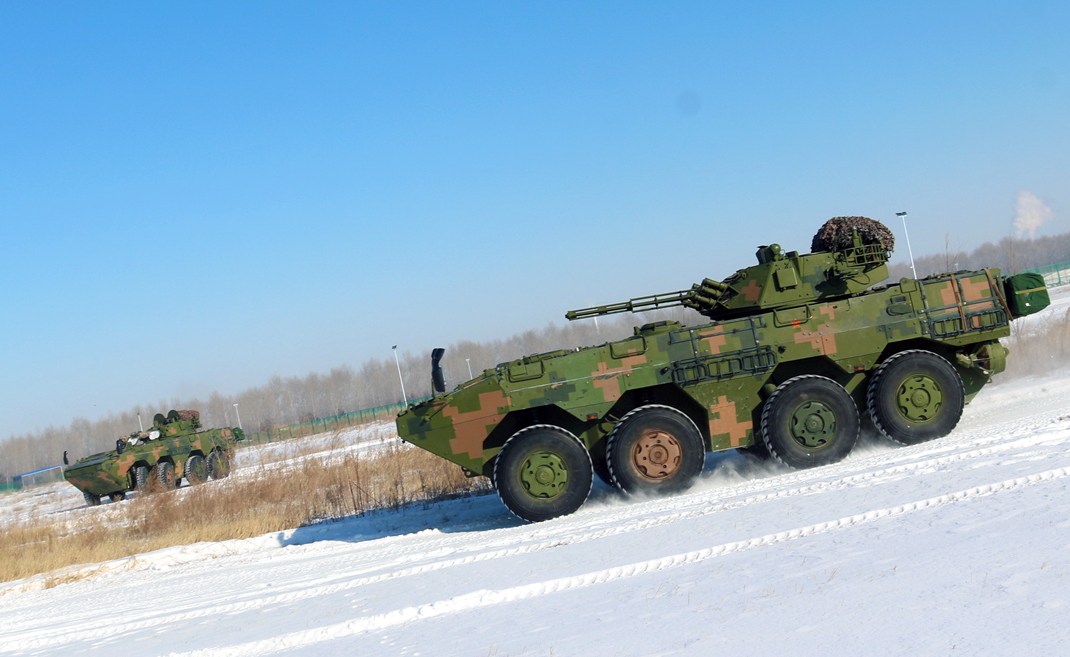

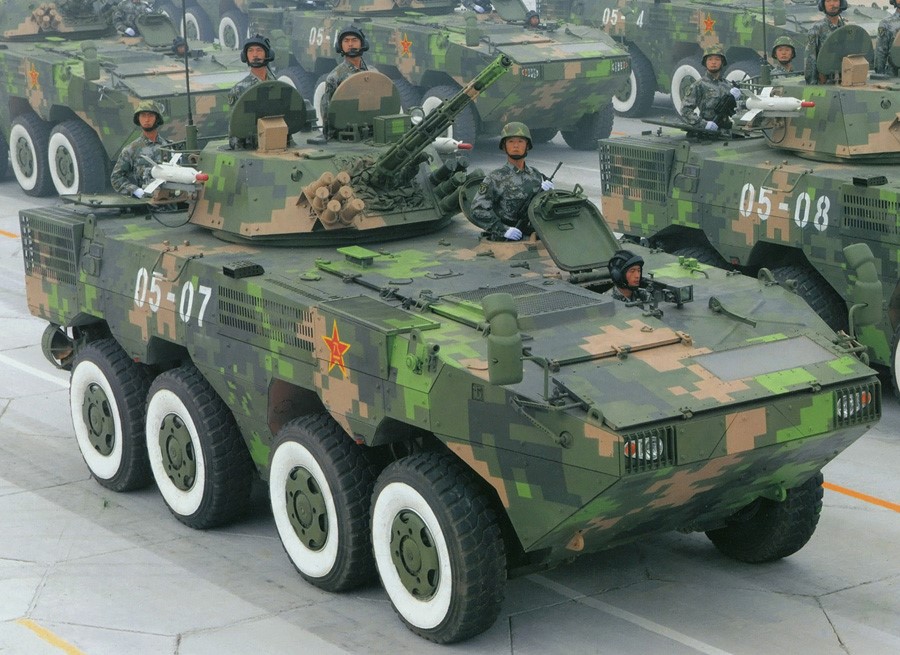

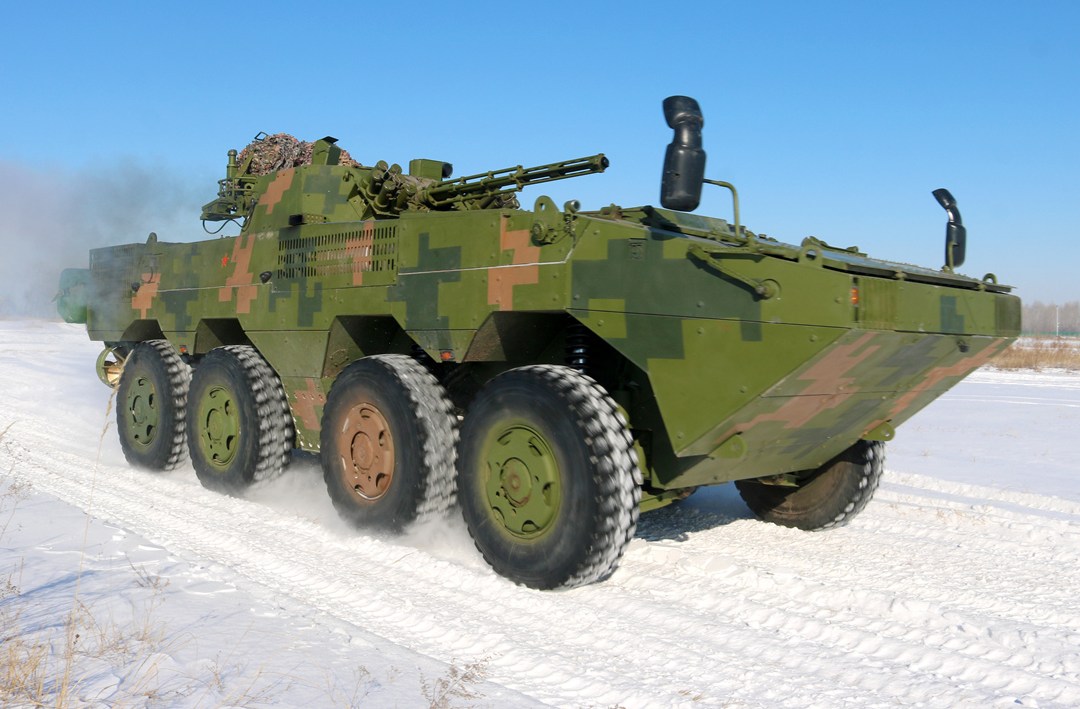

The People's Liberation Army (PLA) Type 08 or ZBD08 is a 8x8 wheeled modular armored vehicle family intended to serve at the Brigade level. The Type 08 8x8 platform development started in early 2009 as the Chinese counterpart to the United States Army Stryker wheeled armored vehicle family. The basic Type 08 vehicle is 8 meters long and weighs 21 tons with a maximum range of 800 kilometers on road. The vehicle's top speed on road is 100 kilometers per hour. It features a crew of three-man and carries up to seven fully equipped infantrymen. The vehicle is water sealed and features waterjets to support amphibious operations with a maximum speed of 8 kilometers per hour on water. The first units equipped with the new armored vehicle entered service within the PLA in October 2009 and several versions have been fielded since. The ZBD08 vehicles are meant to become the backbone of China's rapid reaction forces. These vehicles are powered by a Deutz Mainz turbocharged and intercooled diesel engine developing 340 KW of power. These vehicles also feature air conditioning and vibration reduction system.

Ground Specifications

Crew 3

Mobility Type Wheeled (8x8)

Main Weapon 30 millimeter

Max Speed 100.0 km/h

Range 800.0 km

Overview (Deagel)

Group Wheeled Armored Vehicles

Status Active

Also Known As Type 08 IFV, ZBL-09

Origin China

Contractor NORINCO

Initial Operational Capability (IOC) October 2009

Total Production 3,500

Specifications (Deagel)

Crew 3

Troops 7

Wheel Drive 8

Wheels 8

Dimensions — Height 2.1 meter

Dimensions — Length 8 meter

Dimensions — Main Gun Caliber 30 millimeter

Dimensions — Width 3 meter

Mass — Combat Weight 21,000 kilogram

Performance — Max Range 800 kilometer

Power — Power 340 kW

Speed — Top Speed 100 kph

Speed — Top Swimming Speed 8 kph

Gear (Deagel)

Item 1 Anti-Tank Guided Missiles: HJ-9 (2)

Variants

Variant 1 ZBL-08

Variant 2 ZBD09 CV

Variant 3 ZTL-11

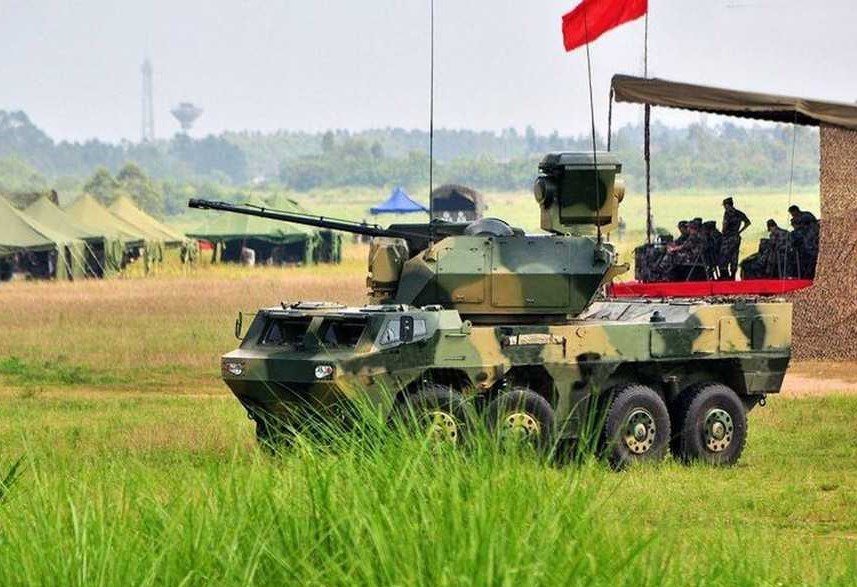

Variant 4 ZSL-10

Variant 5 PLL-09

Variant 6 ZBD08 SATCOM

Variant 7 ZBD08 ARV

Variant 8 PGL-12

Variant 9 ZBD08 RV

Variant 10 ZBD08 EV

Details

Country of Origin China

Sources

deagel.com: https://www.deagel.com/x/x/a002959

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

8 m

Width

3 m

Height

2.1 m

Weight

21000 kg

Operators (1)

China
