Rajput

Rajput

Destroyers
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Rajput
Designation
Rajput
Alternate Designation
Kashin II
Equipment Type
Destroyers
Manufacturer
61 Kommunara
Date of Introduction
1980
Description

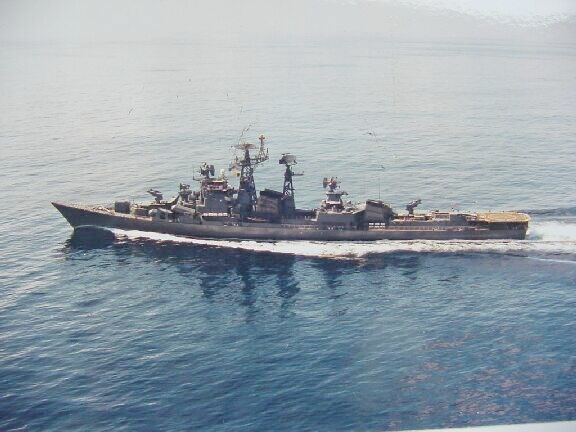

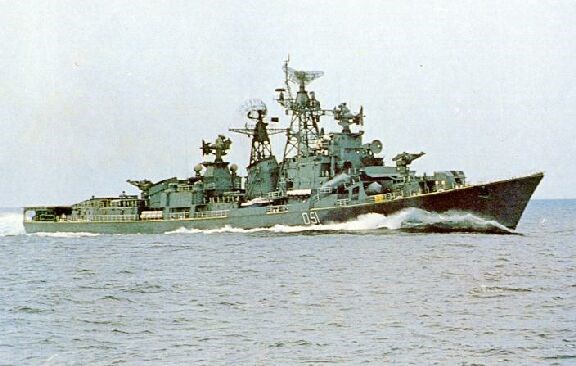

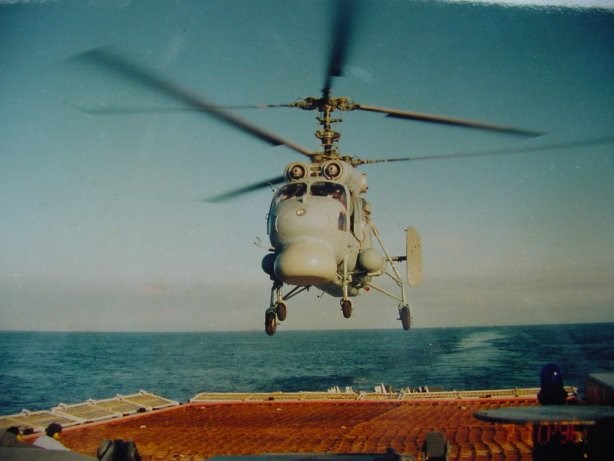

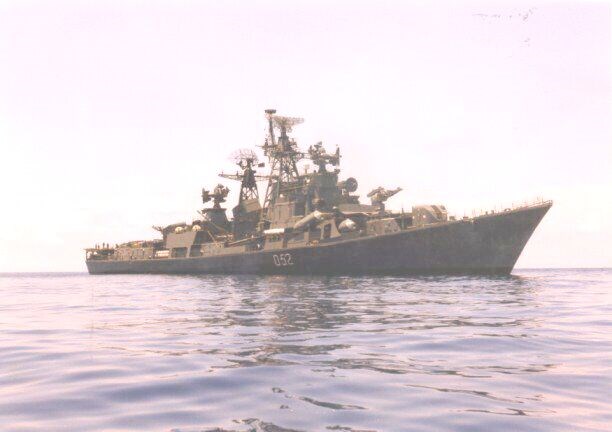

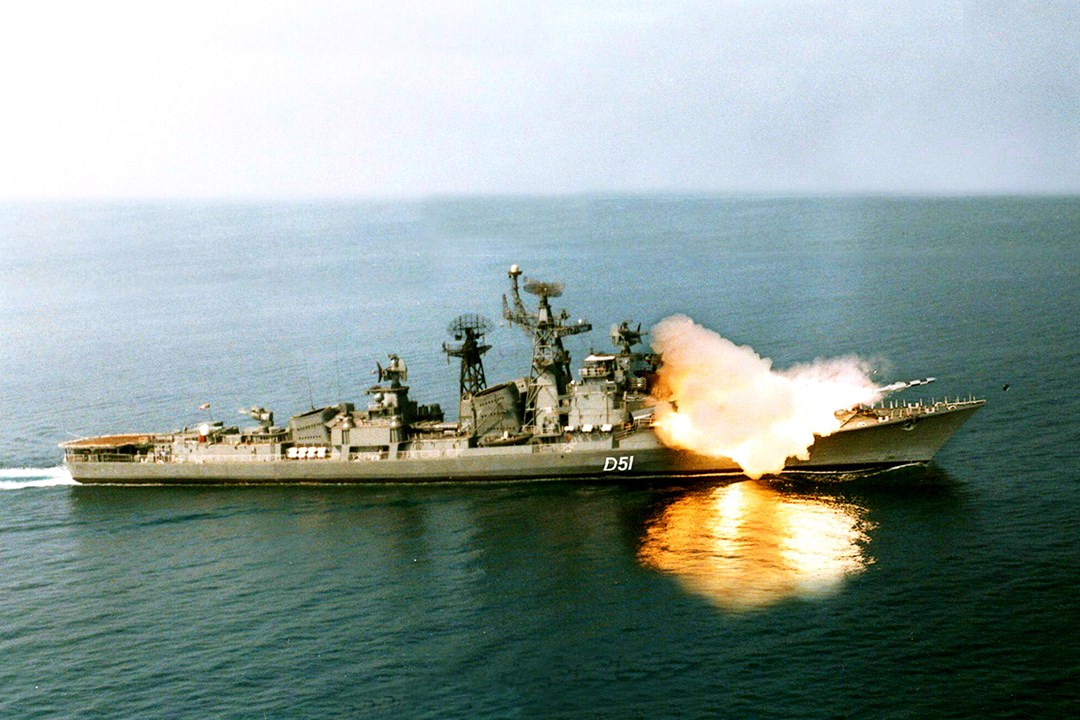

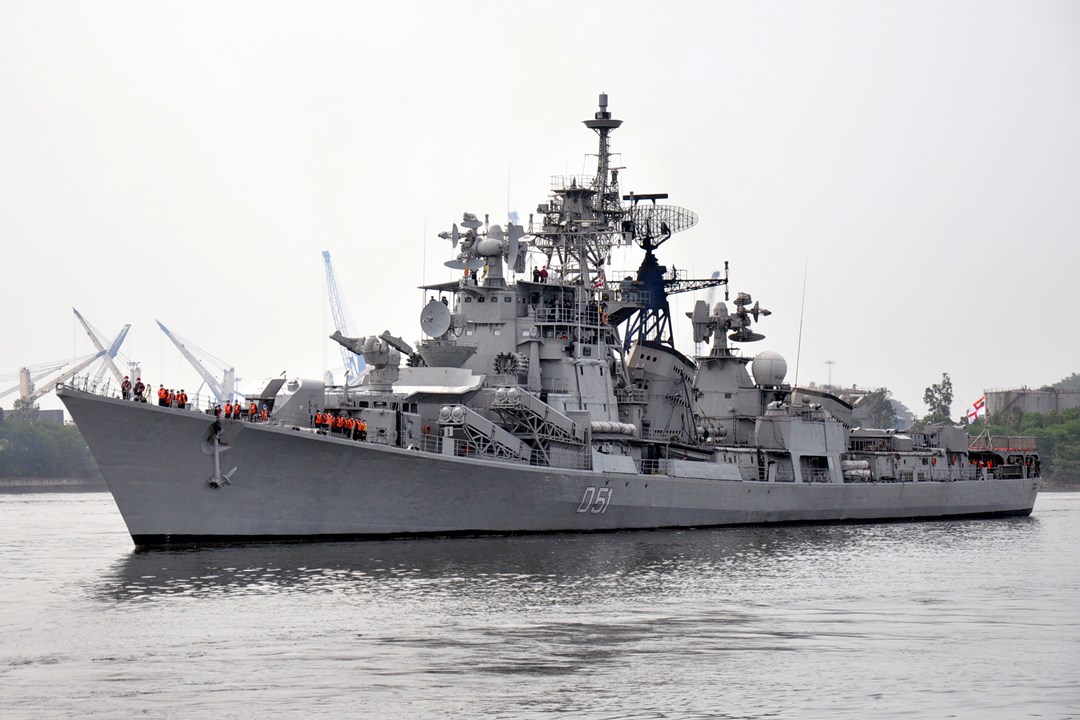

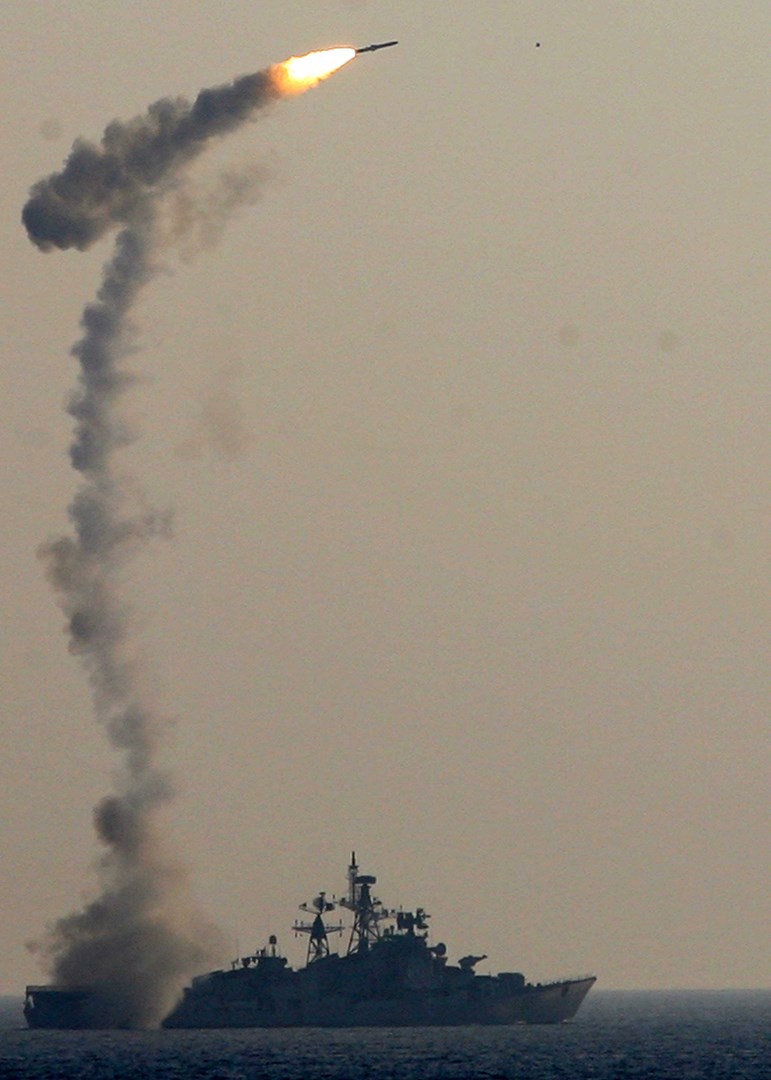

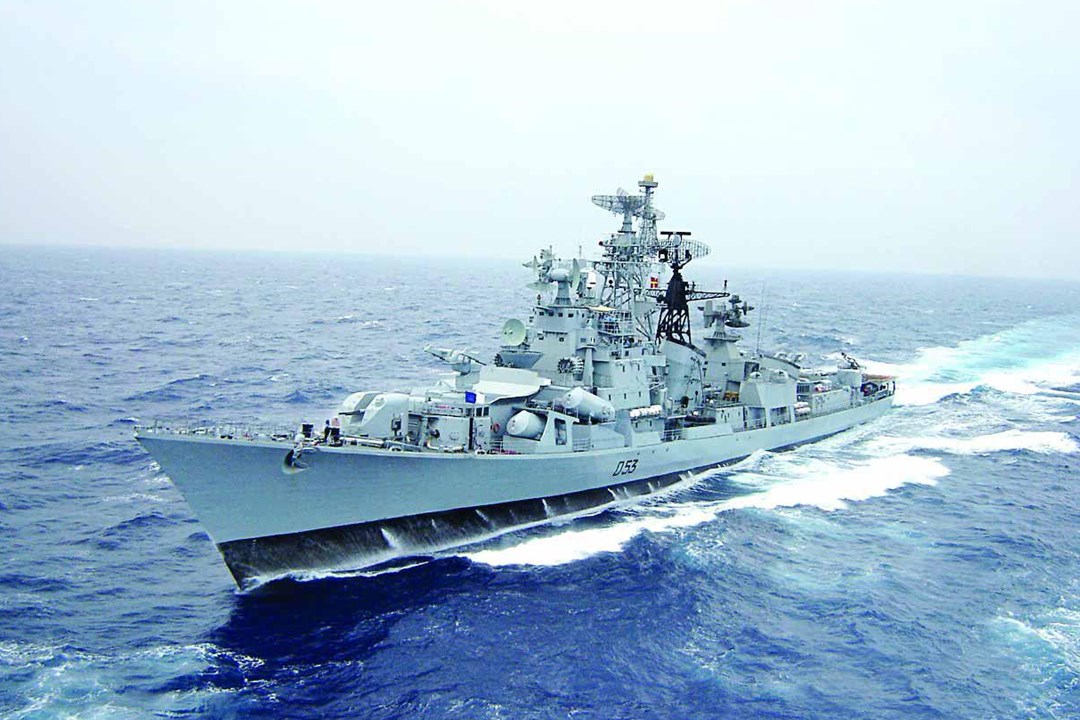

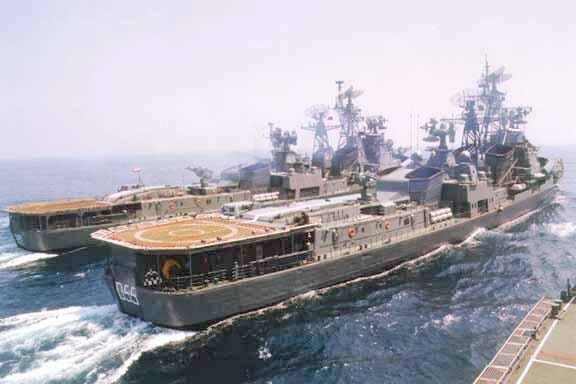

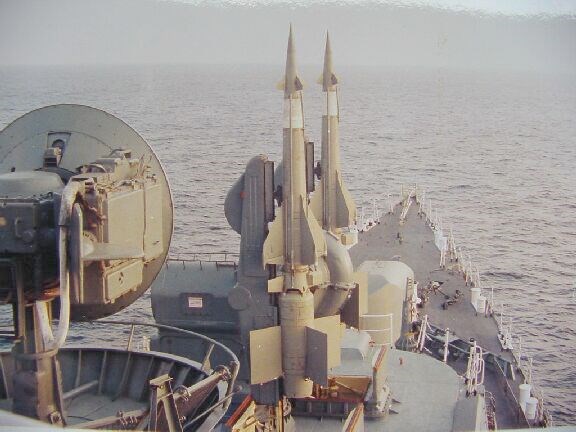

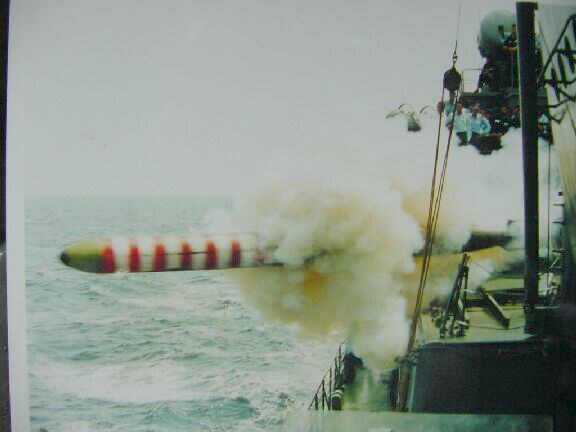

The Indian Navy's Rajput-class destroyers were built in the former Soviet Union in the 1980s based on the improved Kashin destroyer project, also known as Kashin II. These ships are suitable for anti-aircraft warfare (AAW), anti-submarine warfare (ASW) and anti-surface warfare (ASuW). Their propulsion system consists of four gas turbines and two shafts developing 94,000-shp which translates into a top speed of 35 knots. The Rajput-class destroyers feature an aft flight deck and hangar to accommodate either a Ka-25 or Ka-27 ASW helicopter. The Rajput-class destroyer weapon system comprises two SA-N-1 Goa air defense systems mounted at the ship's bow and stern with 44 missiles, four SS-N-2C Styx anti-ship missiles mounted at bow, one dual 76.2mm naval gun, four 30mm anti-aircraft guns, two RBU-6000 ASW rocket launchers and five 21-inch torpedo tubes. The lead ship of this class, INS Rajput, received the BrahMos supersonic anti-ship missile replacing the SS-N-2C missiles in September 2005. According to the Indian press, the remaining four destroyers will be upgraded with the new supersonic anti-ship missile.

Naval & Littoral Specifications
Crew 320
Displacement 4974.00 tonnes
Beam 15.80 m
Draft 5.00 m
Max Speed 35.0 knots
Overview (Deagel)
Group Destroyers
Status Active
Also Known As Kashin II
Origin Ukraine
Contractor 61 Kommunara
Initial Operational Capability (IOC) 1980
Total Production 5
Specifications (Deagel)
Crew 320
Enlisted 285
Number of Aircraft 1
Number of Weapons 48
Officers 35
Torpedo Tubes 5
Dimensions — Beam 15.8 meter
Dimensions — Draft 5 meter
Dimensions — Length 147 meter
Dimensions — Main Gun Caliber 76.2 millimeter
Mass — Full Displacement 4,974 ton
Mass — Standard Displacement 3,950 ton
Power — Total Combined Power 94,000 shp
Speed — Top Speed 35 knot
Gear (Deagel)
Item 1 Anti-Ship Missiles: BrahMos (4)
Item 2 Anti-Submarine Rockets: RBU-6000 (2)
Item 3 Area Air Defenses: SA-N-1 Goa (2)
Item 4 ASW Helicopters: Ka-25 (1)
Item 5 ASW Helicopters: Ka-27 (1)
Item 6 Ship Power Plants: Kaveri Marine Gas Turbine
Item 7 Surface-to-Air Missiles: 5V24 (44)
Details
Country of Origin Ukraine
Category Destroyers
Naval > Destroyers
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
147 m
Width
15.8 m
Height
Weight
4974000 kg
Operators (1)
India
