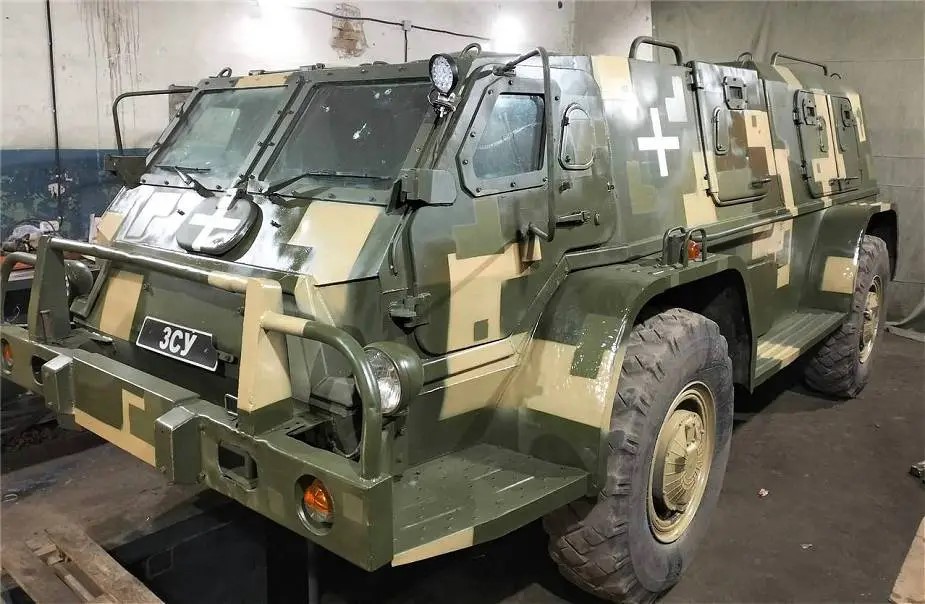

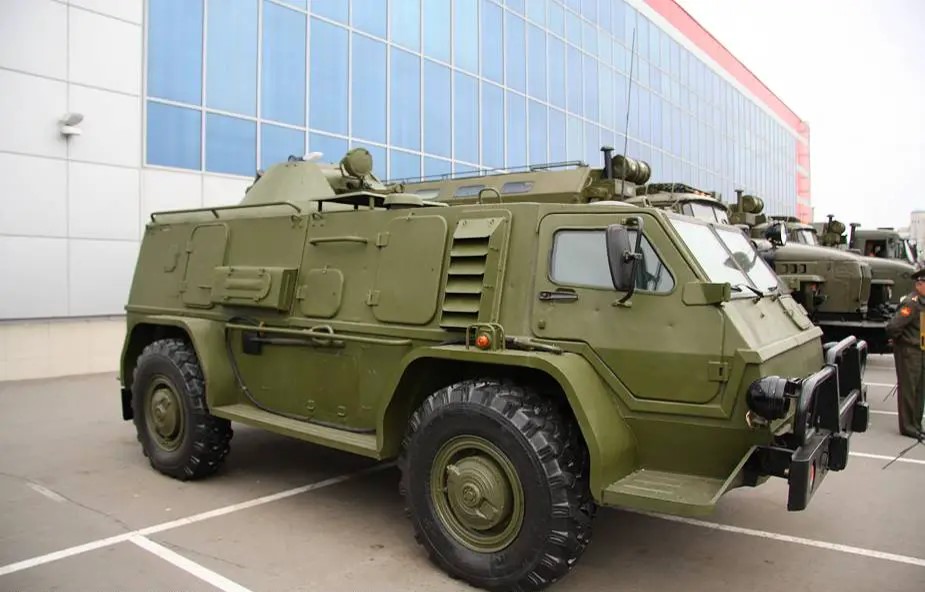

GAZ-3937 Vodnik Russian 4x4 Amphibious Armored Personnel Carrier (APC)
GAZ-3937 Vodnik
Amphibious Armored Personnel Carrier (APC)
Other
Basic Information
Name
GAZ-3937 Vodnik Russian 4x4 Amphibious Armored Personnel Carrier (APC)
Designation
GAZ-3937 Vodnik
Alternate Designation
GAZ-3937 Vodnik
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
GAZ
Date of Introduction
2005
Description
The GAZ-3937 Vodnik Russian 4x4 Amphibious Armored Personnel Carrier (APC) is intended for various military and security applications, such as personnel transport, reconnaissance, and border patrol. The vehicle features a modular design, allowing for the installation of various types of equipment and weapons systems based on mission requirements. The Vodnik is known for its off-road capabilities, high mobility, and amphibious nature, making it a versatile and effective combat vehicle.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Main Weapon
14.5mm KPVT heavy machine gun
Engine
Turbocharged Diesel (175 hp)
NBC Protection
Yes
Amphibious
Yes
Max Speed
120.0 km/h
Range
1000.0 km
System
Alternative Designation
GAZ-3937 Vodnik
Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Gorky Automobile Plant (GAZ)
Configuration
4x4
Crew
2 ea
Passengers
8 ea
Dimensions
Length
5.8 m
Width
2.6 m
Height
2.6 m
Weight, Combat
7,500 kg
Automotive
Engine Name
GAZ-562 (175 hp), YaMZ-460 (160 hp) or HINO JO7C
Engine Type
Turbo Diesel
Engine Power
175 hp
Maximum Range
1,000 km
Maximum Speed
120 km/h
Amphibious
Yes
Main Weapon System
Note
The GAZ-3937 Vodnik can be equipped with a variety of turrets, depending on the specific mission requirements and user preferences. In the APC version is fitted with a one-man turret which is similar to the turret mounted on the BTR-80 8x8 APC. This turret is armed with one 14.5mm KPVT heavy machine gun, one 7.62mm PKT machine gun, and a bank of six 81mm smoke grenade launchers is mounted at the rear of the turret.
Protection
Armor
Withstands small arms fire, enemy mines and shells' shrapnel
Applique Armor
Avaialble
NBC Protection
Yes
Smoke Equipment
Yes
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.8 m
Width
2.6 m
Height
2.6 m
Weight
7500 kg
Operators (1)
Russia
